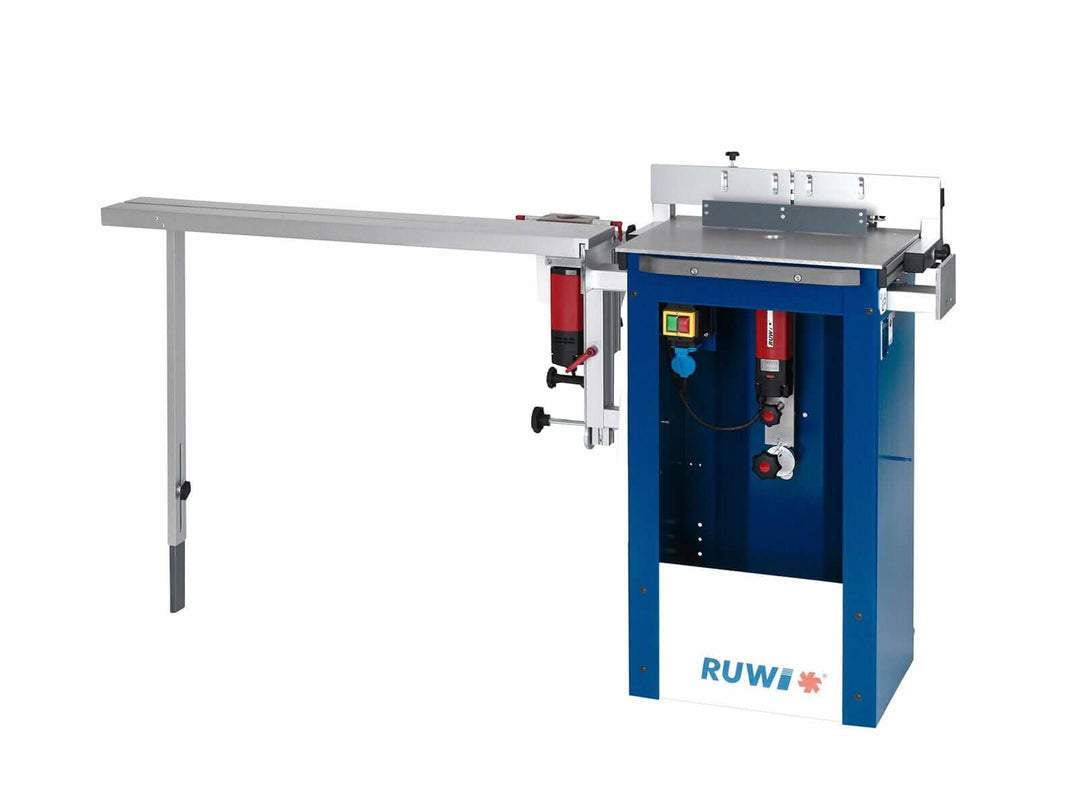

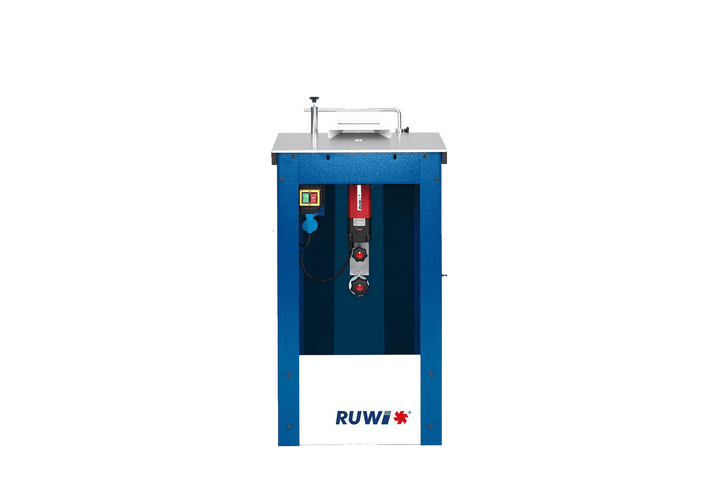

RUWI router table Basic

Brief description

The compact RUWI Basic router table is the ideal introduction to professional router technology - especially if space in your workshop is limited. With a robust 1050-watt routing unit and precise height adjustment that can be fixed in any desired position, it offers you everything you need for reliable and efficient work. Thanks to the modular design, you can flexibly expand your milling table at any time and easily retrofit accessories. The integrated tilting chassis also ensures that you can use the router table quickly and conveniently wherever you need it.

Possible applications

• Perfectly round off edges: Quick rounding of workpiece edges, e.g. on furniture or cutting boards.
• Perfect addition to the CNC: As long as the CNC is running, the operator has time to separate workpieces or carry out further steps directly at the RUWI milling table
• Efficient grooving and rebating: use a grooving cutter to mill precise back panel grooves or connector slots.
• Flush routing and copying: Ideal for routing protruding edges flush or tracing templates precisely.
• Ready to use immediately for one-off pieces: Place the milling table right next to your workbench - so you are always flexible for custom-made products and individual projects.
• Flexible mobility: Easy to transport on construction sites and assembly sites thanks to the integrated tilting chassis.
• Healthy working: Double extraction (top and bottom) for a clean and virtually dust-free workshop.

Downloads

RUWI product catalog PDF

All details

- Dimensions & mobility
- Table size: 520 × 430 mm
- Working height: 910 mm
- Weight: 57 kg, mobile thanks to integrated transport rollers

- Motor & power
- 1050 watts (230 V), infinitely variable (8,000-25,000 rpm)
- Suitable for continuous workshop use
- Smooth start-up and constant speed under load - for quiet working

- Milling spindle & precision
- Steel spindle Ø 22 mm
- Precise double bearing
- Milling stroke up to 43 mm
- Tool change easily possible from above

- Dust extraction
- Double dust extraction (above and below the table top)
- Connection diameter: Ø 120 mm

- Safety & quality
- Developed and manufactured in Germany
- BG and wood dust tested - for maximum safety in the workshop
