Brief description

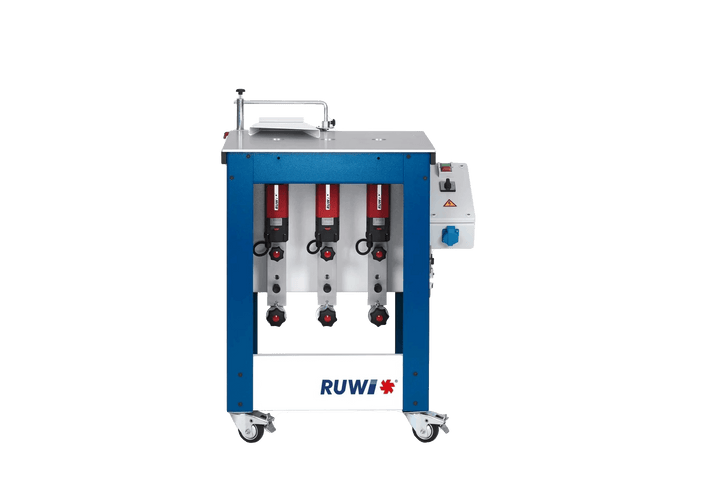

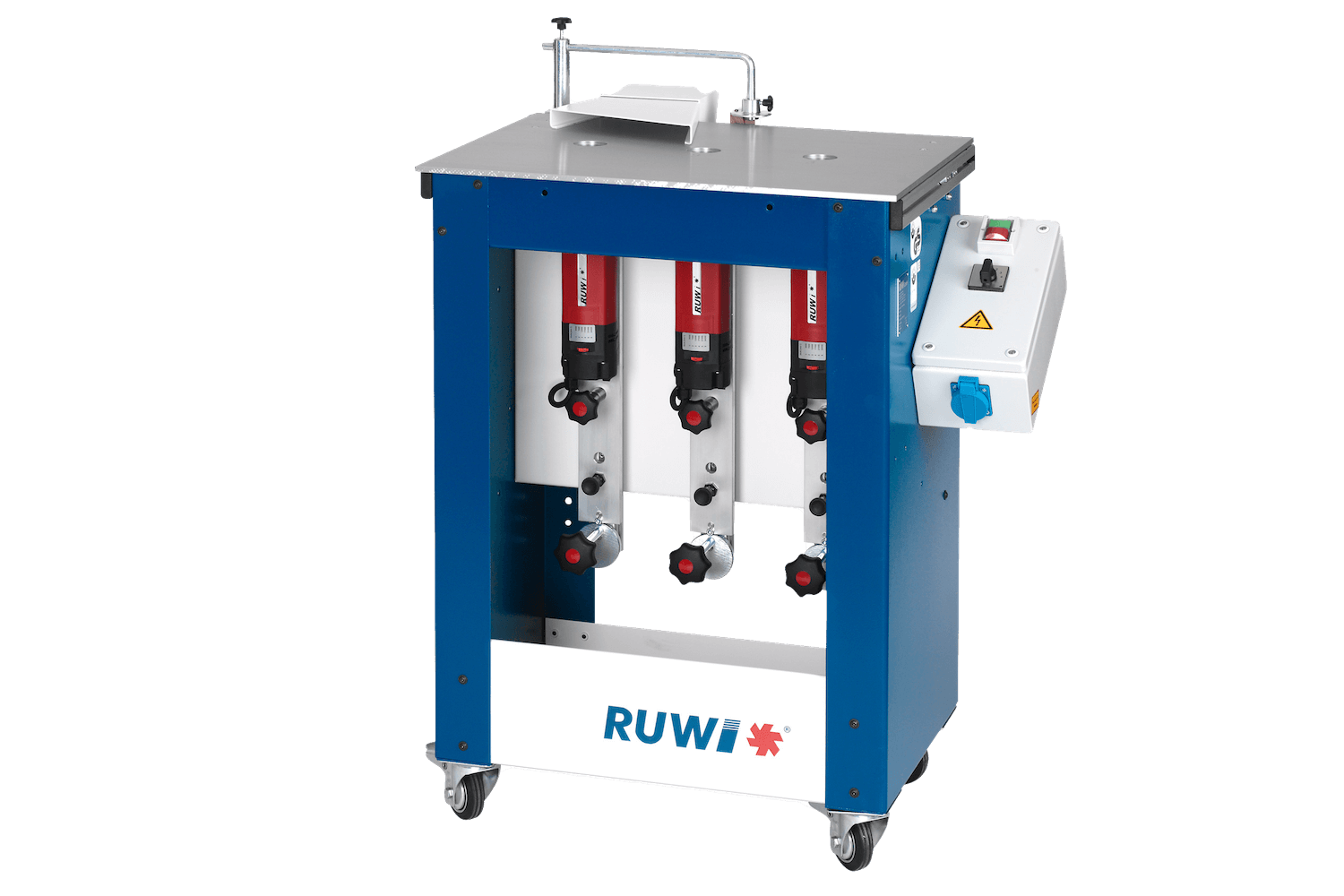

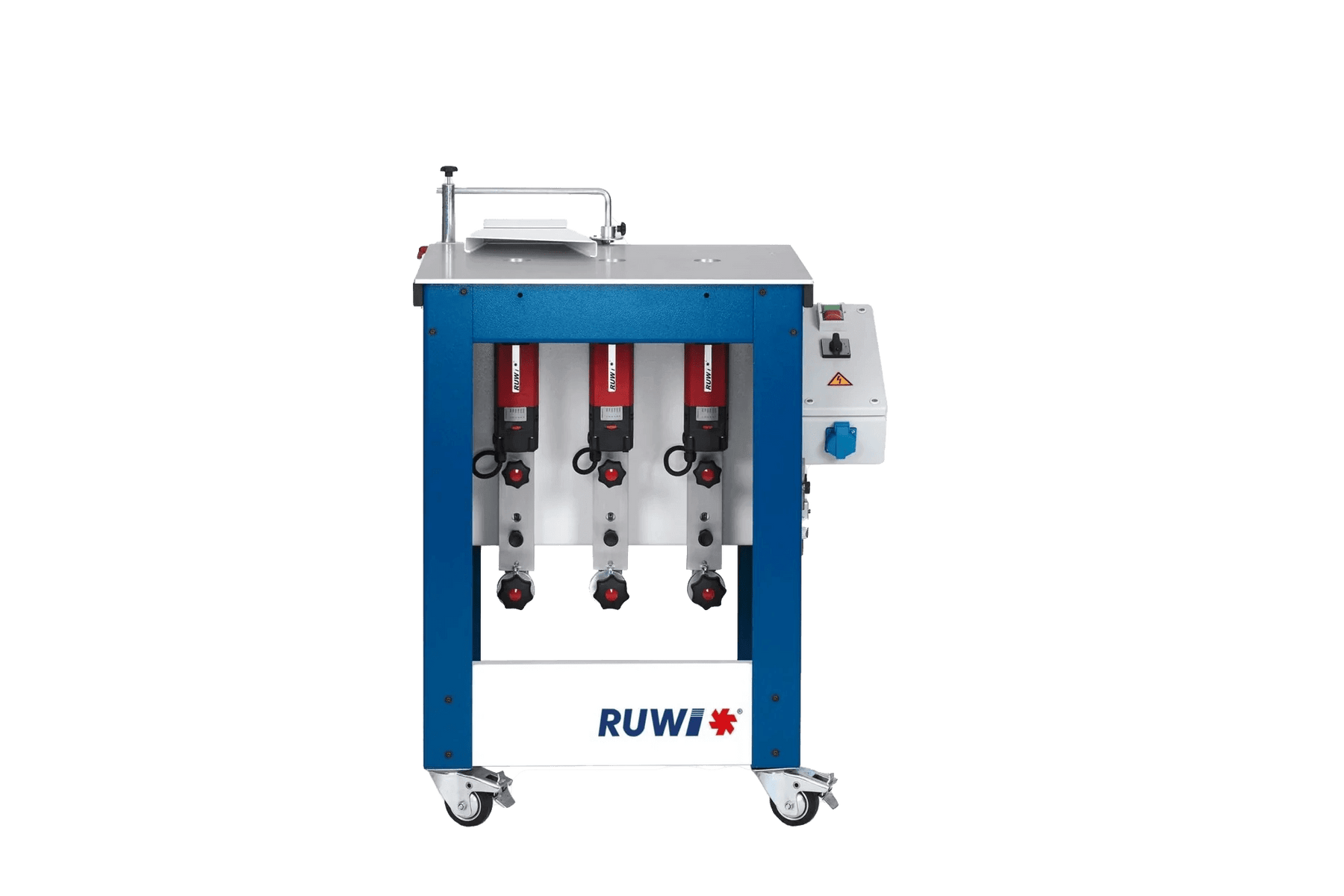

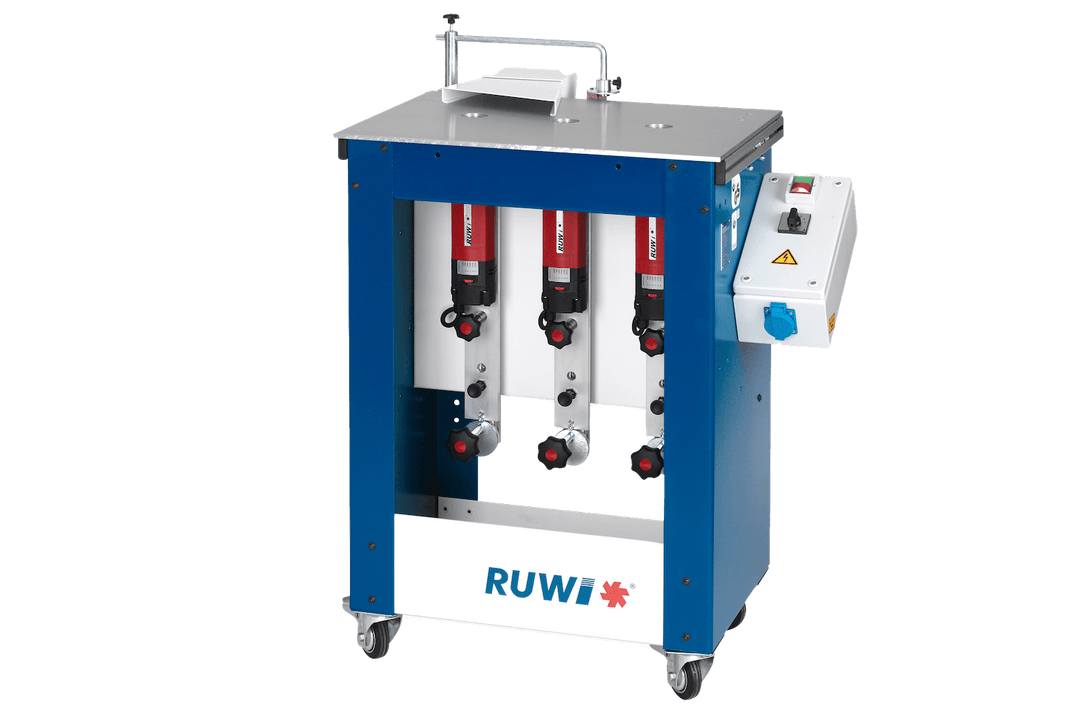

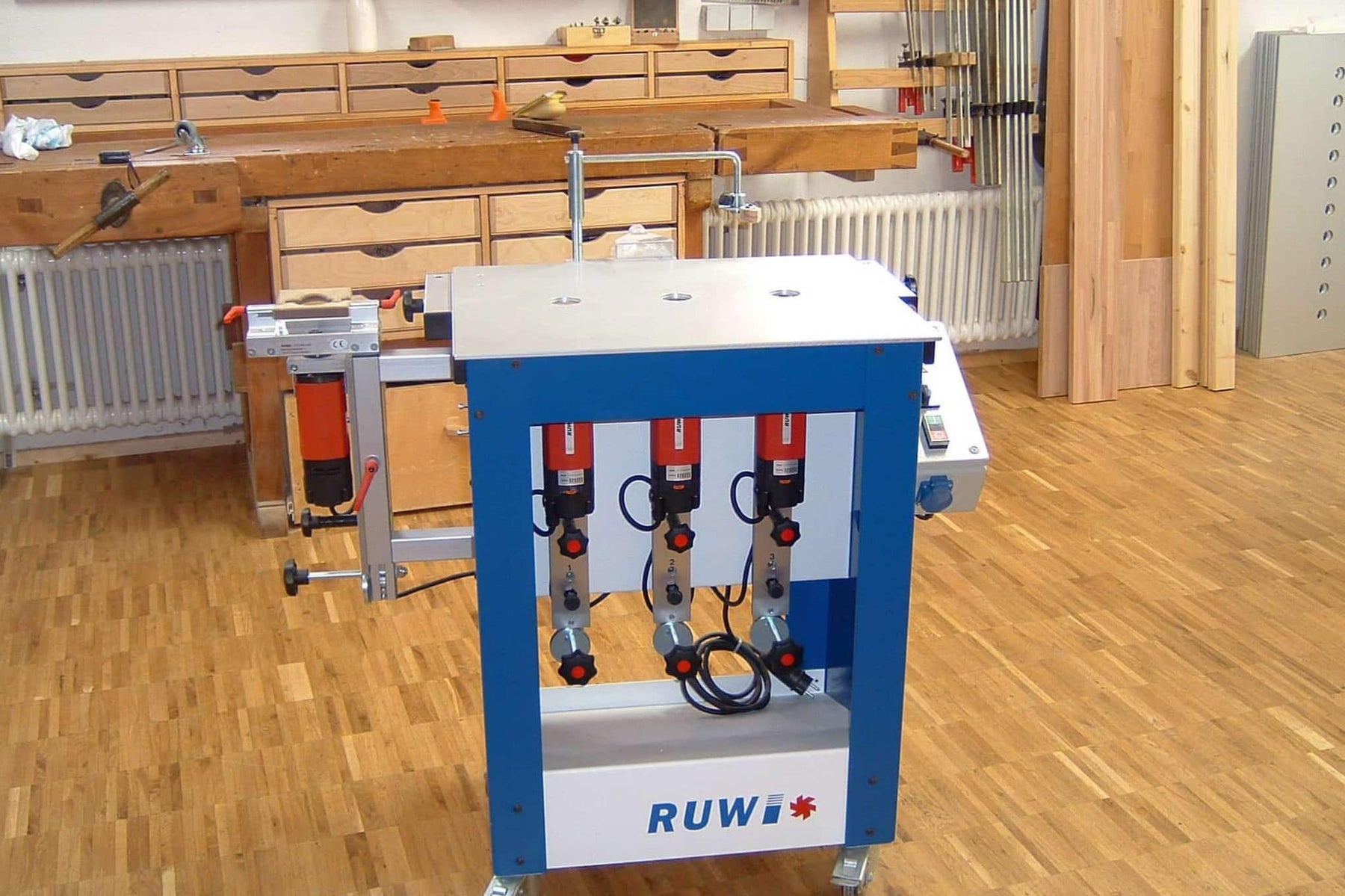

Tool changes are the biggest time-waster on any router. You rout an edge flush, then need the rounding bit, followed by the groove cutter—and every time, you have to remove the tool, re-clamp it, adjust it, and test it. The RUWI Classic Router Table solves this in the simplest way possible: three router motors on a single table, each with a permanently clamped tool. Finish one, move it along, and keep going.
Three 1,050-watt motors, manufactured in Germany, with continuously variable speed from 8,000 to 25,000 rpm, soft start, and current limiting. The steel spindle with return thread protects the bearings from dust, while the double-bearing design ensures concentricity during profile milling. Table size 640 × 500 mm at a working height of 910 mm—designed for longer workpieces. GS-certified (DGUV test) and wood dust-tested. The dual dust extraction system above and below the table top (connection Ø 120 mm) is standard on the RUWI series, not a special option.

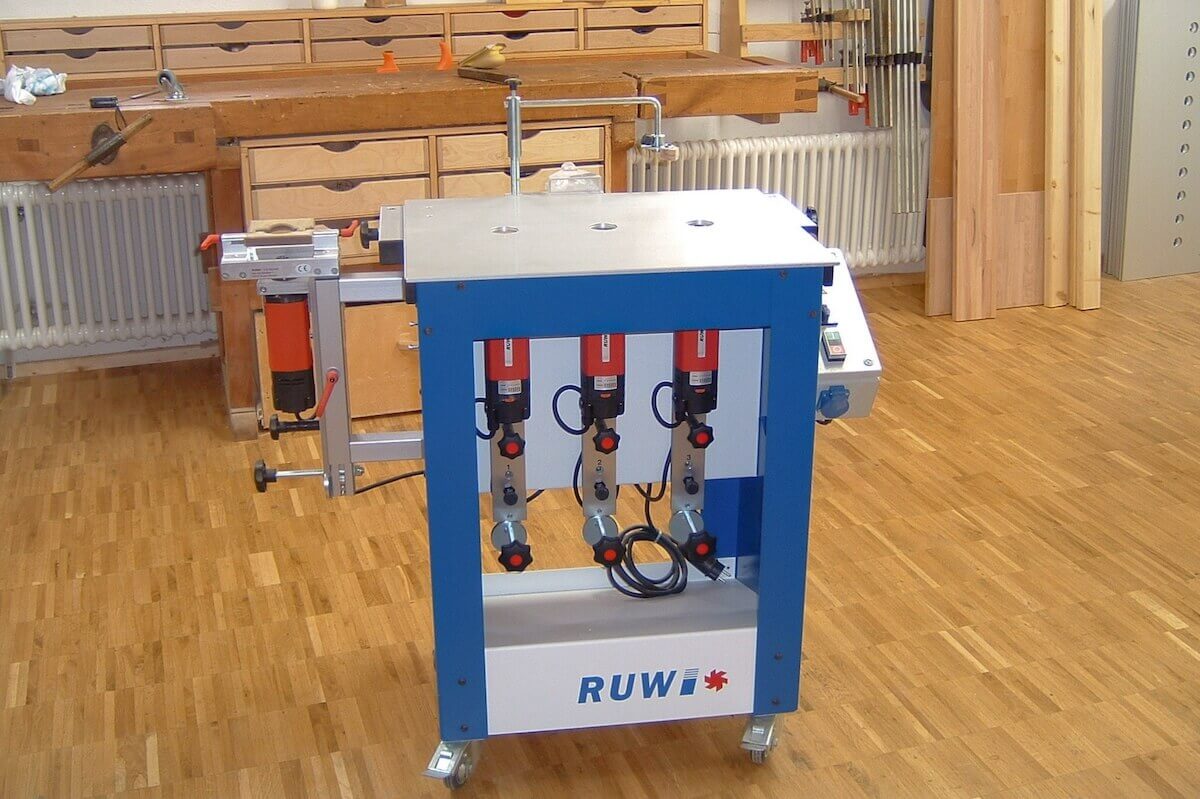

The Classic is our best-selling router table model in the woodworking and interior finishing industries—and built to outlast generations of woodworkers. Some Classic router tables have been in use for over 20 years in the same workshops. At the Schwarzwälder woodworking shop in Königsfeld —a family business since 1928—there is a Classic in the workshop, used, among other things, for post-processing after CNC machining.
If you only need one spindle, the RUWI Basic Milling Table is the better choice. If you want five to ten spindles, check out the RUWI Premium Milling Table. If you use cutters with larger shanks and higher power ratings, the RUWI Classic Performance Milling Table is the more powerful option, featuring 1,600-watt motors.
Possible applications
- Three cutters in use simultaneously—for example, a rounding cutter, a chamfering cutter, and a grooving cutter. No changeover, no readjustment, no test cuts
- Edge and profile work on furniture components, doors, stairs, and solid wood elements
- Mass production of edge profiles, grooves, and recessed handles without any downtime between components
- An add-on to the CNC milling machine for finishing work and special cuts that aren't cost-effective to do on the CNC machine
- Mobile milling station – rolled on four swivel casters with brakes to wherever milling is needed
- Also suitable for training workshops, vocational schools, and companies that provide on-the-job training – GS-certified (DGUV-tested) and tested for wood dust
Downloads
RUWI Product Catalog 2026 (PDF)
All details
• Dimensions and Mobility
- Table size 640 × 500 mm
- Working height 910 mm
- Net weight 91 kg
- 4 swivel casters with brakes for mobile use in the workshop
• Motors and Power
- 3 motors, 1,050 watts each (230 V), manufactured in Germany
- Continuously variable speed from 8,000 to 25,000 rpm, constant power under load
- Soft start with start-up current limitation
- Designed for continuous operation
• Milling spindle
- Steel spindle Ø 22 mm with return thread to keep dust out of the bearings
- Double bearings for smooth concentricity during profile milling
- Milling stroke up to 43 mm
- Tool change from above, standard collet Ø 8 mm (alternatively Ø 6 / 6.35 / 10 mm)

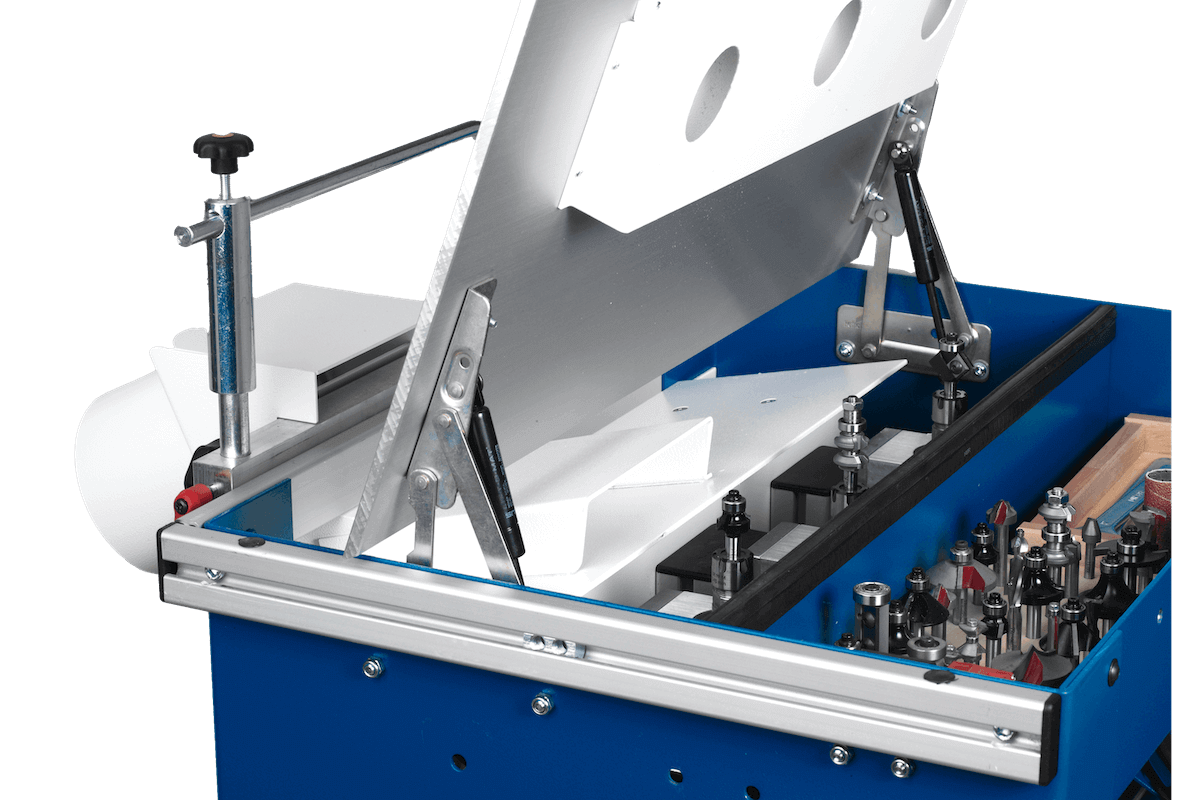

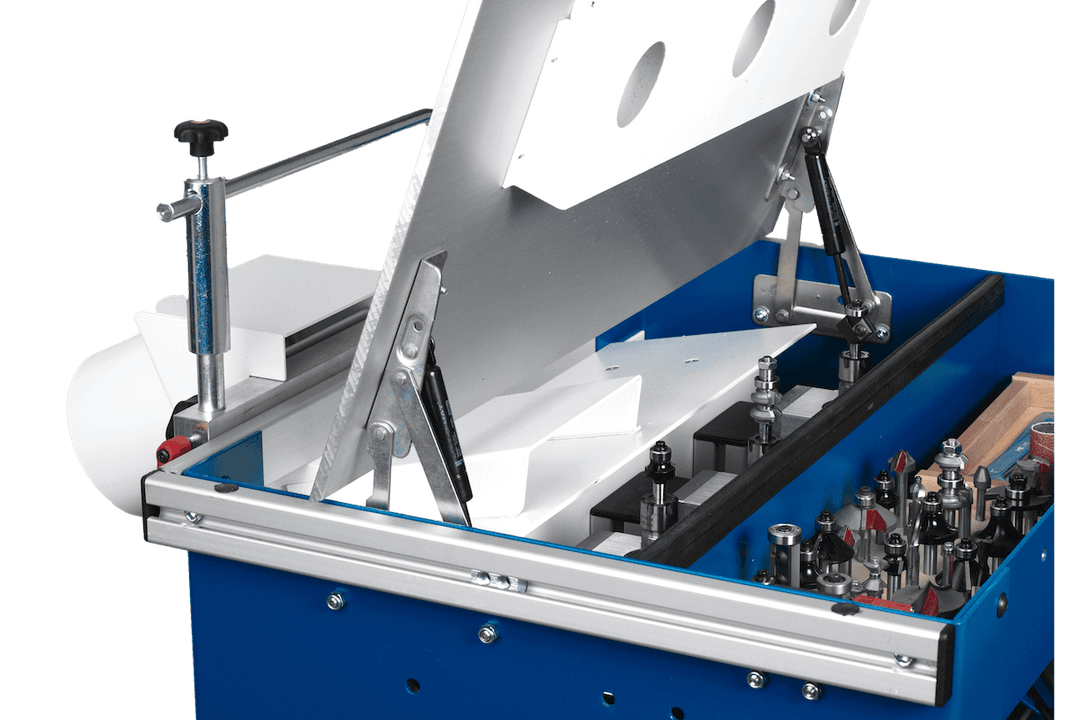

• Tool management
- Up to 3 tools ready for use simultaneously
- Set tool height remains repeatable

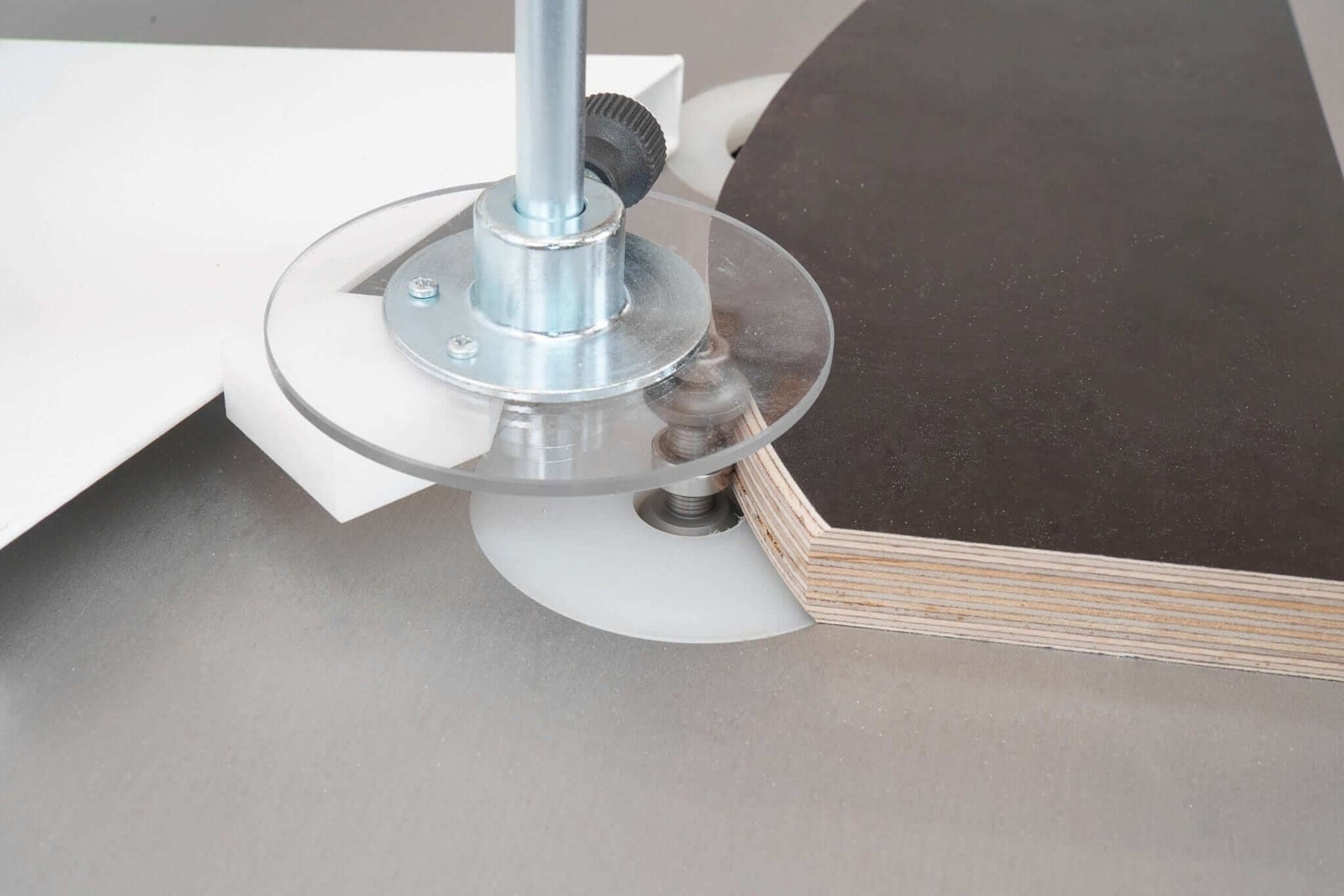

- Expandable with stop ruler, curved ruler, table extension, and other accessories
• Dust extraction
- Dual extraction above and below the tabletop
- Connection Ø 120 mm
• Safety and quality
- Developed and manufactured in Germany
- Certified with the DGUV GS seal, and tested for wood dust
