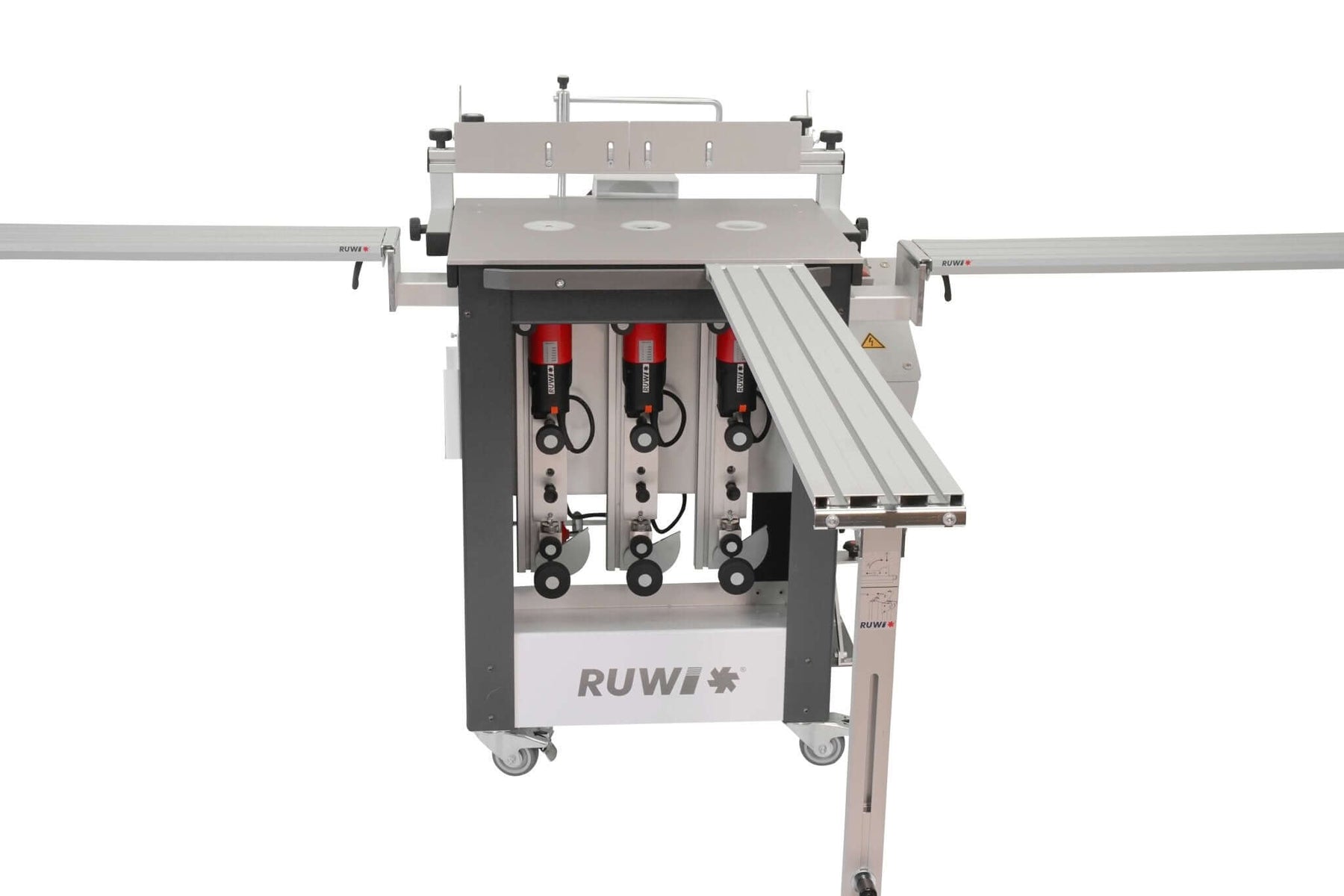

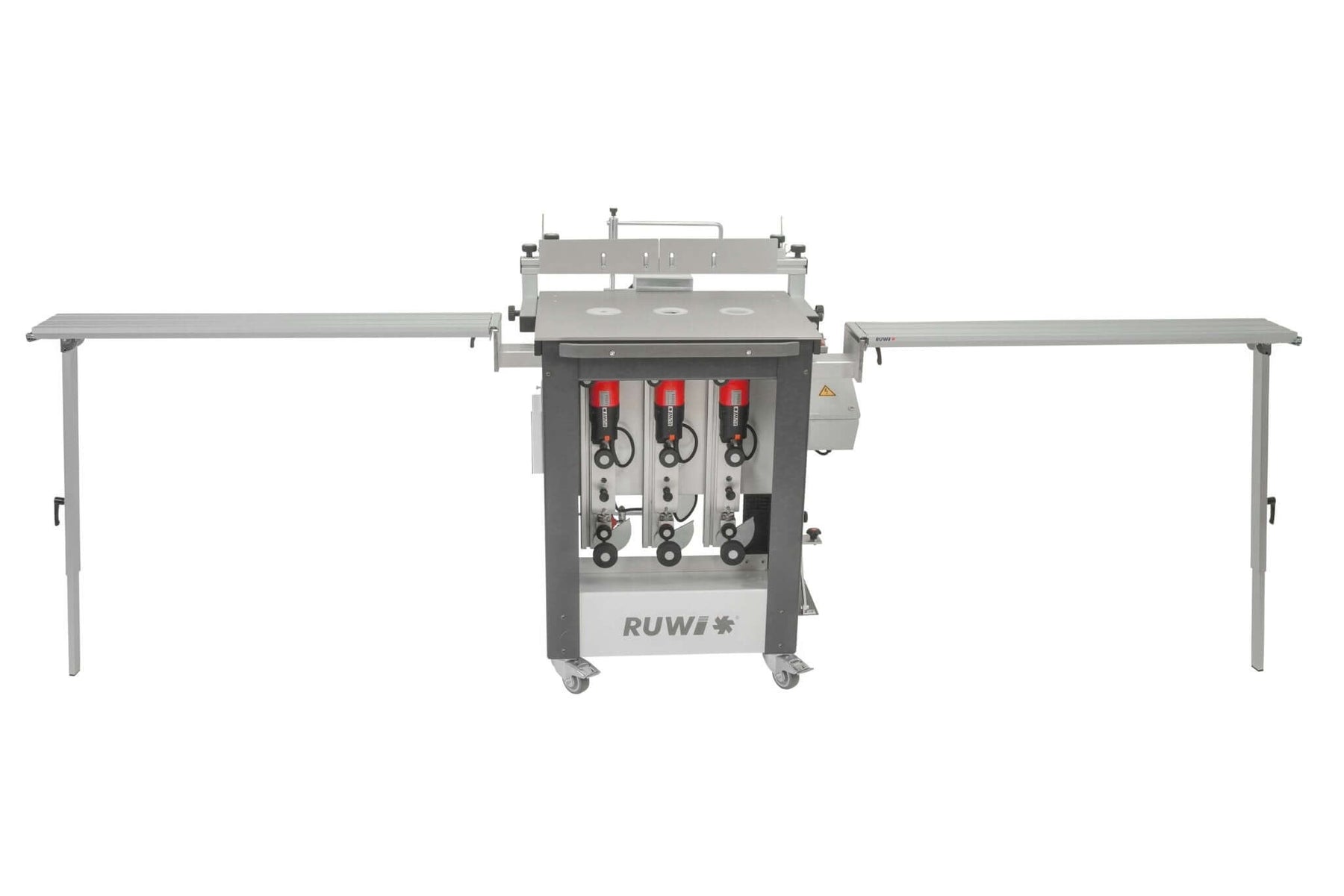

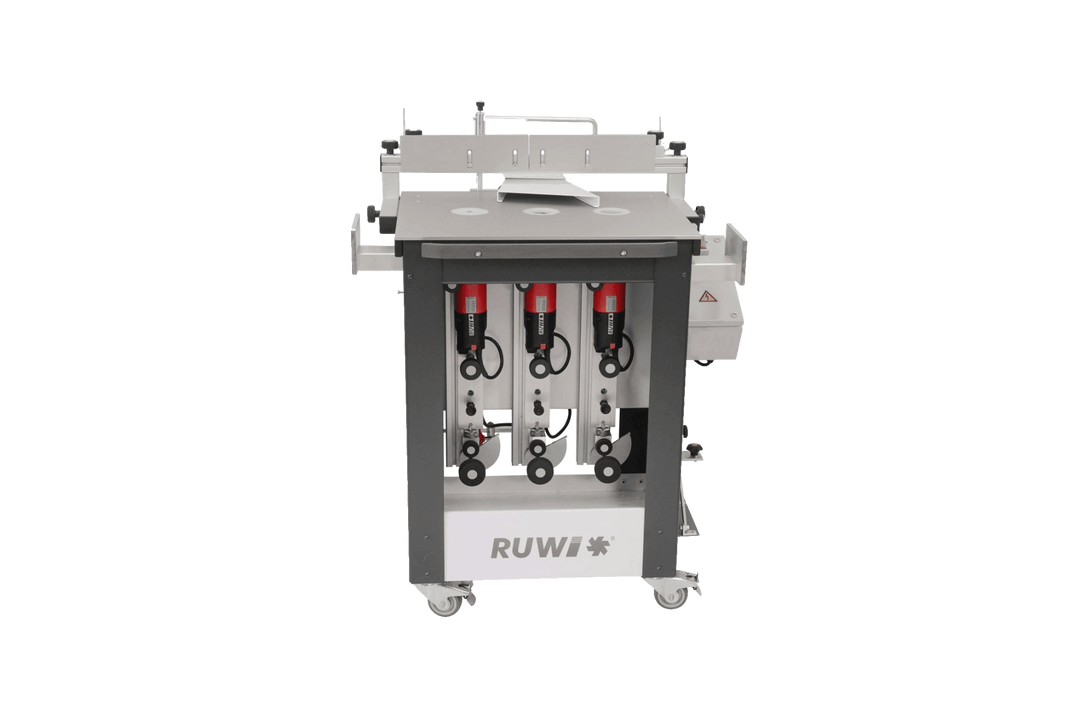

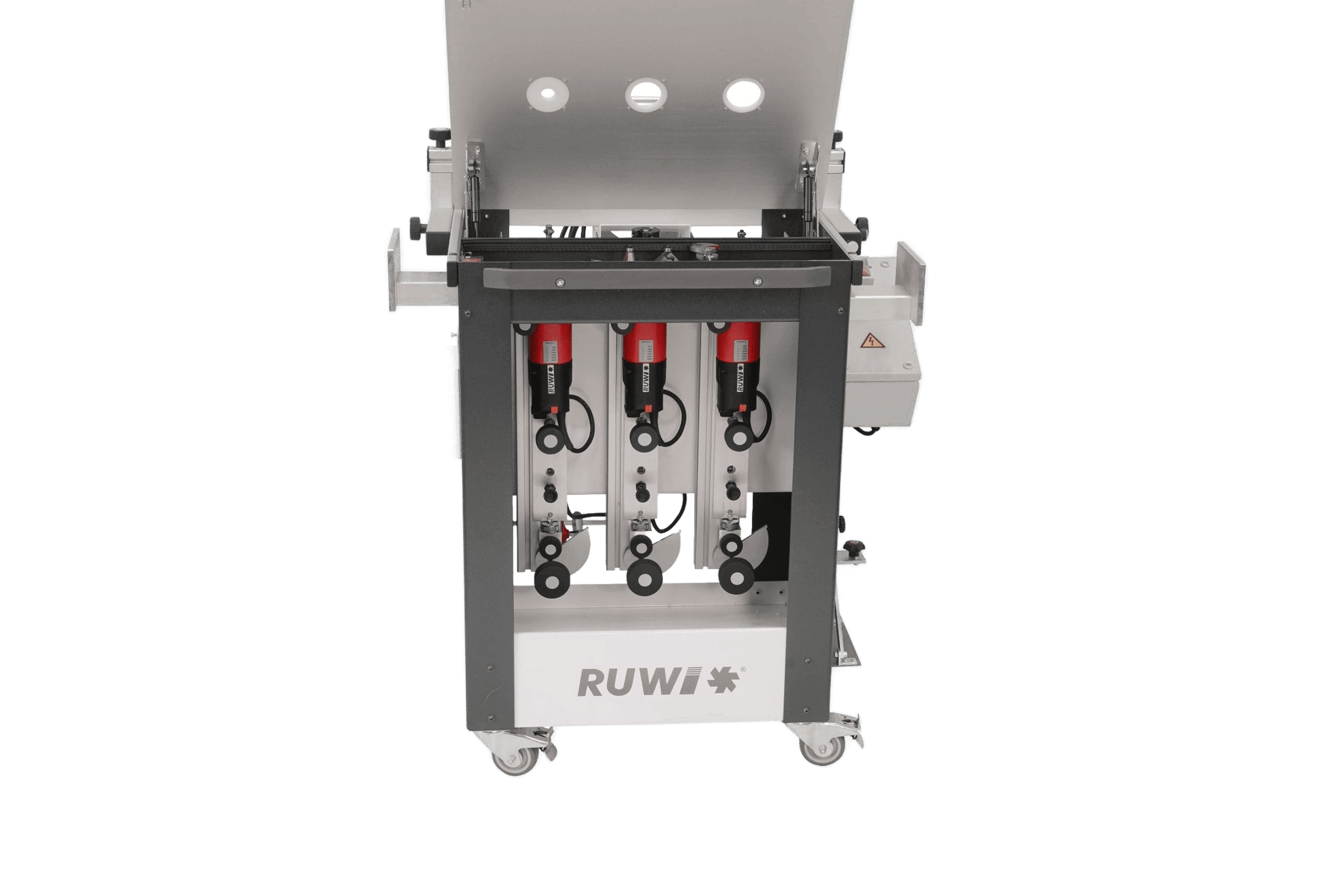

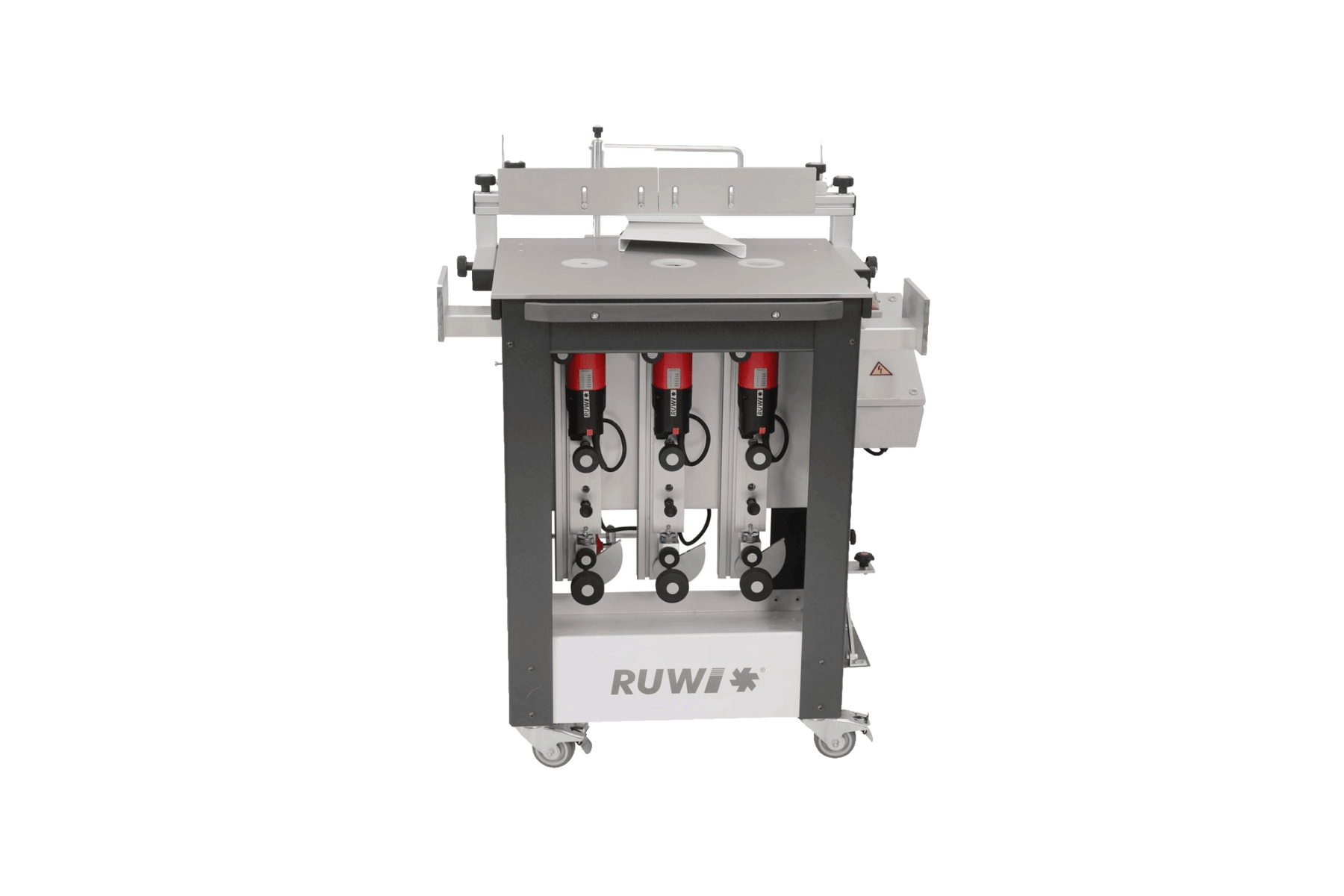

RUWI router table Classic Performance

Brief description

The RUWI Classic Performance router table combines powerful 1,570-watt motors with integrated fine adjustment on all three router spindles. Specially designed for demanding professionals who regularly work with large router bits—such as profile or rebate cutters—and challenging materials like solid wood. A versatile machine “Made in Germany” that impresses with its robust construction and decades of reliability.

Possible applications

• Master heavy milling work with ease: Large profile milling cutters up to tool diameter 55 mm and shank diameter 12.7 mm (½ inch) can also be used.
• Also ideal for carpentry and stair construction: mill handrails, round off stair treads, or cut deep grooves with precision.
• Precise routing results: Integrated fine adjustment enables precise adjustment to within 0.1 mm - ideal for drawers and furniture parts with precisely fitting joints.
• Versatility in everyday use: Perfect addition to CNC machining or to relieve the stationary milling machine.
• Durable and low-maintenance: The motors are robust, designed for continuous operation, and equipped with soft-start functionality, overload protection, and temperature monitoring.
• Clear view and safety: Dust-free work zone and protective hood for safe working thanks to double extraction.

Downloads

RUWI Product Catalog 2025 (PDF)

All details

- Dimensions & mobility
- Table size: 640 × 500 mm, height: 910 mm
- Weight: 102 kg, mobile thanks to 4 swivel castors with brakes

- Power & drive

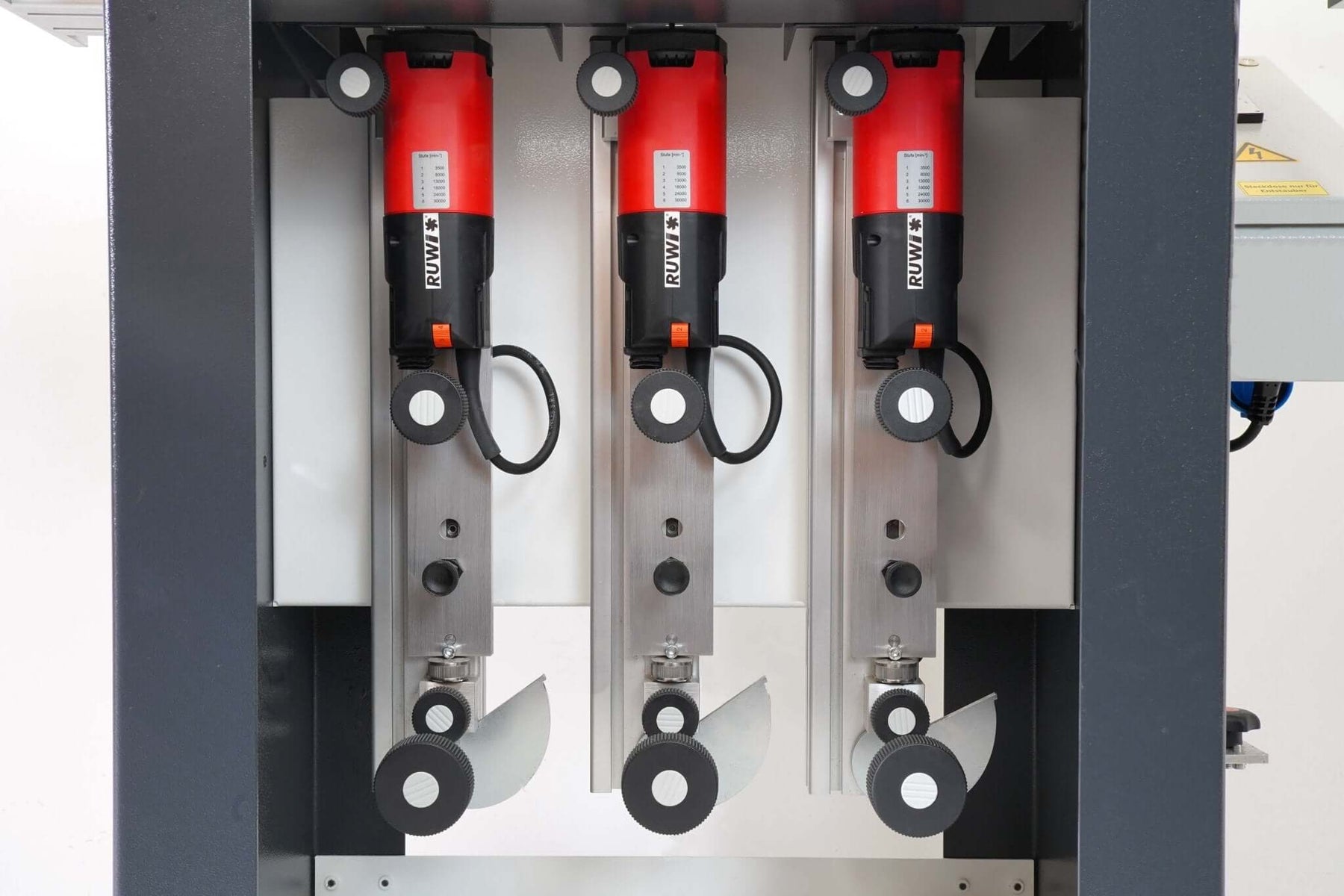

- 3 robust motors with 1600 watts each (230 V), designed for continuous industrial use
- Infinitely variable speed control from 3,000-30,000 rpm
- Control electronics prevent speed fluctuations under load
- Smooth start-up and starting current limitation

- Milling spindle & precision
- Ø 22 mm milling spindle with counter-rotating return thread for dirt protection
- Precise double bearing for high-precision milling patterns
- Milling stroke up to 55 mm
- Suitable for tools up to approx. Ø 55 mm
- Reinforced guide and additional clamping
- Fine height adjustment on each drive unit

- Clamping system & tool holder
- Steel clamping fixture
- Standard collet Ø 12 mm
- Optional collets: Ø 3 / 4 / 5 / 6 / 8 / 10 mm, as well as inch sizes 1/8", 1/4", 3/8"
- Convenient tool change from above

- Dust extraction
- Dust extraction above and below the table top
- Connection Ø 120 mm

- Tool management & efficiency

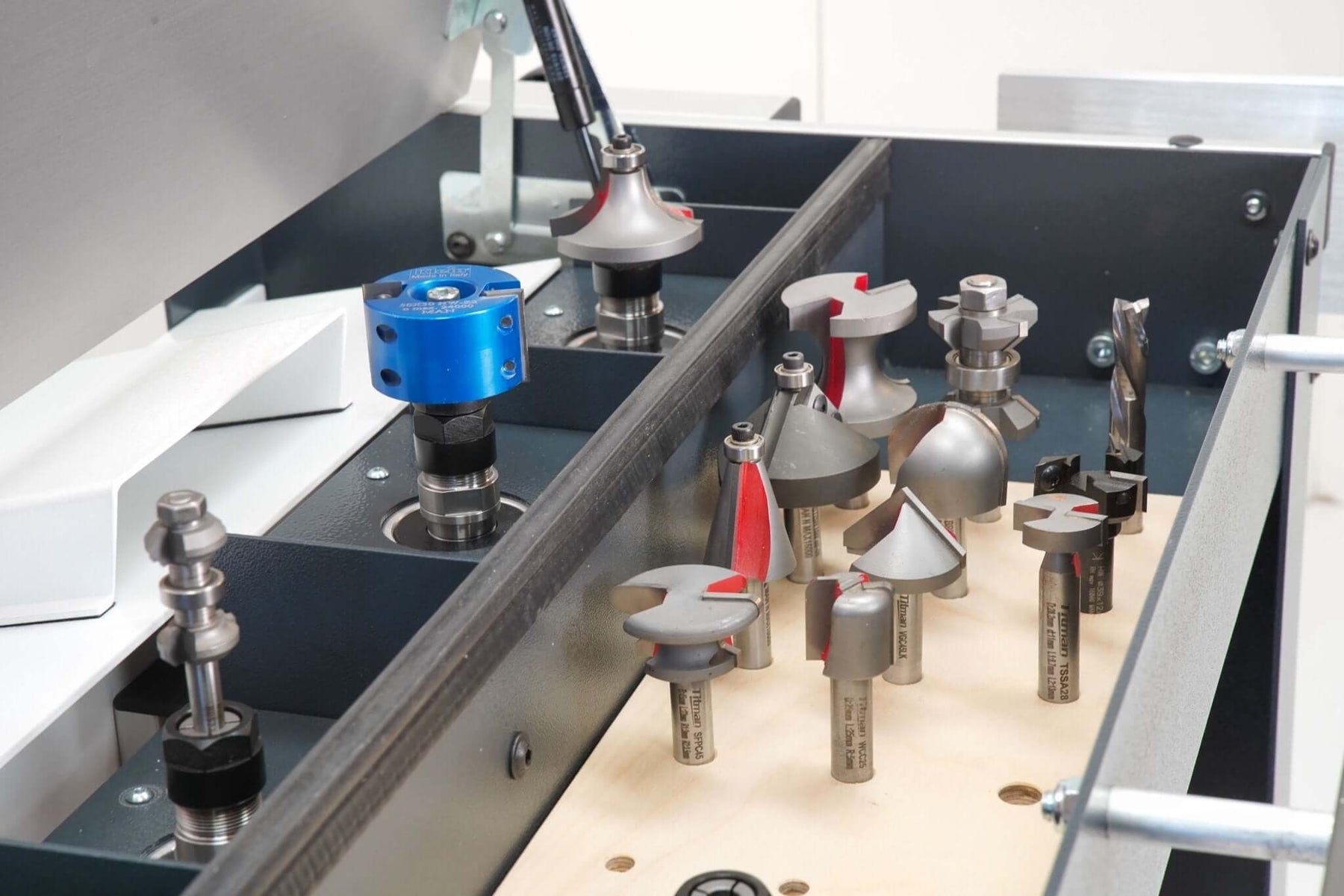

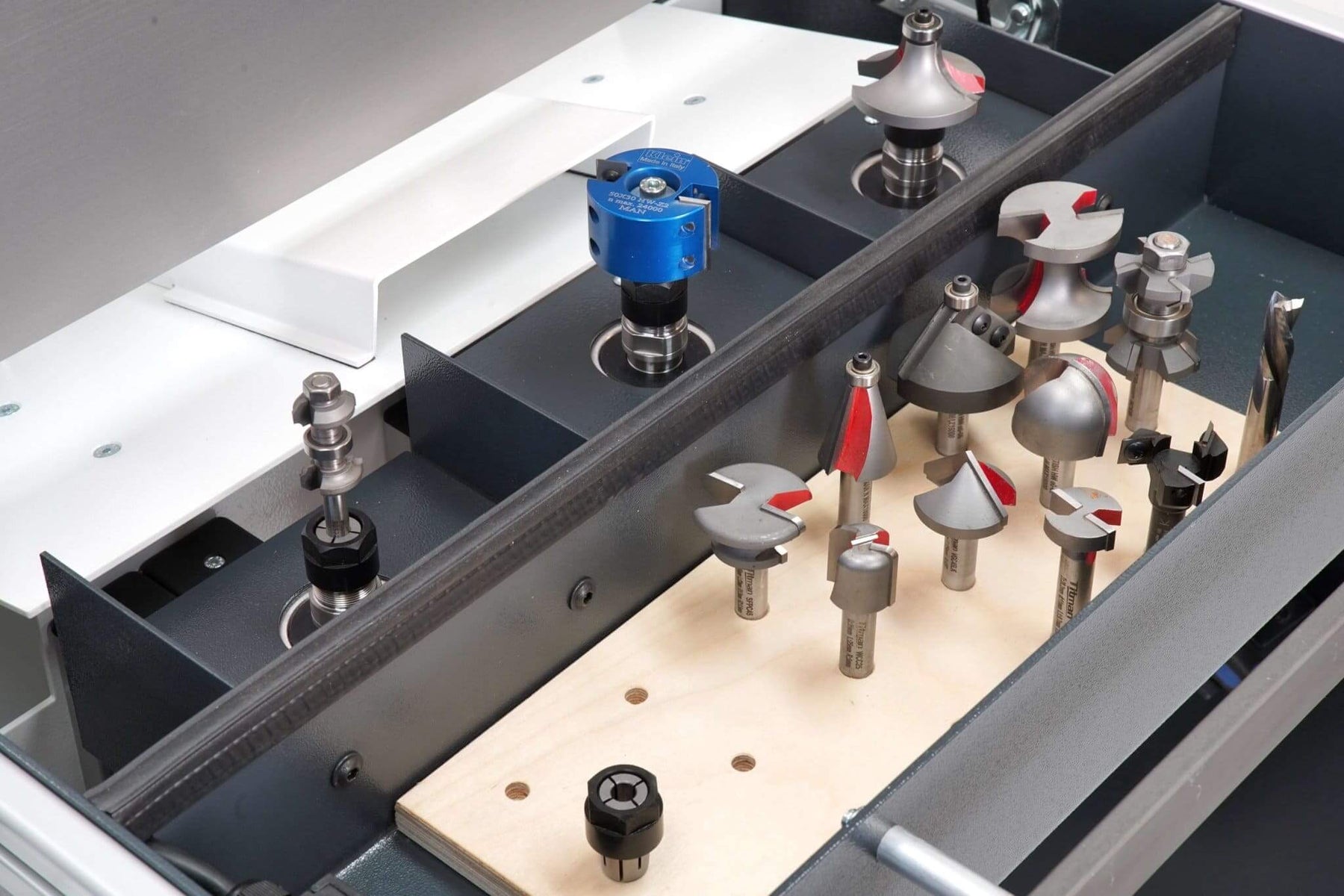

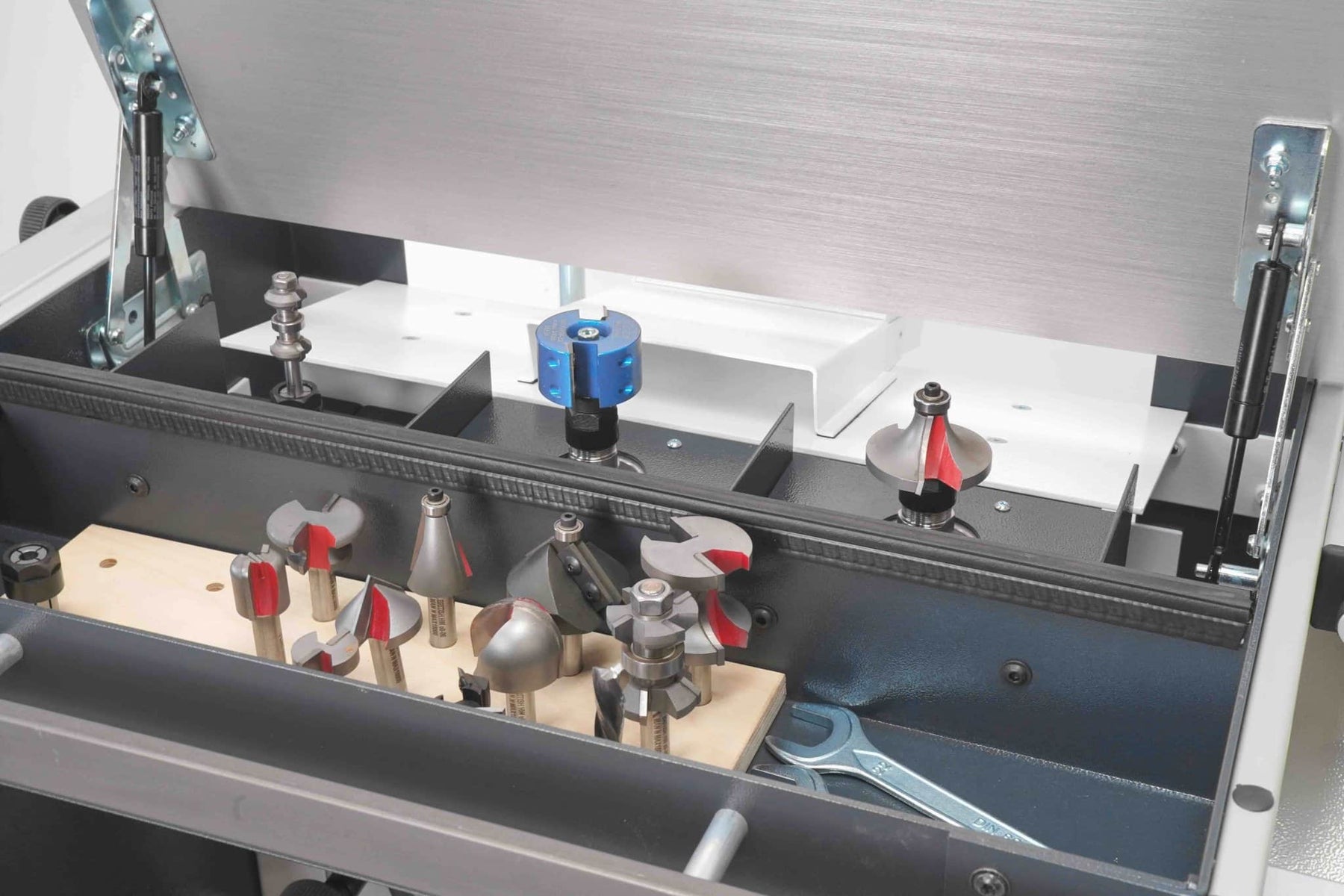

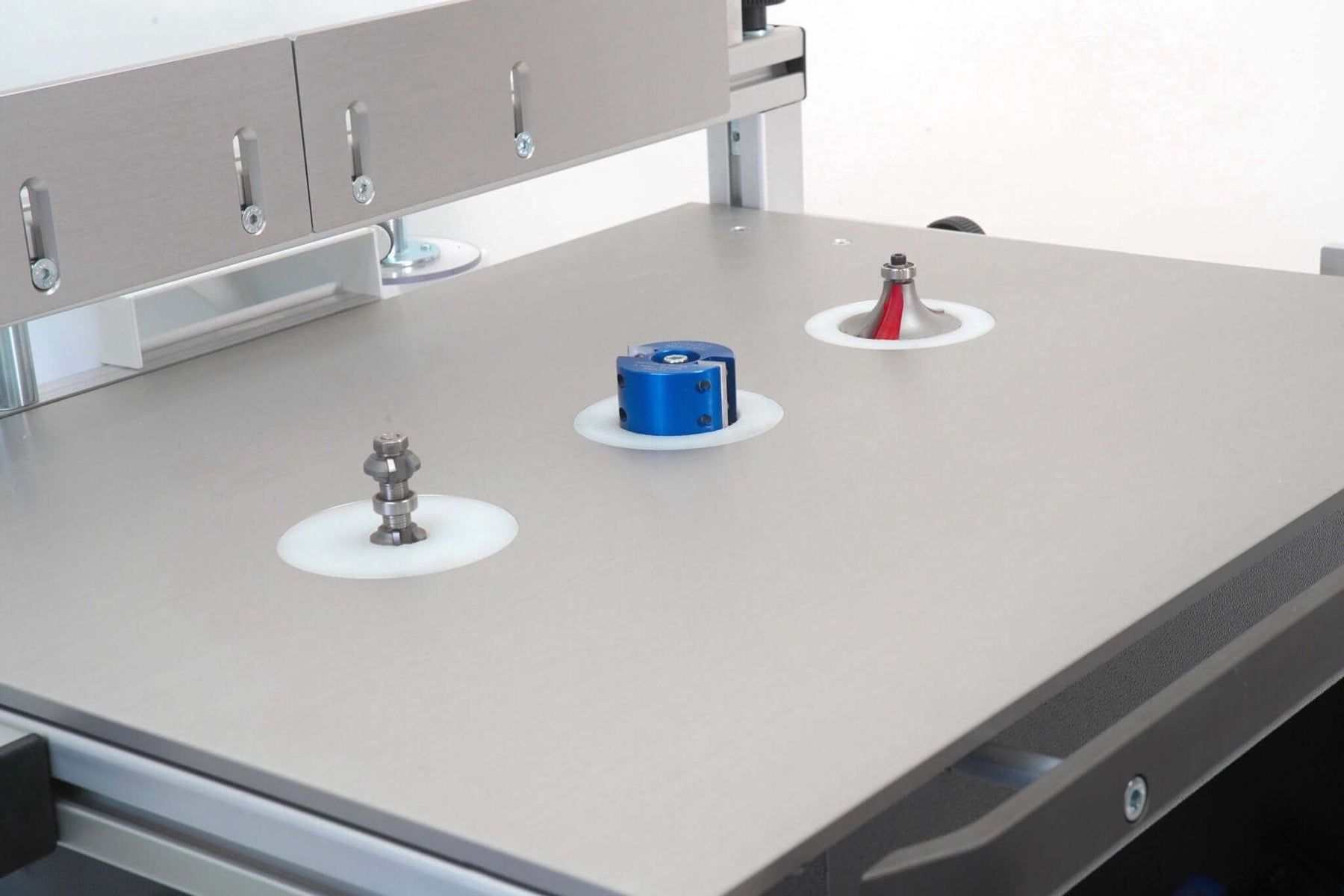

- Up to 3 tools ready for use on demand
- Tool height exactly repeatable
- No retrofittable drive units (optionally up to 5 units for RUWI Premium milling table)

- Safety & origin
- BG and wood dust tested
- Developed and manufactured in Germany
