RUWI Table Extension for Mounting Rail

Brief description

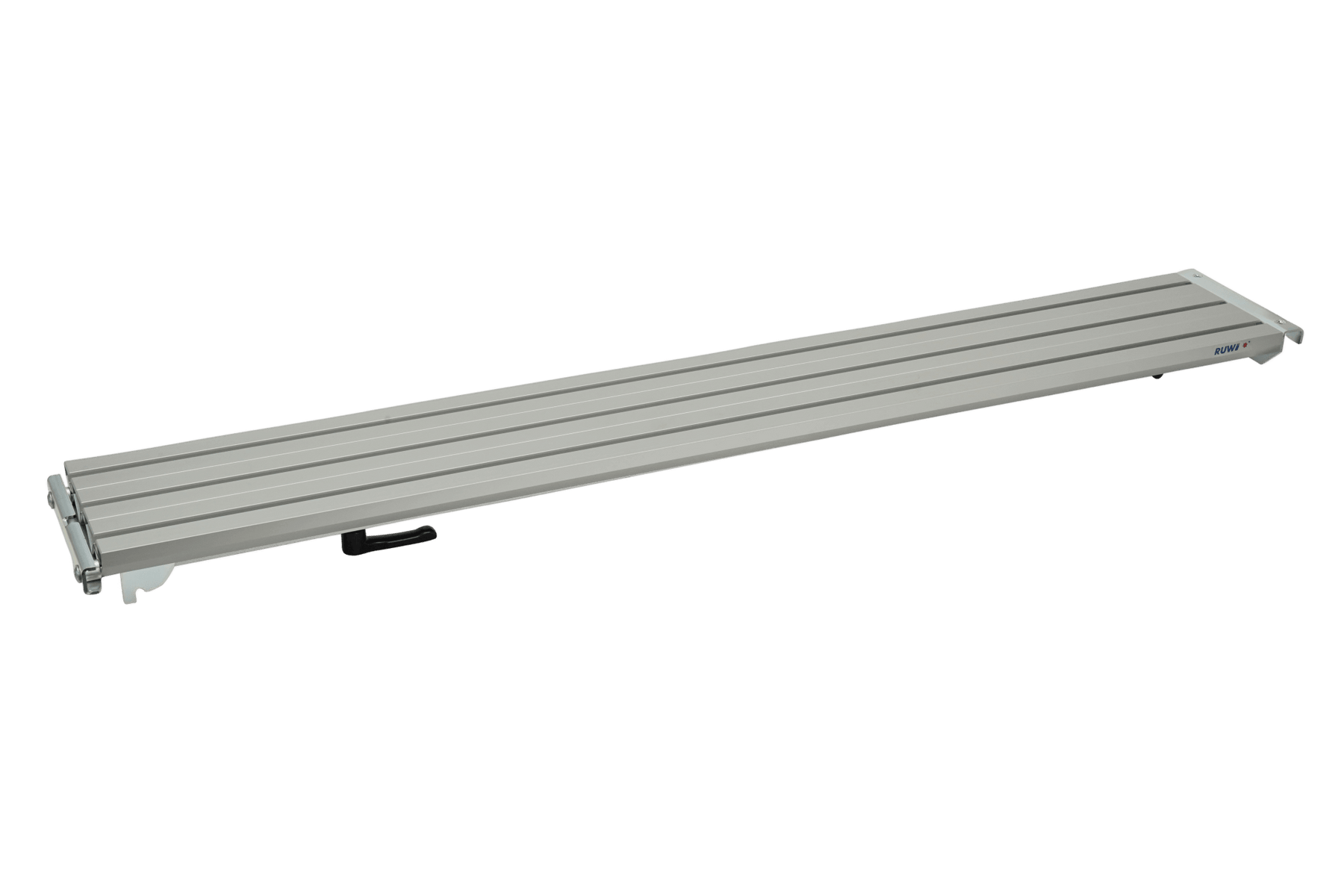

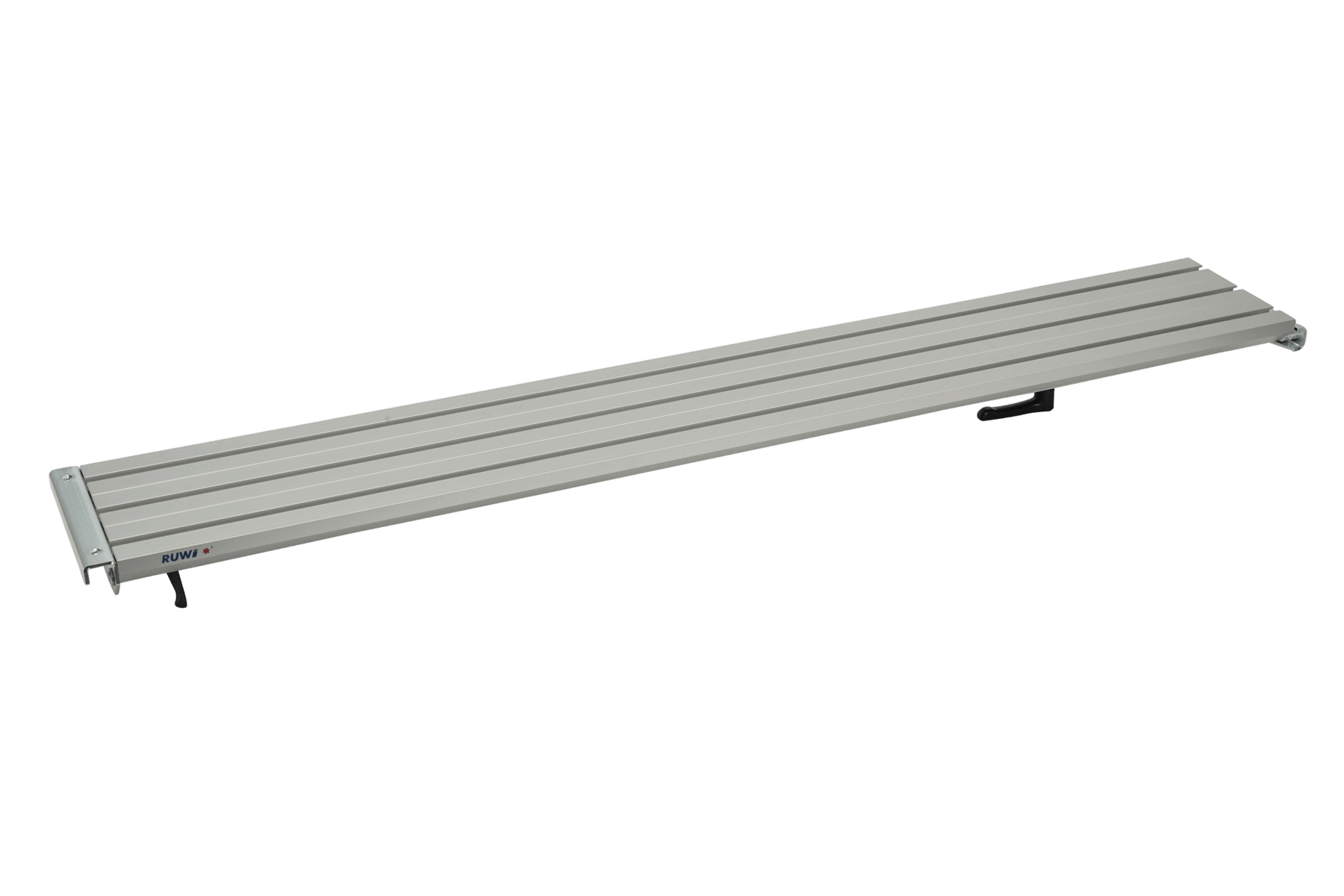

The table extension provides support for long workpieces that your table alone cannot accommodate—doors, furniture panels, or stair stringers rest securely on it instead of tipping over the edge. You can attach it to the mounting rail without tools. It comes in two lengths: short at 77 cm for moderate overhangs, and long at 104 cm for when the workpiece extends well beyond the table edge.

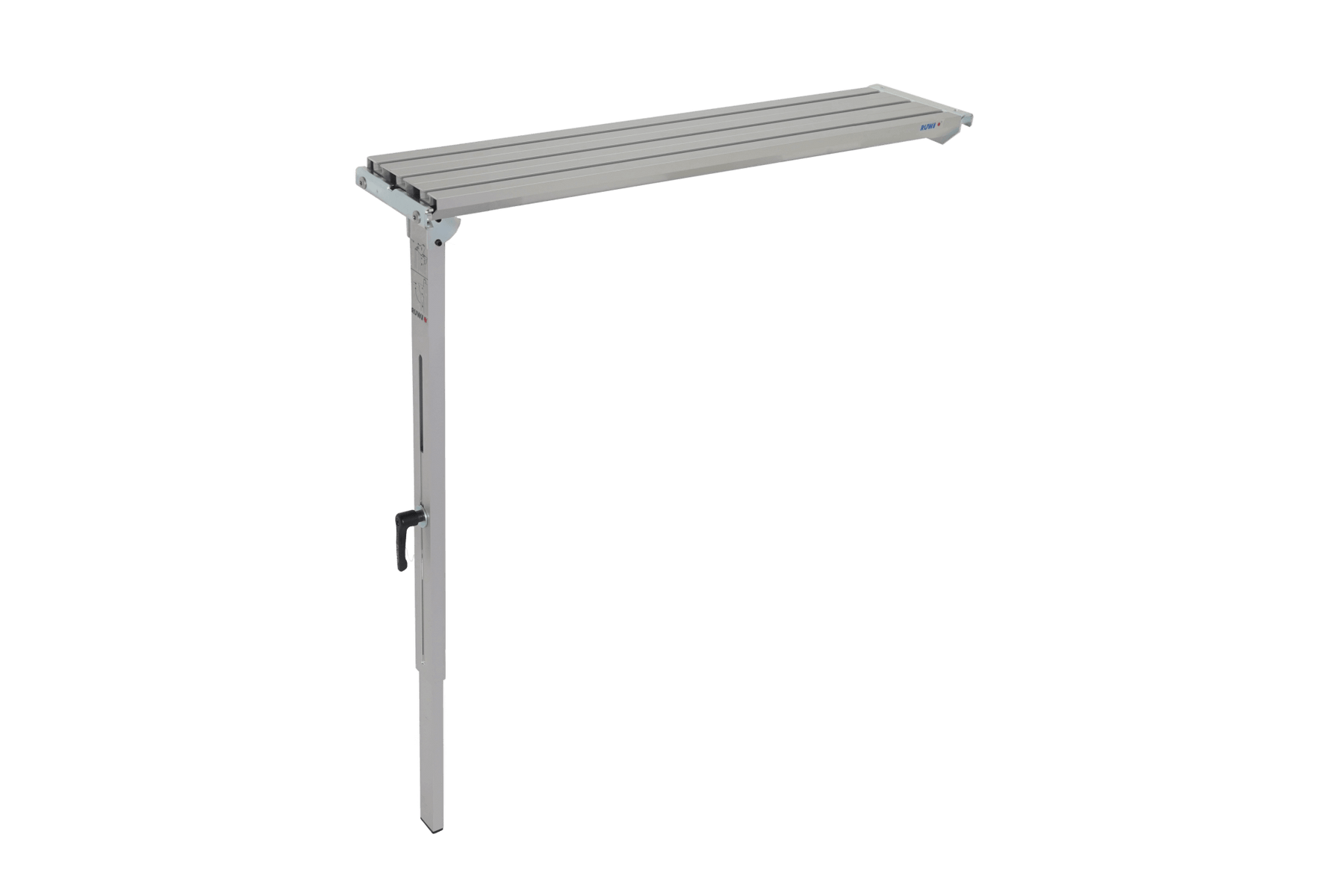

The tabletop is made of anodized aluminum, and the frame is made of galvanized steel—both designed for heavy-duty use. The folding support leg adjusts tool-free from 66 to 106 cm, so the extension sits exactly at table height. Three slots (Ø 8 mm) are cut into the support surface: You can use these to clamp clamps—such as the Bessey GTR—or stops directly onto the extension. If you need even more surface area, you can hang several in a row.

When you're done, just fold up the footrest and hang the extension on the wall—it takes up hardly any space.

Possible applications

• Securely support long workpieces—doors, furniture panels, and stair stringers no longer hang unsupported over the edge of the table

• Hang it up without tools and adjust the height (66–106 cm) to match the table height exactly
• Clamp the clamps (such as Bessey GTR) and stops directly onto the extension using the three slots (8 mm diameter)
• Multiple extensions in a row for even larger contact surfaces

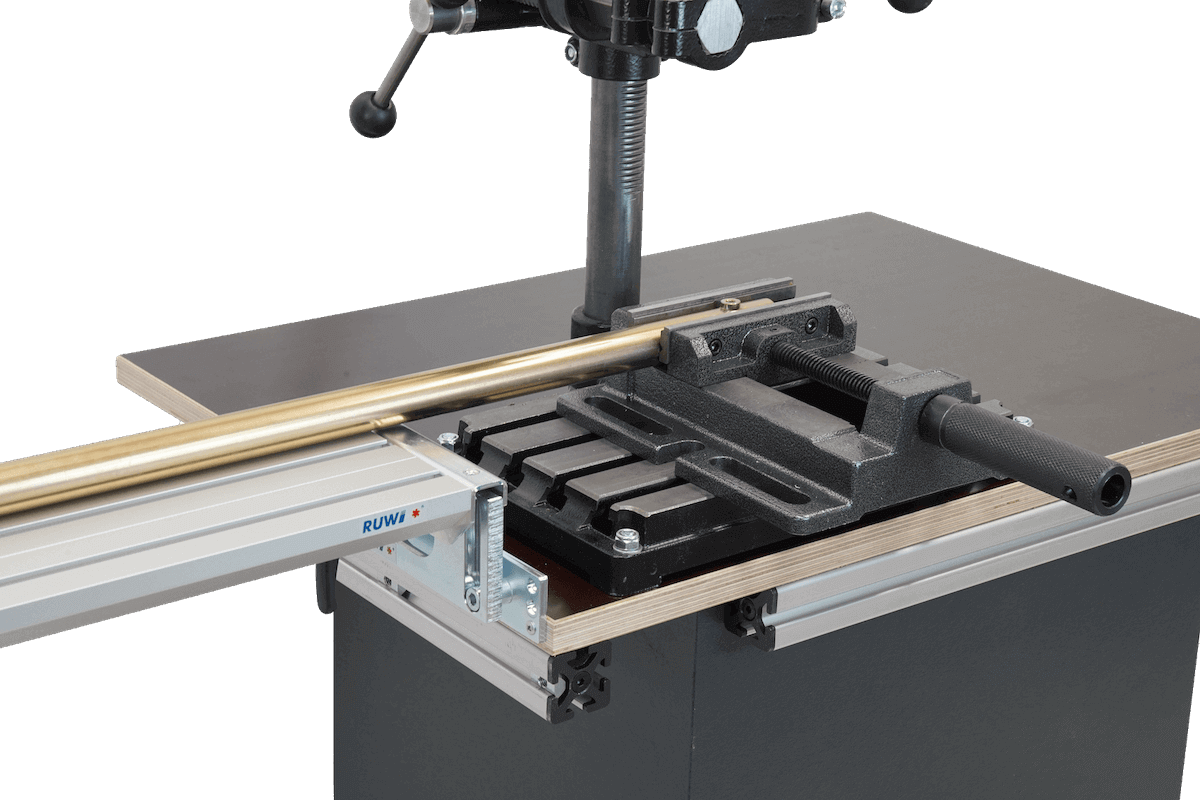

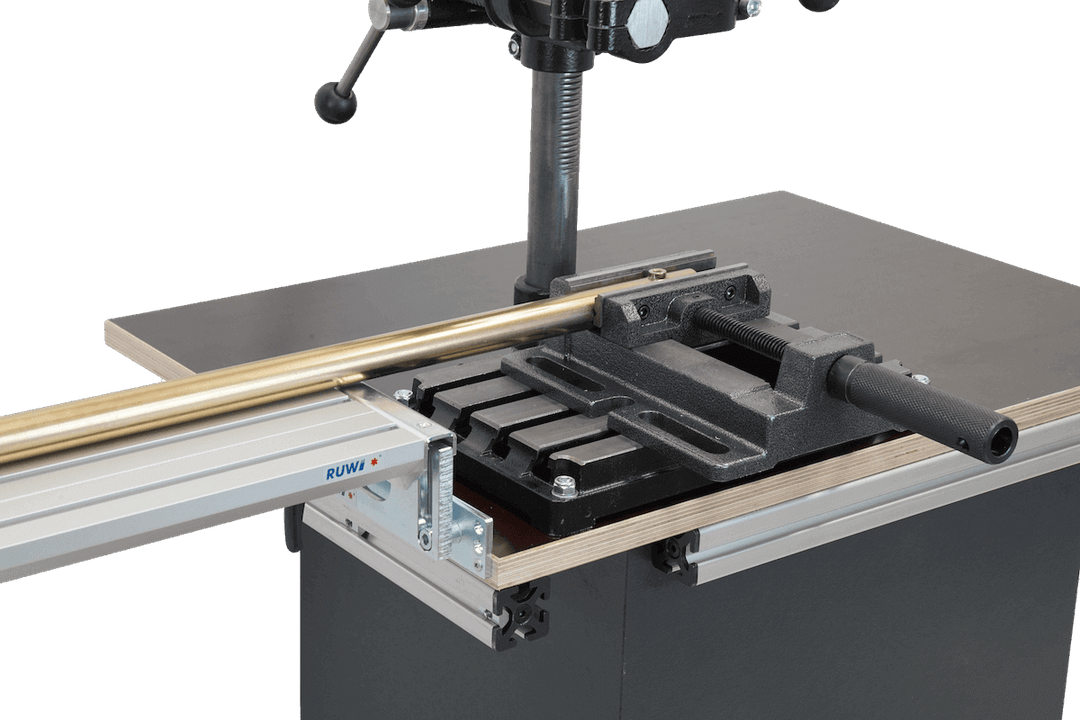

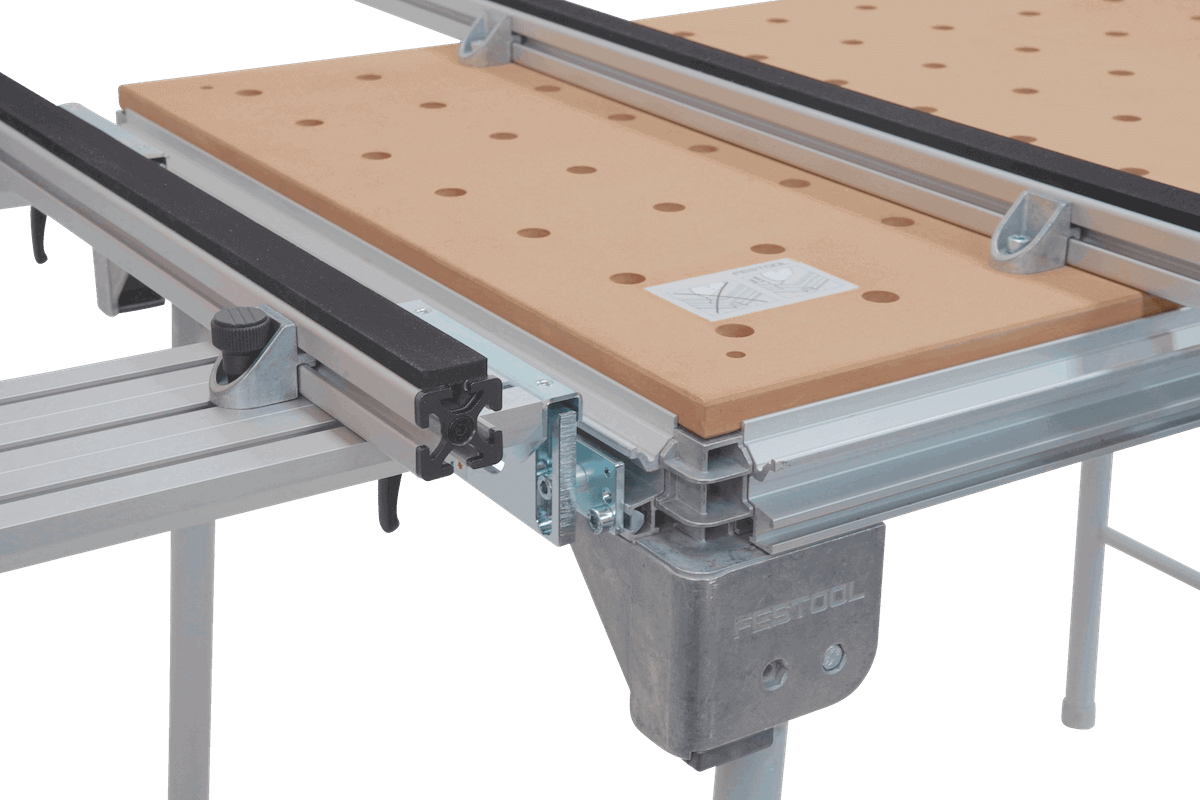

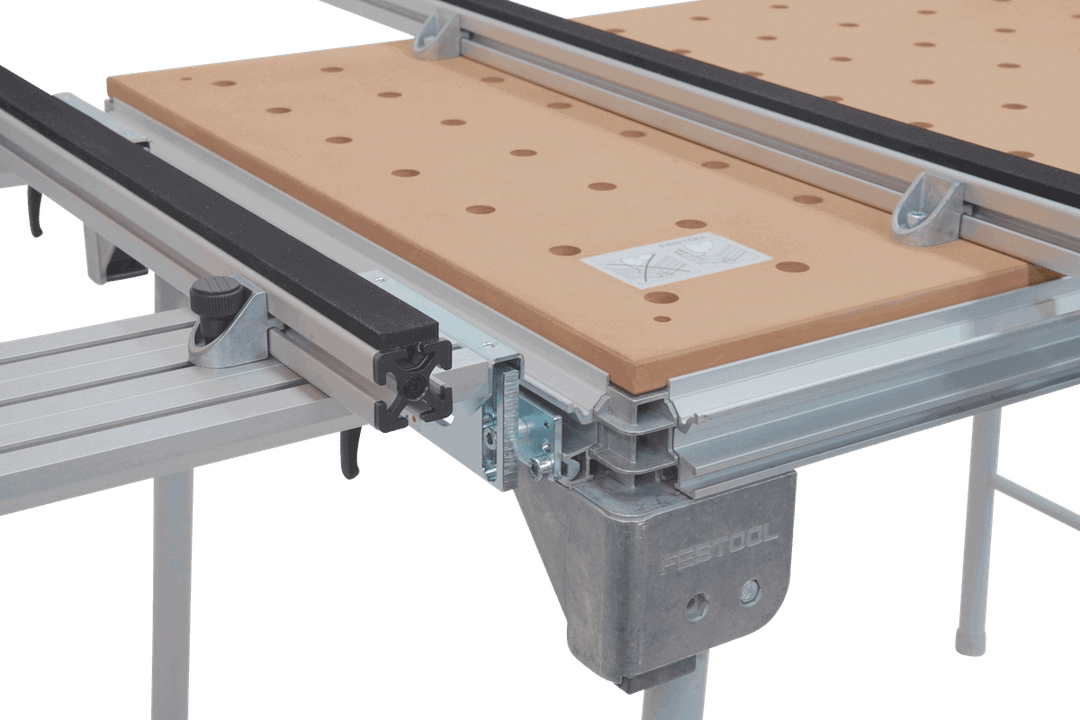

• For RUWI drilling and milling tables, Festool MFT, and Sauter Variobench (with mounting adapter)
• Folds up and hangs on the wall – stores away neatly when not in use

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Length options and dimensions
- Short: approx. 77 cm, Long: approx. 104 cm
- Width: 150 mm

• Height and stability
- Height adjustment: 66 to 106 cm, tool-free adjustment

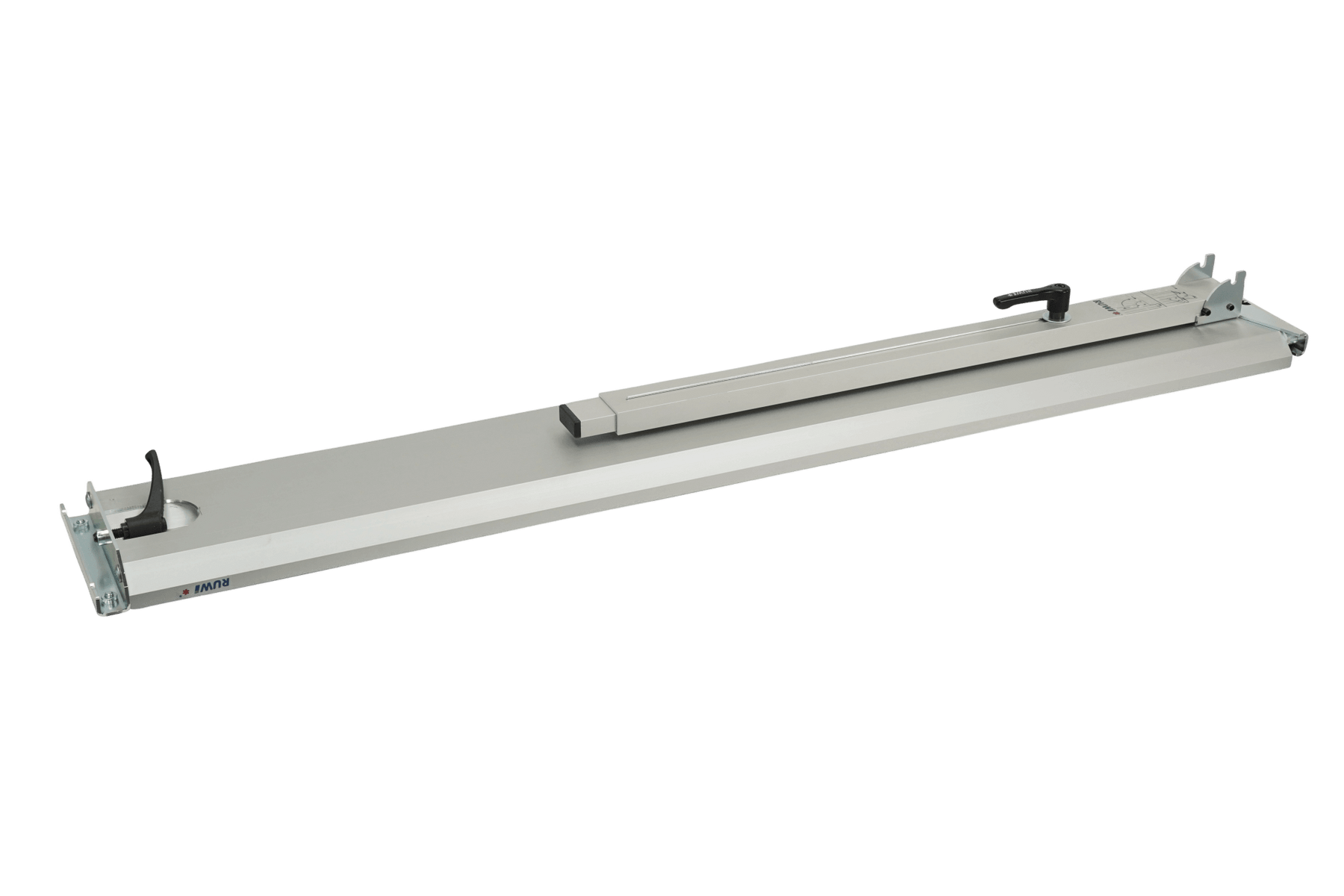

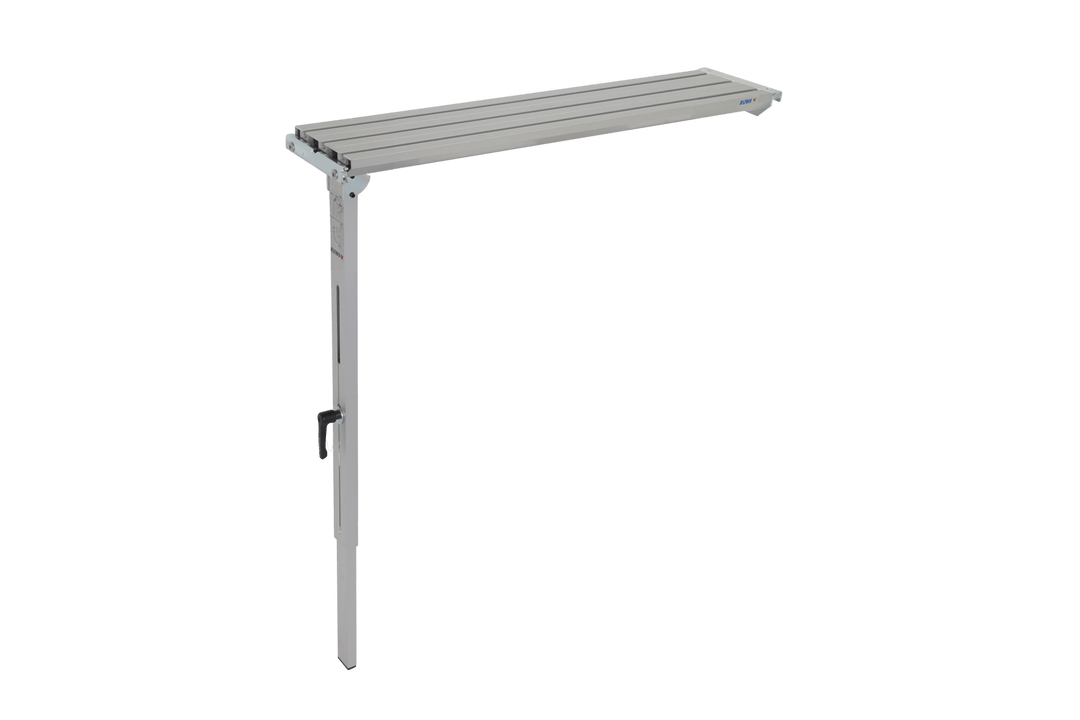

- Foldable support leg with plastic glides

• Material and Workmanship
- Anodized aluminum top
- Galvanized steel mounting bracket

• Compatibility and Assembly
- Compatible with RUWI drill and router tables, Festool MFT, and other multifunction tables (adapter part no. RUWI21410 may be required)

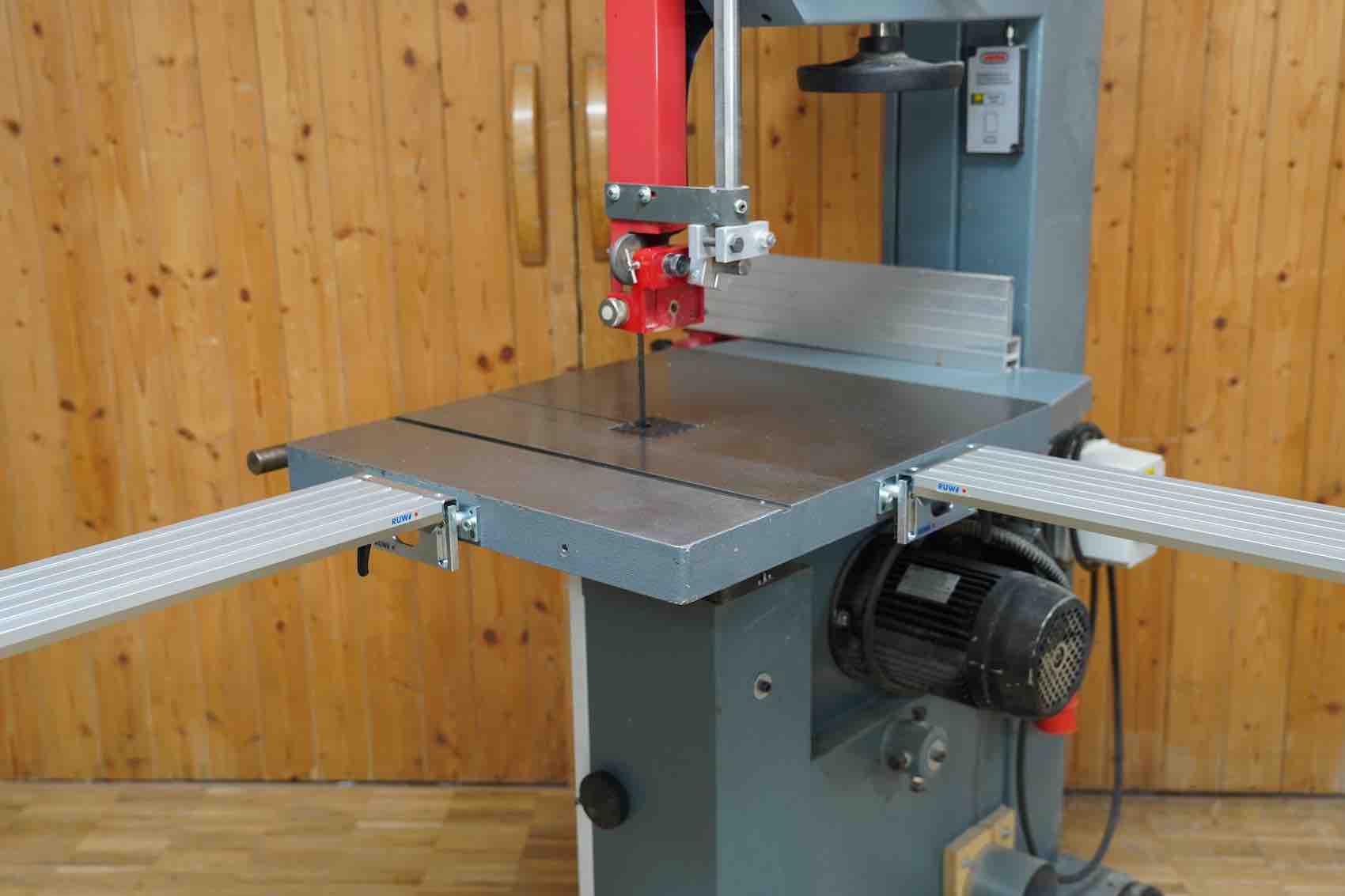

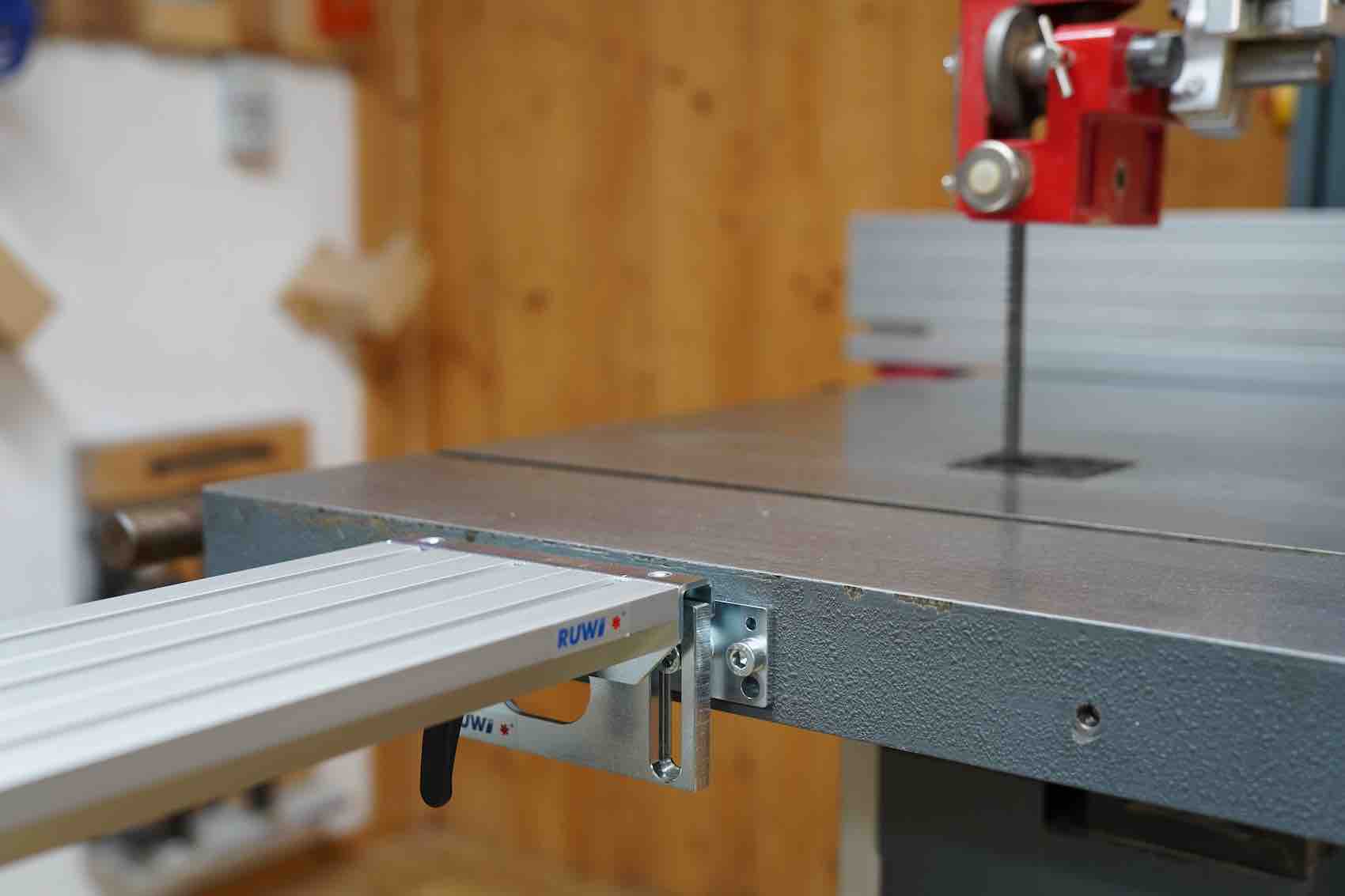

- Tool-free quick mounting on machines with mounting rails

• Expandability

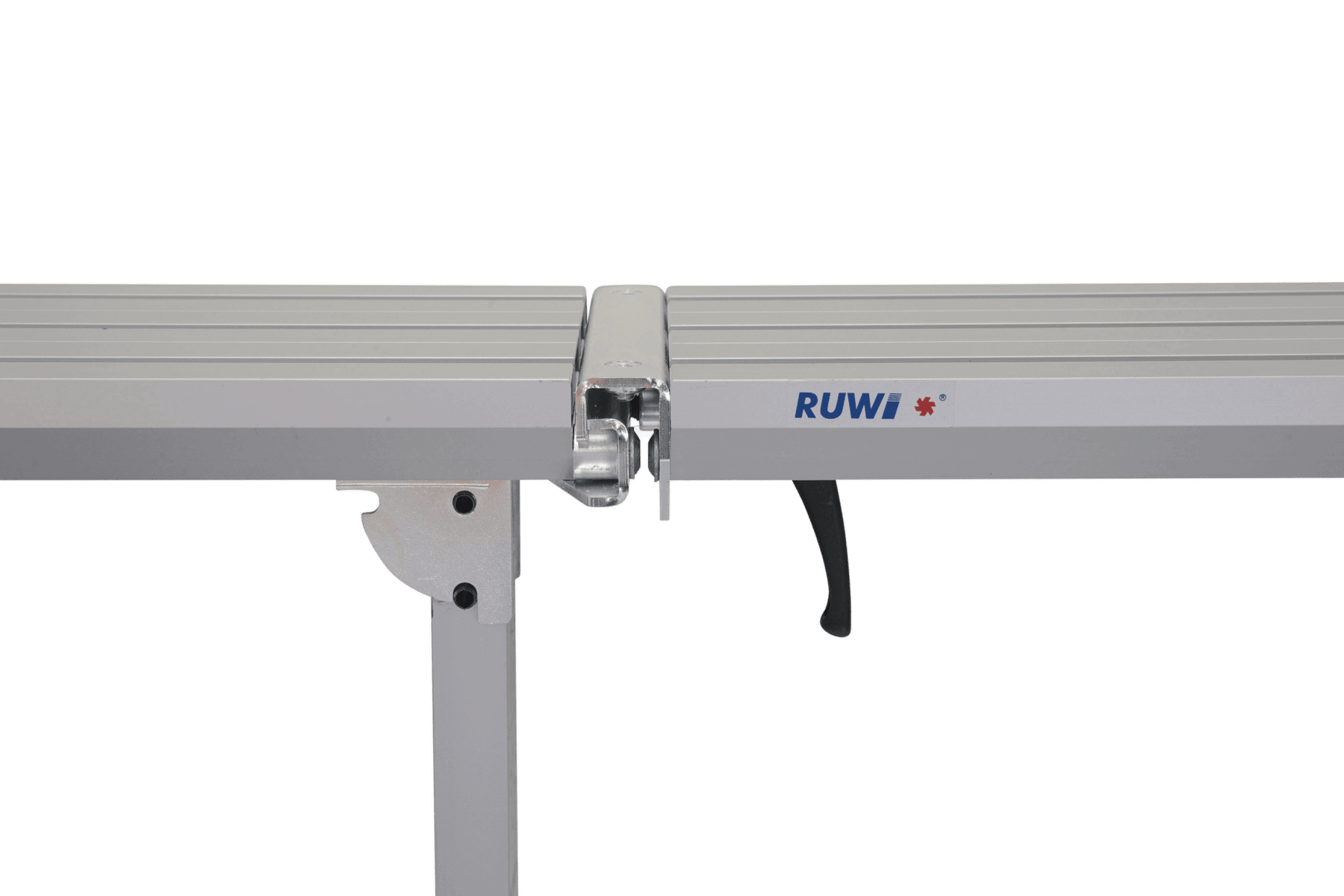

- Can be used in series, for larger workpieces or longer support surfaces
- Integrated slots (Ø 8 mm) for holding screw clamps and clamping devices

• Space and storage

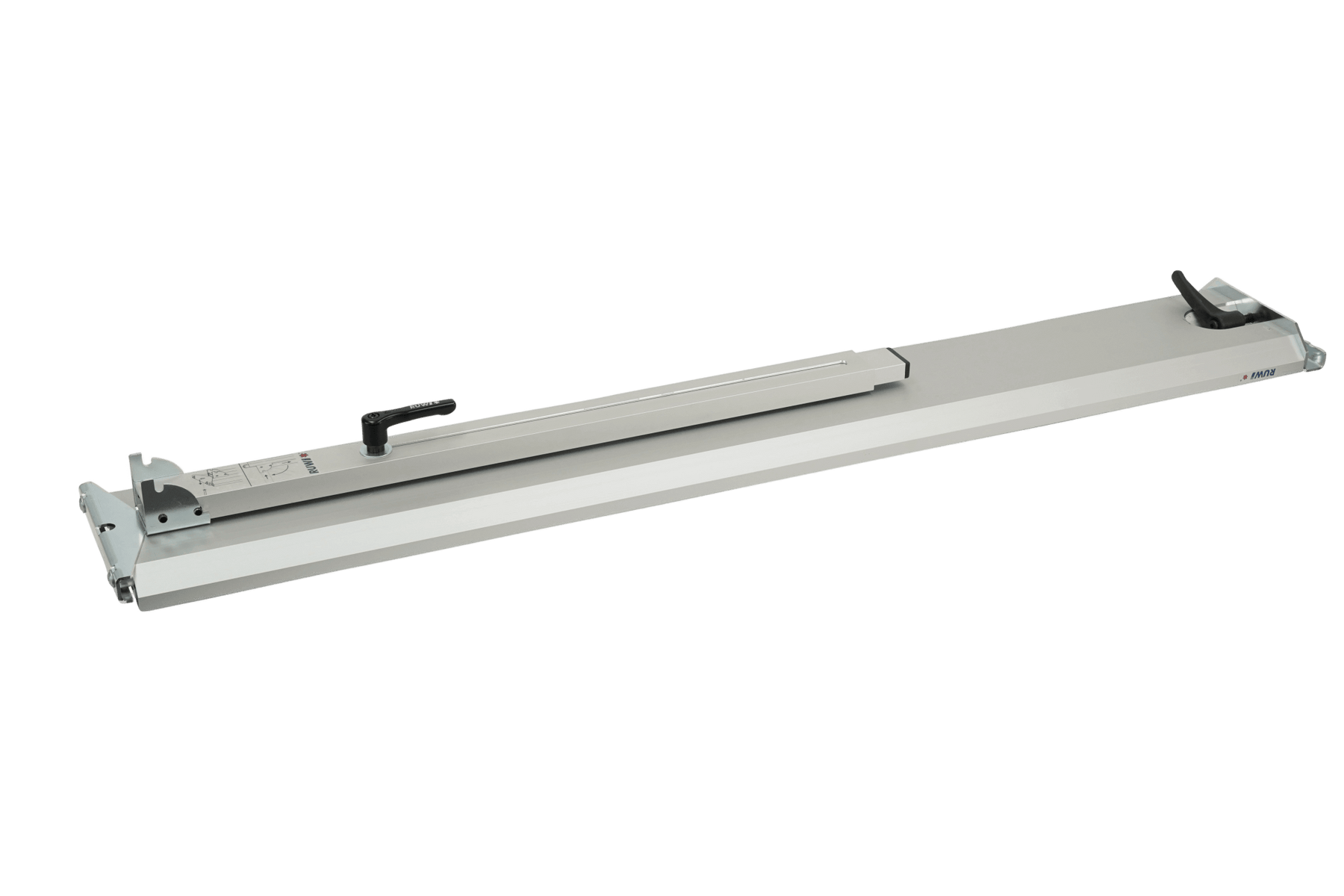

- Foldable and wall-mountable
