RUWI router table

Brief description

The RUWI router table is the flagship model in the router table—featuring five router motors on a 1,070 × 500 mm table surface, with modular expandability to up to ten motors. This allows you to complete in a single machine what would otherwise require multiple routing passes or setup cycles. If you regularly need five or more different tools to be ready for use at all times—for example, for producing series of profiles, furniture parts, or industrial manufacturing—this is the right choice for you.

Five router motors, each with 1,050 watts, manufactured in Germany. You can continuously adjust the speed continuously 8,000 to 25,000 rpm, with soft start inrush current limiting. The steel spindle (Ø 22 mm) with a return thread keeps dust out of the bearings, while the double-bearing design ensures smooth, quiet operation; tool diameter Ø 43 mm. Table size: 1,070 × 500 mm at working height 910 mm working height the larger surface area ensures clean processing even for long workpieces and sheet material. GS-certified (DGUV test) and tested for wood dust. The dual dust extraction system above and below the table top (connection Ø 120 mm) is RUWI on RUWI , not an optional feature.

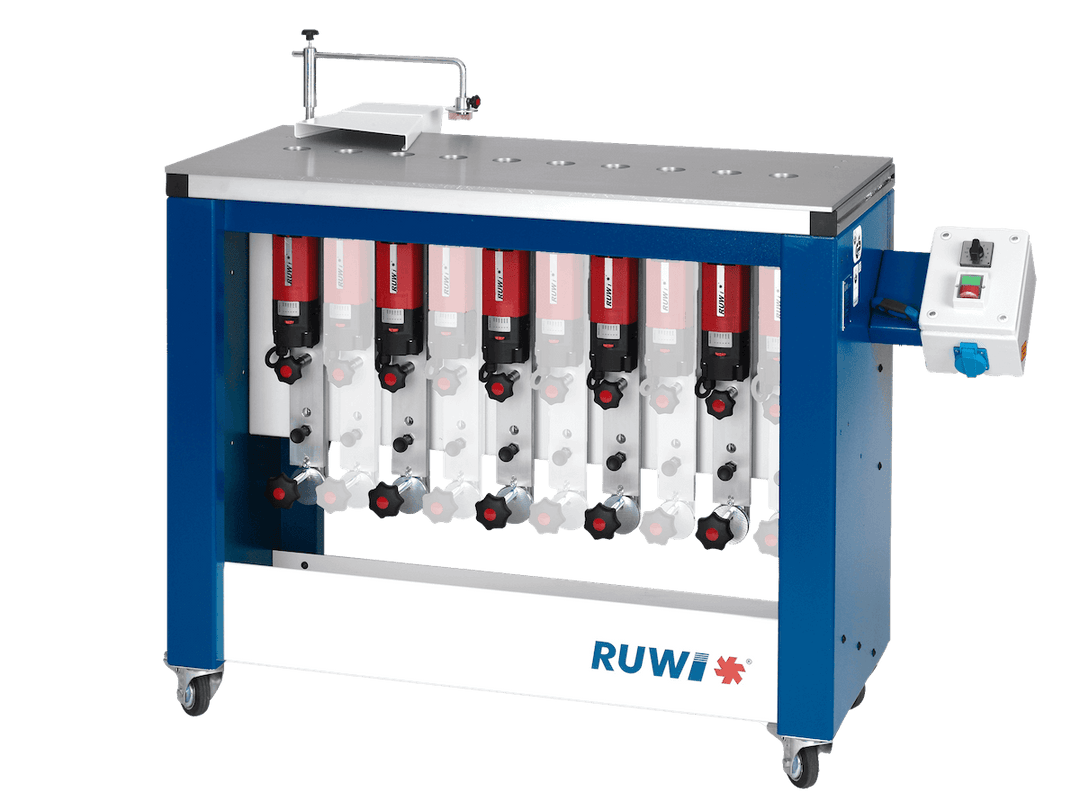

What's special about the Premium is its modular expandability. Mounting points and sockets for five more drive units are prepared ex works. If your business grows or you add a new profile, you can retrofit an additional spindle – no new machine, no conversion needed. This lets you plan with investment security: today five tools on demand, maybe eight in two years, and ten in five.

If three spindles are enough for you, the RUWI router table is the better choice. If you need more motor power and 0.1-mm fine adjustment as standard, check out the RUWI router table Performance. For beginners, there’s the RUWI router table with one spindle.

Applications

• Industrial series production – five to ten cutters in use simultaneously, workpieces go through all steps without a tool change.
• Furniture construction and panel processing – the 1,070 mm wide table surface guides large workpieces securely.
• Profile series with frequent tool changes – one table replaces several classic routers.
• Expandable routing station – modularly extendable to up to ten drive units, with mounting points prepared ex works.
• A complement to your CNC router for post-processing and steps that aren't efficient on the CNC.
• Also suitable for training workshops, vocational schools, and apprenticeship businesses – GS-certified (DGUV-Test) and wood dust tested

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and Mobility
- Table size 1,070 × 500 mm
- working height mm
- net weight kg
- 4 castors brakes for mobile use in the workshop

• Motors and Performance
- 5 motors, each rated at 1,050 watts (230 V), manufactured in Germany
- Modularly expandable to up to 10 drive units
- continuously speed range: continuously ,000 to 25,000 rpm, constant power under load
- soft start inrush current limiting
- Designed for continuous operation

• Milling spindle
- Steel spindle Ø 22 mm with return thread to keep dust out of the bearings
- Double bearings for smooth concentric rotation
- Milling stroke up to 43 mm
- Tool change from the top,collet 8 mm (alternatively Ø 6 / 6.35 / 10 mm)

• Expansion and tool management

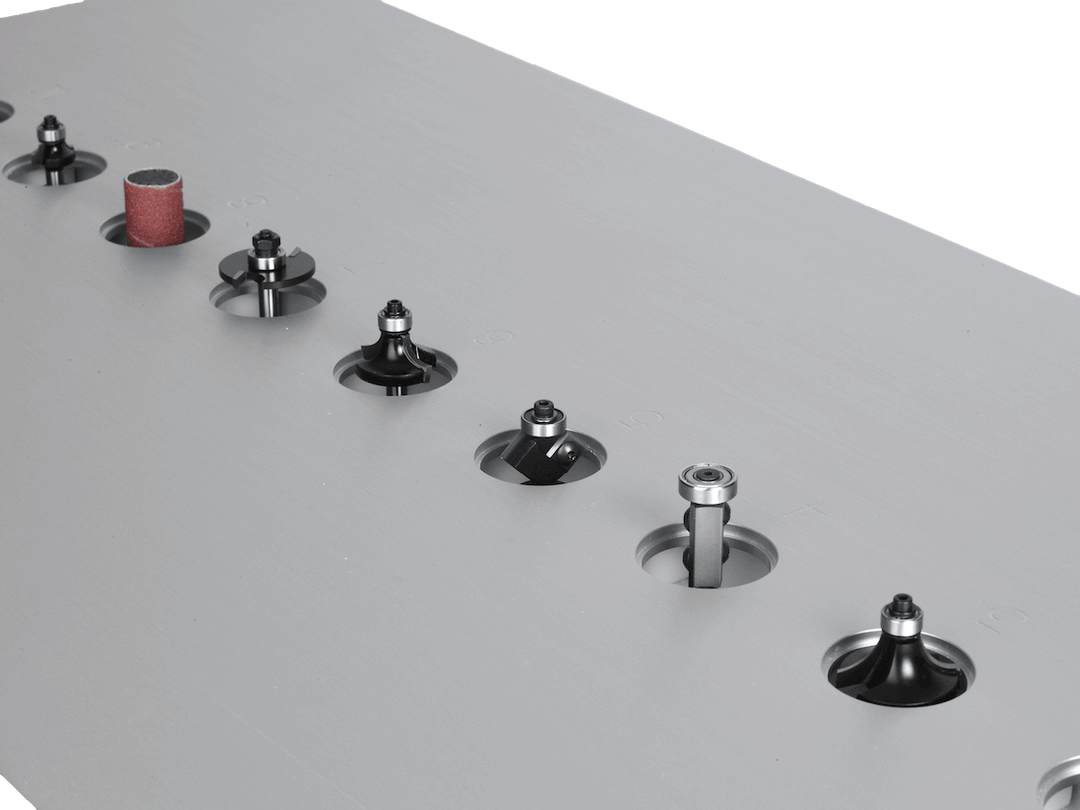

- Up to 5 tools ready for use simultaneously, expandable to 10
- Mounting points and sockets for additional drive units prepared at the factory
- Set tool height is maintained with repeatable accuracy

• Dust extraction
- Dual extraction above and below the tabletop
- Connection: Ø 120 mm

• Safety and quality
- Developed and manufactured in Germany
- Certified with the DGUV GS seal; also tested for wood dust
