RUWI10300

€1.565,55
/
Includes sales tax Plus shipping costs
Calculated for your business
≈ €921 net for your business
after input tax and depreciation · €1,565.55 gross
Calculate using your tax rate →Is it right for your job? The configurator will check →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 520 × 420 × 300 mm

Our tools and machines are built to last. We use durable components and have gained a wealth of experience to help prevent problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The idea behind it

Reiner Ruggaber

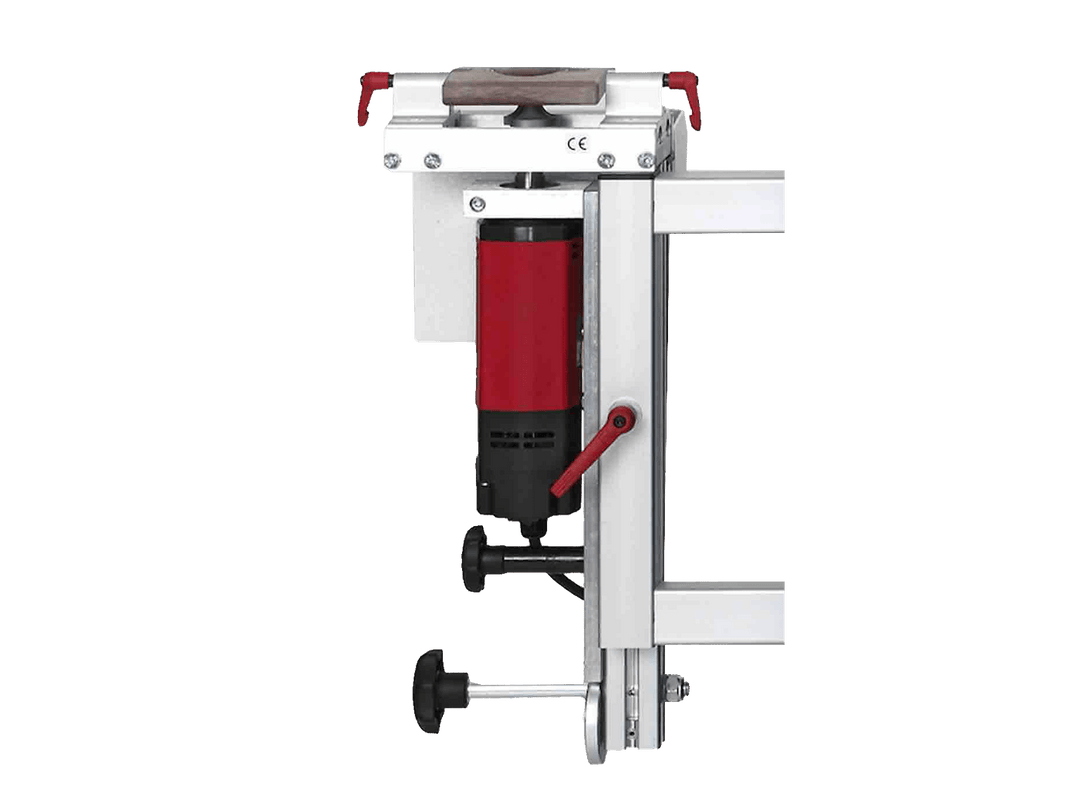

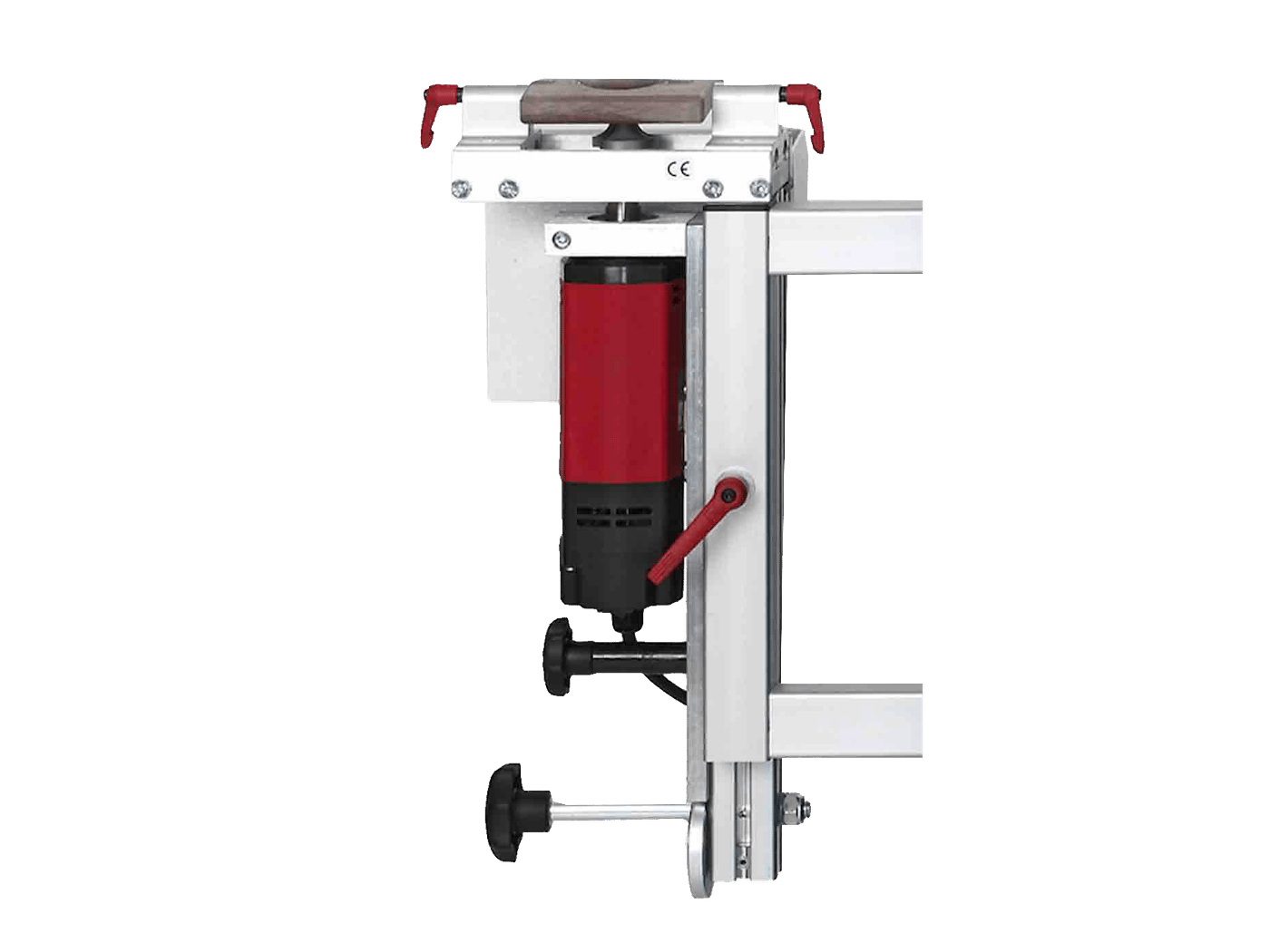

The 3D milling unit transforms your RUWI router table into a free-form milling station. Using movable swivel supports, you can safely guide curved, contoured, and irregular workpieces along the milling cutter—the supports follow the contour instead of holding the workpiece rigidly in place. This allows you to machine shapes that cannot be milled with a fixed stop.

The unit comes with its own drive: 1,050 watts at 230 V, continuously 8,000 to 25,000 rpm, with soft start, constant speed under load, and inrush current limiting. The double-bearing steel spindle (Ø 22 mm) with a return thread keeps dust away from the bearing; accommodates tools up to Ø 40 mm, collet Ø 8 mm (optional 6 / 6.35 / 9.5 / 10 mm). The adjustable dust extraction nozzle (Ø 120 mm) is included; as a “3D milling device,” the unit is part of the GS certification (DGUV Test) and wood dust testing for the RUWI router table system. Manufactured in Germany, 8.3 kg.

Here's how to use it

  • Milling curved edges: curved furniture parts, stair stringers, and free-form panels run over the swivel supports—the support tilts with the shape, and the milling height remains consistent along the entire curve.
  • Re-milling stencil parts: The 3D unit guides the tool freely past complex contours that would otherwise come into contact with the guide rail.
  • Retrofit in minutes: attach it to the side of the housing with two screws, plug it into the factory-installed Schuko outlet—and the marking table becomes a free-form station.

Does this go with your router table?

This unit is compatible with all models: Basic, Classic, Classic Performance, and Premium. The compatible exhaust system (starting at Ø 120 mm) and other accessories are shown RUWI router tables.

All the details

Motor and Power
Motor: 1,050 watts (230 V)
Speed: continuously 8,000 to 25,000 rpm
Electronics: soft start, speed control, inrush current limiting

Milling Spindle
Spindle: Steel, Ø 22 mm, double-bearing, return thread to prevent dust ingress
tool diameter: up to Ø 40 mm
collet : Ø 8 mm, steel collet (optional Ø 6 / 6.35 / 9.5 / 10 mm)

Dust extraction
Extraction port: adjustable, connection Ø 120 mm

Mounting and weight
Mounting: side-mounted with 2 screws; can also be retrofitted
net weight : 8.3 kg

Safety and Quality
Certification Marks: as a “3D router unit,” part of the GS certification (DGUV Test) and wood dust testing under the router table system
Origin: Manufactured in Germany

Compatible Models
Compatibility: RUWI router table Basic, Classic, Classic Performance, and Premium

★★★★★
