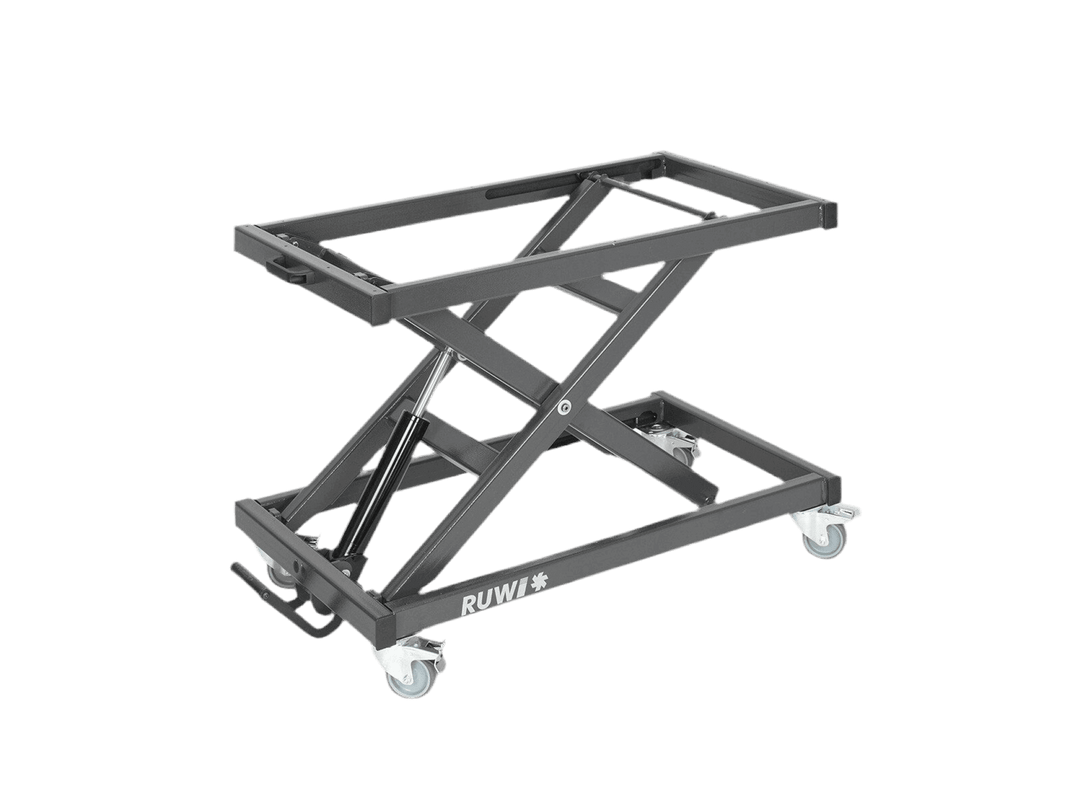

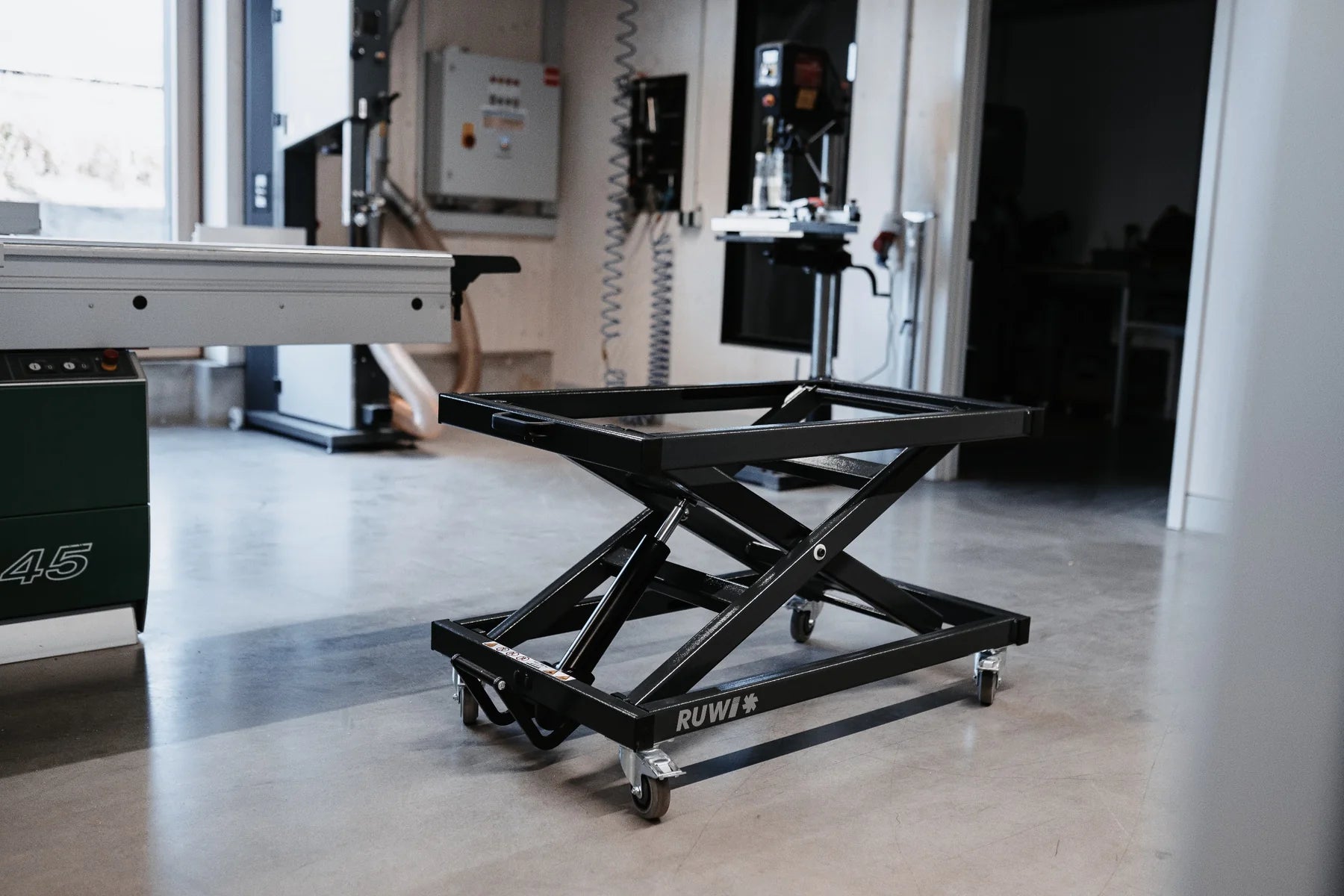

RUWI lifting table base frame 300, height-adjustable with scissor mechanism and castors, without tabletop
RUWI lifting table base frame 300

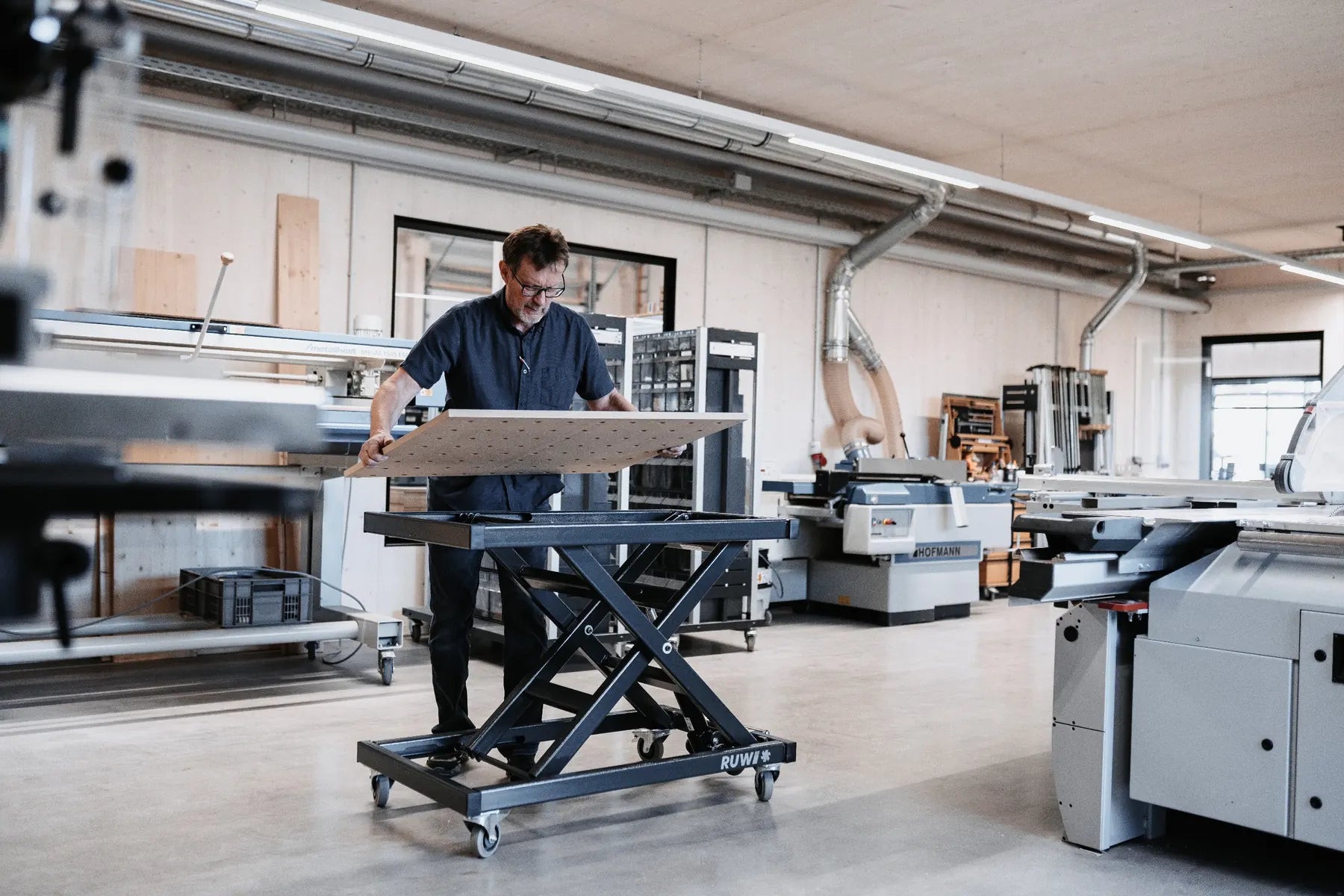

RUWI lifting table base frame 300, used as a lifting aid for a panel next to the panel saw
RUWI lifting table base frame 300, height-adjustable with scissor mechanism and castors, without tabletop
RUWI lifting table base frame 300
RUWI lifting table base frame 300, used as a lifting aid for a panel next to the panel saw

RUWI lifting table base frame 300

RUWI21001

€1.561,27
/
Includes sales tax Plus shipping costs
Calculated for your business
≈ €918 net for your business
after input tax and depreciation · €1,561.27 gross
Calculate using your tax rate →Is it right for your job? The configurator will check →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Artisan Quality
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped on a pallet via Schenker freight forwarder
• Dimensions: 1,200 × 800 × 440 mm
• Weight: approx. 102 kg

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

Would you prefer a complete model?

The configurator asks about your workpieces, your workflow, and your available space—and shows you which lifting table is the right fit. It also compares it to building your own on base frame.

Launch the configurator →
About a minute.

The idea behind it

This sturdy base frame is the ideal base if you want to build your own tabletop. We’ve intentionally included through-holes on top—so you can easily and securely screw your tabletop in place. Anyone who’s ever used a good lifting table in the workshop knows why it’s indispensable.

Reiner Ruggaber

The RUWI lifting table -base frame 300 is the foundation for anyone who wants to build their own workstation: a height-adjustable scissor-lift frame without a tabletop, onto which you can screw your own tabletop. The welded square-tube construction supports up to 300 kg at 75 kg net weight; the frame measures 110 × 64 cm.

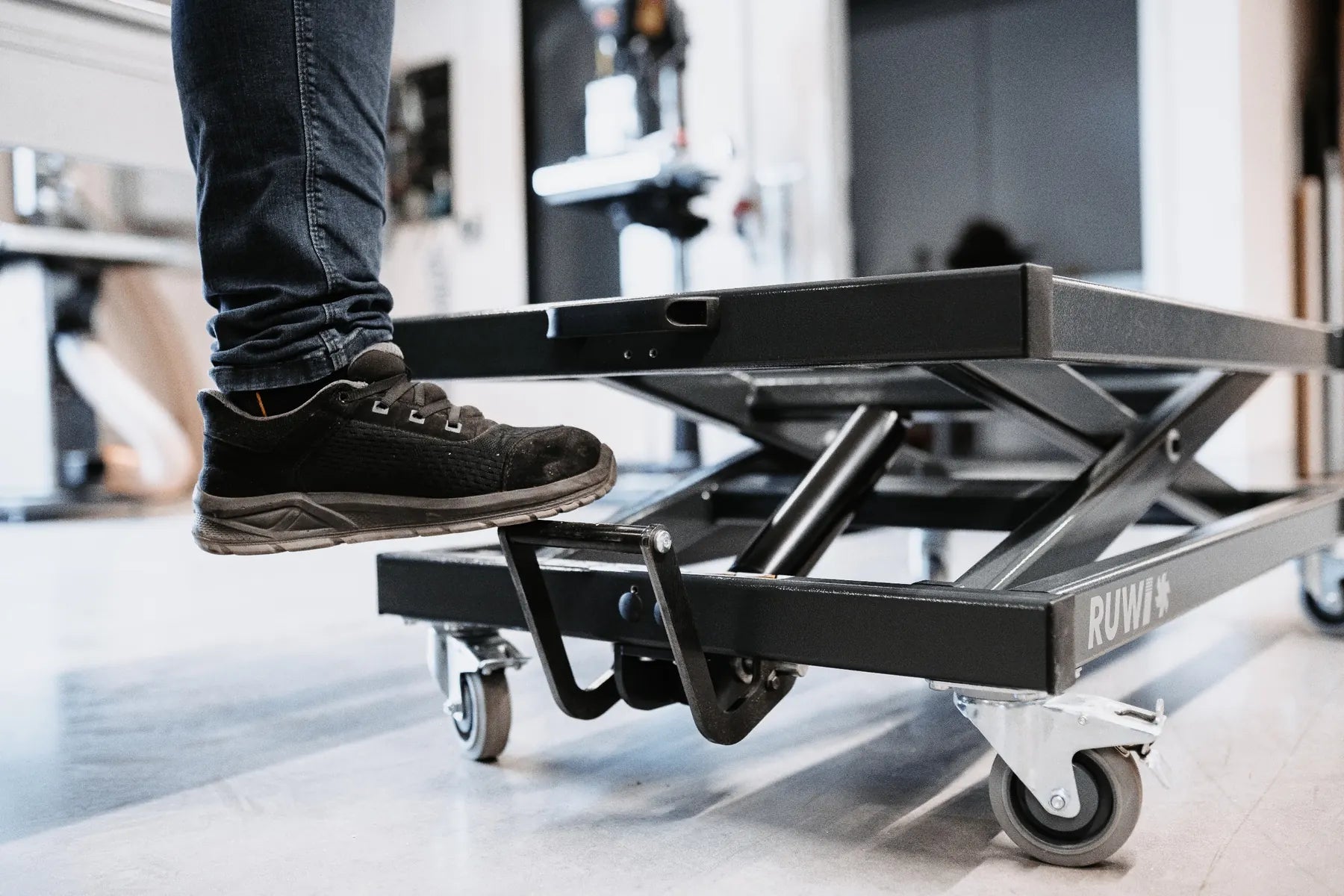

The height can be adjusted from 43 to 103 cm using the hydraulic foot pump— continuously —requiring minimal effort even under load and without a power connection. Four lockable solid rubber casterscastors (Ø 100 mm) make the frame maneuverable while still ensuring it stands securely. The hydraulic system is repairable, replacement parts are available from stock, and the foot pump is manufactured in Germany—unlike with inexpensive lift tables, which are simply replaced when they break.

Here's how to use it

  • Install your own tabletop: multiplex, screen-printed, or the existing workbench top—securely screwed in place through the through-holes in the frame; you choose the material, size, and finish.
  • Build custom structures: machine mounts, clamping devices, or machining stations—the frame handles the lifting and mobility; you build the rest to suit your needs.
  • Use it as a material cart: roll loads of up to 300 kg through the workshop—no lifting required; the hydraulics take care of it.
  • Complement your existing workstations: the 43–103 cm models handle any task at working height —as a rolling extension next to your workbench or machine.

Does this fit in your workshop?

The base frame 300 is the compact model; for doors and entire machine assemblies, there is the longer base frame 300 XL, and for battery-powered inflation instead of a foot pump, there is the base frame 400 XL Akku.

If you don't want to build it yourself, you don't have to: The ready-to-use RUWI Basic tabletop or the extendable RUWI Classic tabletop fit directly onto the base frame —or you can simply get the complete RUWI lifting table Basic or RUWI lifting table Classic as a ready-to-use package.

All the details

Dimensions and Load Capacity
Frame Size: 110 × 64 cm
Load Capacity: 300 kg
net weight : 75 kg

Lift and Drive
working height : 43 to 103 cm, continuously
Drive: Hydraulic foot pump
Hydraulics: Repairable, replacement parts in stock, foot pump manufactured in Germany

Frame and Mobility
Construction: welded square-tube frame with through-holes for custom panels
Casters: 4 lockable solid rubber casterscastors Ø 100 mm

★★★★★
