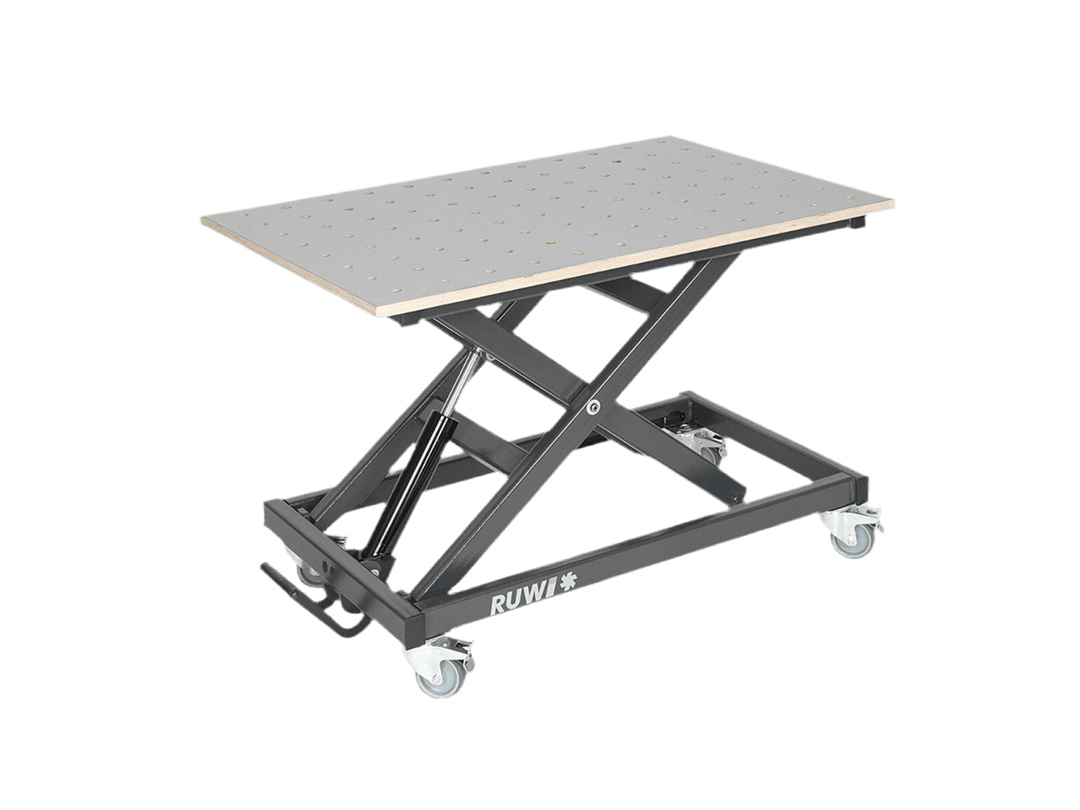

RUWI lifting table Basic

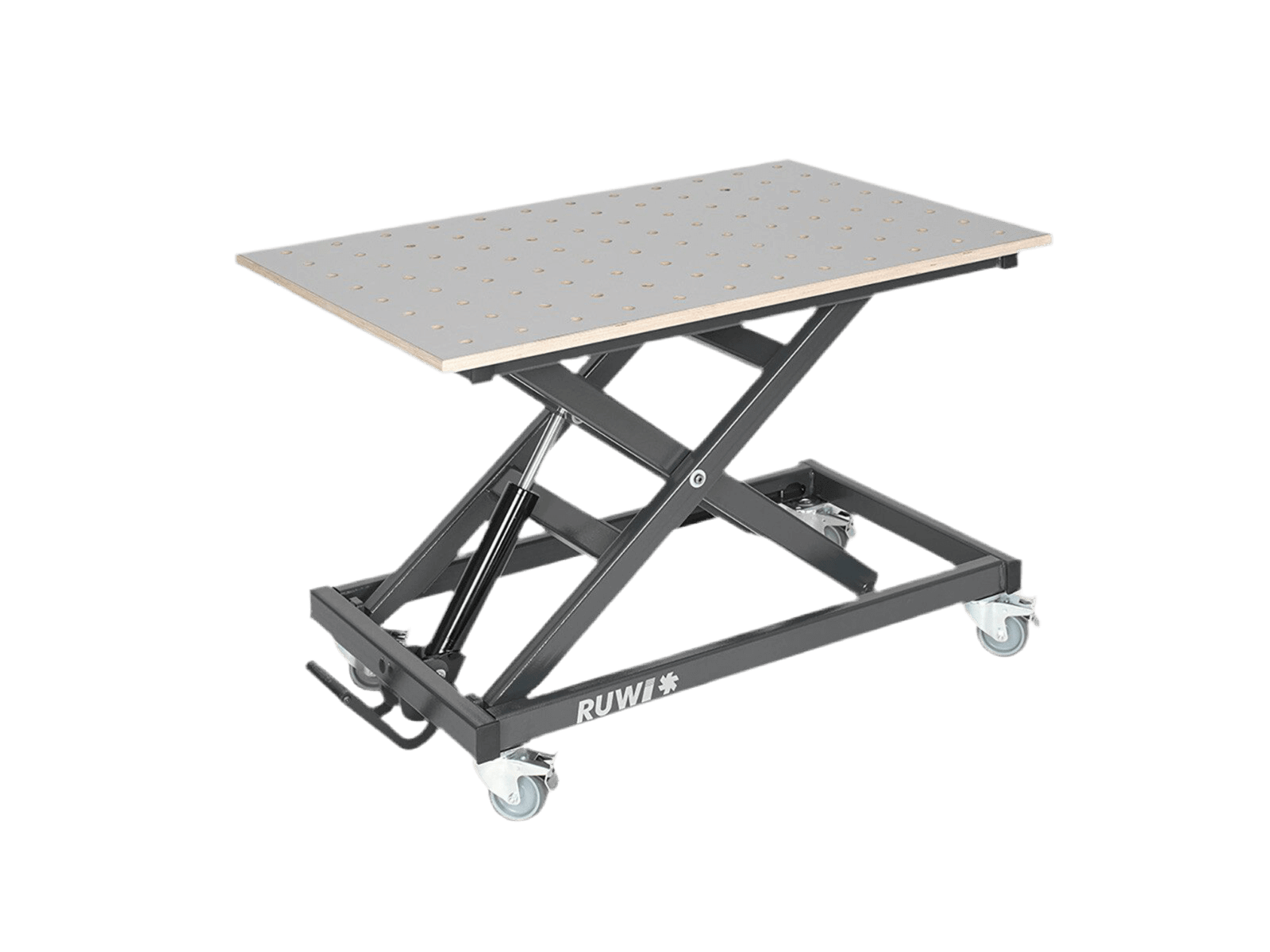

The RUWI lifting table Basic is the entry-level model in the lifting table series—a scissor lift table with an HPL perforated work surface that does exactly what a lifting table is supposed to do in the workshop: position workpieces on working height , clamp them securely, and remain mobile. No extensions, no second work surface—exactly what many woodworkers need.

The tabletop (1,200 × 800 mm) is made of multiplex with an HPL coating on both sides—scratch-resistant, moisture-resistant, and easy to clean. 96 chamfered holes (Ø 20 mm) turn it into a clamping station: clamps, clamping bolts, and stops are positioned exactly where you need them. The height adjusts fr continuously ly from 45 to 105 cm via the hydraulic foot pump—effortless even under load, with no need for a power connection. Load capacity up to 300 kg; the hydraulic system is repairable, and the foot pump is manufactured in Germany.

Four lockable solid rubber casterscastors (Ø 100 mm) turn the workbench into a transport cart: Place the workpiece on it, roll it through the workshop, engage the brakes, and continue working.

Here's how to use it

• Install on working height : The infinitely adjustable height range from 45 to 105 cm brings every work surface to waist height—attach the support at the bottom and mount the hardware at the top, without having to bend over.

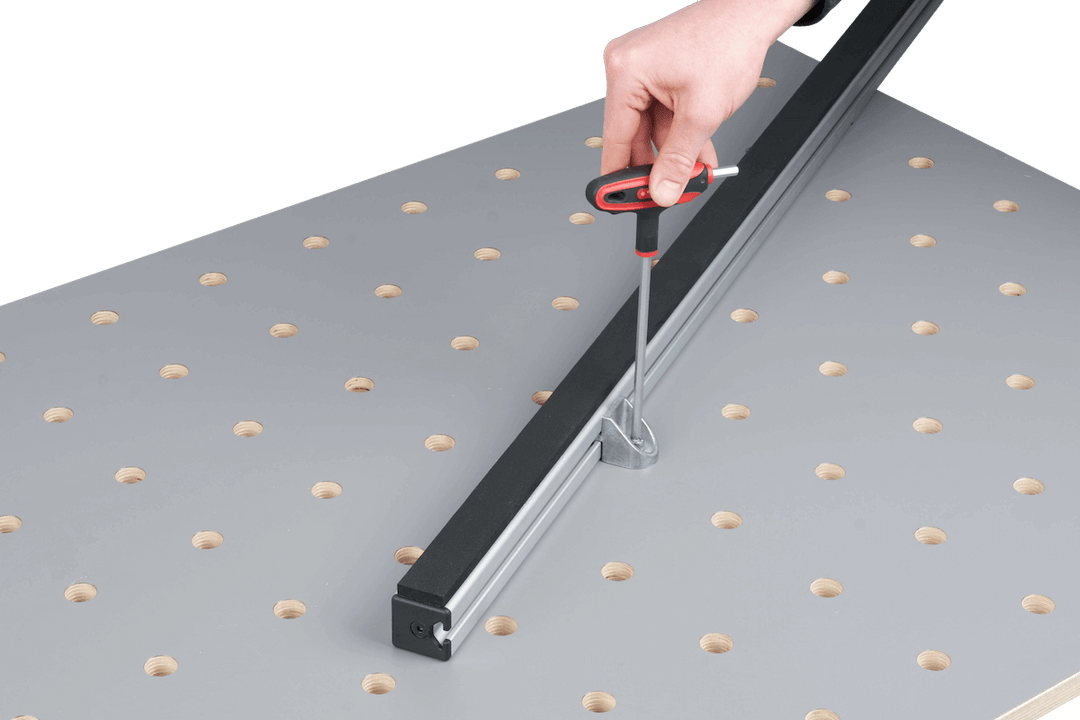

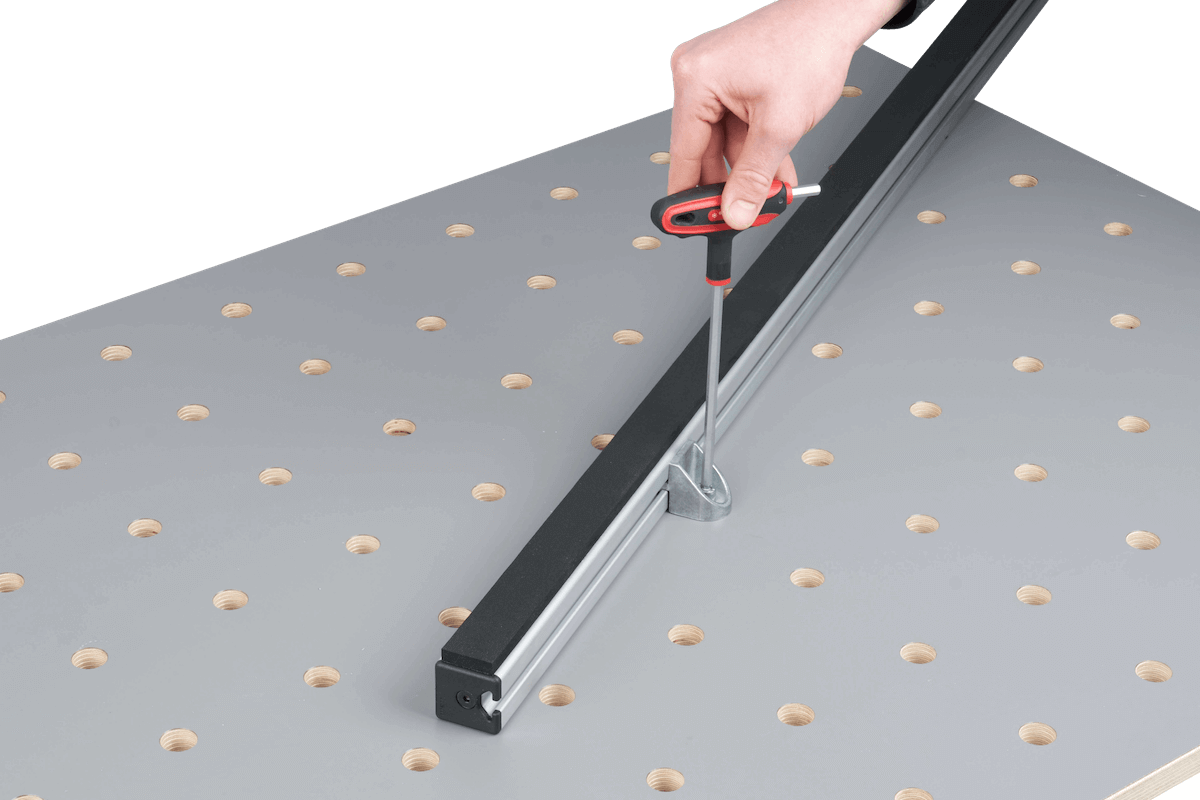

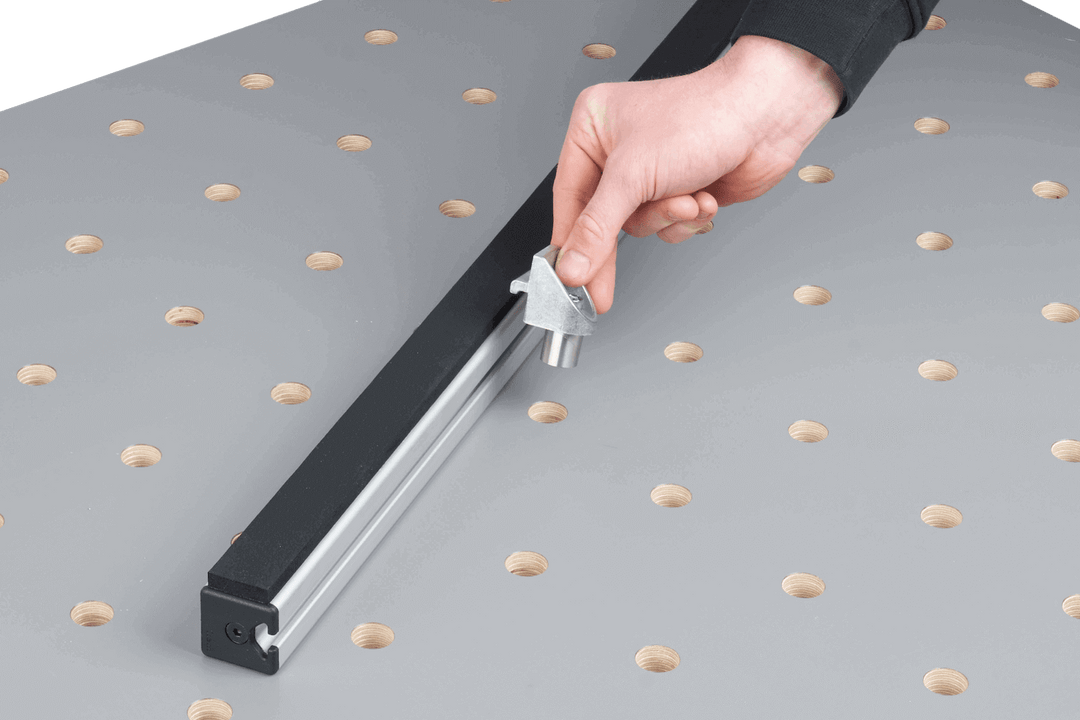

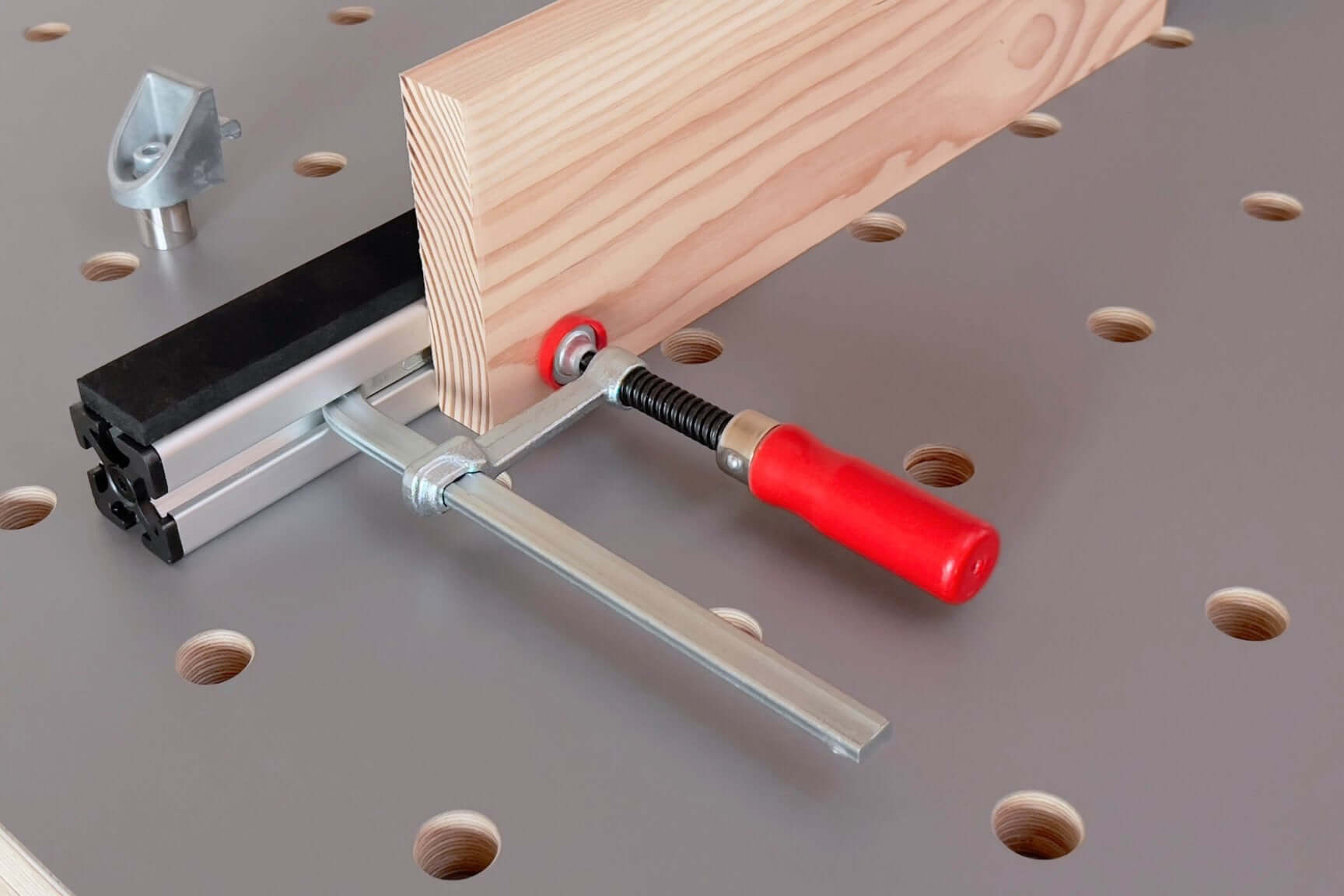

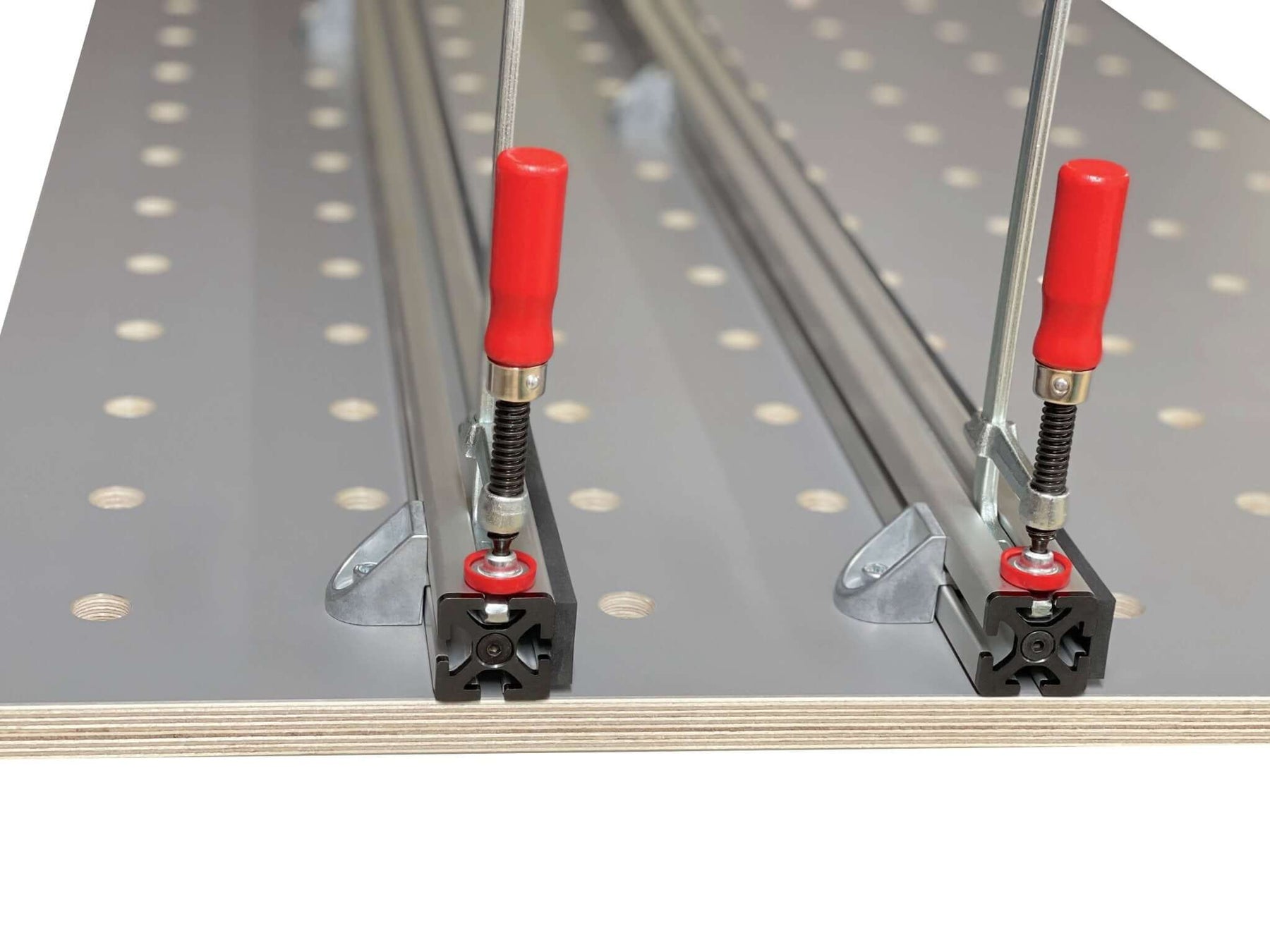

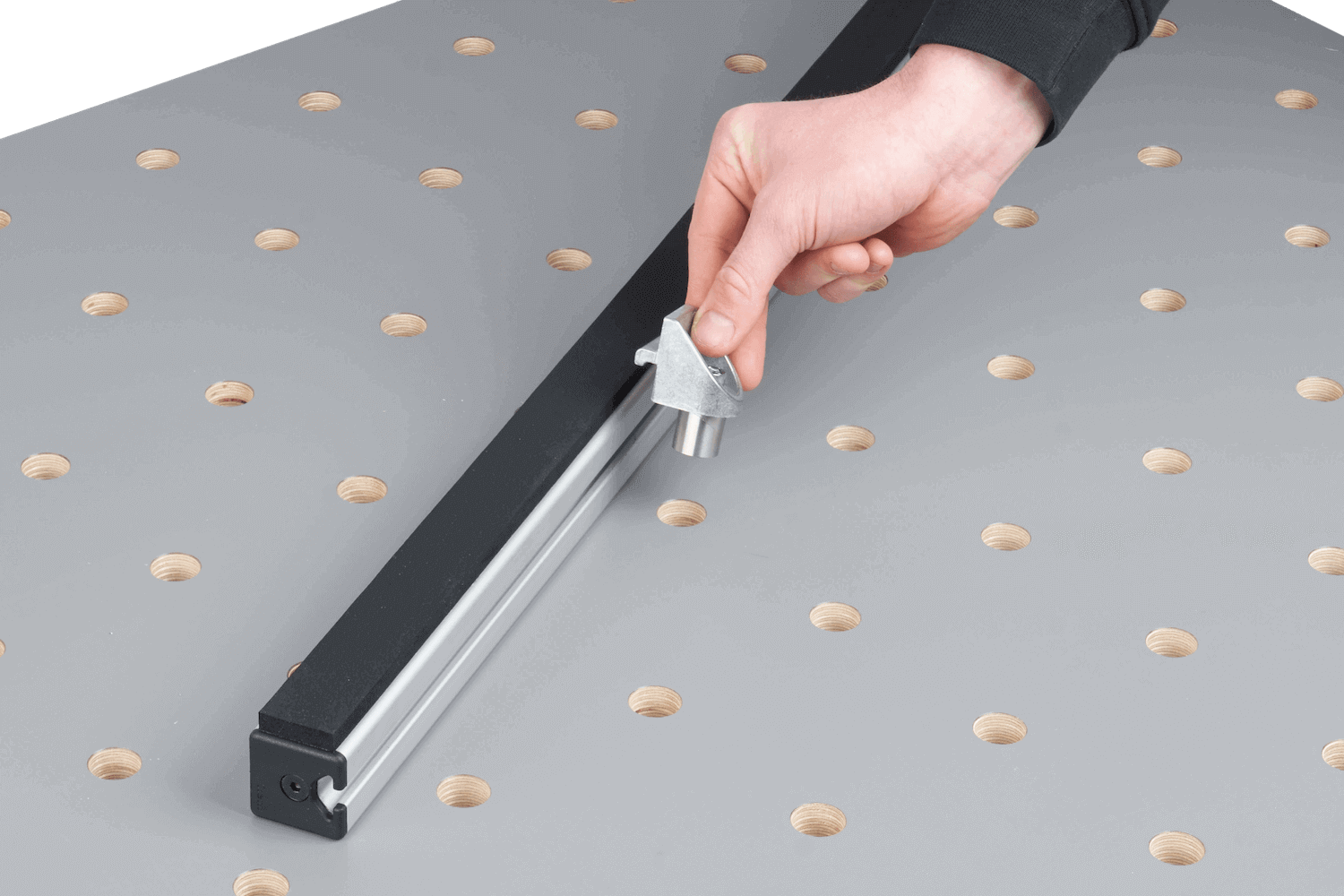

• Gluing, drilling, sanding: Clamps and clamping bolts move along the 20-mm-hole grid , performing their tasks—the panel serves as the clamping station.
• Moving heavy parts: Up to 300 kg roll through the workshop on the four castors —no lifting required; the hydraulics take care of it.
• As a second workstation— next to the workbench or by the machine—the table is placed wherever you're currently working.
• Continue using your existing accessories: the 20-mm grid aligns with the established standard—clamping devices from Festool MFT, Sauter Variobench, and other 20-mm tables are compatible across brands.

Does this fit in your workshop?

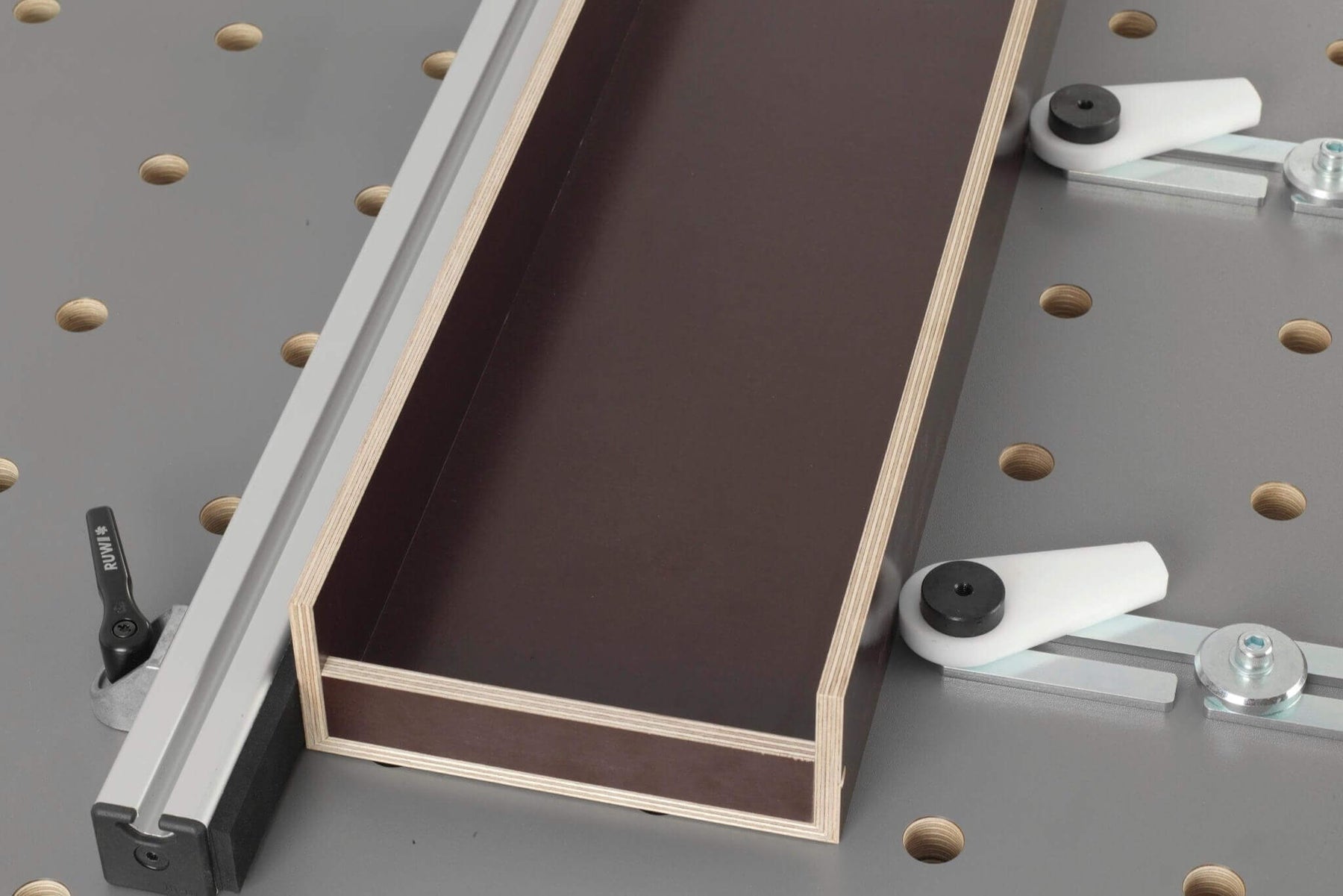

The Basic is the standard 1,200 × 800 mm table without any extras—but it features the same hydraulics, the same “ hole grid ” standard, and the same load capacity as the larger models. It accommodates the complete “ RUWI ” clamping system.

If you need an extendable surface up to 2,200 mm and storage space at the table, the RUWI lifting table Classic is the right choice. If you want a second fold-out perforated panel with a clamping system package, check out the RUWI lifting table Premium; for custom setups, there’s the RUWI lifting table - base frame without a panel.

All the details

Dimensions and Load Capacity
Tabletop: 1,200 × 800 mm, multiplex, HPL-coated on both sides
Load capacity: up to 300 kg
net weight : approx. 82 kg

Lifting Range and Drive
working height : 45 to 105 cm, continuously
Drive: hydraulic foot pump, no electrical connection required
Hydraulics: repairable, foot pump manufactured in Germany

Clamping system
hole grid: 96 chamfered holes, Ø 20 mm
Compatibility: RUWI clamping system and 20 mm hole grid standard (Festool MFT, Sauter Variobench, and others)

Mobility
Casters: 4 lockable solid rubber casterscastors , Ø 100 mm
