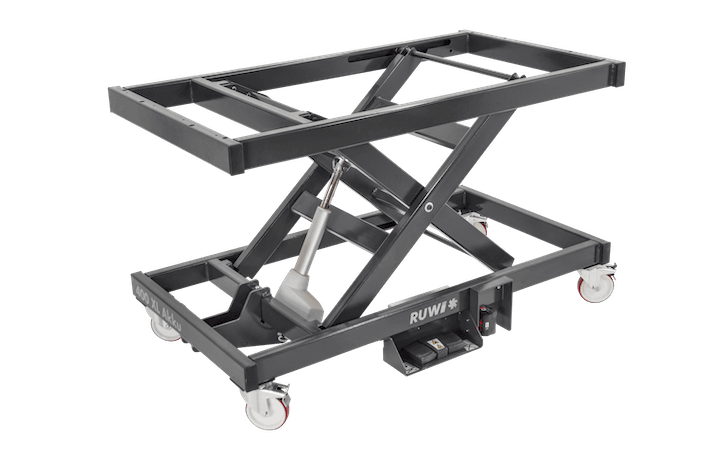

RUWI lifting table base frame 400 XL Battery-Powered Model, freestanding with electromechanical drive, without tabletop

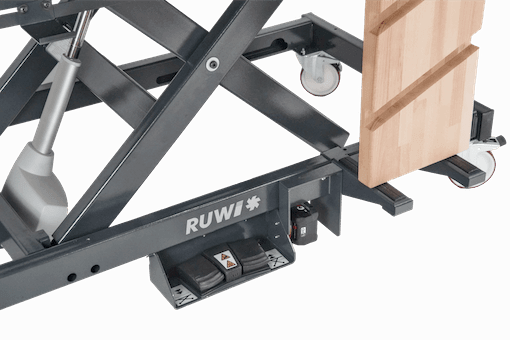

RUWI lifting table base frame 400 XL Battery, close-up view with the CAS battery inserted into the drive unit
RUWI lifting table base frame 400 XL Battery-Powered Scissor Lift Table
RUWI lifting table base frame 400 XL Battery-Powered Model, freestanding with electromechanical drive, without tabletop
RUWI lifting table base frame 400 XL Battery, close-up view with the CAS battery inserted into the drive unit
RUWI lifting table base frame 400 XL Battery-Powered Scissor Lift Table

RUWI lifting table base frame 400 XL Battery-Powered Scissor Lift Table

RUWI21027

€3.376,36
/
Includes sales tax Plus shipping costs
Calculated for your business
≈ €1,986 in actual costs for your business
after input tax and depreciation · €3,376.36 gross
Calculate using your tax rate →Is it right for your job? The configurator will check →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • Low stock - 2 left in stock
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped on a pallet via Schenker freight forwarder
• Dimensions: 1,680 × 1,150 × 630 mm
• Weight: approx. 150 kg

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

Would you prefer a complete model?

The configurator asks about your workpieces, your workflow, and your available space—and shows you which lifting table is the right fit. It also compares it to building your own on base frame.

Launch the configurator →
About a minute.

The idea behind it

Large projects require a large work surface. When you want to set up a spacious workbench, compact solutions often aren’t enough. That’s why we rely on the XL-base frames. The battery-powered version even has a load capacity of 400 kg. For anyone who works with heavy workpieces on a daily basis, we wanted to provide added convenience: electric height adjustment via foot switch, so your hands stay free. The CAS battery system uses existing batteries from the workshop—without any additional investment.

Jörg Hezel

The RUWI lifting table base frame 400 XL Akku is the electromechanical version of the XL series: Instead of pumping with your foot, you adjust the height using two foot switch – leaving your hands free. This allows you to lift loads of up to 400 kg continuously to working heights ranging from 69 to 103.5 cm (34.5 cm stroke).

The power tool operates cordlessly using 18-volt batteries from the CAS system (Cordless Alliance System)—compatible with batteries from Metabo, Mafell, Lamello, and other CAS partners. This way, you can use the batteries you already have in your workshop. If one runs out, just swap it out and keep working—no cords, no waiting for an outlet. The battery and charger are not included—you’ll need to purchase the compatible CAS battery and charger separately.

The welded square-tube frame measures 144 × 77 cm and features through-holes for securing the support. Four solid rubbercastors (Ø 125 mm) make the 116 kg unit mobile—two with brakes, two with directional locks for straight-line travel.

Here's how to use it

  • Adjusting under load: Place your foot on the switch, and the table moves electrically—both hands remain on the workpiece, even when 400 kg are resting on it.
  • Reuse batteries: The CAS slot accepts Metabo, Mafell, and Lamello batteries from your tool collection—power your tools without any additional investment.
  • Mount your own attachments: the neutral top surface with through-holes accommodates perforated panels, machine mounts, or custom-built attachments— base frame is the base; you determine the surface area.
  • Straight-line maneuvering: The two directional locks guide the table in a straight line through narrow aisles—the brakes hold it securely in place.

Does this fit in your workshop?

The base frame is a worthwhile investment for settings where frequent and heavy adjustments are required and CAS batteries are already in use. With a pre-assembled XL perforated grid plate, the complete table is available as theRUWI lifting table Classic 400 XL; the foot pump alternative that does not require a battery is the RUWI lifting table - base frame with a hydraulic system. The lifting table system offers matching plates and accessories.

All the details

Dimensions and Weight Capacity
Frame Size: 144 × 77 cm
Weight Capacity: up to 400 kg
net weight : approx. 116 kg

Lift and Drive
working height : 69 to 103.5 cm
Lift: 34.5 cm
Drive: electromechanical via two foot switch, 18 V CAS battery (Metabo, Mafell, Lamello)

Mobility
Casters: 4 solid rubbercastors Ø 125 mm (2 with brakes, 2 with directional locks)

Construction
Frame: welded square-tube construction with through-holes

Note
Delivery: Battery and charger not included

★★★★★
