Curved Ruler for RUWI router tables

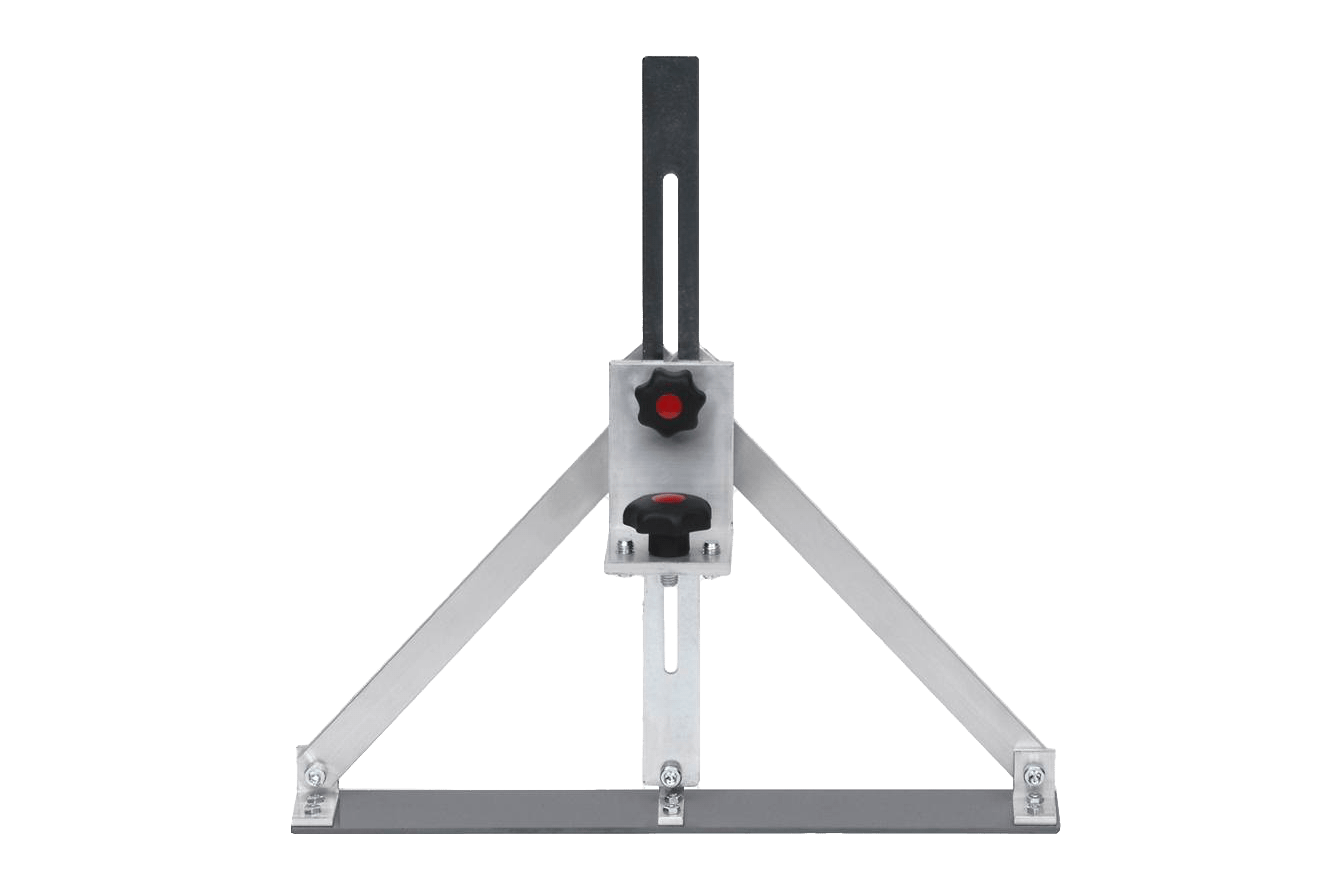

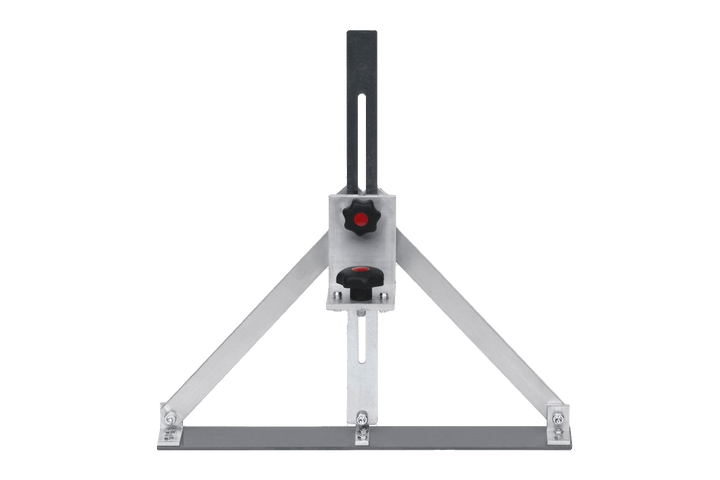

With the “ RUWI ” curved ruler, you can mill profiles, slots , and chamfers parallel to a curved contour—on both inner and outer radii—without a template or auxiliary construction. The curved guide made of flexible plastic (340 × 55 mm) adjusts continuously ly to the curve; you guide the workpiece along the curved edge of the guide, creating round tabletops, curved furniture parts, or curved seats with clean, even edges.

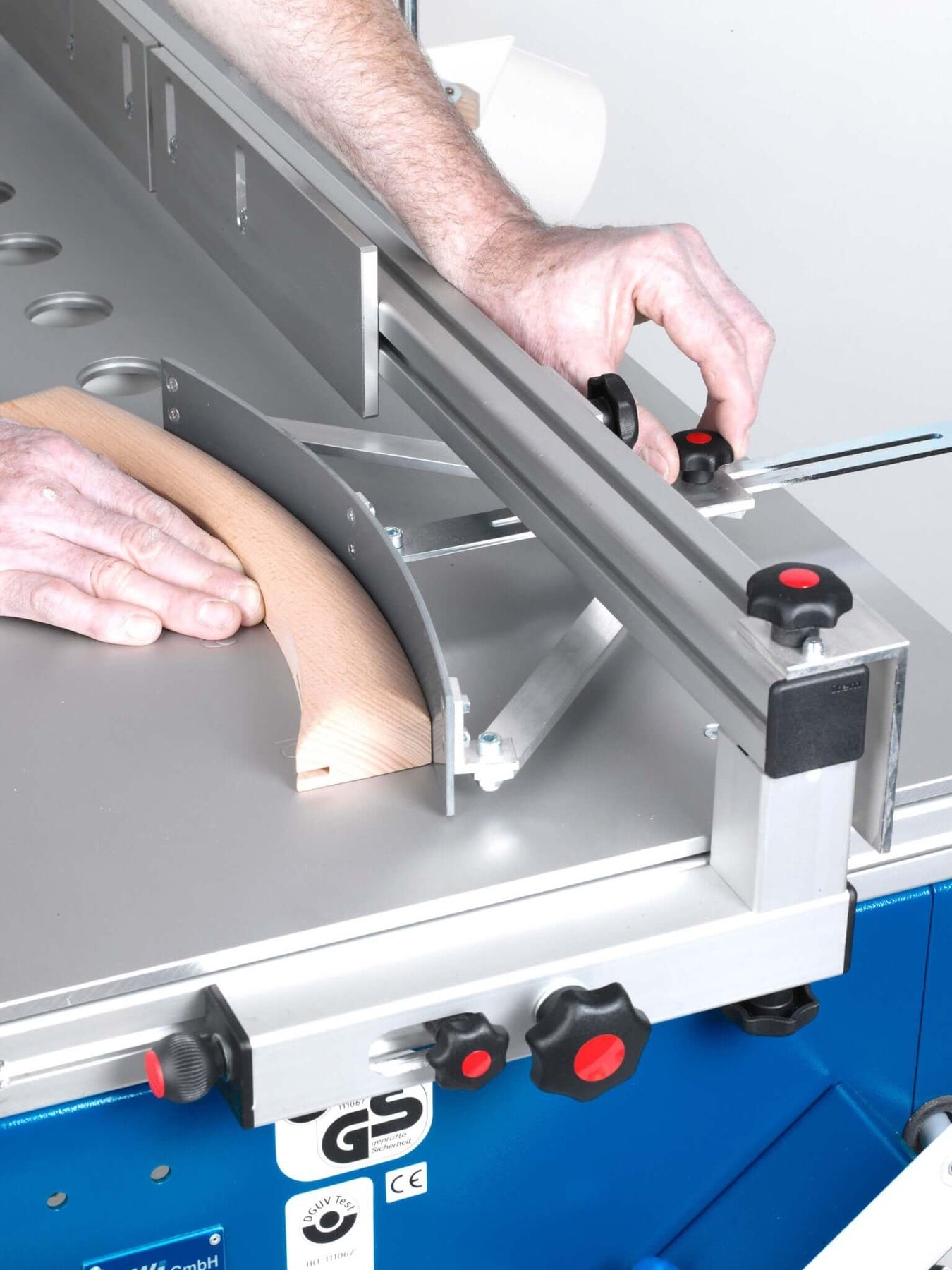

The arc guide is mounted to the stop guide using a knurled screw and can be used on any drive spindle by sliding it sideways—after you're done, hang it on the right outer side of the machine frame.

Here's how to use it

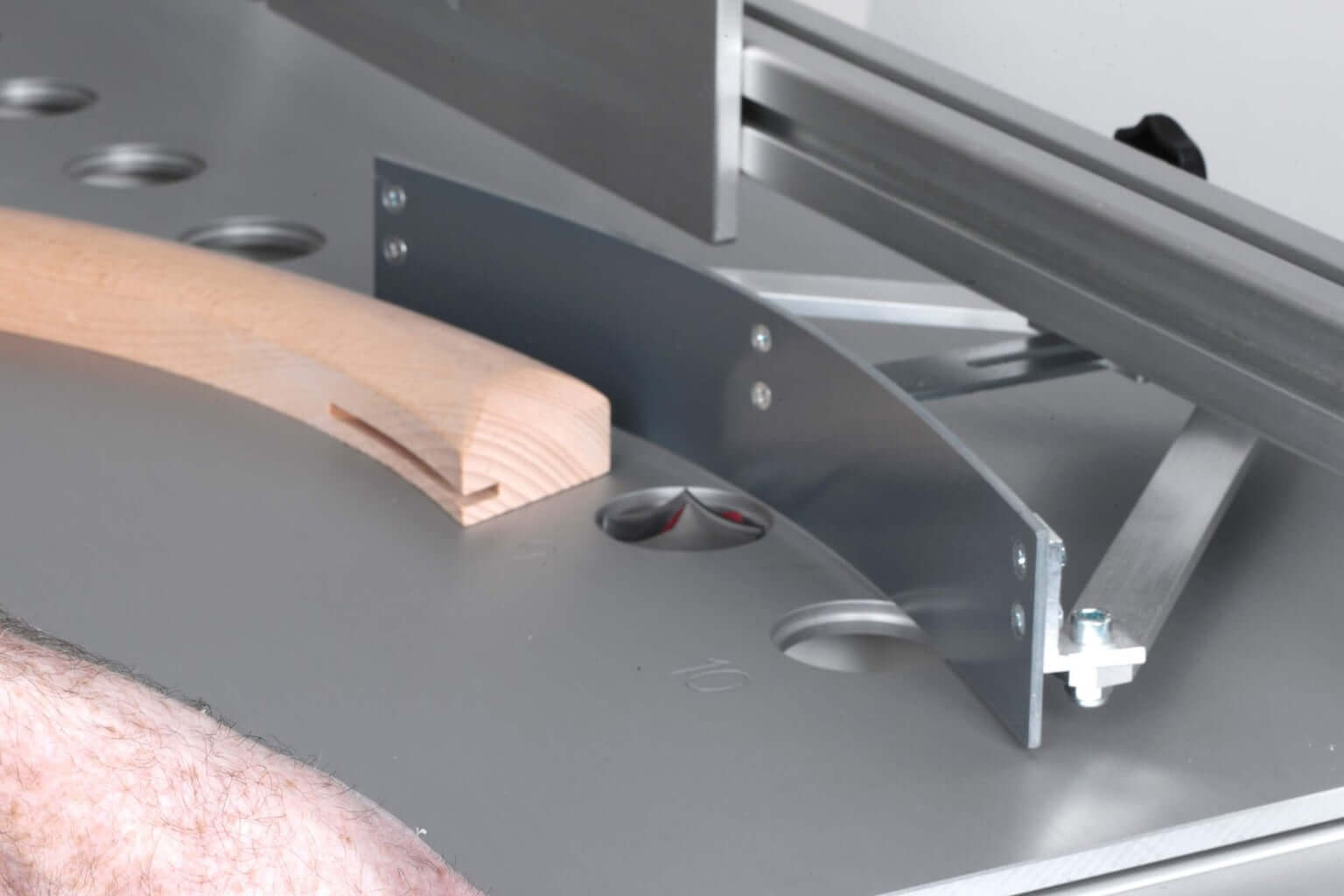

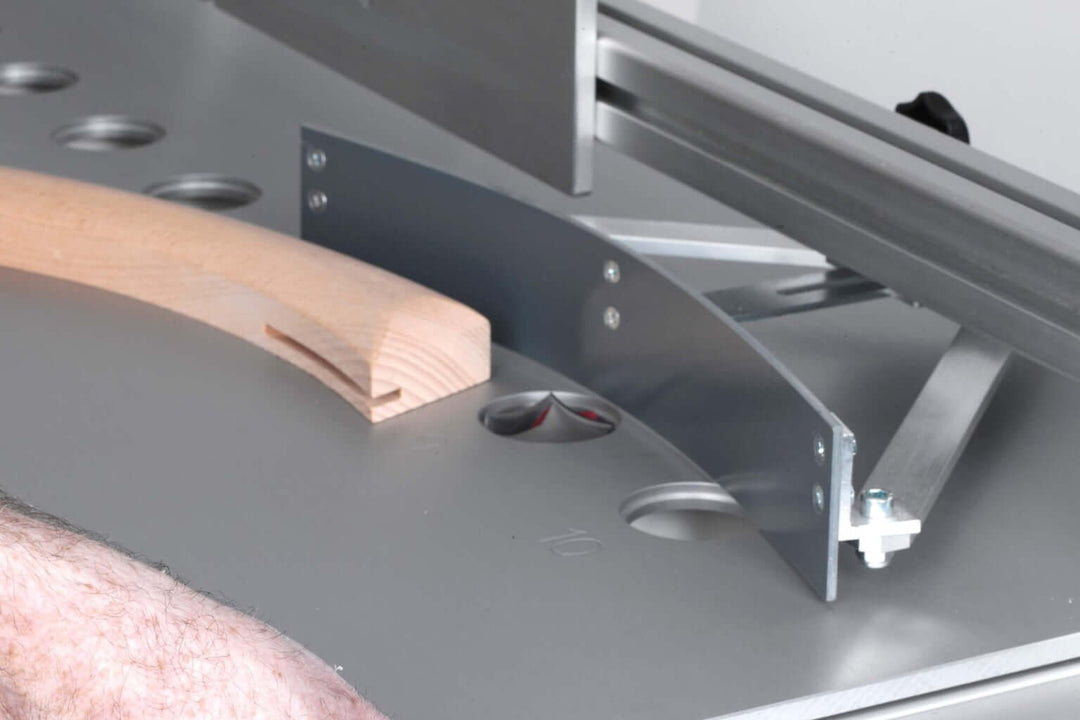

• Profiling round panels: The tabletop follows the curve of the arch with its rounded edge—the profile remains at the same distance from the edge throughout.
• Inner and outer radii in a single setup: the flexible stop curves in both directions—convex and concave—without any adjustments.

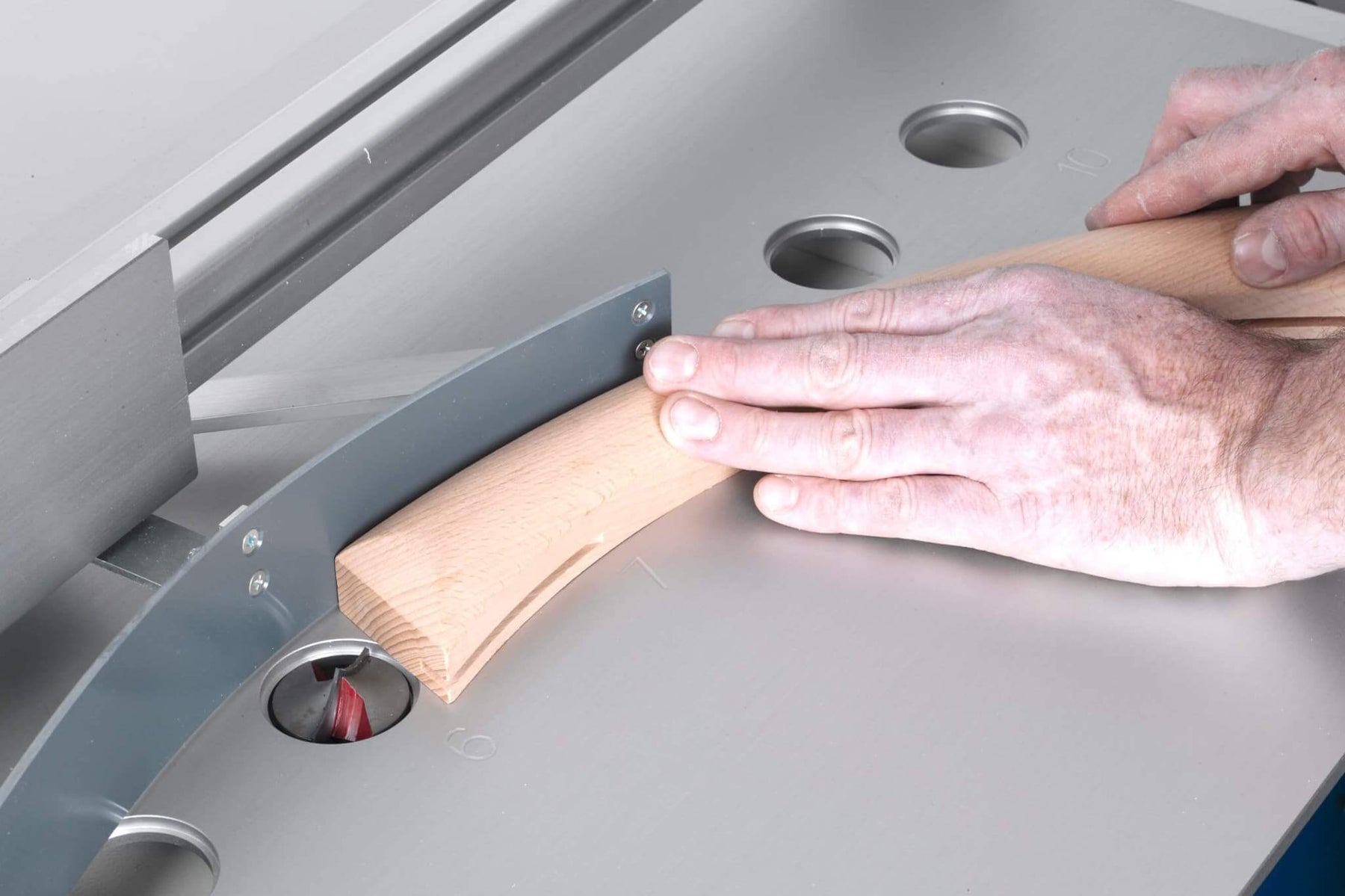

• Copy the curve instead of building a template: Place the arc against the workpiece, clamp it in place, and mill—no need for a template.
• Moving between spindles: The ruler operates on each drive unit of the table, shifted to the side.

Does this go with your router table?

Important when ordering: The curved ruler only works in combination with the RUWI stop ruler —so you’ll need to either already have one or order it along with this item. It fits all router table models: Basic, Classic, Classic Performance, and Premium.

All the details

Stop
Design: Curved stop made of flexible plastic
Stop dimensions: 340 × 55 mm

Insert
Application: Outer and inner radii; can be slid along any drive spindle
Requirements: Can be retrofitted; can only be used with a stop ruler

Weight
net weight : 1.5 kg

Compatible Models
Compatibility: RUWI router table Basic, Classic, Classic Performance, and Premium
