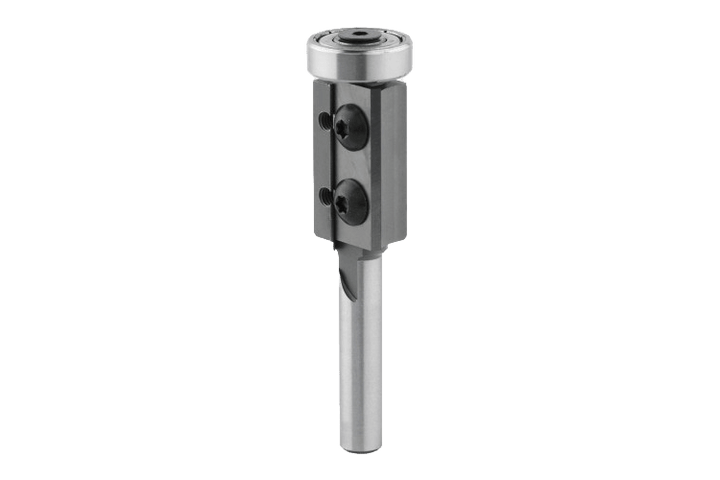

Flush cutter with indexable inserts and guide bearing

Brief description

The flush-milling cutter trims protruding edges flush with a reference surface—whether you’re copying a template or flush-milling edge banding and veneer overhangs. Instead of brazed-on cutting edges, it features two carbide indexable inserts: When one edge becomes dull, simply rotate the insert 180° to reveal a fresh edge. If both sides are worn, replace the insert—no need to send it to a sharpening service, no downtime.

The guide ball bearing (19 mm diameter) is designed to match the cutting path and guides the router bit along an edge or template. The cutter is double-edged, clockwise-rotating, with a 19 mm outer diameter and a 30 mm cutting length—enough for thicker workpieces in a single pass. The 8 mm shank fits in hand-held routers, bench routers, and the RUWI router table.

The large 19-mm head delivers high cutting speed and a clean cut—especially on straight and wide contours. It is too large for tight inner radii; for those, use the flush cutter with a smaller guide bearing (Ø 9.5 mm). You can find additional milling tools in the RUWI milling tools section, and the matching tables in the RUWI milling tables section.

Possible applications

• Mill edges and overhangs flush with the reference surface – edge banding, veneer, template contours
• Stencil cutting with high cutting speed and a clean cut
• Indexable inserts: Rotate the dull cutting edge 180° or replace it—no sharpening service required
• The guide ball bearing (Ø 19 mm) runs along the edge or template
• For softwood, hardwood, and laminated panels
• 8 mm shank for hand-held routers, RUWI router tables, and bench routers
• For tight inside radii, select a face mill with a smaller lead bearing (Ø 9.5 mm)

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Function and cutting edges
- Flush cutter for removing edges flush with the reference surface
- Two carbide indexable inserts (Z2), reversible and replaceable
- Right-hand cutting

• Dimensions
- Outer diameter Ø 19 mm
- Cutting length 30 mm
- Shank Ø 8 mm, shank length 38 mm
- Total length 78 mm

• Guide bearing
- Ball bearing Ø 19 mm, guides along the edge or template

• Insert
- For softwood, hardwood, and coated panels
- For RUWI router tables, hand routers, and table routers
