Drive unit for RUWI milling table

Brief description

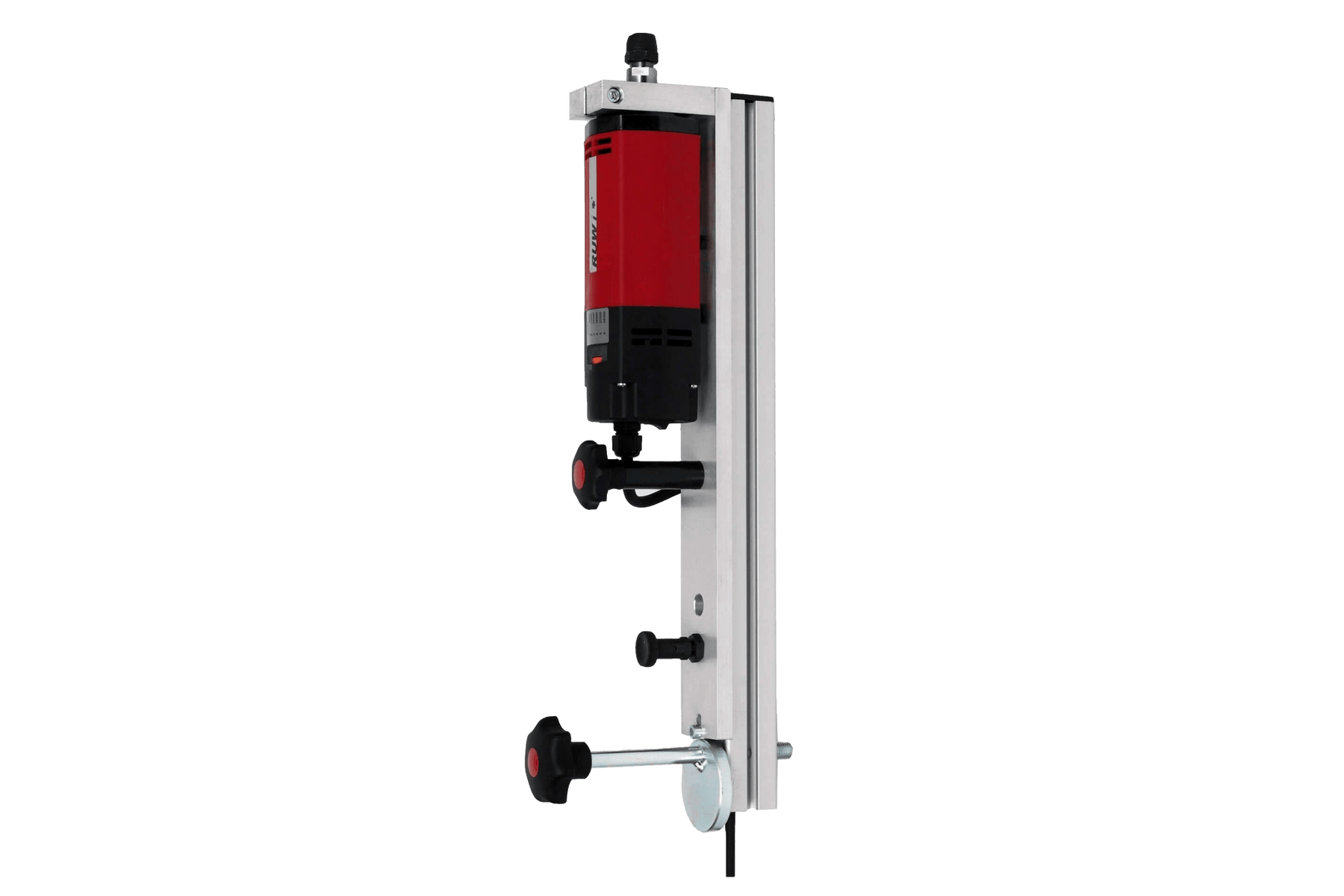

The drive unit is a complete, ready-to-install milling head for your RUWI milling table—a motor with height adjustment and a locking mechanism all in one unit. This allows you to add an additional spindle to your table: another tool permanently clamped in place, without the need for retooling. On the Premium model, mounting points and power outlets for up to ten drive units are pre-installed at the factory, so retrofitting is possible without any modifications.

1,050 watts at 230 V with stepless speed control from 8,000 to 25,000 rpm, electronic speed stabilization with soft start. The steel spindle (spindle neck diameter 22 mm) with return thread and double ball bearings runs smoothly and is dust-protected; milling stroke up to 43 mm. Standard collet diameter 8 mm (optional 6 / 6.35 / 10 mm). Manufactured in Germany.

Compatible with the RUWI Classic and Premium milling tables (the Premium model is designed to be expanded to up to ten spindles). If you only need the motor without height adjustment as a replacement, you can find it under the RUWI 1,050-watt drive motor.

Possible applications

• Add an additional spindle to an existing RUWI milling table – keep another tool ready for use at all times

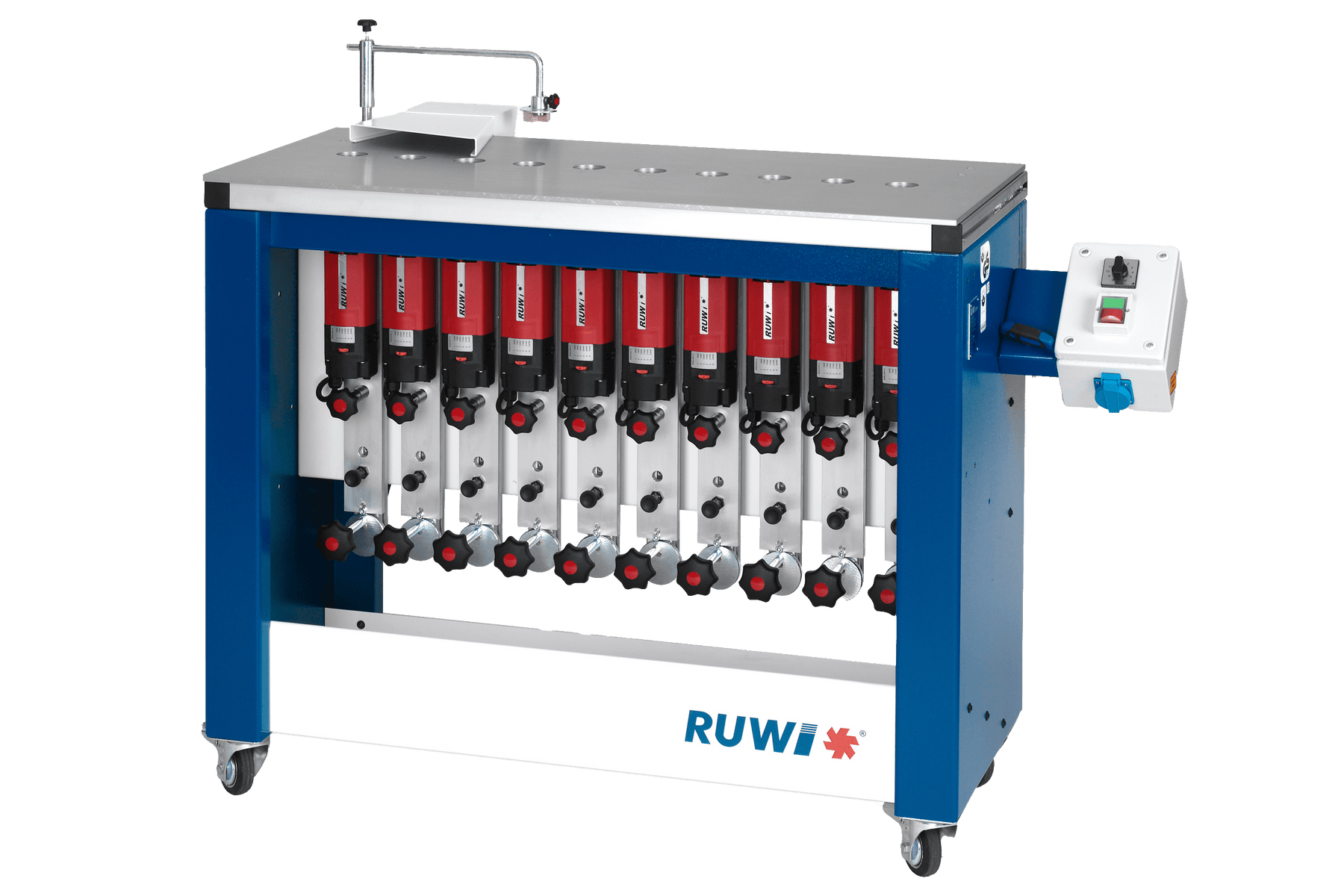

• Expansion of the Premium router table to up to ten drive units thanks to pre-installed mounting points and connections
• More parallel milling cutters for faster batch production without changeovers
• Ready to install: Motor with height adjustment and locking mechanism as a complete unit

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Motor and power
- 1,050 W (230 V), continuously variable speed from 8,000 to 25,000 rpm
- Electronic speed stabilization with soft start

• Milling spindle
- Steel spindle neck mount Ø 22 mm with return thread (dust protection)
- Double ball bearings
- Milling stroke: 43 mm

• Tool holder
- Standard collet Ø 8 mm (optional Ø 6 mm, 6.35 mm, 10 mm)

• Weight
- approx. 5.8 kg
