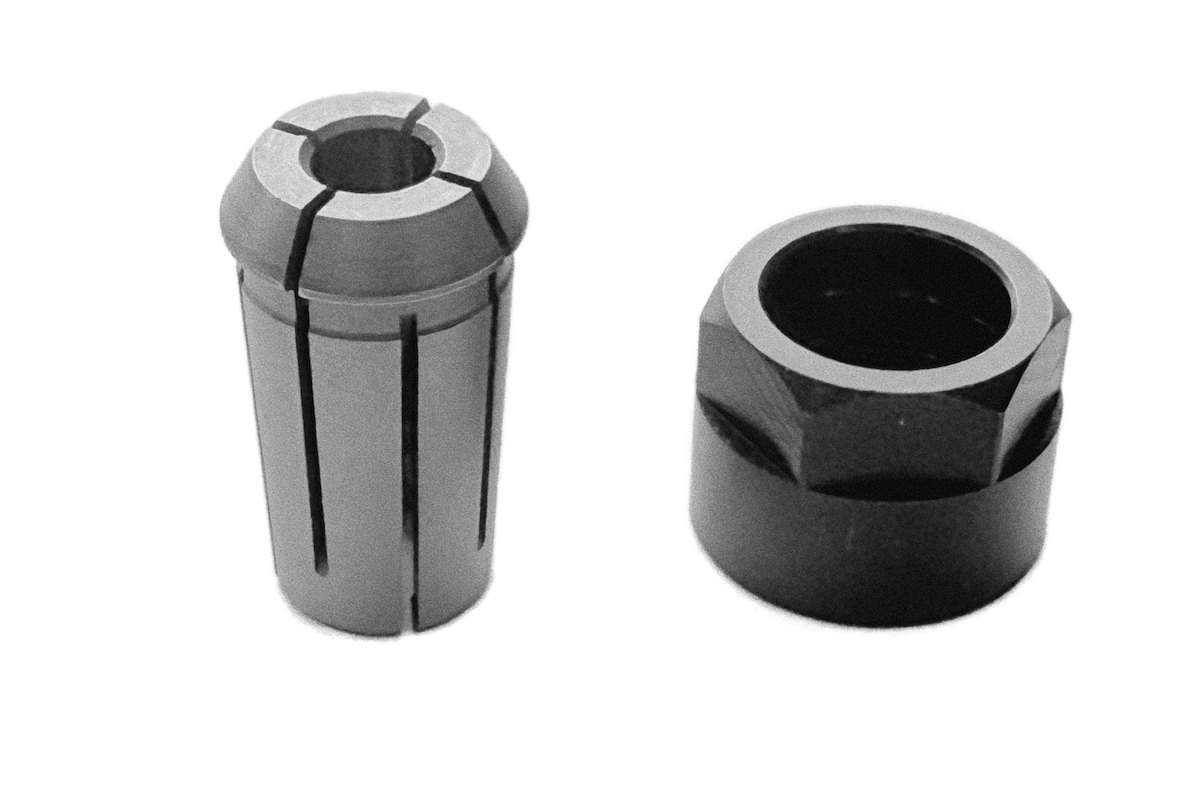

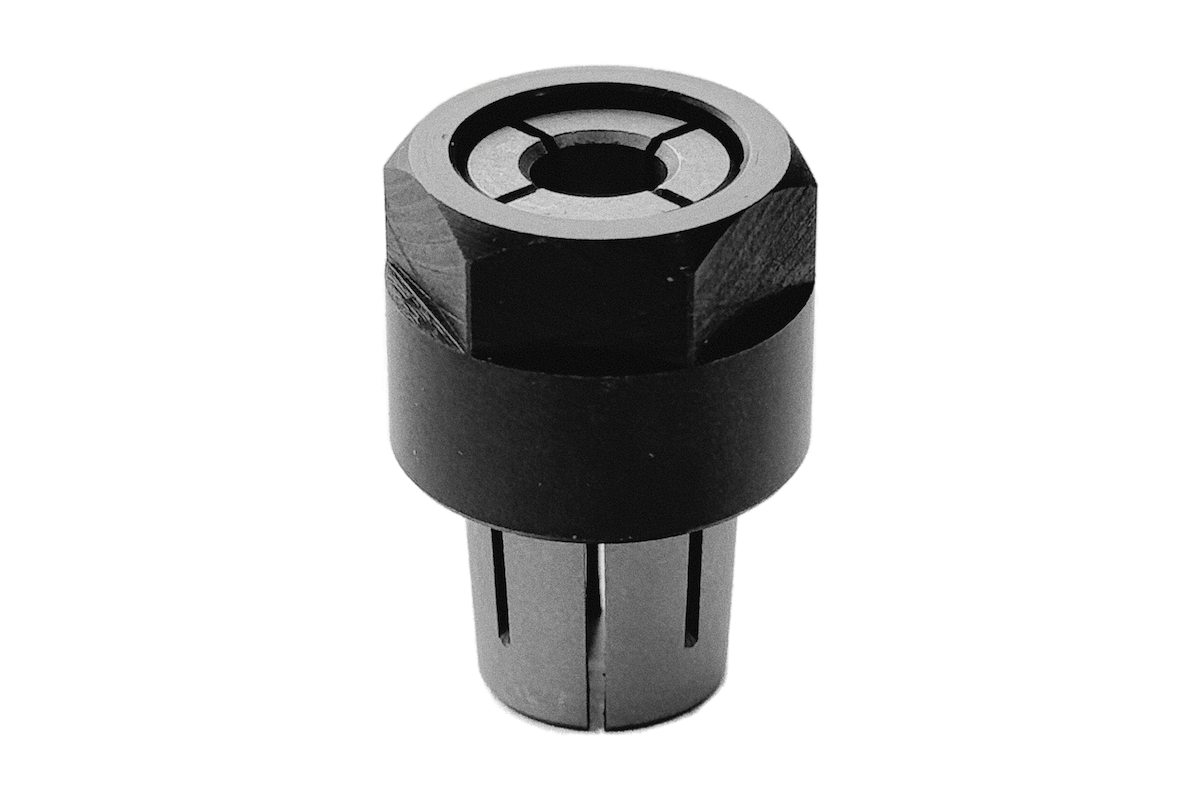

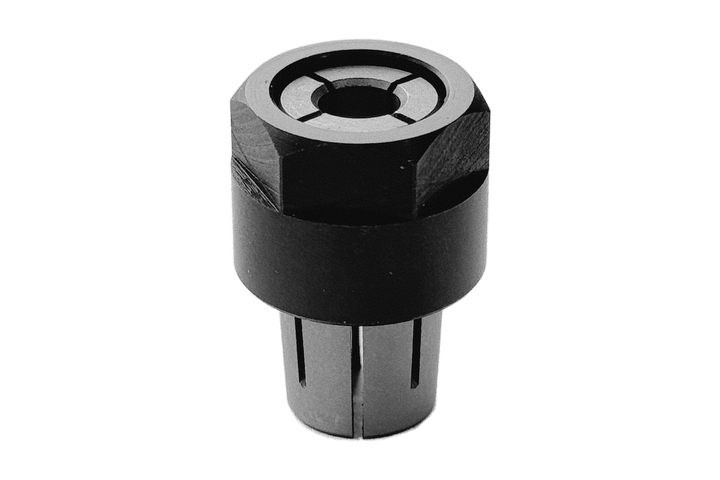

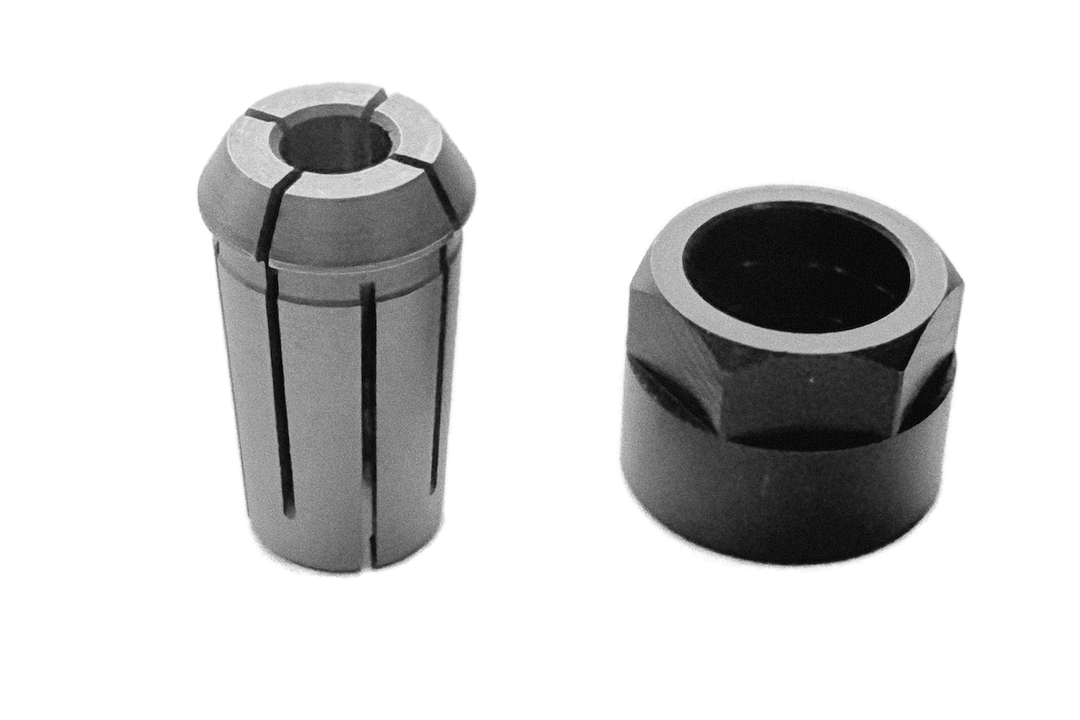

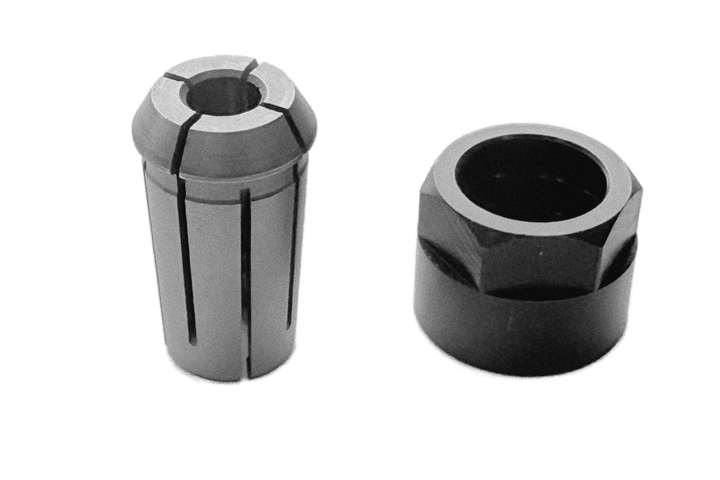

Performance Milling Table Collet with Cap Nut

Brief description

The collet is the link between the cutter and the spindle: it transmits power from the motor to the cutter shank and keeps it perfectly centered. At the high speeds of a router table, even a slight imbalance is enough to cause vibrations, an uneven cut, and premature tool wear. A collet is manufactured to fit exactly one shank diameter and encloses it almost completely—this ensures the cutter runs smoothly and sits securely.

This precision collet has multiple slots. A single-slotted collet applies pressure at only a few points; multiple slots distribute the pressure evenly around the entire circumference. The collet grips the shank more evenly, increasing the grip, and you need less force to clamp the cutter securely—this really pays off, especially with large cutters and hard materials like hardwood or MDF.

The collet is designed for the RUWI Classic Performance milling table and comes with a matching lock nut. It is available in eleven shank sizes ranging from 3 to 12.7 mm—since each collet fits exactly one diameter, choose the one that matches your router bit’s shank. Keep it clean and check it for wear before use: A clean, undamaged collet clamps more securely and also protects the router bit.

Possible applications

• Mounting cutters with precise concentricity on the RUWI Classic Performance milling table
• Low-vibration milling – for a clean finish and less tool wear
• Multiple slots: secure grip with less clamping force, even with large cutters and in hardwood or MDF
• Install using the included cap nut
• Choose the size that fits your shaft—eleven sizes ranging from 3 to 12.7 mm (3, 3.175, 4, 5, 6, 6.35, 8, 9.5, 10, 12, and 12.7 mm)
• Keep it clean and check for wear—this ensures a secure grip and protects the cutter

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Type and Application
- Precision collet, multi-slotted
- For the RUWI Classic Performance milling table

• Features
- High concentricity
- Multi-slotted design for a uniform, secure grip
- Includes cap nut

• Sizes
- 3, 3.175, 4, 5, 6, 6.35, 8, 9.5, 10, 12, and 12.7 mm (one shank diameter per collet)
