3D milling unit for RUWI milling table

Brief description

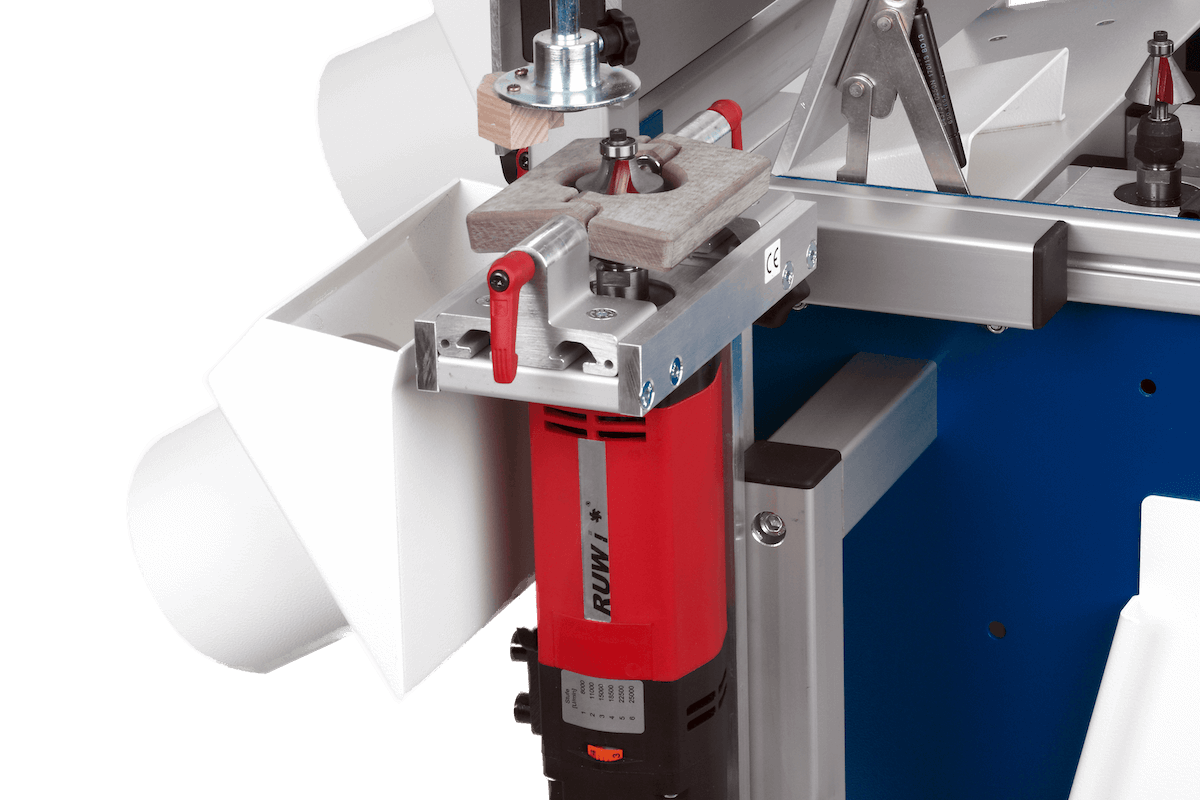

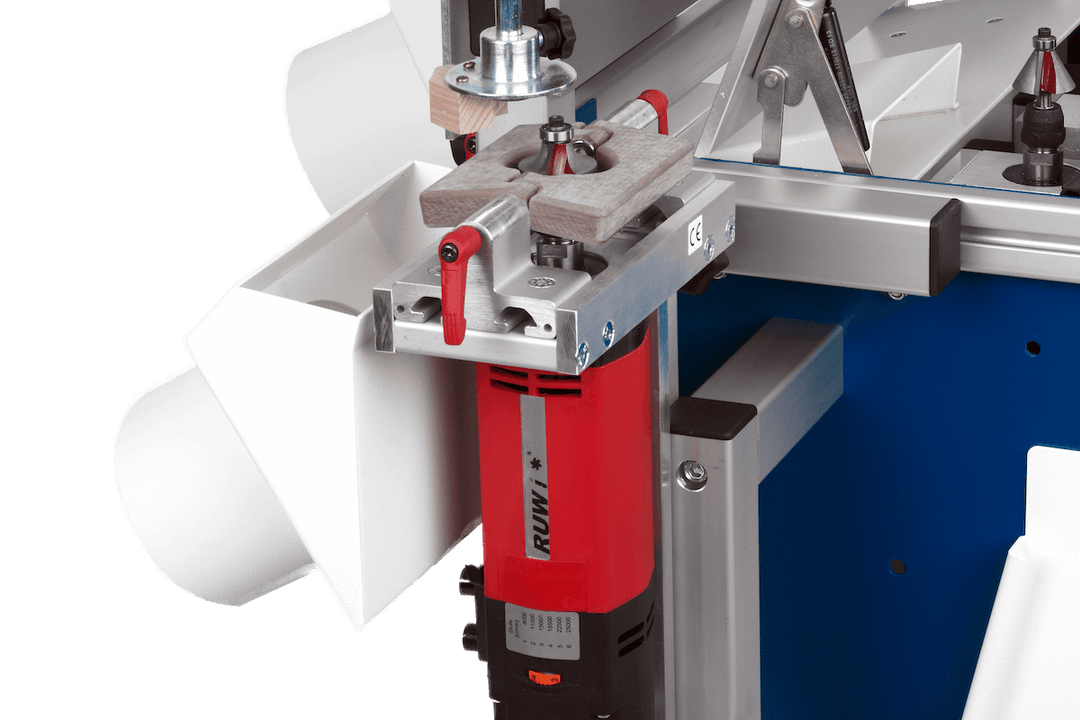

The 3D milling unit transforms your RUWI milling table into a free-form milling station. Using movable swivel supports, you can safely guide curved, contoured, and irregular workpieces along the cutter—the supports follow the contour rather than holding the workpiece rigidly in place. This allows you to machine shapes that cannot be milled with a fixed stop.

The unit comes with its own drive—1,050 watts, steel spindle with return thread, cutting depth up to 43 mm, collet Ø 8 mm. It is mounted on the side of the housing and can be retrofitted: Using the factory-installed Schuko outlets and mounting points, you can install it in just a few simple steps. As a “3D milling unit,” it is part of the GS certification (DGUV test) and wood dust testing for the RUWI milling table system. Compatible with the Basic, Classic, and Premium models.

Possible applications

• Milling curved furniture parts, stair stringers, and free-form panels
• Re-milling complex stencil parts
• Working with irregularly shaped wood and curved solid wood edges
• Shapes that cannot be drawn using a fixed guide ruler

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Drive and Performance
- 1,050-watt motor (230 V), continuously variable from 8,000 to 25,000 rpm
- Constant speed, soft start, and overload protection
- 22 mm diameter steel spindle with return thread to keep dust out of the bearings
- Double bearings, milling stroke up to 43 mm
- Collet Ø 8 mm (alternatively Ø 6 / 6.35 / 10 mm)

• Special feature
- Movable swivel supports for curved and shaped workpieces

• Mounting and Weight

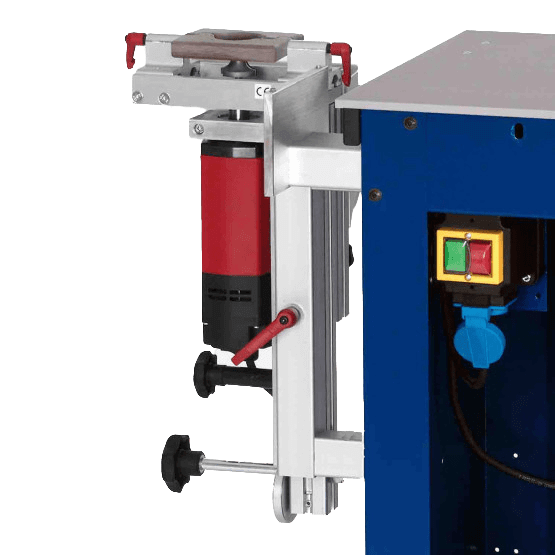

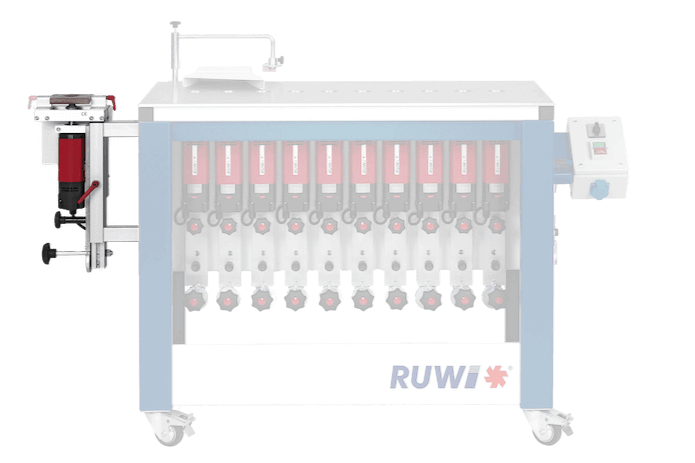

- Can be mounted on the side of the housing – compatible with RUWI Basic, Classic, and Premium milling tables
- Connection to factory-installed Schuko outlets
- Weight 8.3 kg

• Dust extraction
- Connection Ø 120 mm

• Origin
- Manufactured in Germany
