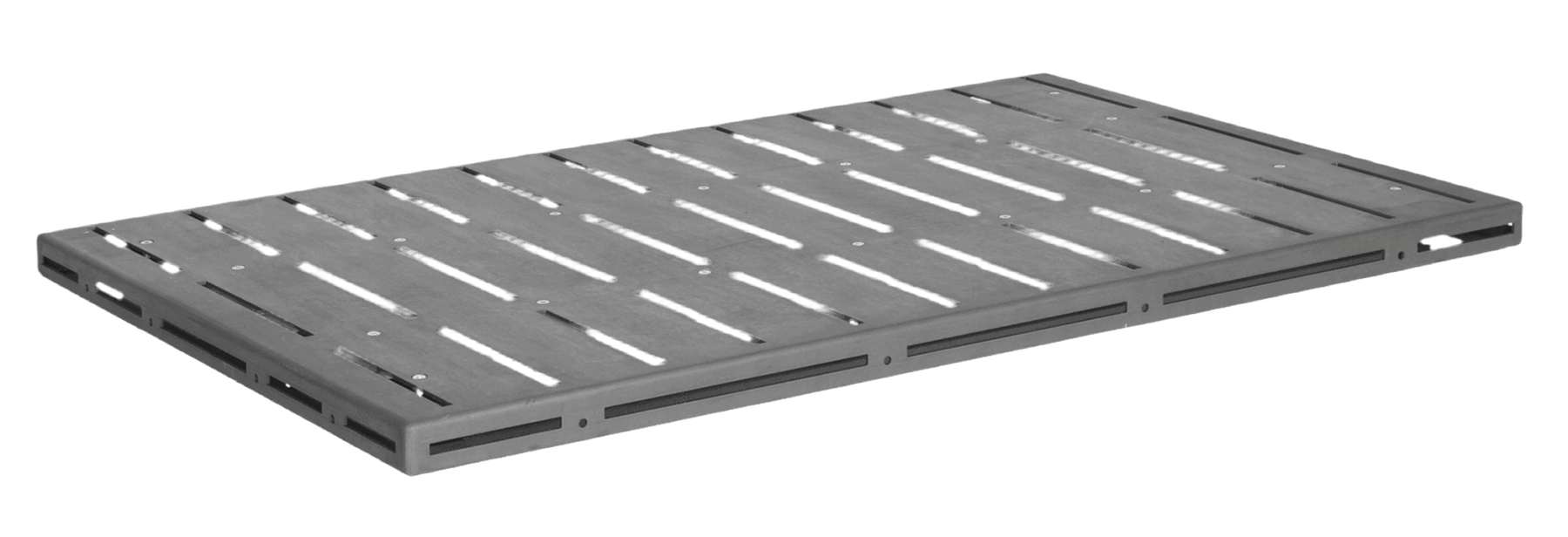

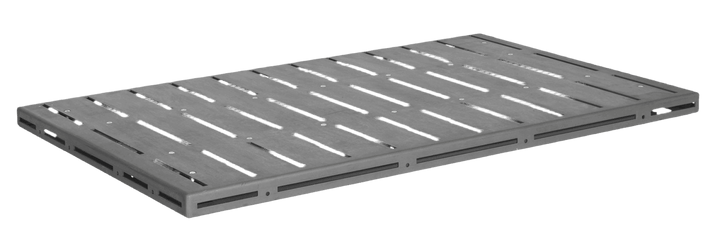

RUWI Welding table top: 1,200 × 800 mm, slot 10 mm, cutout

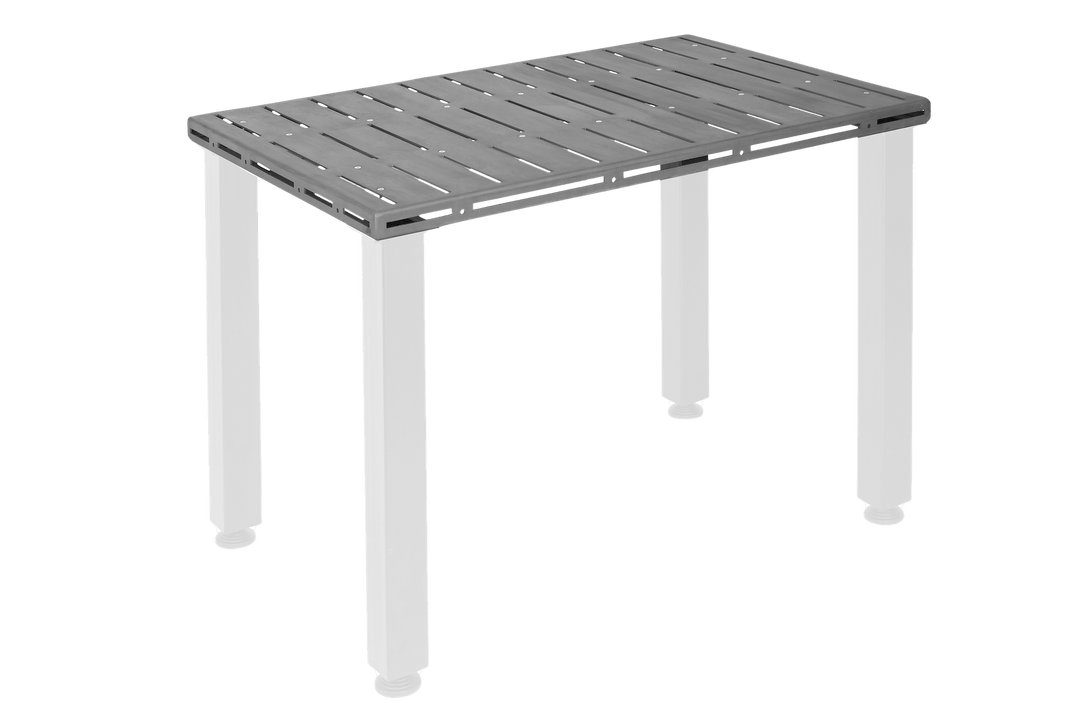

RUWI slot , 10 mm welding table top, shown on a simple table frame with four legs

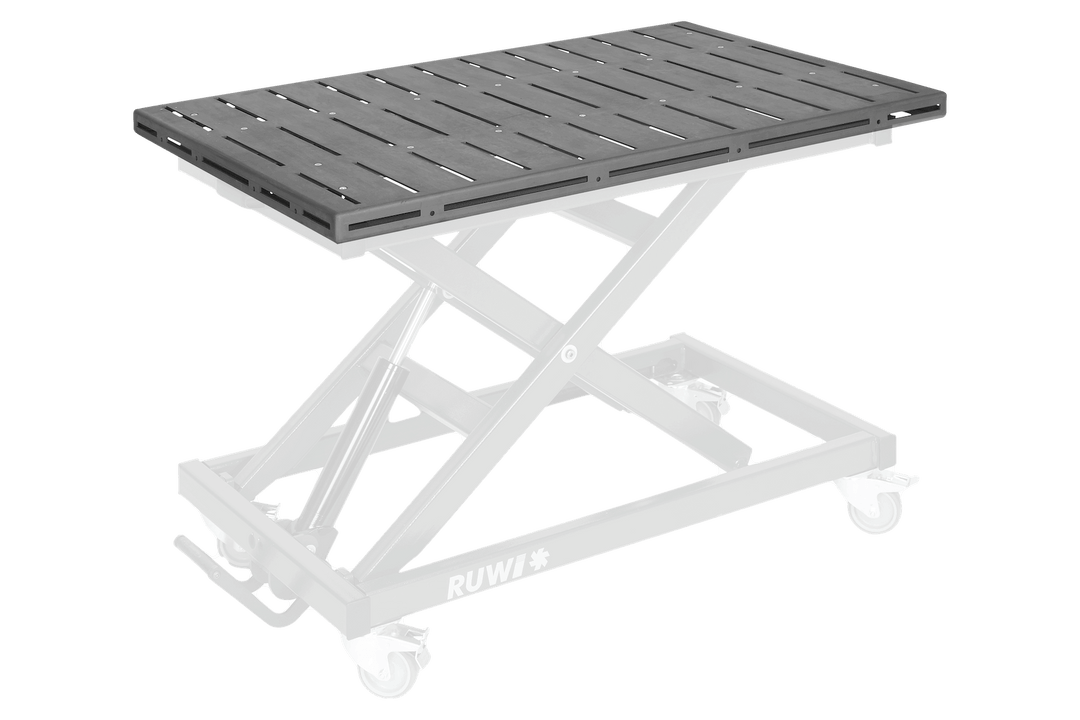

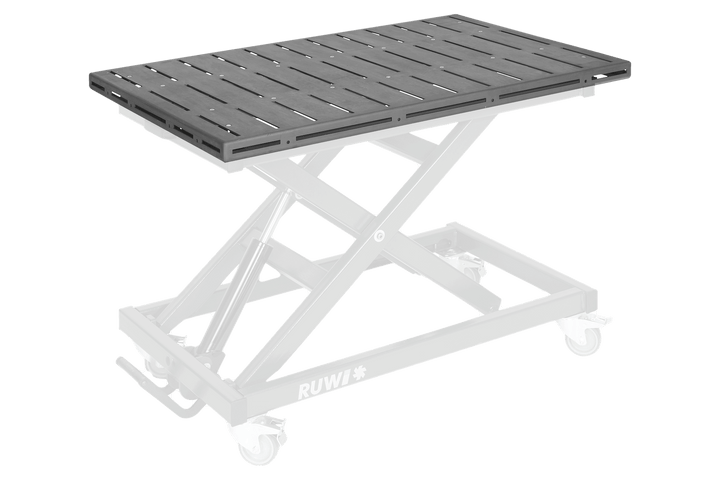

RUWI slot , 10 mm welding table top at - with casters, illustration RUWI lifting tablebase frame
RUWI slot , 10 mm welding table top, corner with mounted clamping bracket and clamping bolt in the groove rail
RUWI slot welding table top, clamping system with at and horizontal toggle clamp adapter plate positioning angle
RUWI Assembly and welding table top: 1200 × 800 mm, slot 10 mm
RUWI Assembly and welding table top: 1200 × 800 mm, slot 10 mm
RUWI Welding table top: 1,200 × 800 mm, slot 10 mm, cutout
RUWI slot , 10 mm welding table top, shown on a simple table frame with four legs
RUWI slot , 10 mm welding table top at - with casters, illustration RUWI lifting tablebase frame
RUWI slot , 10 mm welding table top, corner with mounted clamping bracket and clamping bolt in the groove rail
RUWI slot welding table top, clamping system with at and horizontal toggle clamp adapter plate positioning angle
RUWI Assembly and welding table top: 1200 × 800 mm, slot 10 mm
RUWI Assembly and welding table top: 1200 × 800 mm, slot 10 mm

RUWI Assembly and welding table top: 1200 × 800 mm, slot 10 mm

RUWI21010

€1.170,39
/
Includes sales tax Plus shipping costs
Calculated for your business
≈ €688 net for your business
after input tax and depreciation · €1,170.39 gross
Calculate using your tax rate →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped on a pallet via Schenker freight forwarder
• Dimensions: 1,200 × 800 × 250 mm
• Weight: 74.0 kg

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The idea behind it

Jörg Hezel

The RUWI welding table -Top slot is a 1,200 × 800 mm worktop made of 4 mm-thick steel—without base frame —for anyone who already has a base or is setting up their own workstation. Using the continuous 10-mmslots , you can position clamping jaws, clamping devices, and stops tool-free exactly where you need them— continuously —without being restricted to fixed drill holes. The surface is phosphated: This keeps rust at bay, withstands welding heat and flying sparks, and ensures a secure hold on the welding material. Manufactured in Germany, approx. 46 kg.

The sides of the table are chamfered and also feature a " slots "—which allows you to clamp workpieces from the side as well. Underneath the tabletop, welded corners and a bolted-on stiffening cage ensure that the surface remains level.

Here's how to use it

  • Turn the woodenlifting table into the welding table : by attaching the RUWI lifting table -base frame to it, the panel becomes a height-adjustable welding station—one base frame, two trades.
  • continuously Instead of clamping into the grid: the clamp slides along the slot with millimeter precision to the joint—no need to move from hole to hole.
  • Lateral clamping: The “ slots ” in the chamfered sides allow the clamping devices to grip the edge as well—the workpiece is secured in both directions.
  • Setting up your own workbenches: Mounted on a sturdy custom frame, the tabletop becomes a fully functional welding and assembly table—the frame must support the 46 kg plus the weight of the workpiece.

Does this go with your base frame?

The tabletop fits directly onto the RUWI lifting table - base frame —together, this creates the mobile, height-adjustable welding table, which is also available as a complete package RUWI welding table slot lifting table ; with fixed legs, it’s thewelding table slot leg table. The clamping system set for the slot-welding table includes the necessary clamping accessories; as an hole grid alternative, there’s the welding table top Ø 28. For an overview, see the RUWI welding tables.

All the details

• Table size and weight
- 1,200 × 800 mm, net weight approx. 46 kg

• Material and finish
- 4 mm steel, phosphated (rust-resistant, withstands welding heat and flying sparks)

• Clamping system
- 10-mm-slots s for clamping claws and standard clamping tools

• Origin
- Manufactured in Germany

★★★★★
