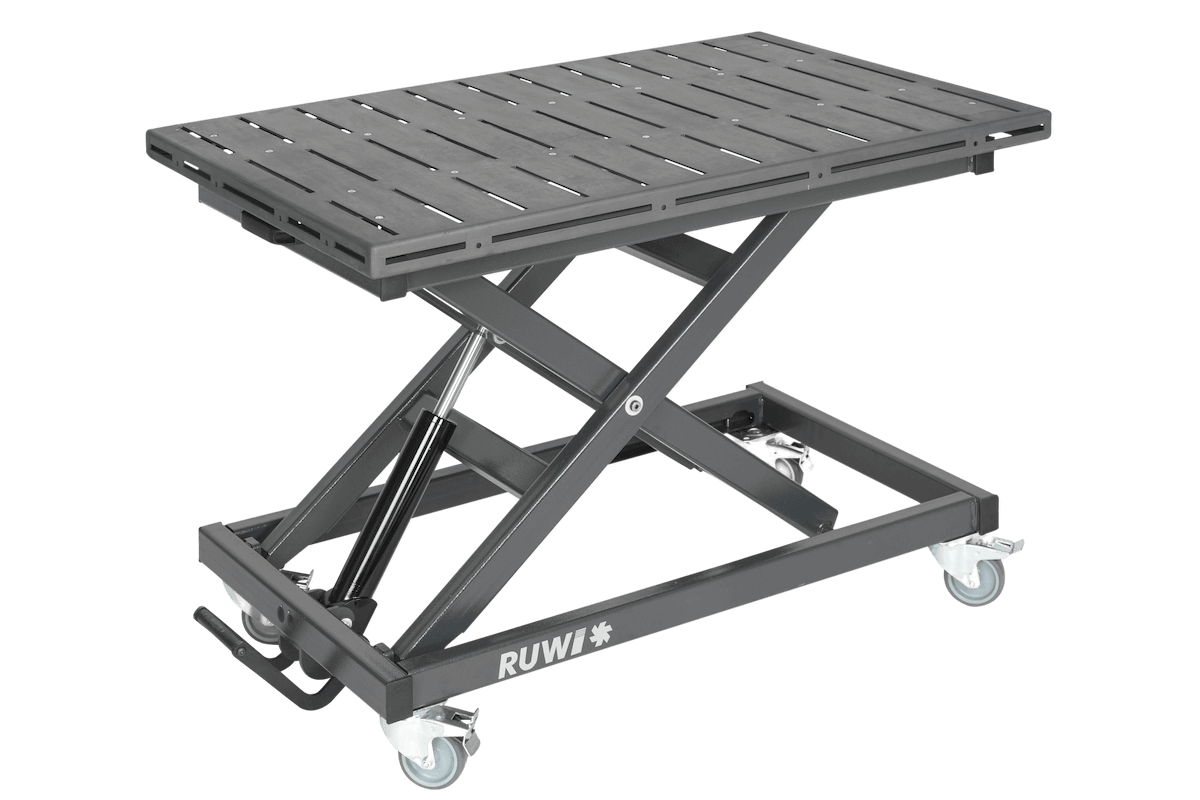

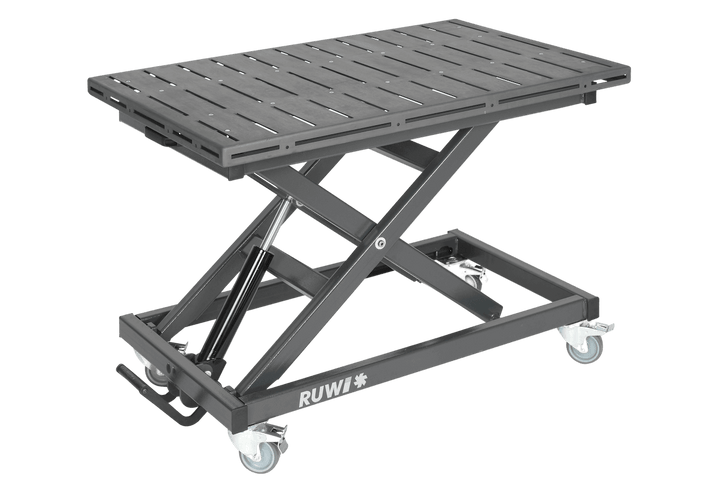

RUWI welding table lifting table × 800 mm, slot mm slot

Brief description

The RUWI welding table slot a height-adjustable welding and assembly table with a 1,200 × 800 mm steel plate that is 4 mm thick. Using the continuousslots , youslots workpieces with standard clamping devices, ensuring nothing slips during welding or tack welding. The plate is phosphated this protects the work surface from rust and wear.

The table sits on the RUWI lifting tablebase frame: Using the hydraulic foot pump, you cancontinuously adjust the working height continuously 46 to 106 cm and work while standing in a way that’s easy on your back; the table lowers smoothly and evenly, regardless of the load. The base frame up to 300 kg, and the total weight is approximately 121 kg. The hydraulic system is repairable, and replacement parts are always available. The steel tabletop and base frame as a set—you receive the complete table.

If you need slot hole grid instead of the slot , the table is also available with a perforated grid plate (Ø 28 mm). Without height adjustment and with fixed legs, it’s available as slot welding table slot . The clamping system set for thewelding table includes all the necessary clamping accessories.

Applications

• Secure workpiecesslots standard clamping devices through theslots —during welding, tack welding, and assembly
• Adjust working height continuously 46 to 106 cm—work while standing without straining your back
• Steel plate, 1,200 × 800 mm, 4 mm thick, phosphated rust and wear
• Loads up to 300 kg on the hydraulic lifting tablebase frame

Downloads

RUWI Line Catalog (PDF)

All the details

• Table and Load Capacity
- Table dimensions: 1,200 × 800 mm, steel work surface (4 mm, phosphated)
- load capacity 300 kg, total weight approx. 121 kg

• Clamping Technology and Surface
-slots, compatible with standard clamping devices
- Phosphated surface reduces rust and wear

• Height Adjustment and Ergonomics
- Hydraulically height-adjustable 46 to 106 cm via foot pump
