RUWI , HPL Perforated Panel, Swivel

Brief description

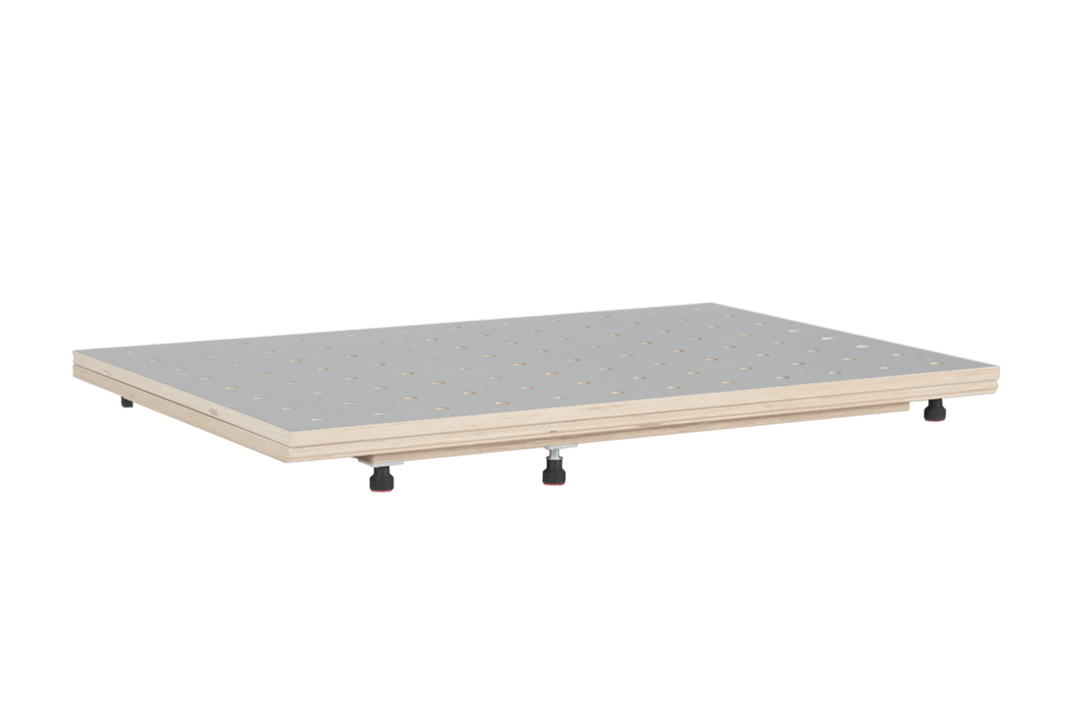

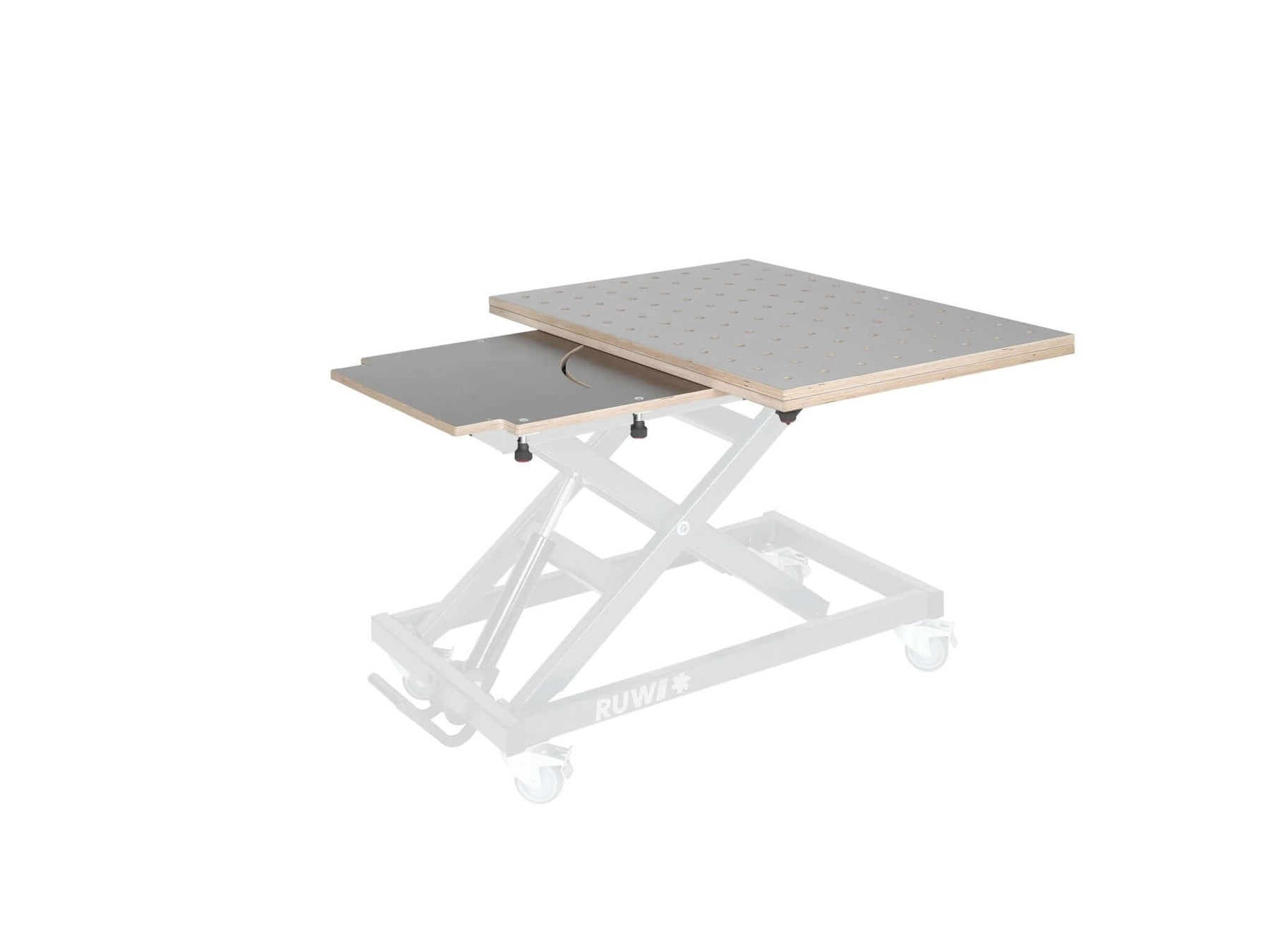

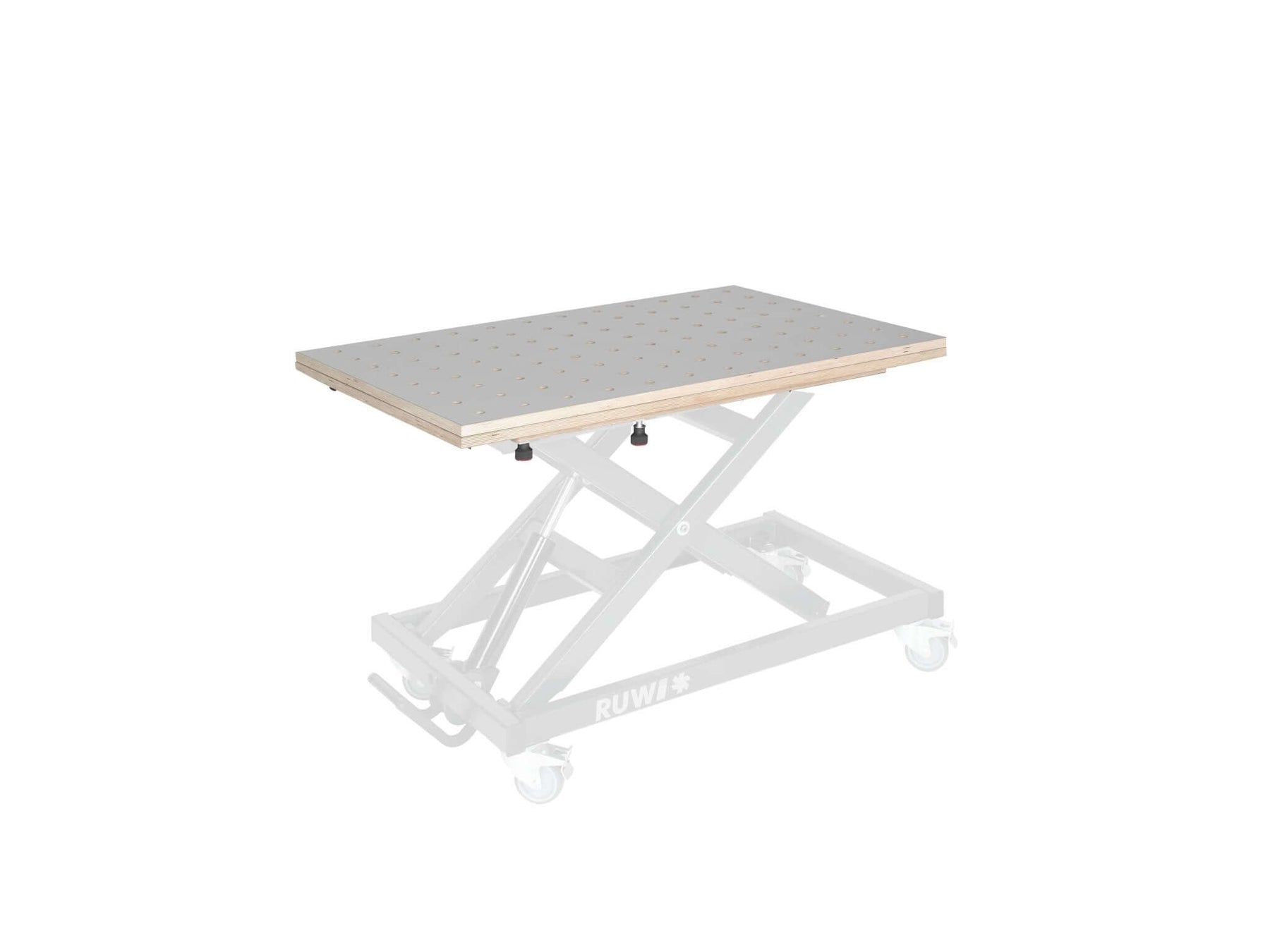

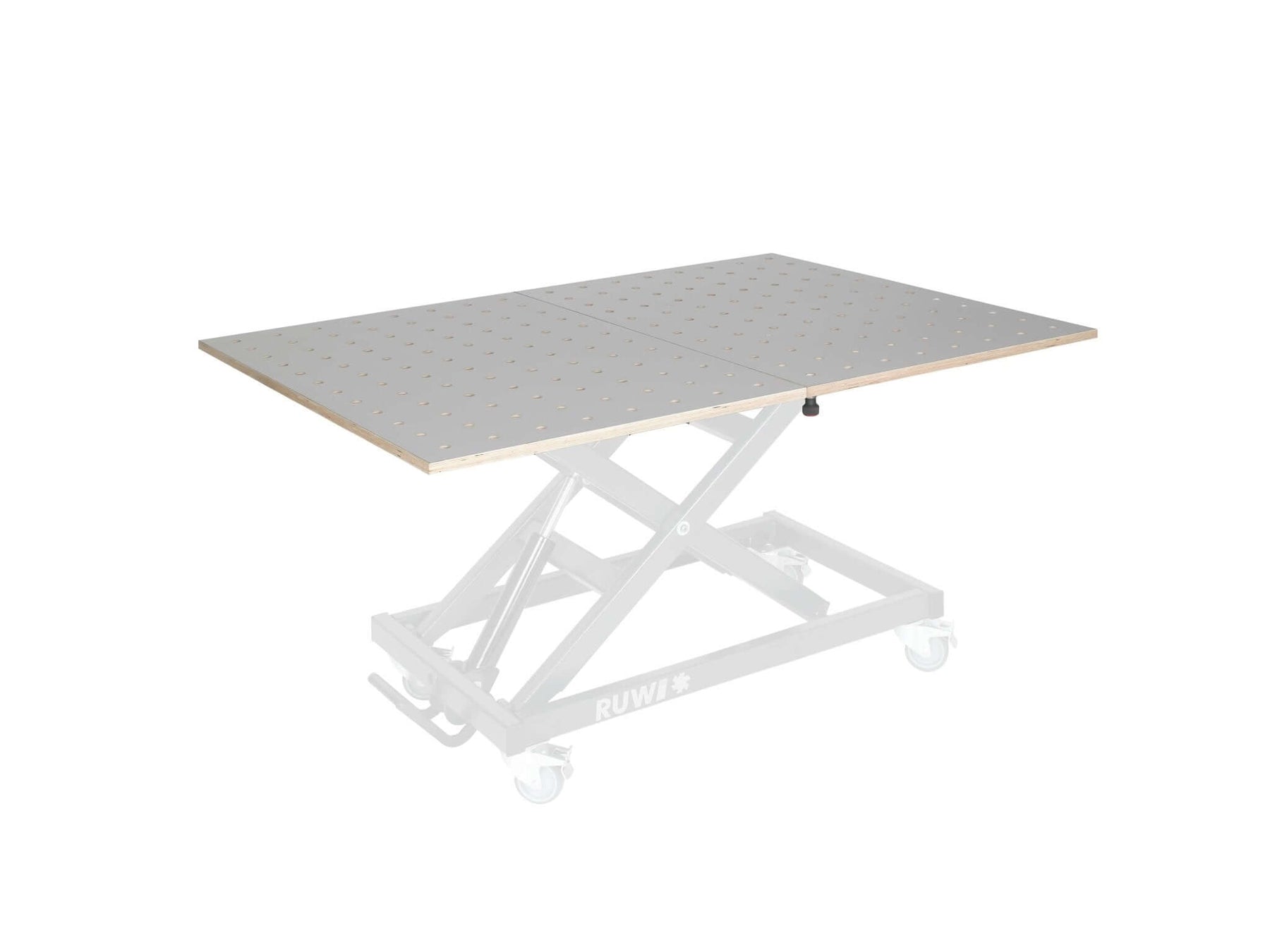

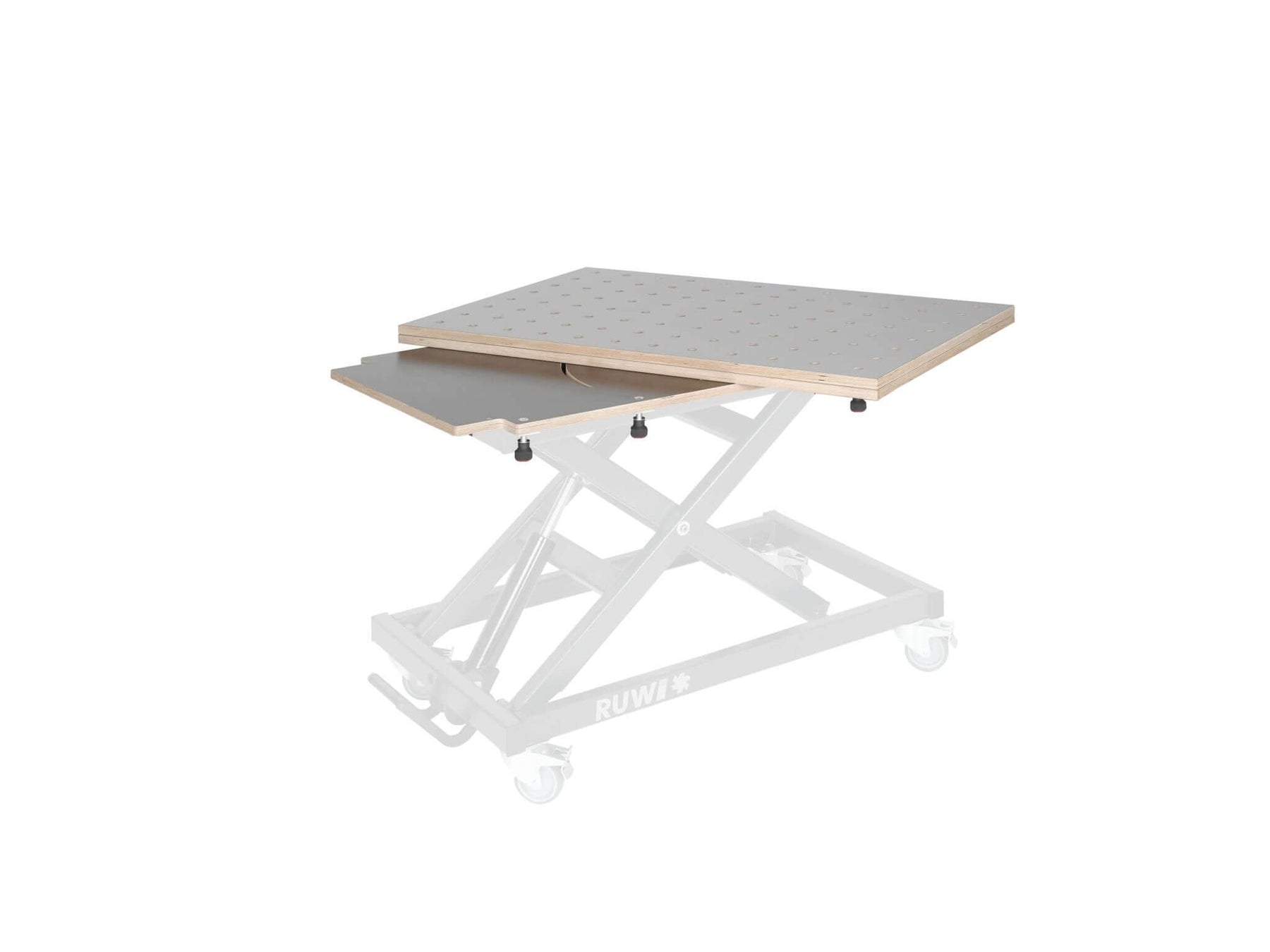

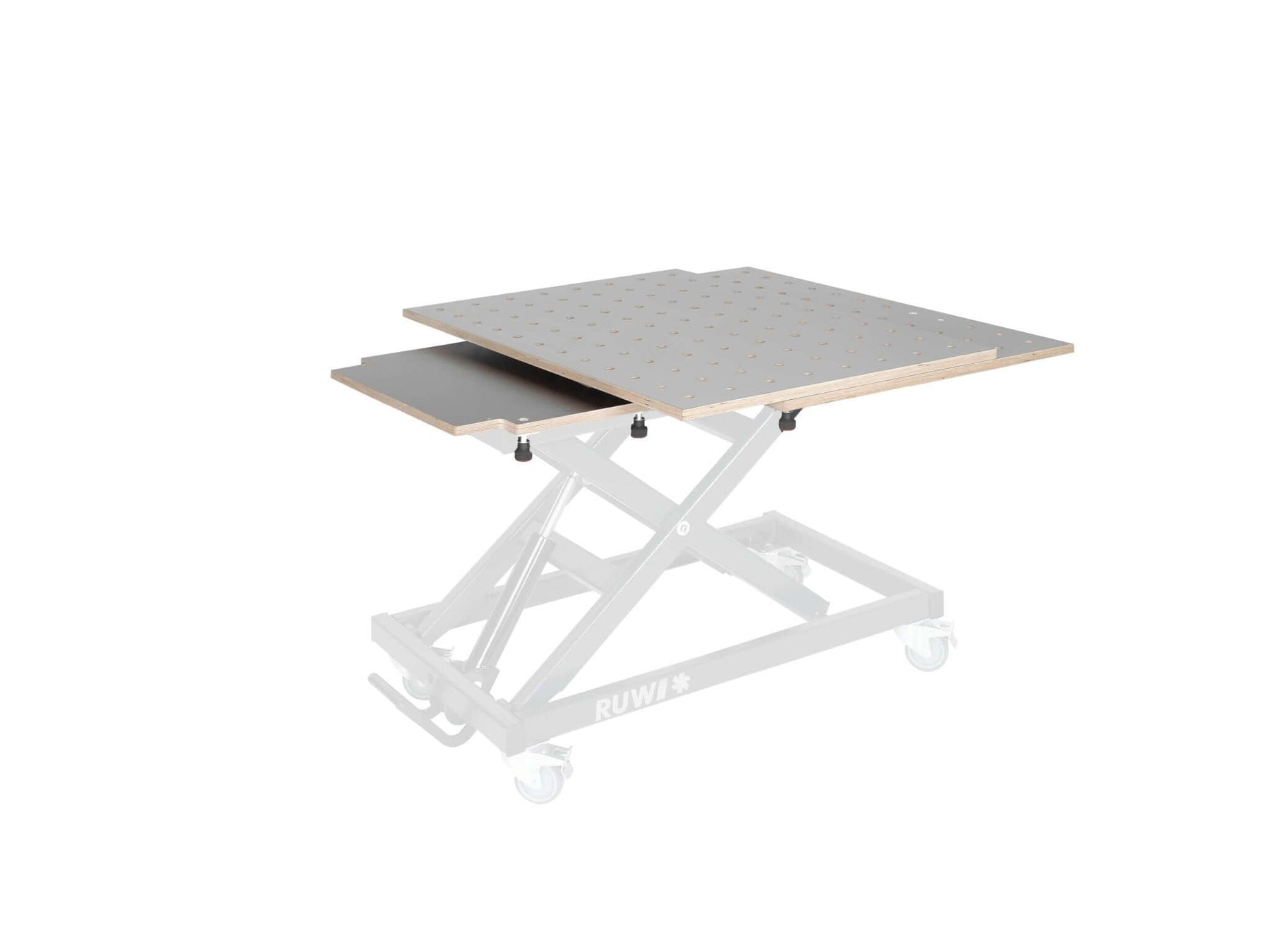

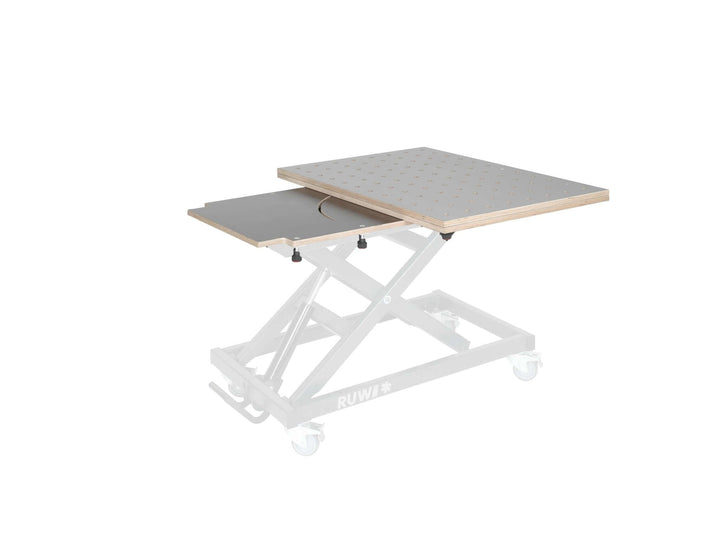

This RUWI is a perforated panel with a second panel that folds up—it features the same swivel mechanism as the RUWI lifting table , but here as a separate tabletop. When folded down, the work surface measures 1,200 × 800 mm. If you need more space, you can fold up the second perforated panel tool-free seconds to expand the surface to 1,600 × 1,200 mm—a continuous clamping surface that securely supports even large and bulky components. When the full surface isn’t needed, simply fold the panel back down to save space. A drawer for clamping devices and tools is located beneath the work surface.

Both panel halves feature a hole grid 20 mm in a 96-mm pattern—96 holes for the 1,200 × 800 mm panel, and 192 holes for the full 1,600 × 1,200 mm panel. This means you can secure the entire unfolded surface using bolts, clamps, and quick-release fasteners. The work surface is multiplex with HPL coating on both sides—scratch-resistant, moisture-resistant, and tension-balanced thanks to the double-sided coating, ensuring it remains flat. Glue does not adhere to HPL; cured residue simply flakes off, making it suitable as a gluing surface as well. The grid follows the established 20-mm standard, so accessories from Festool MFT, Sauter Variobench, or other 20-mm tables are compatible.

The plate sits on the RUWI lifting tablebase frame can also be base frames on other compatible base frames . The complete table, including this swivel plate, hydraulics, and clamping system, is available as lifting table RUWI lifting table . If a fixed surface is sufficient, check out the Basic perforated plate; for long workpieces, consider the extendable Classic plate. You’ll find clamping and support accessories in lifting table.

Applications

• Expand the clamping area from 1,200 × 800 mm to 1,600 × 1,200 mm using a swivel mechanism— tool-free seconds
• Clamp and assemble large and bulky parts on a continuous hole grid surface.
• Space-saving: fold in the second plate when you don't need the full surface.
• Drawer under the plate for clamping tools and accessories.
• Clamping via thehole grid both halves of the plate (bolts, clamps, quick-release fasteners)
• Can be used on the RUWI lifting tablebase frame other compatible bases
• Compatible with the 20 mm standard (Festool MFT, Sauter Variobench and others).

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and Weight
- Dimensions: 1,200 × 800 mm or, when unfolded, 1,600 × 1,200 mm
- net weight . 41 kg

• Material and Thickness
- Plywood panel, coated on both sides with 4 mm-thick HPL

• Clamping system and drill holes
- hole grid 20 mm in a 96-mm grid
- 96 chamfered drill holes for 1,200 × 800 mm, 192 over the entire surface

• Storage space and origin
- Drawer under the tabletop
- Manufactured in Germany
