RUWI Abrasive belt, Ø 15 mm; red abrasive sleeve optional

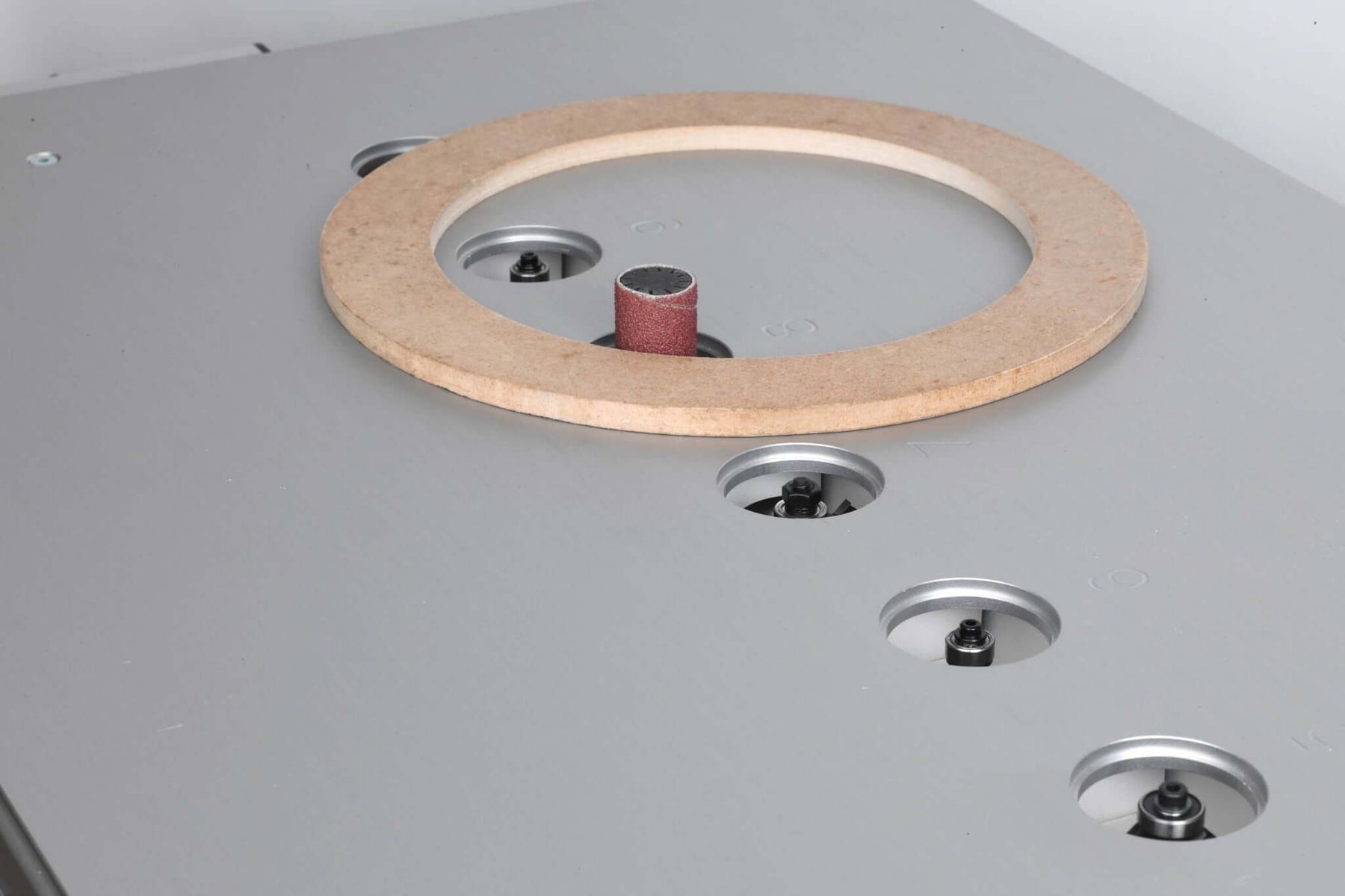

RUWI Sanding belt, 30 mm diameter, for sanding belt holder, mounted on the router table next to other spindle openings

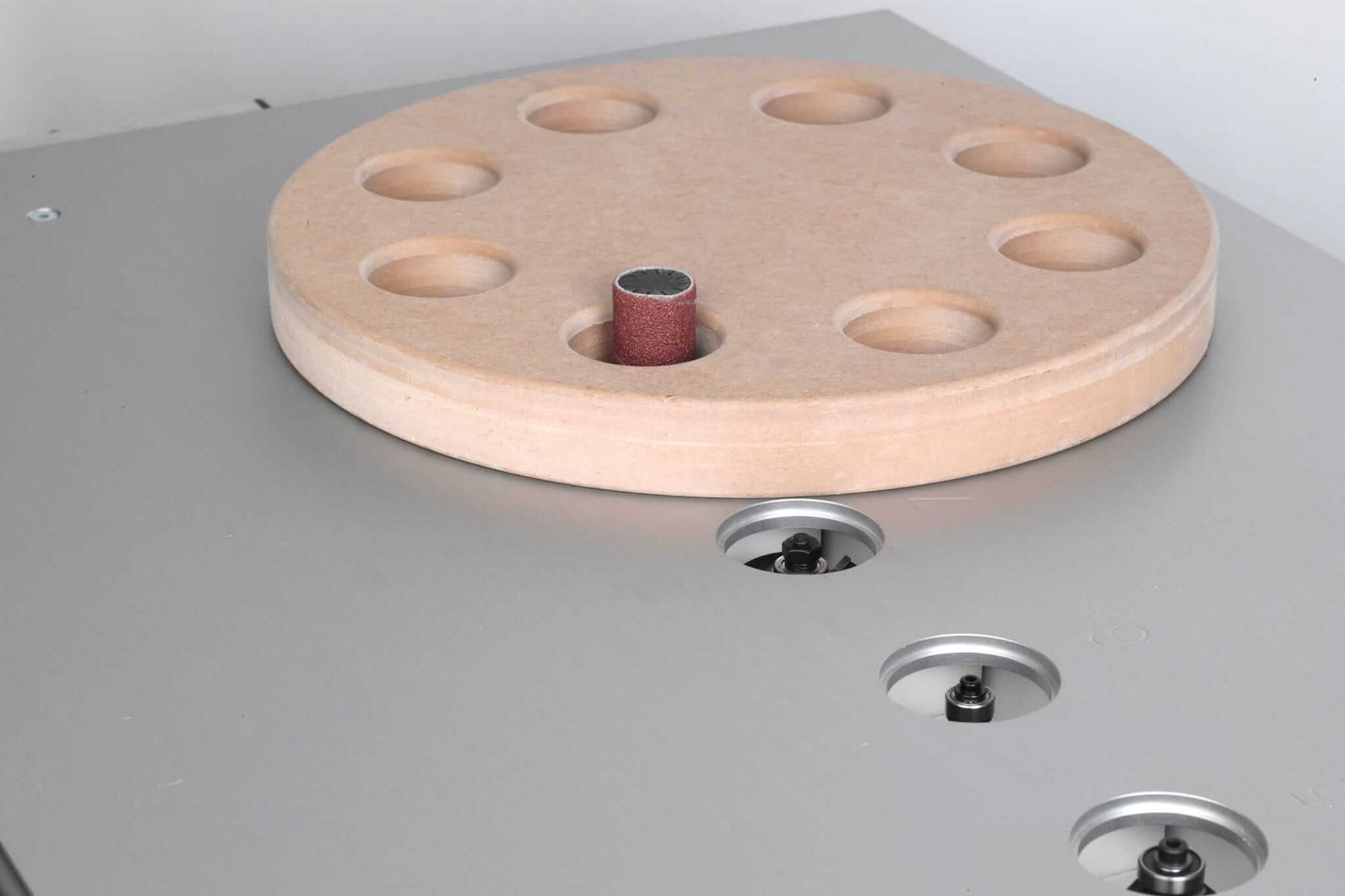

RUWI Sanding belt, 30 mm diameter, for a sanding belt holder, mounted on a wooden disc with several tool holes

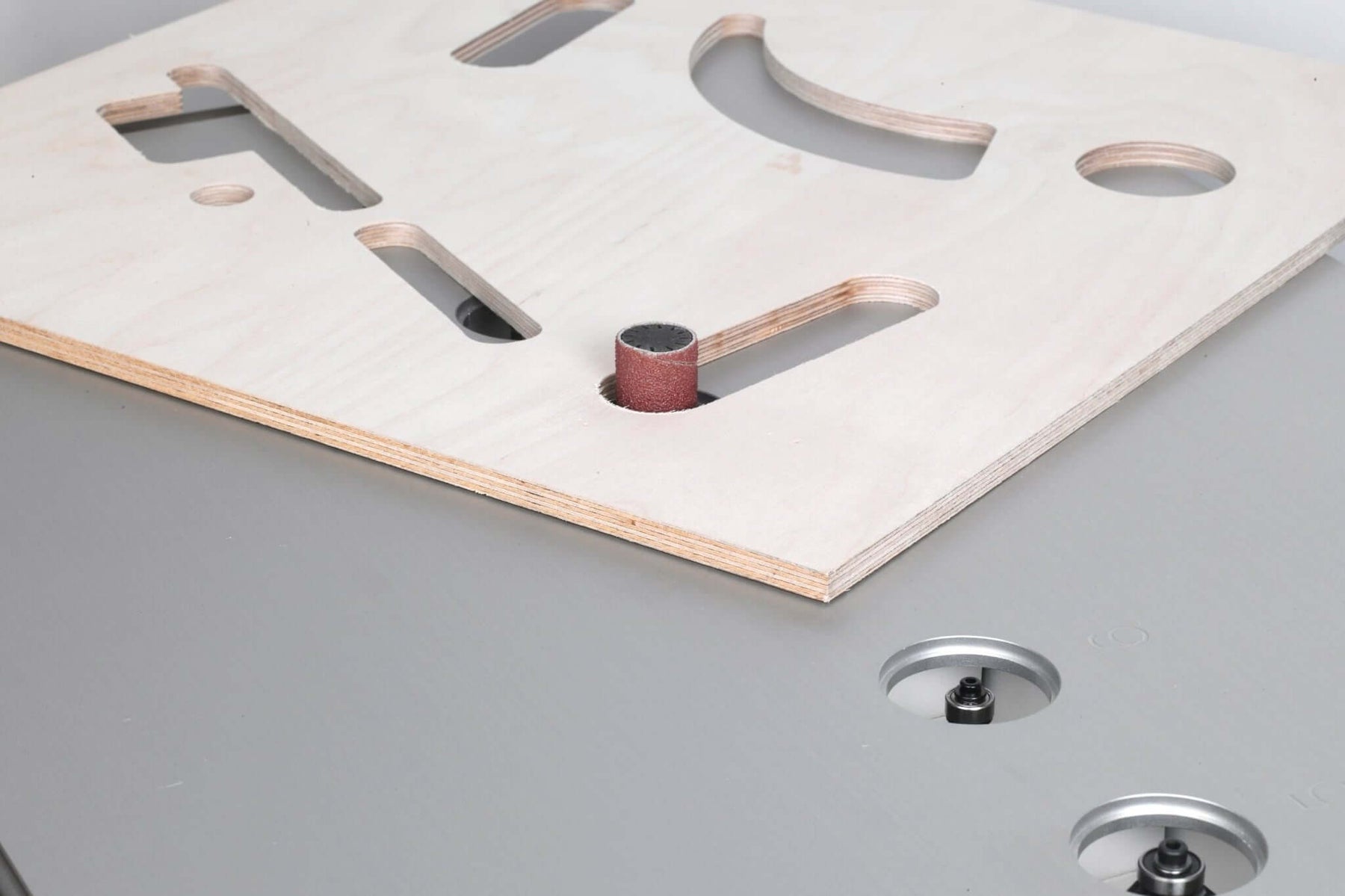

RUWI Abrasive belt holder (15 mm diameter), mounted on a wooden template with milled-out shapes
RUWI Abrasive belt, Ø 15 mm; red abrasive sleeve optional
RUWI Sanding belt, 30 mm diameter, for sanding belt holder, mounted on the router table next to other spindle openings
RUWI Sanding belt, 30 mm diameter, for a sanding belt holder, mounted on a wooden disc with several tool holes
RUWI Abrasive belt holder (15 mm diameter), mounted on a wooden template with milled-out shapes

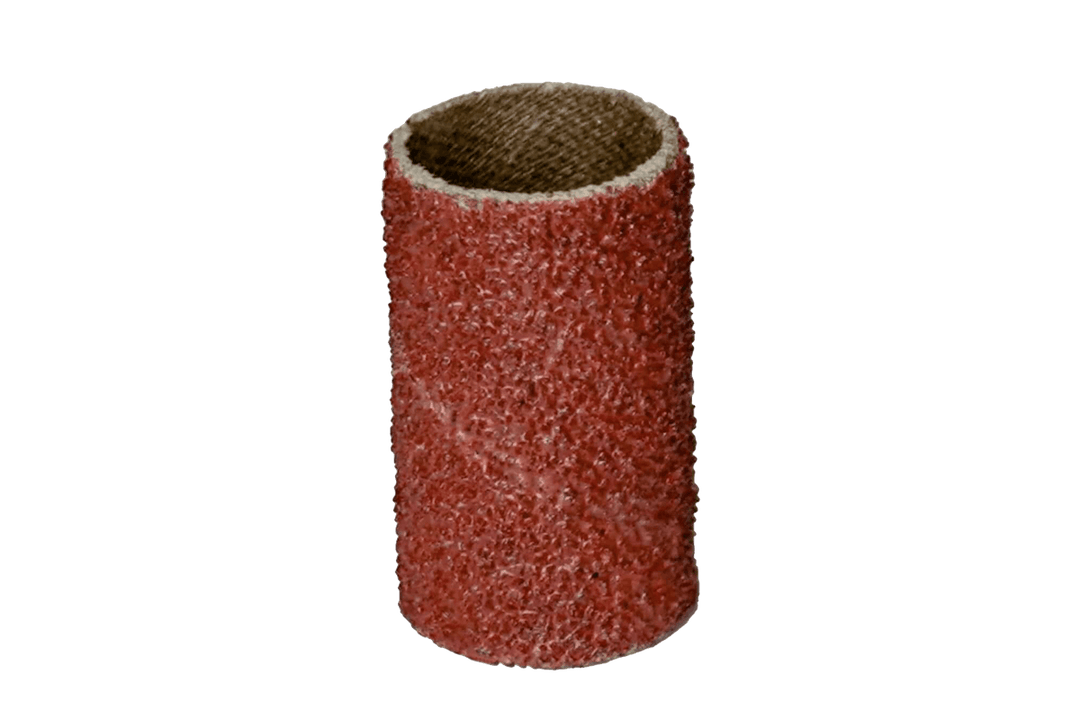

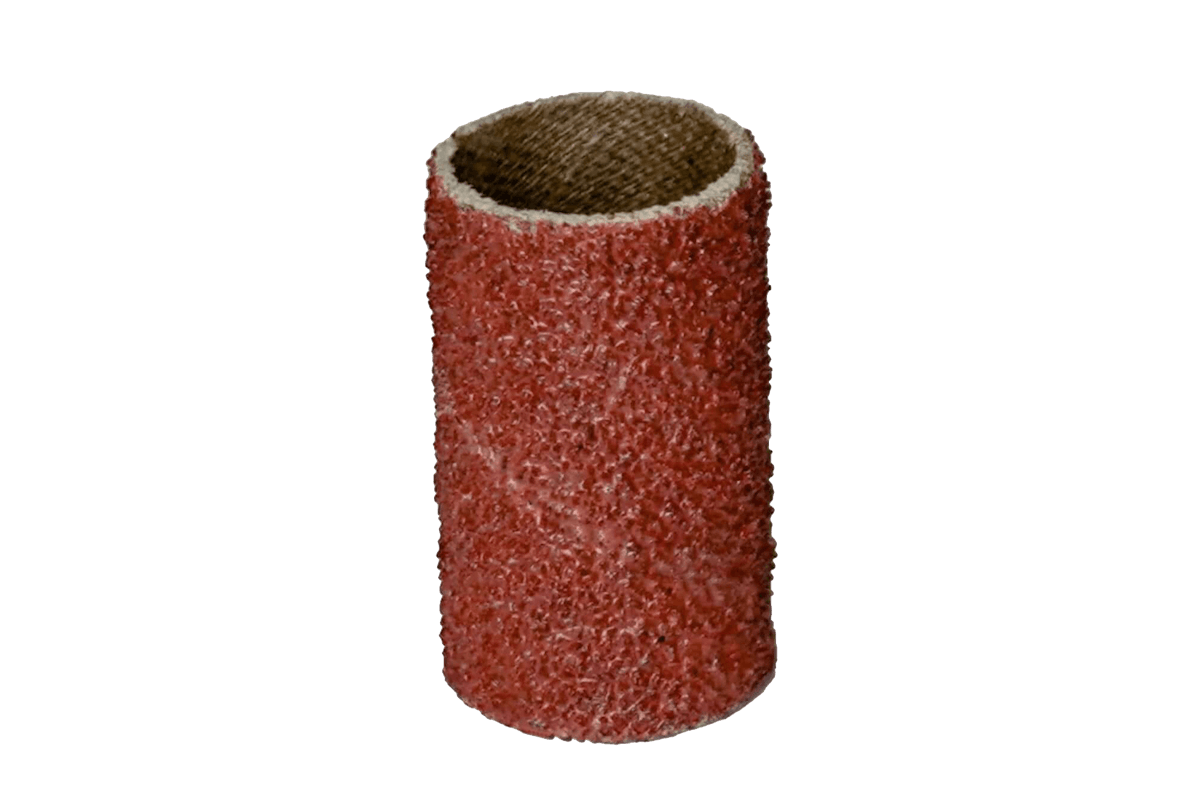

Abrasive Belt, 15 mm diameter, for abrasive belt holders

RUWI31650

€1,89
/
Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Unter 800 € netto: Der volle Betrag mindert im Kaufjahr deinen Gewinn – sofern das Teil für sich allein nutzbar ist; Zubehör wird mit der Maschine aktiviert (§ 6 Abs. 2 EStG) · €1,89 brutto

Mit deinem Steuersatz und Liefermonat rechnen →Passt er zu deiner Arbeit? Der Konfigurator prüft es →

Betrieb, 30 % Steuersatz, Lieferung im laufenden Monat. Die Sonderabschreibung nach § 7g setzt höchstens 200.000 € Gewinn im Vorjahr voraus – darüber bleibt nur die degressive Abschreibung. Eine Orientierung, kein Steuerrat.

Size
  • Artisan Quality
  • By woodworking professionals, for woodworking professionals
  • Faster and More Reliable Shipping
  • In stock – Delivery time: 1–3 business days
  • Out of stock – coming back soon

Packages are shipped via DHL or DPD and usually arrive within 1–2 business days. You'll receive a tracking number via email.

Router tables, lifting tables, and other large tools are shipped via Schenker, usually arriving in about 3 business days. Upon request, the carrier can deliver on a specific date—just coordinate the details with them by phone. If delivery takes longer than expected, we'll let you know in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The sanding belt is the abrasive for the Ø 15 sanding belt carrier—the sleeve that performs the grinding. You slide it onto the Ø 15 sanding belt carrier; together, they are used to sand small internal radii, drill holes, and cutouts starting at approximately R9. When the sleeve is worn out, you slide on a new one—the carrier remains in place.

The belt consists of abrasive cloth with standard corundum, wound spirally onto a backing fabric and reinforced—this keeps the sleeve in shape and extends its service life. When ordering, select the grit size: 50 for coarse removal, 80 for deburring and finishing, and 150 for a finer finish. You can use it to work on wood and wood-based materials as well as steel, aluminum, plastic, and rubber; the belt height is 30 mm, designed to fit the backing.

Here's how to use it

  • Smoothing small drill holes: Handle holes, cable passages, and hardware holes starting at Ø 18 mm are given a smooth finish—even in places where no other abrasive can reach.
  • Step by step to the surface: 50-grit removes saw marks, 80-grit deburrs and smooths, and 150-grit prepares the surface for the final finish—the same sleeve shape, three steps.
  • Replace the sleeve instead of buying a new tool: remove the old one, slide on the new one—the wear part is inexpensive, and the carrier keeps working.

Does this go with your top?

With an inner diameter of 15 mm and a height of 30 mm, the belt fits onto the Ø 15 sanding belt holder (item no. 30520). This combination works best with the RUWI router table , because the speed can be adjusted there; the carrier requires a 6-mmcollet for this. For larger radii starting at about R16.5, the system is available in the next size up: sanding belt and carrier Ø 30.

All the details

Dimensions
Inner diameter: Ø 15 mm
Outer diameter: approx. Ø 18 mm
Height: 30 mm

Grind
Grit size: 50, 80, or 150 depending on the model
Material: Abrasive cloth made of standard corundum (NK), wound onto fabric and backed

Application
Use: Contours and inner radii starting at 9 mm
Materials: Wood, plastic, rubber, various metals
Application: On sanding belt holders Ø 15 mm (item no. 30520)

★★★★★
