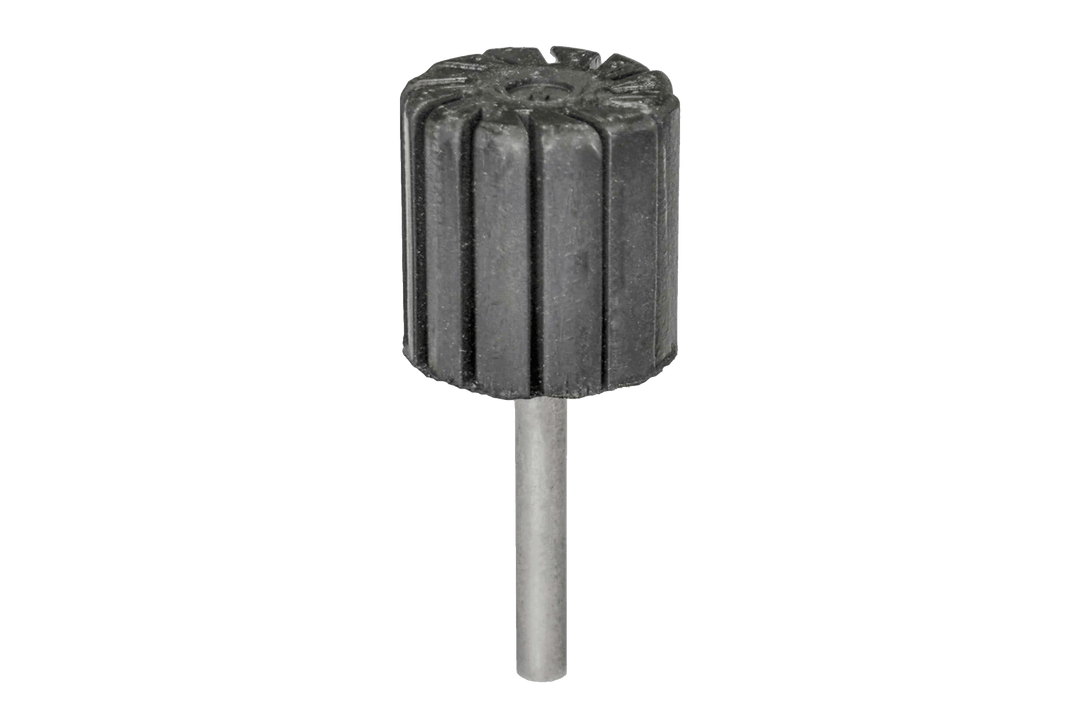

Abrasive belt holder, Ø 30 mm, height 30 mm, shank 6 mm

Brief description

The sanding belt holder is a slotted holder (Ø 30 mm) onto which you slide a sanding belt sleeve. This allows you to cleanly sand inner radii, drill holes, and cutouts. With the sleeve in place, you’re working with a diameter of about 33 mm; the smallest inner radius is approximately R16.5.

Clamp the holder onto its shaft (6 mm diameter) in the RUWI router table, a hand-held router, or any machine with a 6-mm collet. The 30 mm diameter sanding belt sleeve is a consumable part and is not included—it is available in 50-grit for coarse sanding and 80-grit for finer sanding. For smaller radii, the Ø 15 sanding belt holder is available.

If the shank fits into the router table, you'll need the appropriate 6-mm collet. You can find more router bits in the RUWI router bit selection.

Possible applications

• Regrinding inner radii, bores, and cutouts – starting at approximately R16.5
• Sanding belt sleeve in 50-grit (coarse) or 80-grit (finer) – depending on the sanding job
• Snap-on, replaceable sleeve – simply swap out worn sleeves
• For RUWI router tables, hand routers, and any machine with a 6-mm collet

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions
- Carrier diameter Ø 30 mm, height 30 mm
- Shaft Ø 6 mm, shaft length 41 mm
- Total length 71 mm

• Function
- Slotted sanding belt carrier for snap-on sanding belt sleeves
- With sleeve, working diameter approx. Ø 33 mm, smallest inner radius approx. R16.5
- Sanding belt sleeve in grit 50 or 80

• Insert
- For RUWI router tables, hand routers, and bench routers
- Requires a 6-mm collet
- Sanding belt sleeve sold separately
