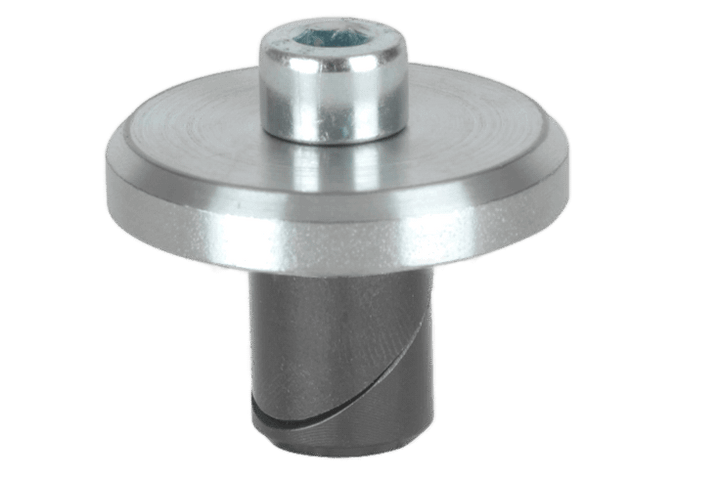

RUWI clamping bolt with a 16-mm-diameter disc, a cutter with a top-mounted “ socket screw ” and a steel bolt at the bottom
RUWI clamping bolt with a 16-mm-diameter disc, mounted on a bracket with a star-head screw

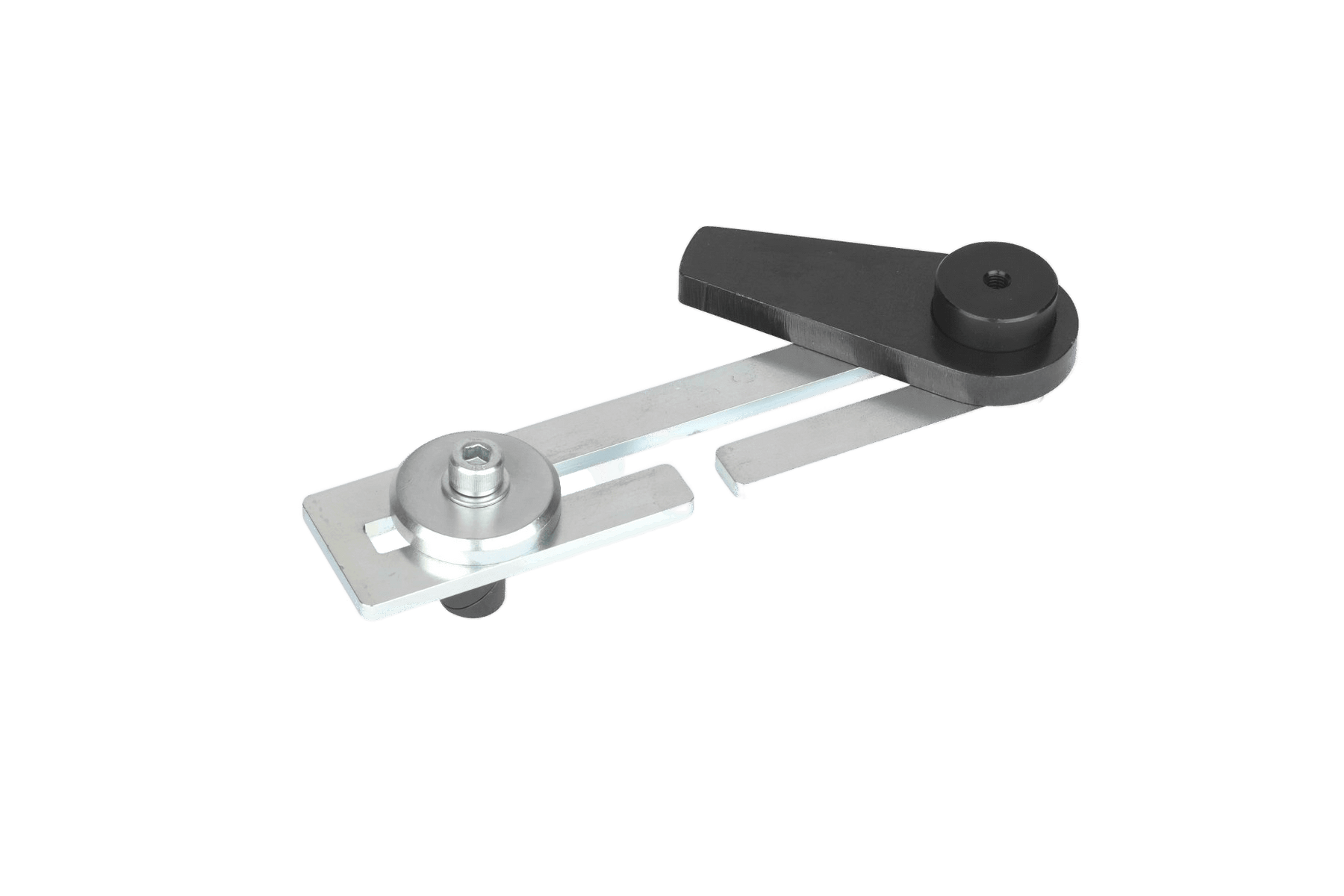

RUWI clamping bolt with a 16-mm-diameter disc, mounted on a slotted clamping rail with a pressure piece
RUWI clamping bolt with a 16-mm-diameter disc, a cutter with a top-mounted “ socket screw ” and a steel bolt at the bottom

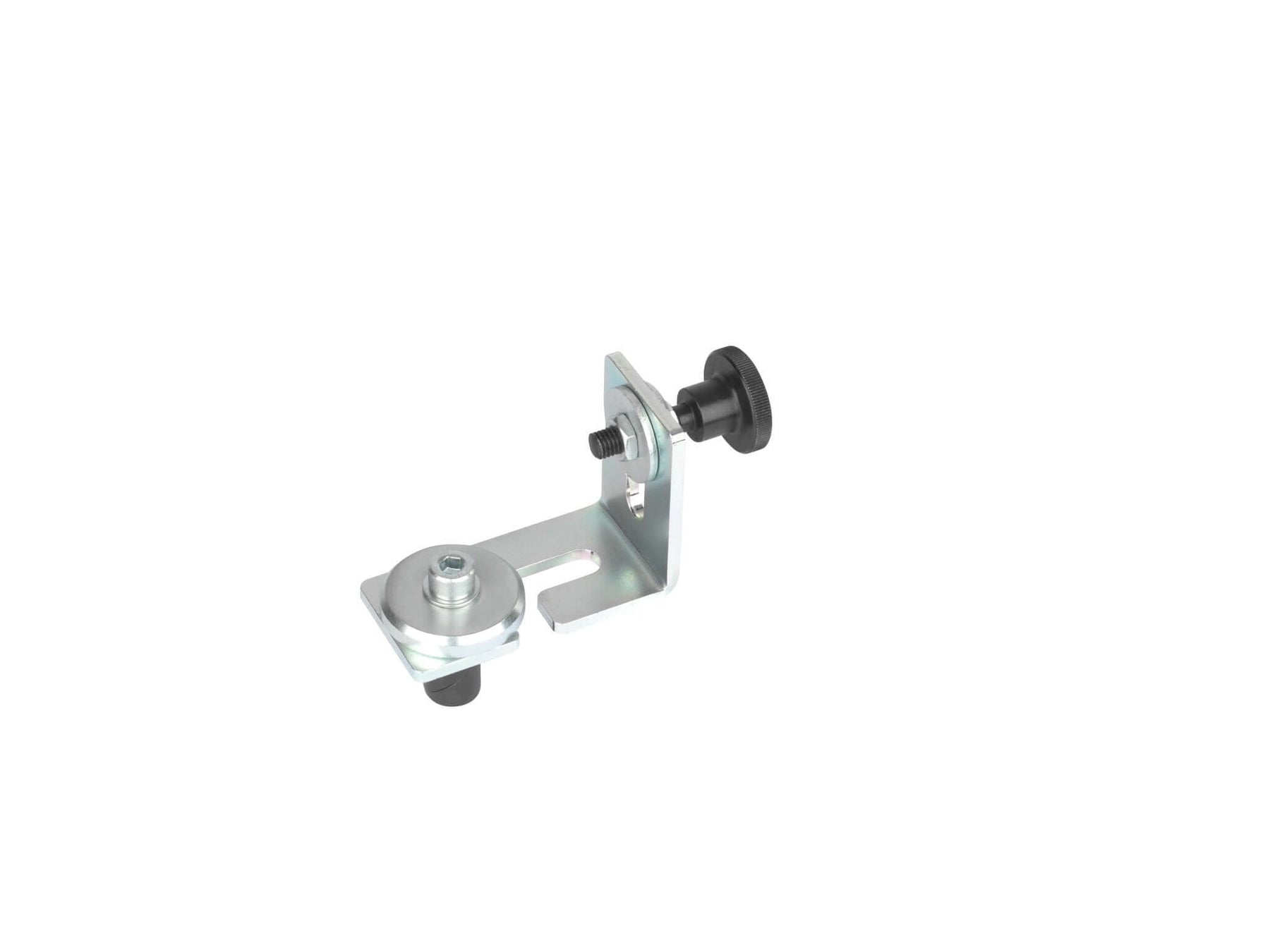

RUWI clamping bolt with a 16-mm-diameter disc, mounted on a bracket with a star-head screw
RUWI clamping bolt with a 16-mm-diameter disc, mounted on a slotted clamping rail with a pressure piece

clamping bolt with washer Ø 16 mm

RUWI27160

€20,29
/
Includes VAT Plus shipping costs

€17.05 (net)

  • Made in Germany
  • Developed by carpenters in Fluorn-Winzeln
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

Questions before you buy? A carpenter is available by phone: +49 7402 8414

- 1 × clamping bolt Ø 16 mm
- 1 × socket screw SW 6
- 1 × washer Ø 40 mm

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The clamping bolt Ø 16 mm, with a matching washer (Ø 40 mm), secures adapter plates, brackets, and threaded plates to perforated tables with 16-mm holes. When the galvanized socket screw (SW 6) is tightened, the black-oxide steel bolt locks firmly into the hole—this clamping mechanism protects the hole wall instead of cutting into it. Like the entire RUWI Steel Line, the bolt is manufactured in Germany.

Here's how to use it

  • Anchoring fixtures: The angle brackets and adapter plates fit precisely into the hole—the clamping position is exactly where the assembly and seam require it.
  • Consistent assembly: the same bolt in the same hole results in the same position—mass-produced parts are clamped without the need for realignment.
  • Set as a point reference: The bolt alone defines a reference point in the grid—position the workpiece, clamp it, and tack it in place.

Does this go with your table?

The bolt fits into 16-mm holes—the standard spacing found on many metal clamping plates and welding tables. For larger spacing, it is available in Ø 20 (wooden perforated tables) and Ø 28 (RUWI welding tables ); the corresponding clamps are listed in the overview of clamps, vertical and horizontal toggle clamps.

All the details

Model
clamping bolt : Ø 16 mm (RUWI27160) or Ø 28 mm (RUWI27163), steel, black-oxide
socket screw : SW 6, galvanised
Washer: Ø 40 mm, galvanised

★★★★★
