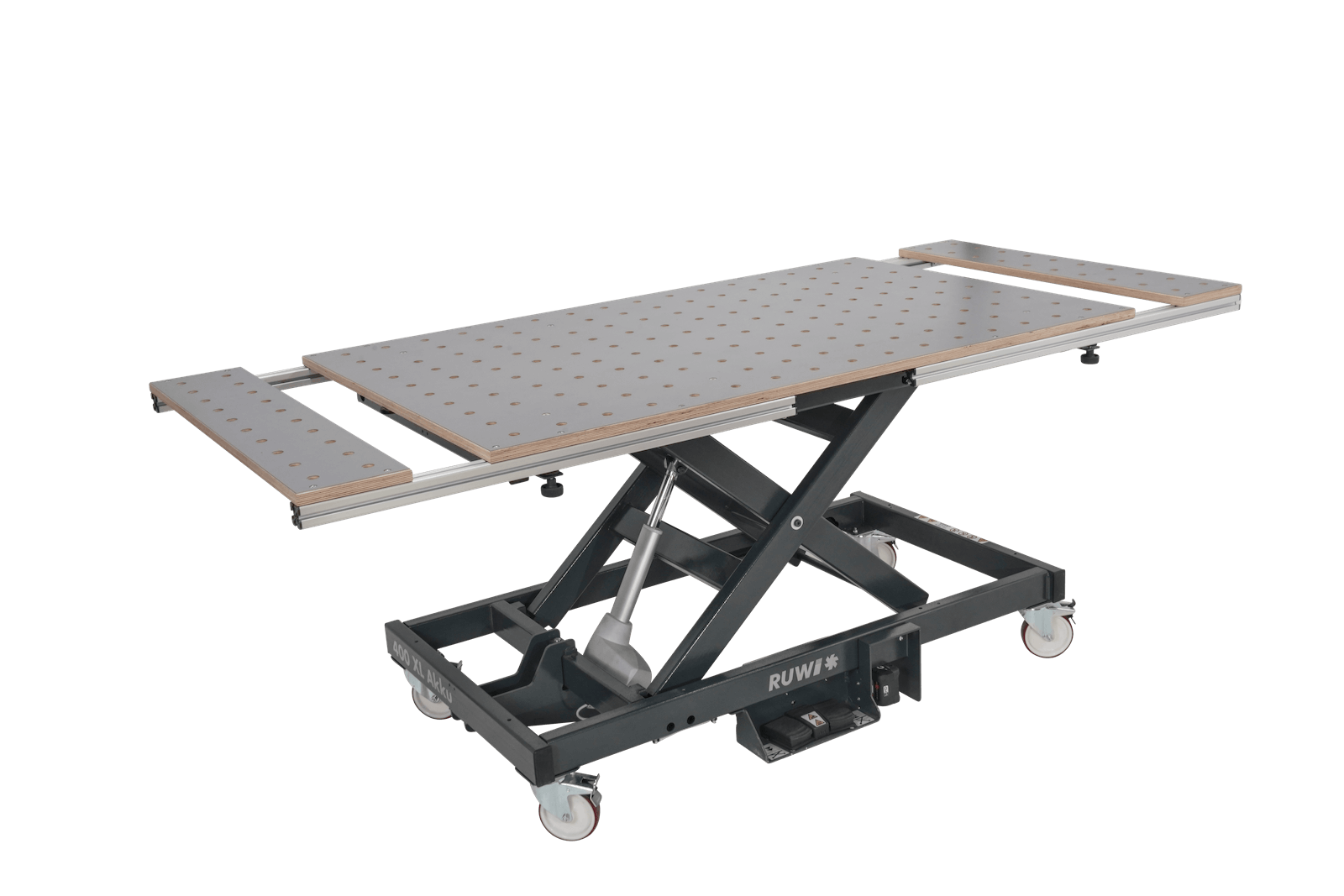

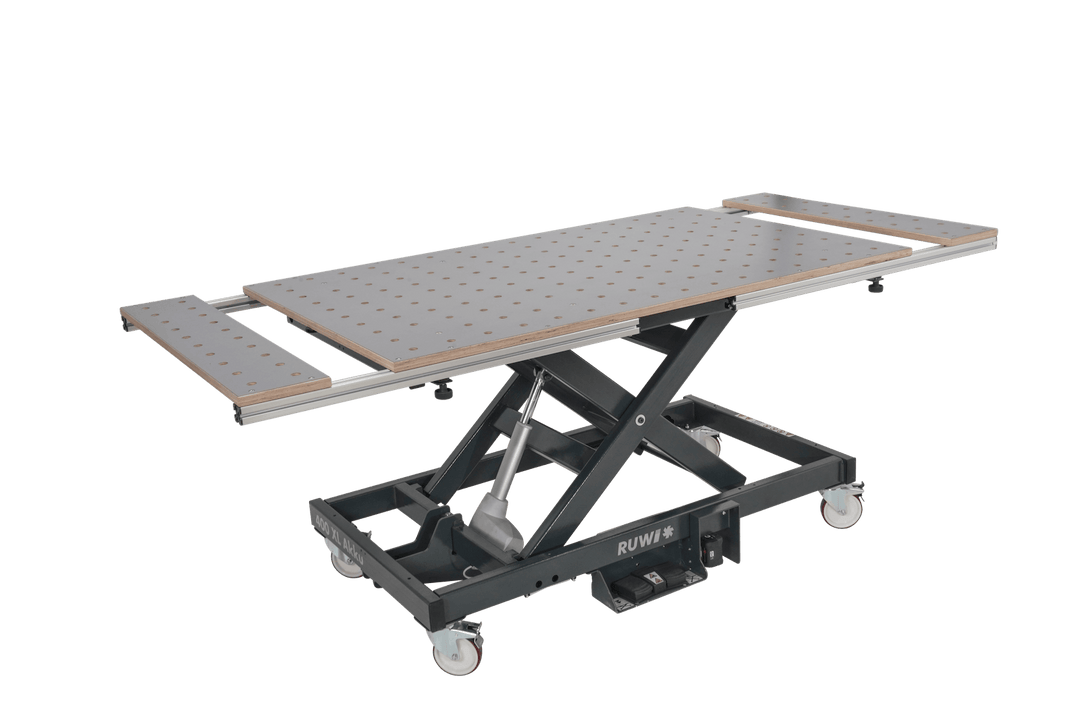

RUWI lifting table Classic 400 XL, shown with the pull-out extended to create an extended work surface

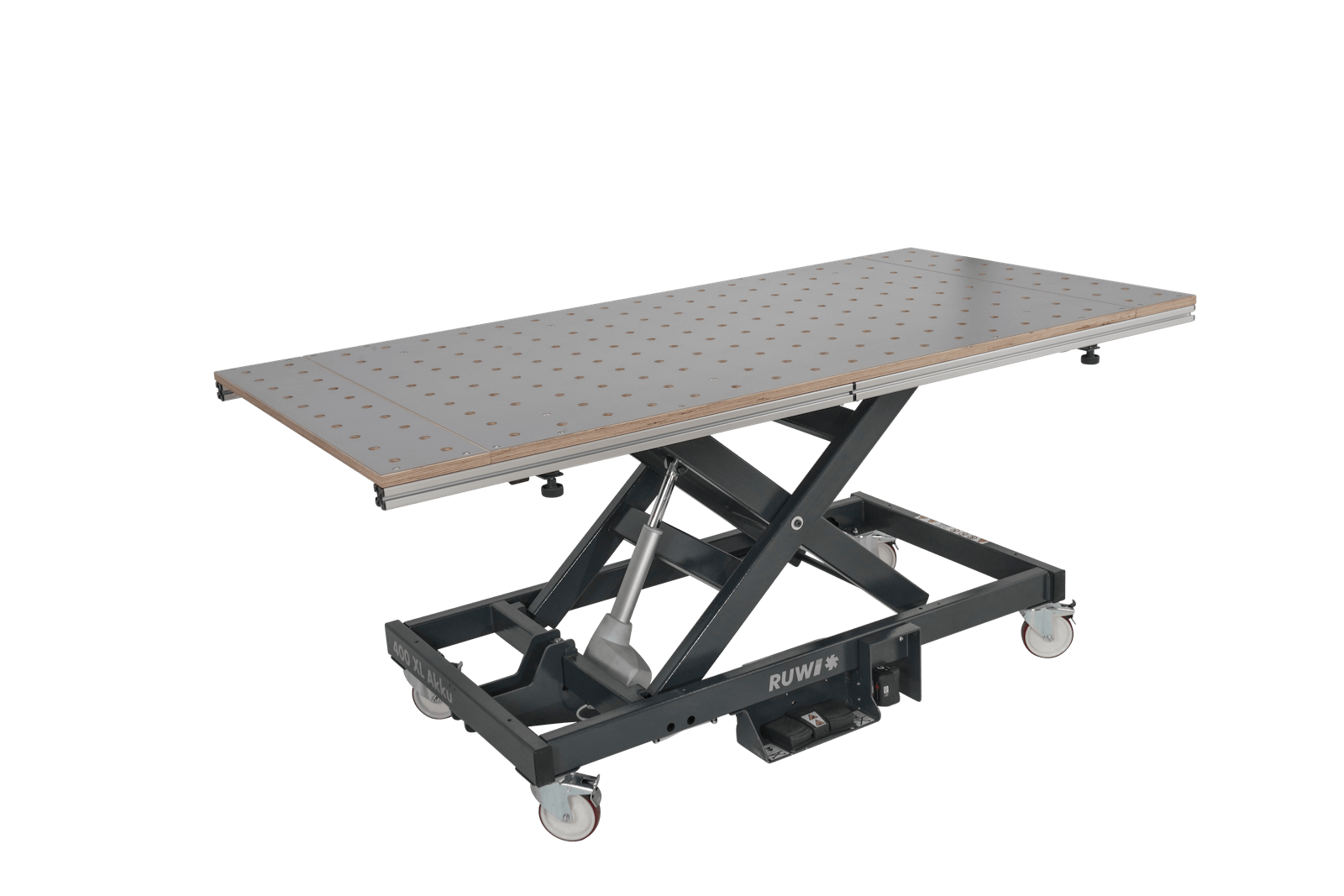

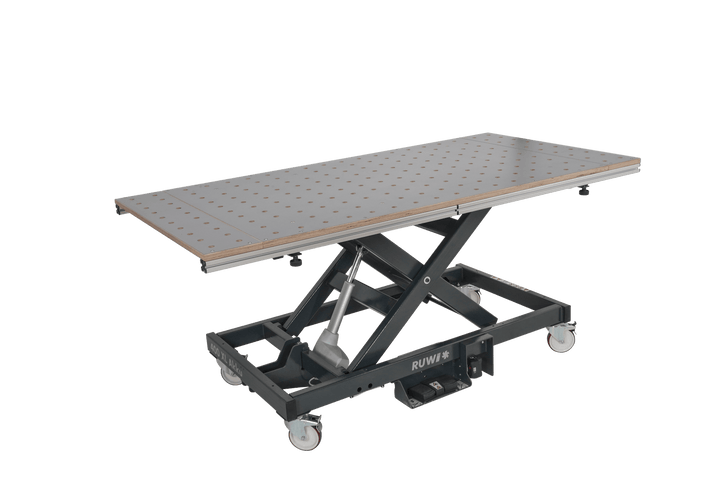

RUWI lifting table Classic 400 XL, freestanding with a closed work surface

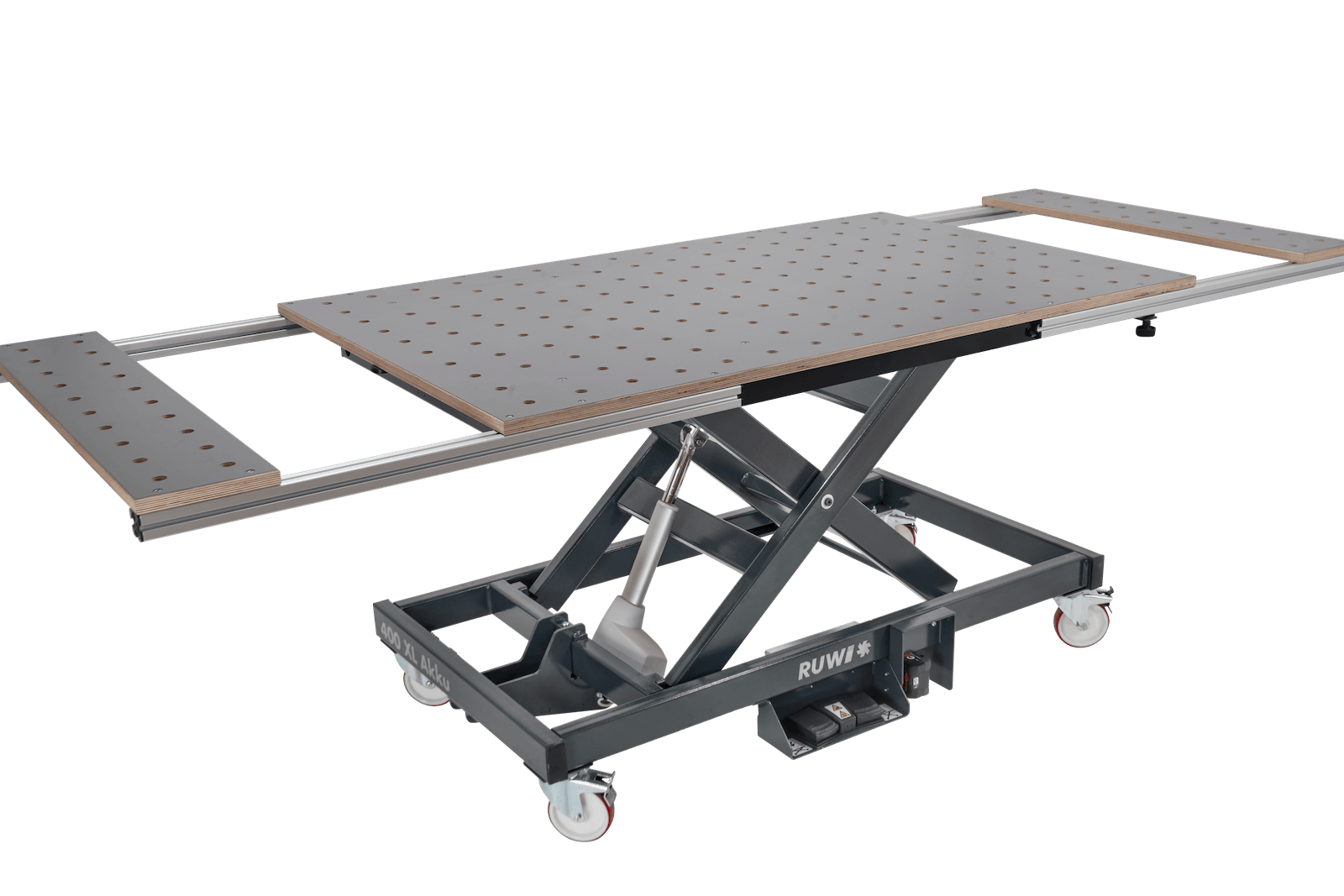

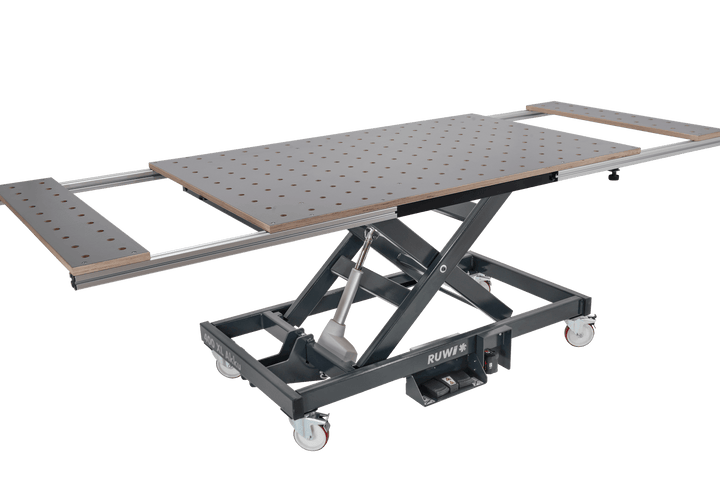

RUWI lifting table Classic 400 XL, freestanding with an extended work surface spanning both pull-outs
RUWI lifting table Classic 400 XL, shown with the pull-out extended to create an extended work surface
RUWI lifting table Classic 400 XL, freestanding with a closed work surface
RUWI lifting table Classic 400 XL, freestanding with an extended work surface spanning both pull-outs

RUWI lifting table Classic 400 XL

RUWI21083

€4.697,55
/
Includes sales tax Plus shipping costs
Calculated for your business
≈ €2,763 in actual costs for your business
after input tax and depreciation · €4,697.55 gross
Calculate using your tax rate →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped on a pallet via Schenker freight forwarder
• Dimensions: 1,680 × 1,150 × 700 mm
• Weight: approx. 185 kg

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The idea behind it

Many woodworking professionals want a larger, more comfortable table and the freedom to work without cords.
That’s why we’ve taken our tried-and-true lifting table Classic to the next level. The new lifting table runs on a rechargeable battery, offers even more work surface, and remains just as flexible.
As usual, screw clamps and accessories can be quickly and easily secured to the profiles.

Florian Ruggaber

The RUWI lifting table Classic 400 XL Akku is the battery-powered XL version of the Classic—a mobile assembly and clamping table with a large work surface and electric height adjustment. The multiplex tabletop, with HPL coating on both sides, measures 200 × 100 cm and can be extended to 270 × 100 cm using two pull-out extensions on the front.

You can adjust the height electromechanically using foot switch continuously from 71.5 to 106 cm—cordless, with an operating noise level of just 50 dB. The base frame supports up to 400 kg. Using the CNC-milled 20-mmhole grid (96-mm dimension), you can clamp workpieces freely on the surface; using the clamping profiles on both sides (2 × 100 cm), you can additionally clamp from the side with Bessey GTR and identical clamps. Four castors make the 165 kg table mobile—two with full-lock casters, two with directional locks for straight-line movement.

The tool runs on an 18-volt battery from the CAS platform, which is used by Metabo, Mafell, and Lamello, among others. The battery and charger are not included—if you already have CAS batteries in use, you can use them right away. Otherwise, the compatible CAS battery and the ASC 55 charger are included.

Here's how to use it

  • Laying full-size panels: 200 × 100 cm panels fit the full panel size—when extended to 270 cm, they can also accommodate doors and long planks entirely.
  • Adjusting under load: Place your foot on the switch, and the table moves electrically—both hands remain on the workpiece, even when 400 kg are resting on it.
  • Quiet operation: 50 dB operating noise—the table moves without interrupting conversations in the workshop.
  • Clamping from above and from the side: clamps in the hole grid, clamps in the side profiles—the workpiece is secured in both directions.
  • Straight-line maneuvering: The two directional locks guide the table in a straight line through narrow aisles—the full-lock mechanism secures it in place.

Does this fit in your workshop?

The battery-powered drive is worth it when adjustments are made frequently and under load—and where CAS batteries are already in use. A fair comparison: The same size model with a hydraulic foot pump instead of a battery is available as theRUWI lifting table Classic 300 XL —no battery required, but with a 300 kg capacity load capacity. One size smaller is the RUWI lifting table Classic (160 × 80 cm); see the lifting table overview for a complete list.

All the details

Work surface
Table size: 200 × 100 cm, extendable to 270 × 100 cm
Tabletop: Multiplex, HPL-coated on both sides
net weight : approx. 165 kg

Clamping system
hole grid: Ø 20 mm, CNC-milled, in 96 mm increments
Clamping profiles: on both sides, 2 × 100 cm

Lift and drive
working height: 71.5 to 106 cm, via two foot switch
Drive: 18 V rechargeable battery, CAS-compatible (Metabo, Mafell, Lamello)
Operating noise: 50 dB

Load capacity and mobility
Load capacity: up to 400 kg
Casters: 4 castors (2 with full locks, 2 with directional locks)

Note
Delivery: Battery and charger not included

★★★★★
