eccentric clamp with adapter plate and clamping bolt , 16 mm diameter and 28 mm diameter
eccentric clamp with adapter plate and clamping bolt - RUWI | Tools for Woodworking Professionals
eccentric clamp with adapter plate and clamping bolt - RUWI | Tools for Woodworking Professionals
eccentric clamp with adapter plate and clamping bolt , 16 mm diameter and 28 mm diameter

eccentric clamp with adapter plate and clamping bolt , 16 mm diameter and 28 mm diameter

RUWI21146

€50,68
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €50.68 gross
Calculate using your tax rate →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
Size
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 345 × 250 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

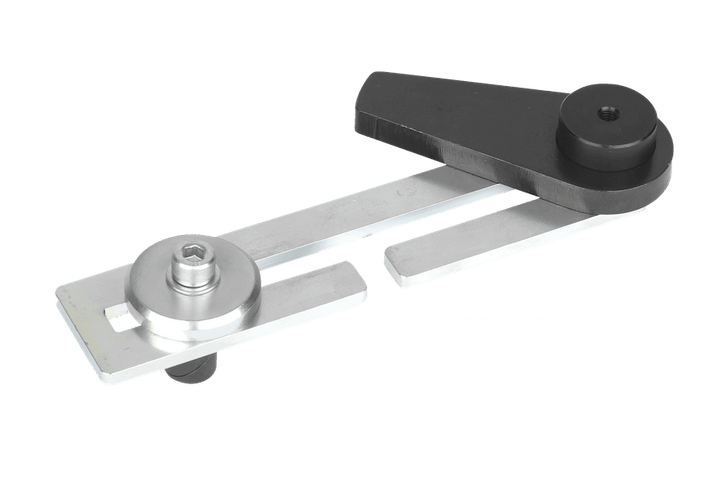

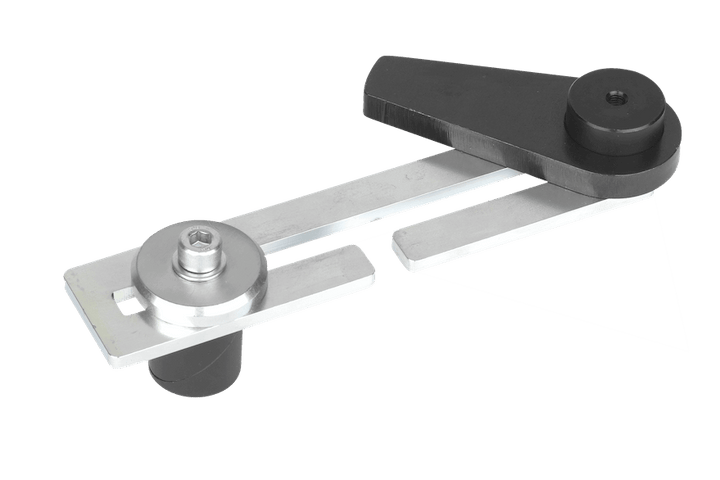

The RUWI eccentric clamp clamps your workpiece using an eccentric lever—a lever mechanism instead of a screw. This is quick and particularly useful when you need to clamp and release many identical parts one after another. You install it via the clamping bolt into the hole grid of your welding table and align it using the adapter plate ; when ordering, select the bolt that matches the grid: Ø 16 or Ø 28 mm.

The eccentric (100 × 44 mm) generates the clamping force via the “ pivot bearing ” (Ø 30 × 20 mm), while the “ adapter plate ” (180 × 40 mm) ensures a secure fit on the plate. All parts are made of steel— galvanised , and black-oxide —which are spark-resistant and corrosion-resistant in everyday welding applications.

Here's how to use it

  • Batch clamping and welding: Flip the lever, the part is in place—flip the lever back, next part. For recurring assemblies, the eccentric mechanism activates each screw clamp in sequence.
  • Hold the position instead of searching for it: Bolts and adapter plate define the clamping point on the grid—every part in the series is positioned in the same spot.
  • Aligning the pressure point: Use the M6 threaded hole on the adapter plate and the pivot bearing to adjust the eccentric to match the workpiece contour.

Does this go with your welding table?

The Ø 28 mm version fits into the hole grid of the RUWI welding tables (material thickness of 4 mm or more—the phosphated RUWI welding table tops meet this requirement); the Ø 16 mm version fits into tables with a 16 mm grid. Compatible tables include the mobile welding table lifting table and the stationary welding table leg table.

The Ø-28 grid also accommodates the other clamping tools: the TW 16 screw clamp, Ø 28 Vario clamping bolts, as well as vertical and horizontal toggle clamp; the RUWI welding tables.

All the details

Dimensions
adapter plate : 180 × 40 mm, with M6 threaded hole
pivot bearing : Ø 30 × 20 mm, with M6 threaded bolt
eccentric clamp : 100 × 44 mm, hole Ø 30 mm
net weight : 600 g (Ø 28 mm) or 630 g (Ø 16 mm)

Material
Material: Steel, galvanised and black-oxide

Clamping system
clamping bolt: Ø 28 mm or Ø 16 mm depending on model
hole grid: Ø 28 mm or Ø 16 mm depending on model (material thickness min. 4 mm)

★★★★★
