RUWI Welding Table, Lifting Table, 1200 × 800 mm, Perforated Plate, Ø 28 mm

Brief description

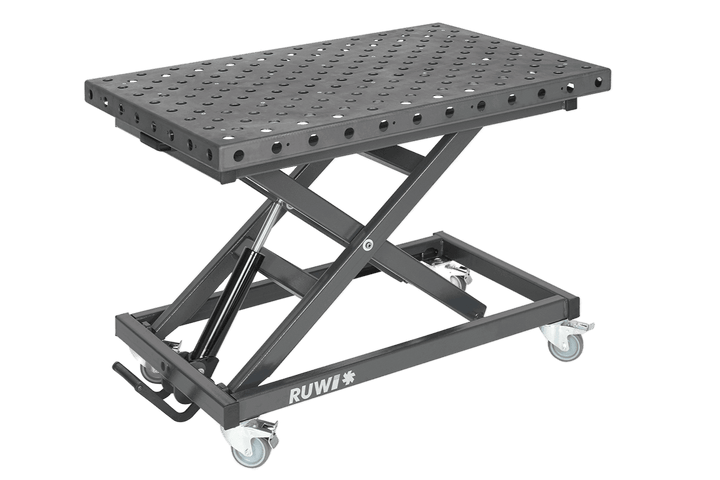

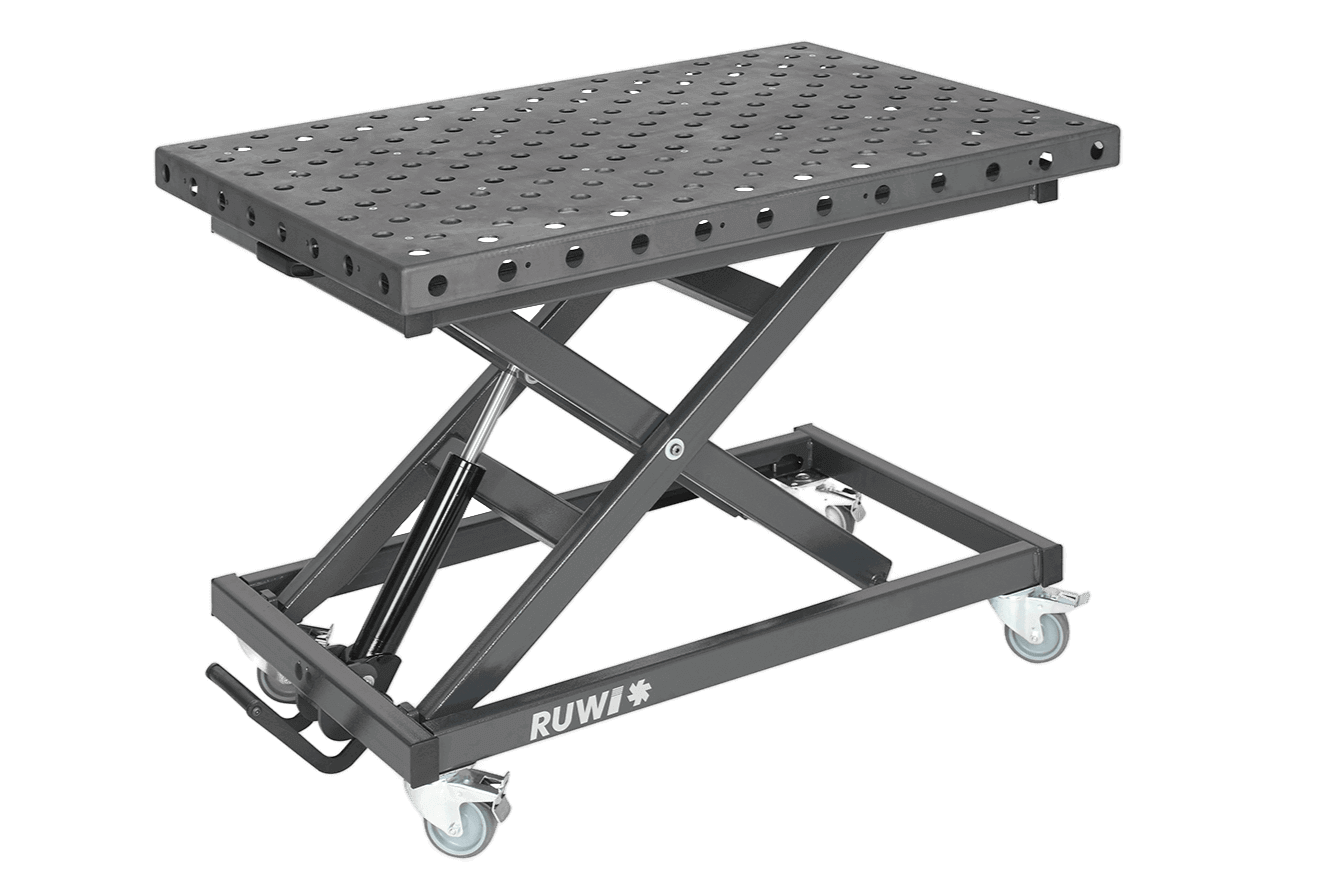

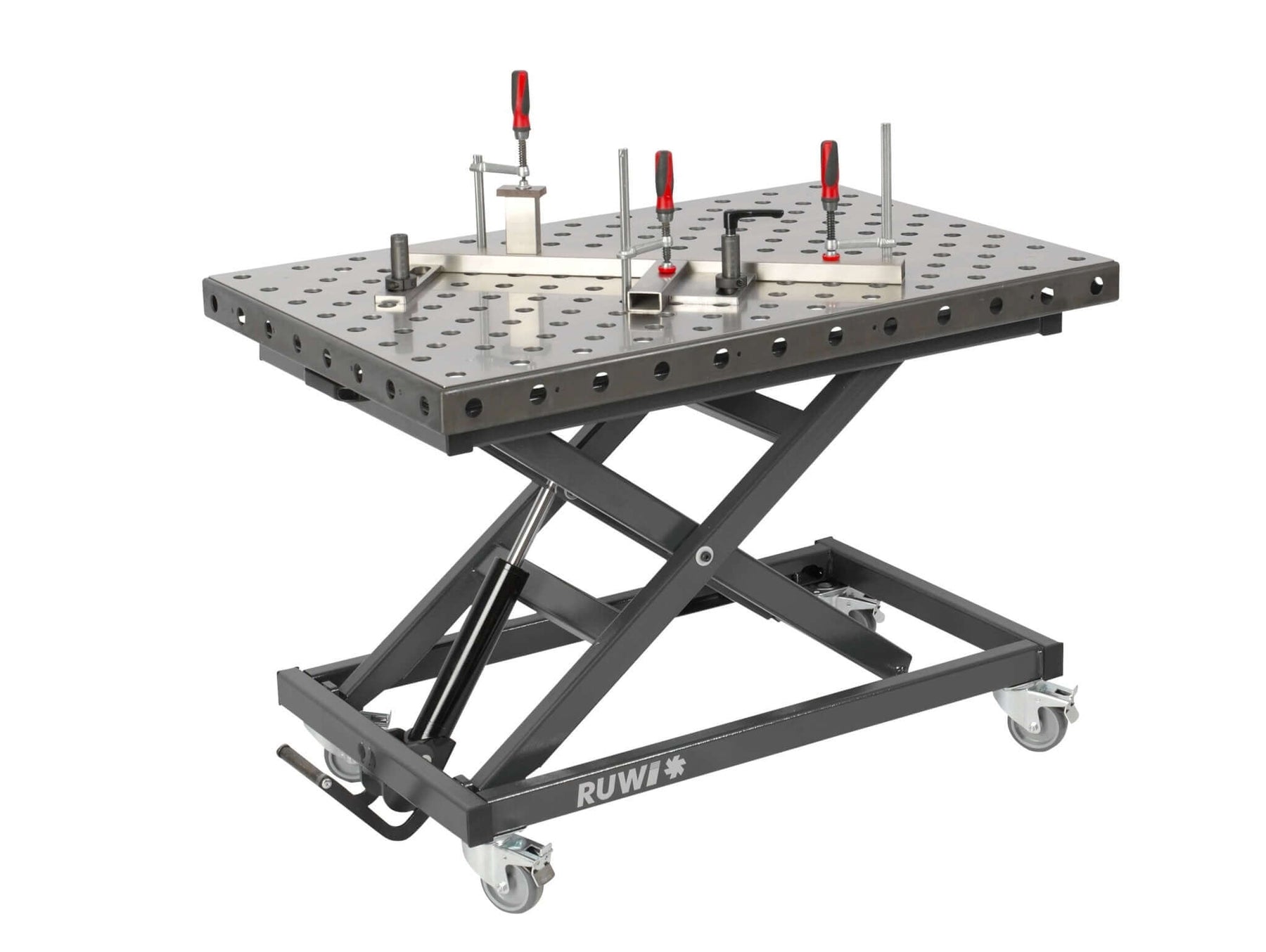

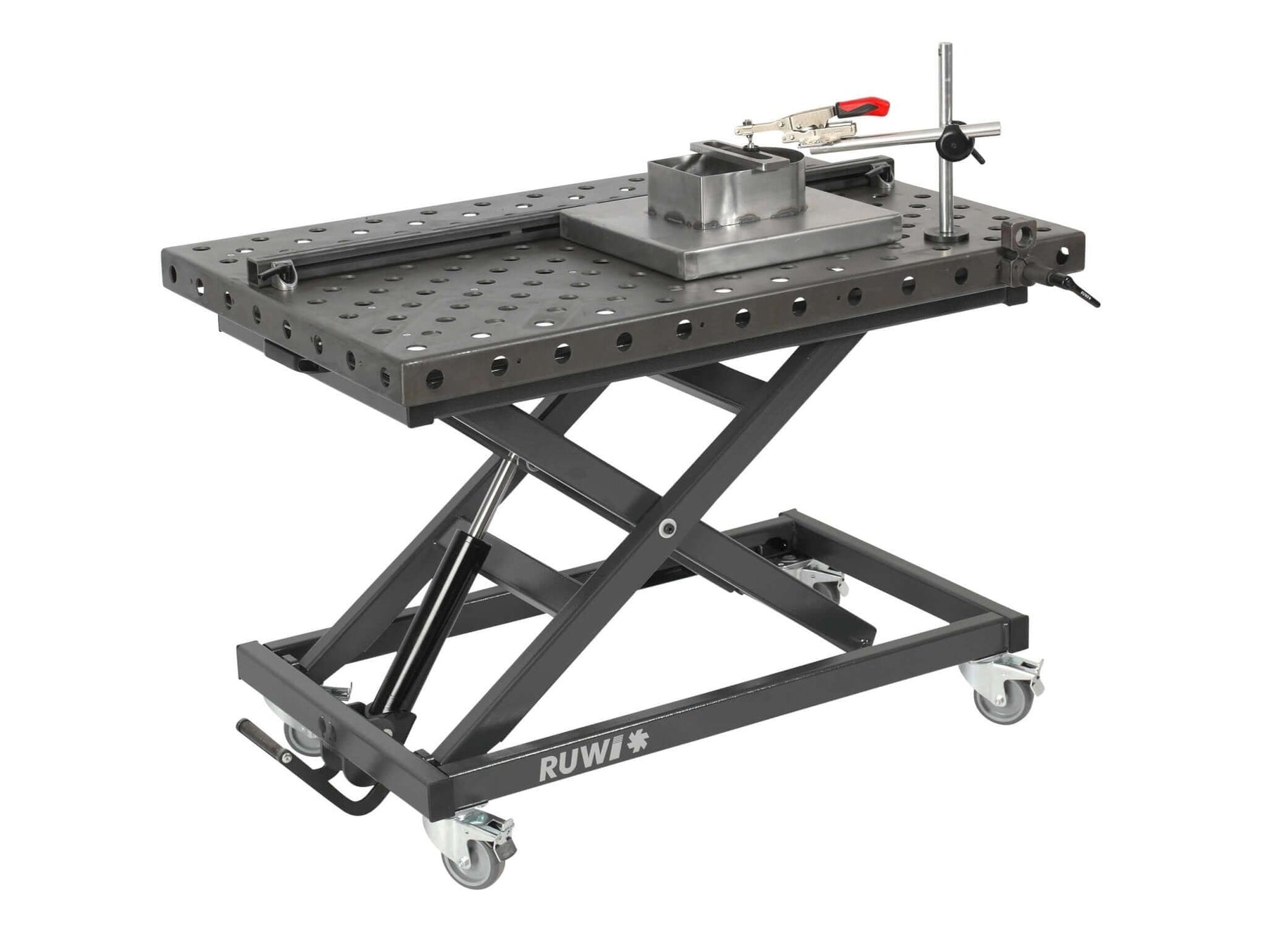

The RUWI Welding Table Lift Table is a mobile, height-adjustable welding work surface with a 28-mm hole pattern (1,200 × 800 mm). Using the hydraulic foot pump, you can adjust the height continuously from 46 to 106 cm. RUWI also designed it as a supplement to large, stationary welding tables: If a workpiece extends beyond the fixed table, simply move the lift table into position, lock the casters, and pump it to the appropriate height.

The work surface is a 4-mm-thick steel plate with a phosphated finish—it withstands welding heat and spatter, is rust-resistant, and provides good adhesion for weld metal. The table has a load capacity of up to 300 kg. It is built on the proven RUWI lift table base —featuring the same German-made hydraulic foot pump and four lockable solid rubber swivel casters.

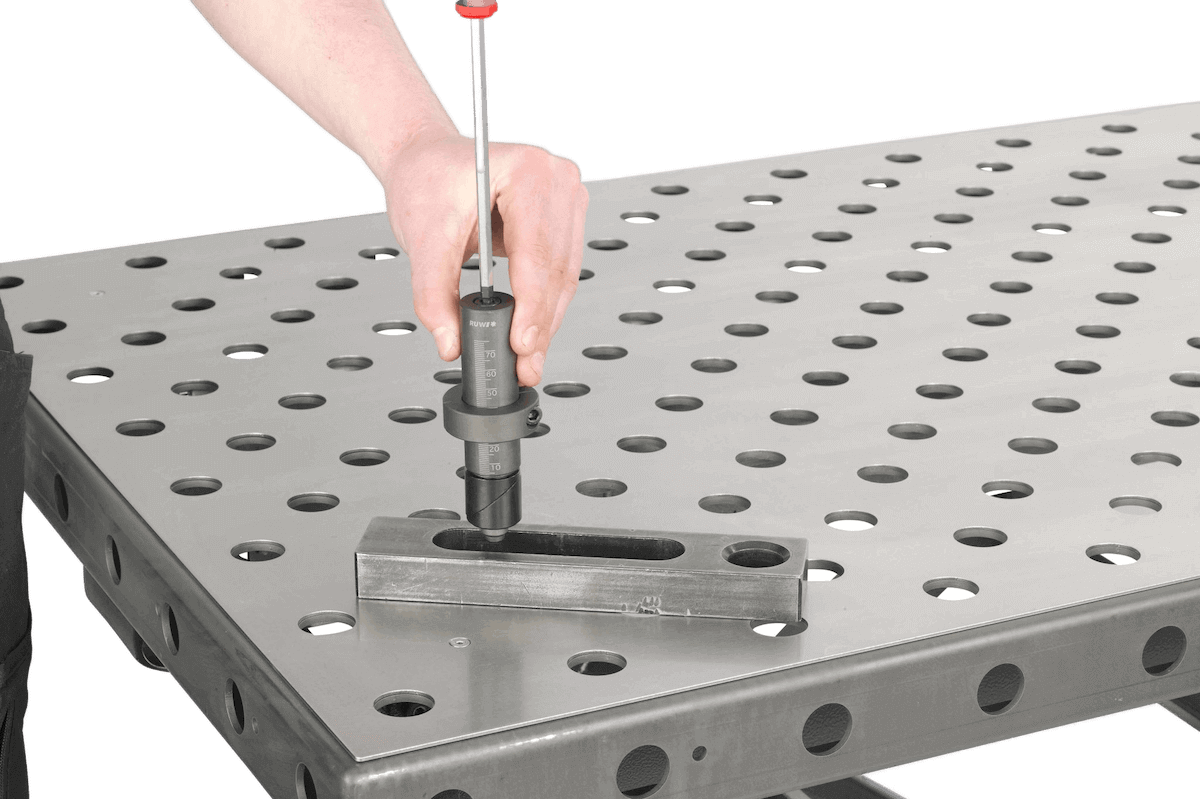

The Ø 28 hole pattern is compatible with RUWI welding clamping technology: TW16 screw clamp, Ø 28 Vario clamping bolts, as well as vertical and horizontal clamps with Ø 16 and Ø 28 clamping bolts. For a complete overview of clamping devices and other welding tables, see the RUWI welding tables.

If you need a stationary solution, the RUWI welding table with legs (up to 500 kg) is the right choice. If you already have a base frame and just need the tabletop, the welding table top with a 28 mm hole pattern is available separately.

Possible applications

• A mobile add-on for large, stationary welding tables—roll it into position, lock the casters, and raise it to the desired height using the foot pedal
• Support large or heavy workpieces and raise them to working height (46–106 cm, up to 300 kg)

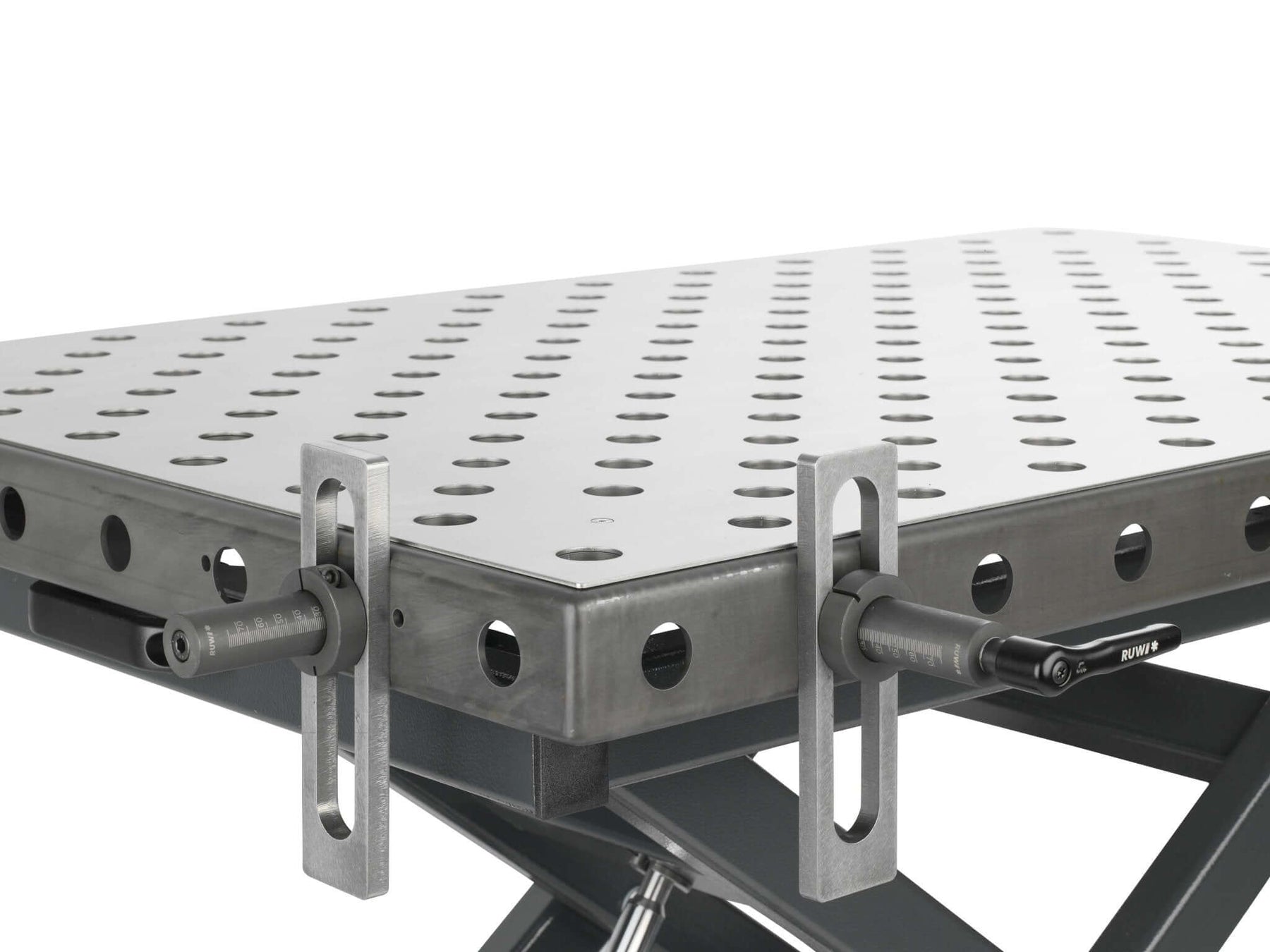

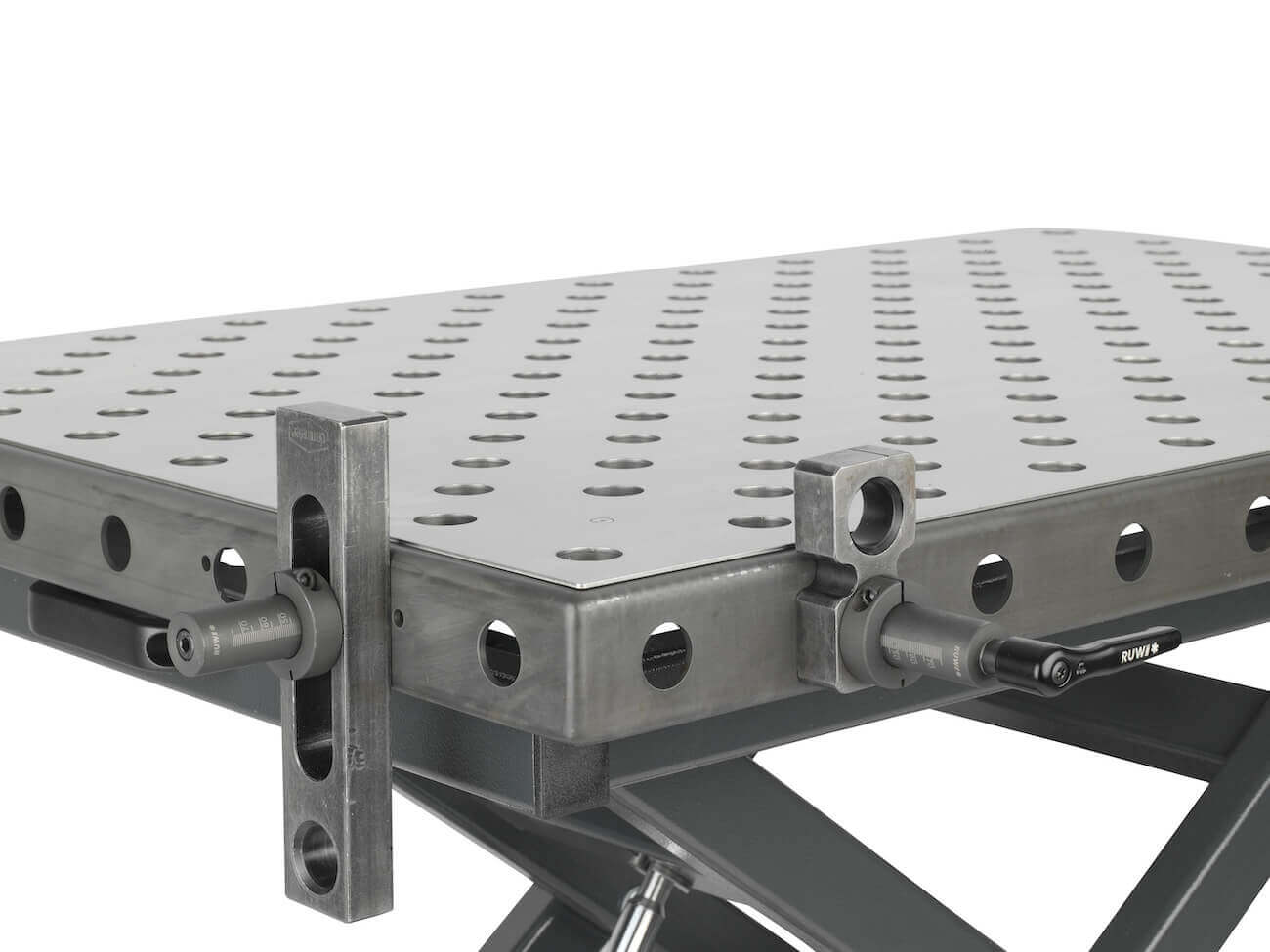

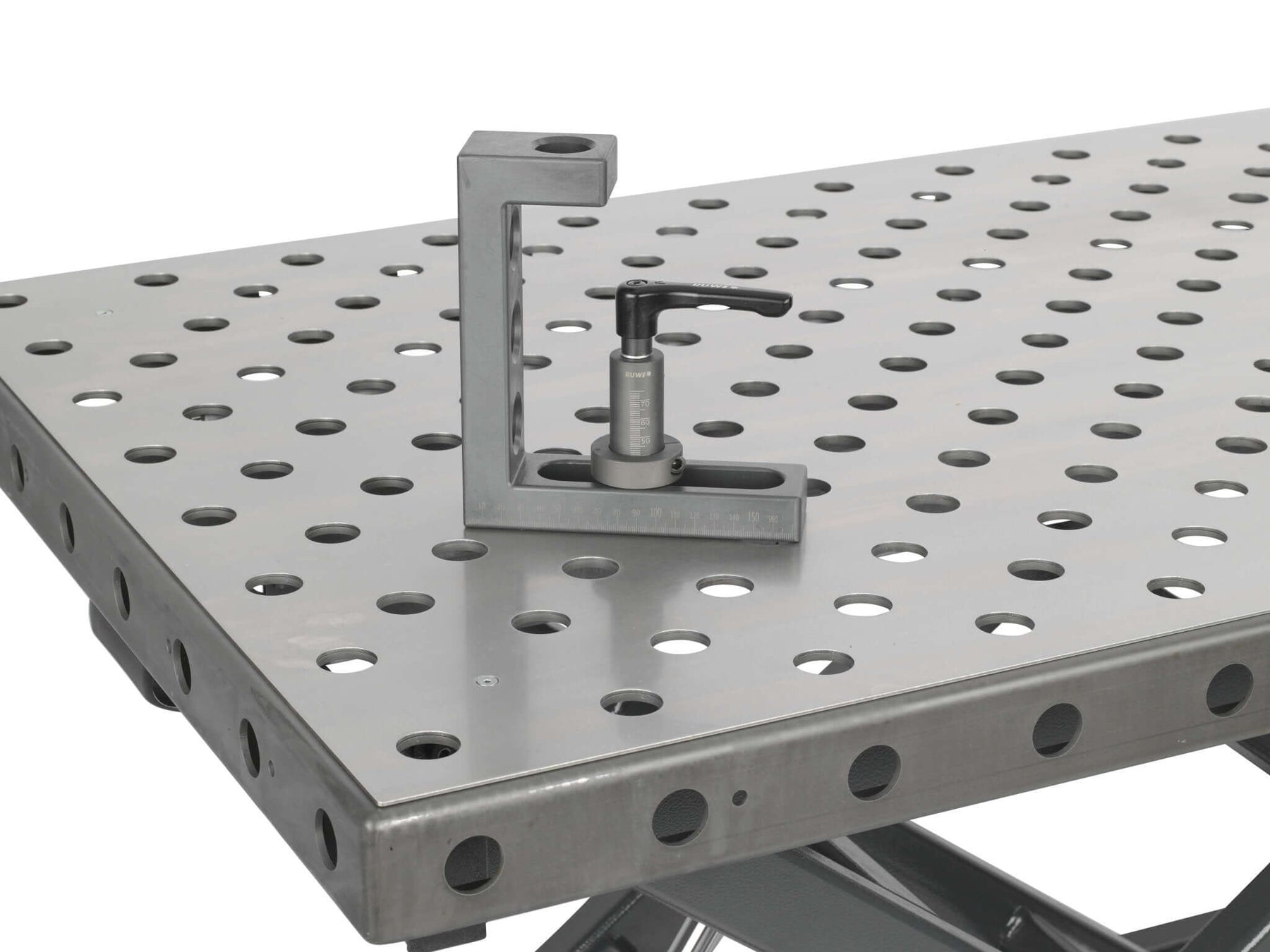

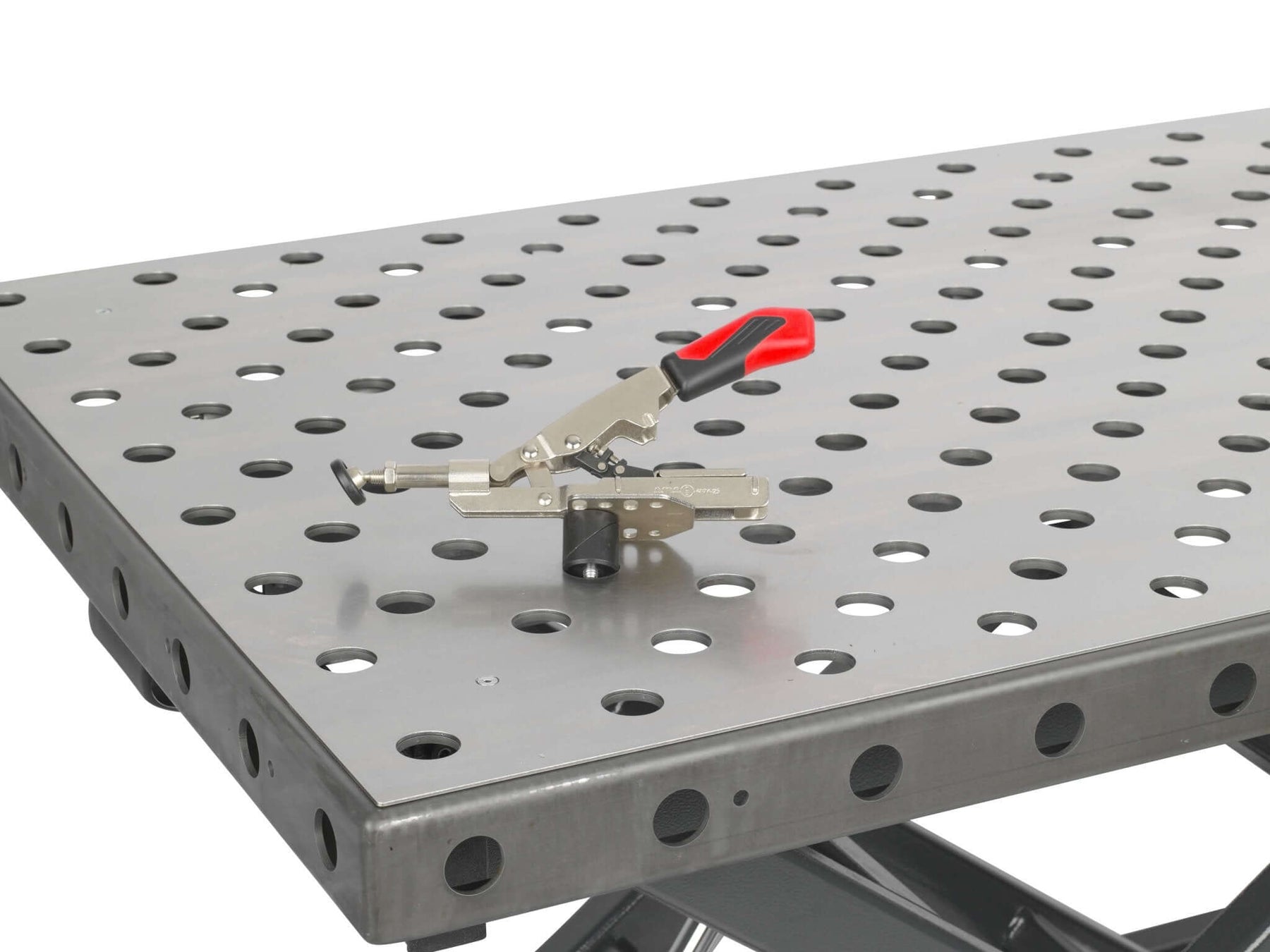

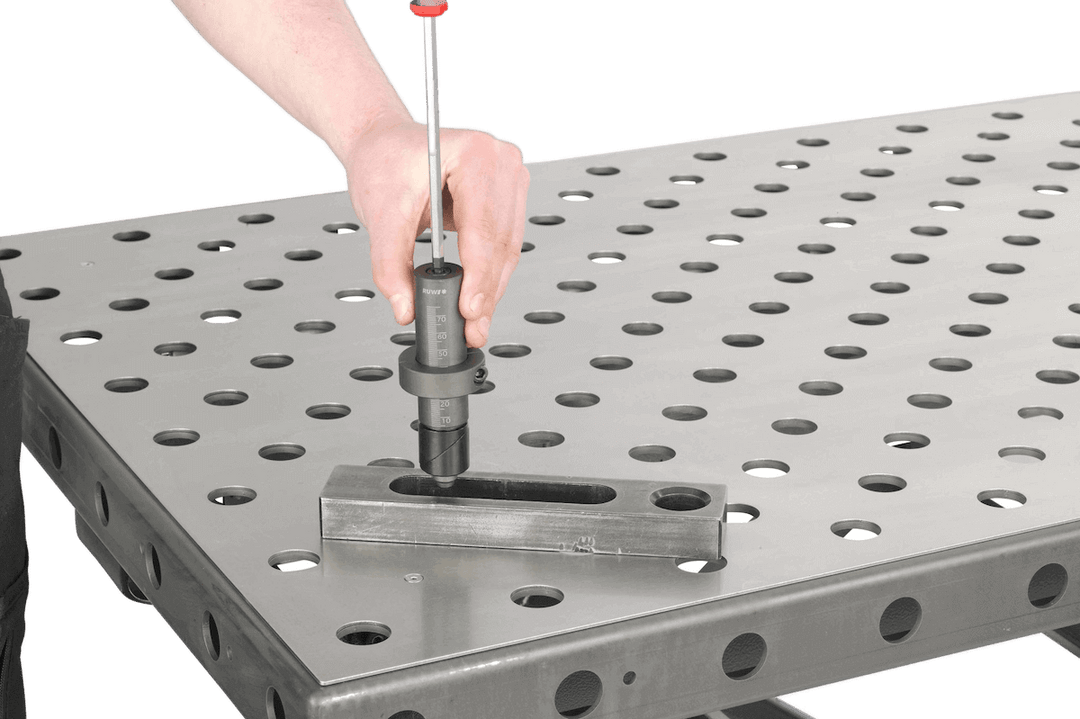

• Clamping workpieces using the Ø 28 hole pattern: TW16 screw clamp, Vario clamping bolts, vertical and horizontal clamps (Ø 16/28)
• Weld, tack, and prepare at a set height without straining your back
• Used in metal fabrication, metalworking, and workshops

Downloads

RUWI Steel Line Catalog (PDF)

All the details

• Function and Load Capacity
- Welding table with hydraulic height adjustment
- Load capacity up to 300 kg, including surface

• Dimensions and Materials
- Table size 1,200 × 800 mm
- Work surface: 4 mm steel plate with phosphated finish, suitable for welding

• Clamping system
- Hole pattern Ø 28 mm

• Height adjustment and mobility
- Stepless hydraulic height adjustment via foot pump, working height 460 to 1,060 mm
- 4 lockable solid rubber swivel casters Ø 100 mm
- Net weight approx. 122 kg
