RUWI drilling table

Brief description

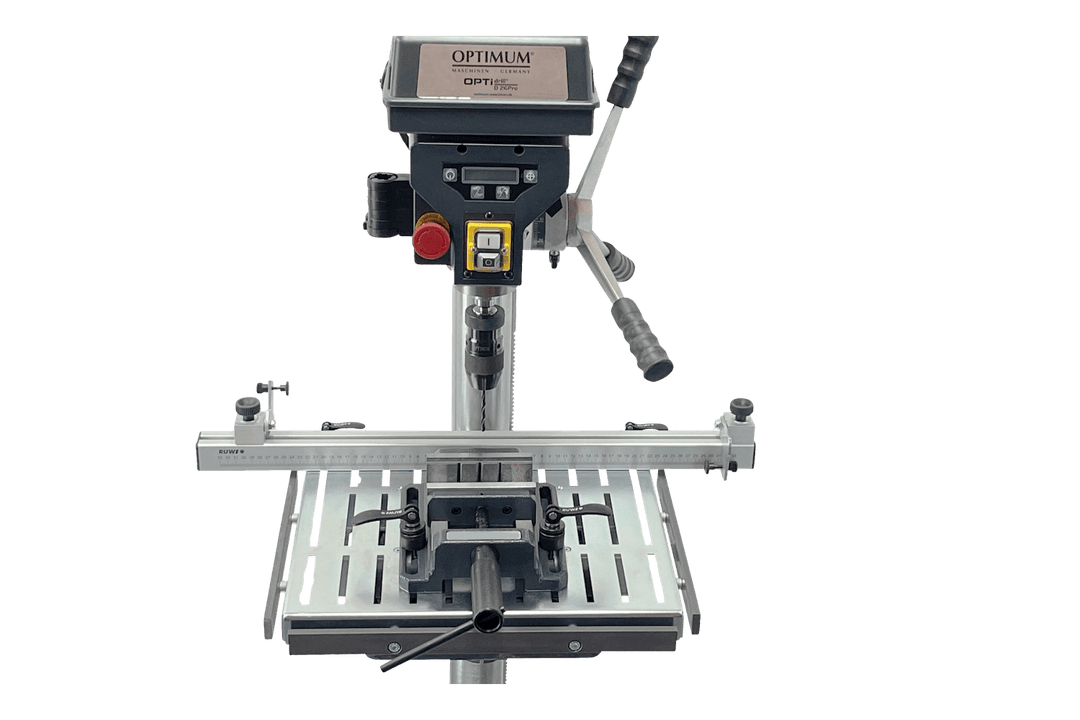

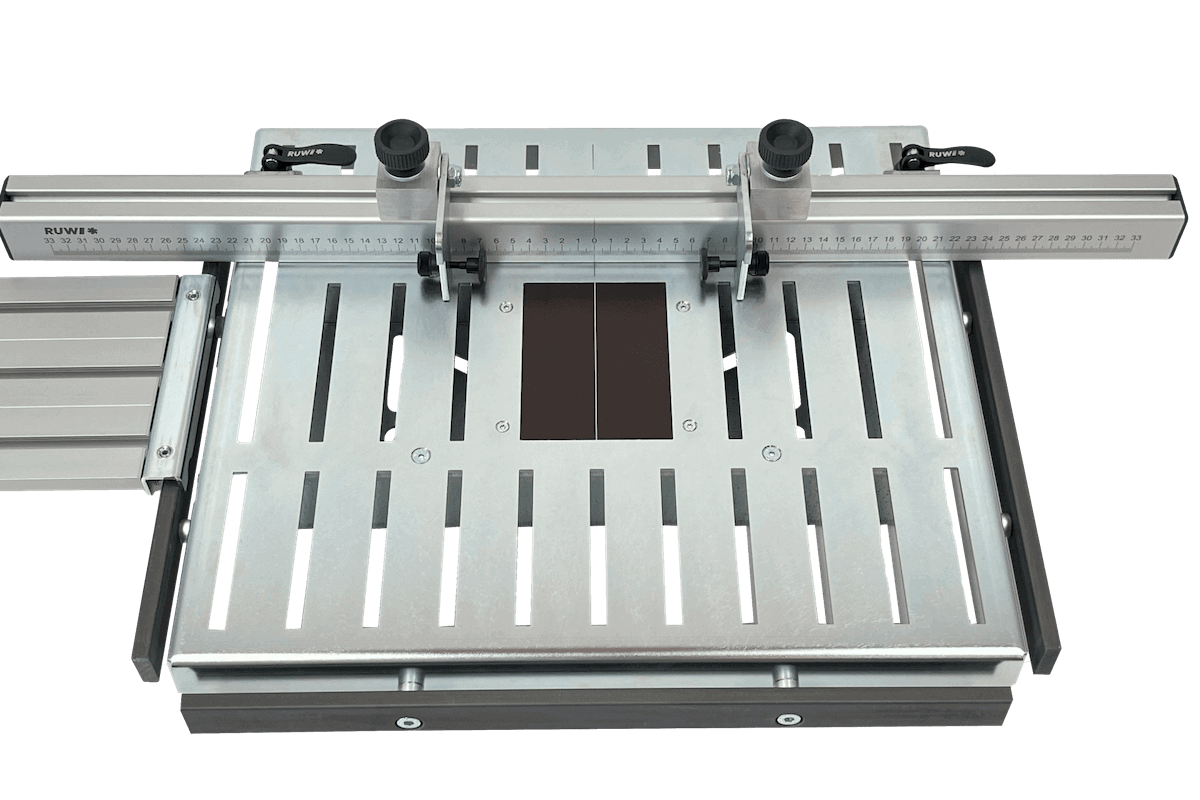

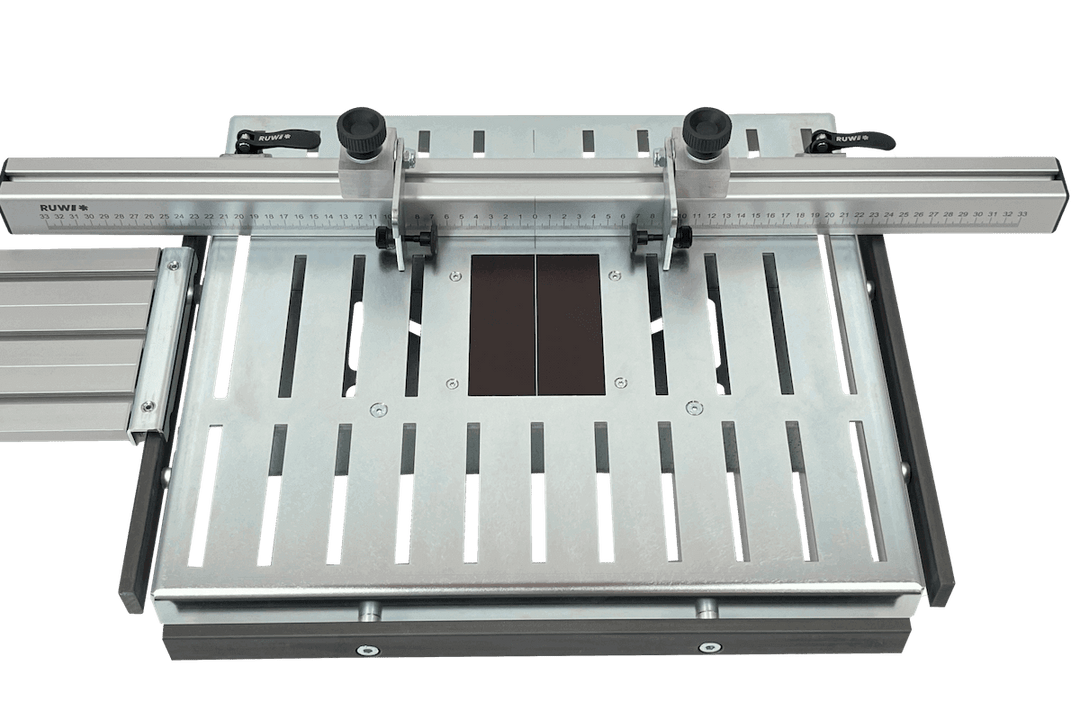

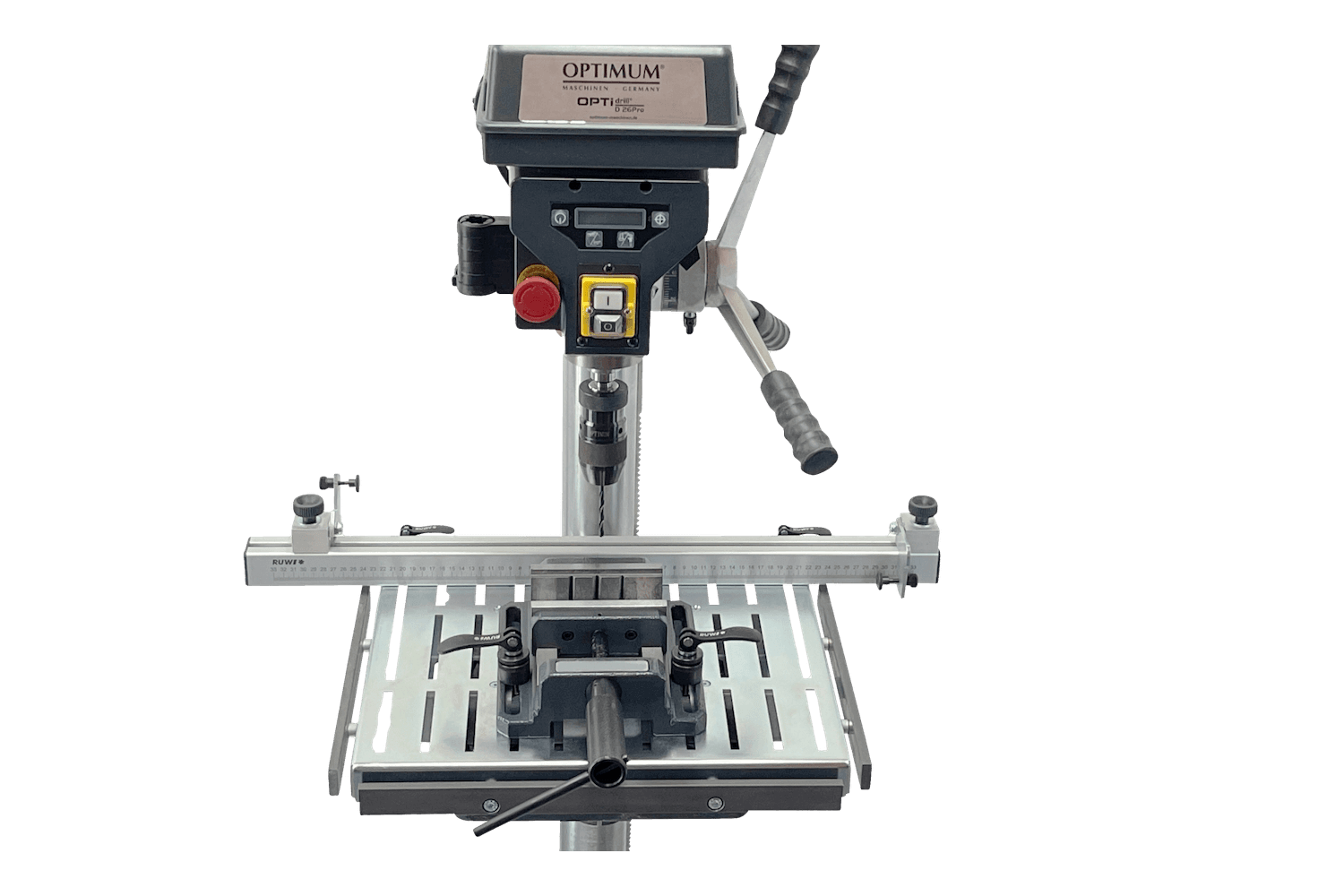

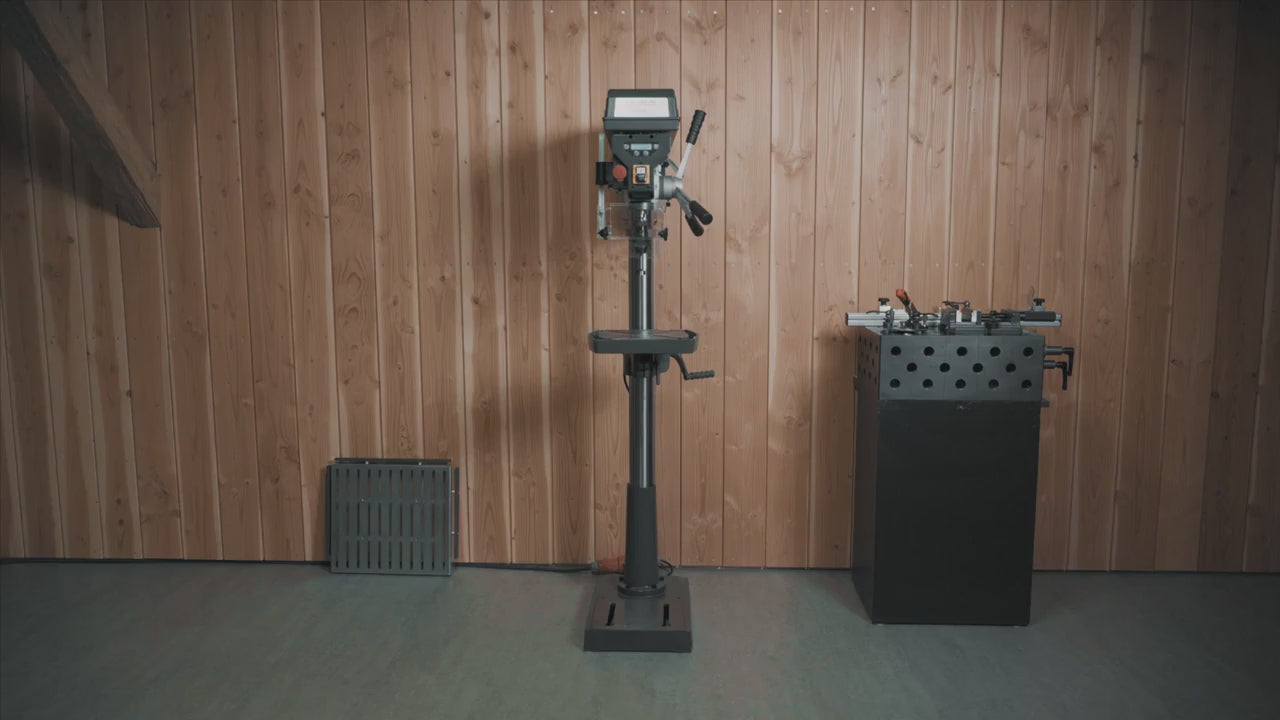

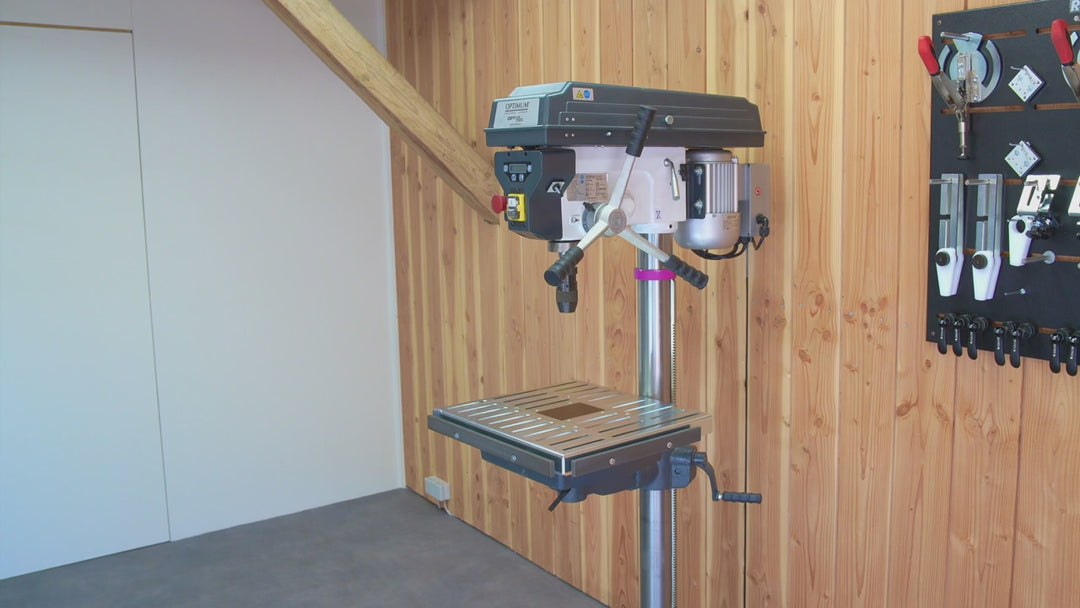

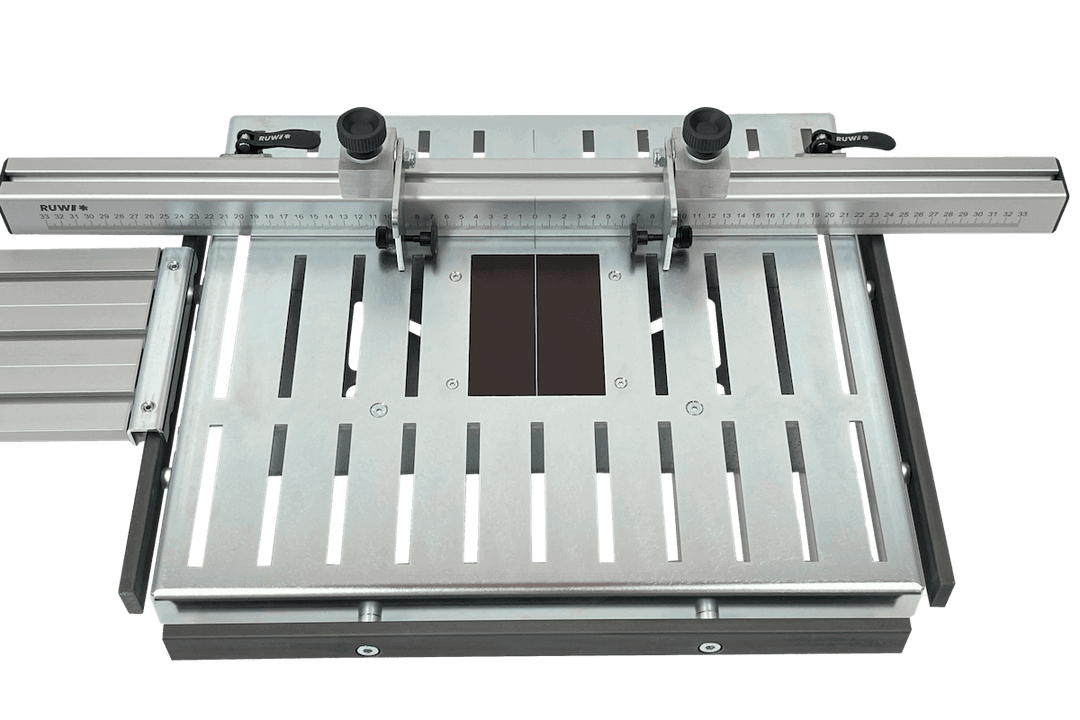

The RUWI drilling table upgrades your bench or pillar drill into a drilling station with a stop and clamping system. You place the clamping plate 450 × 400 mm), made of galvanized sheet steel, on the machine table; on top of it, you can position workpieces, stops, and clamping devices tool-free with repeatable accuracy. A chip guard in the center, which can be swapped on either side, protects the drill bit and the plate during drilling.

The anodized aluminum marking ruler (720 mm) features a laser-etched scale. You can use the two folding stops with fine adjustment to set them precisely and consistently—and fold them up when you’re not using them. This allows you to drill rows and series with consistent spacing without having to mark them out each time.

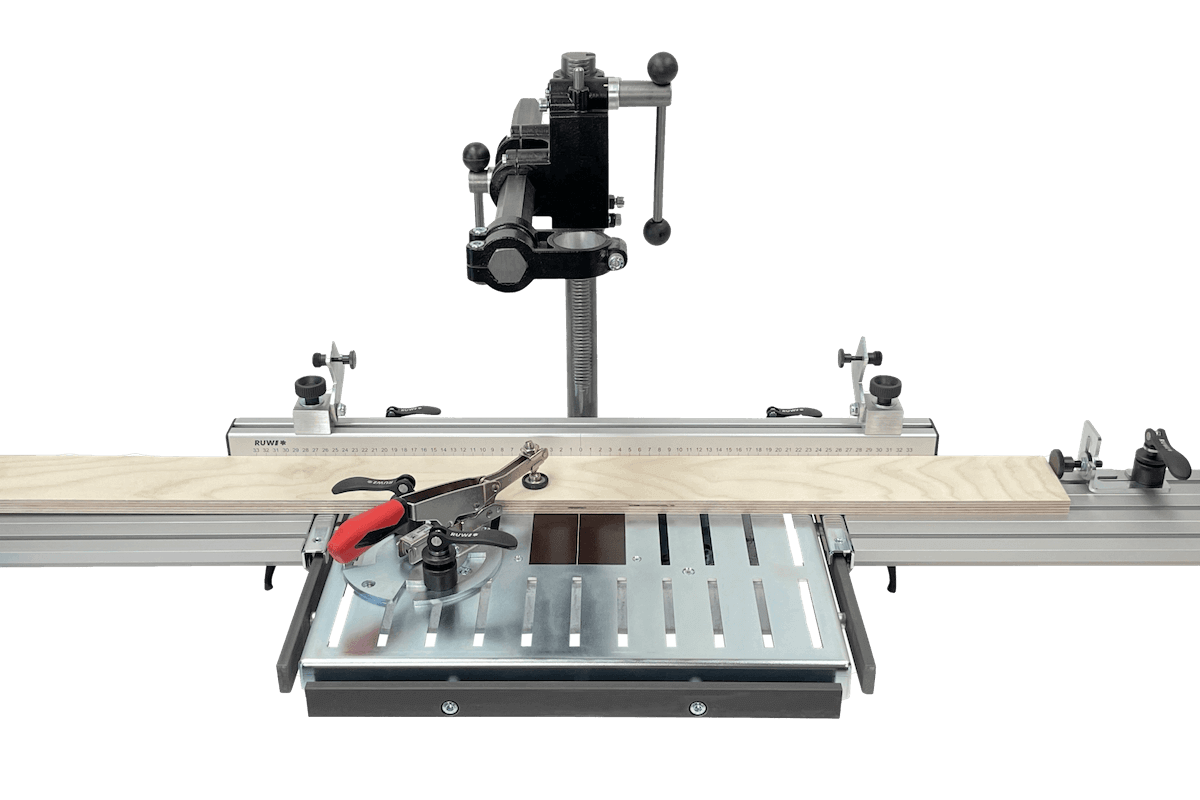

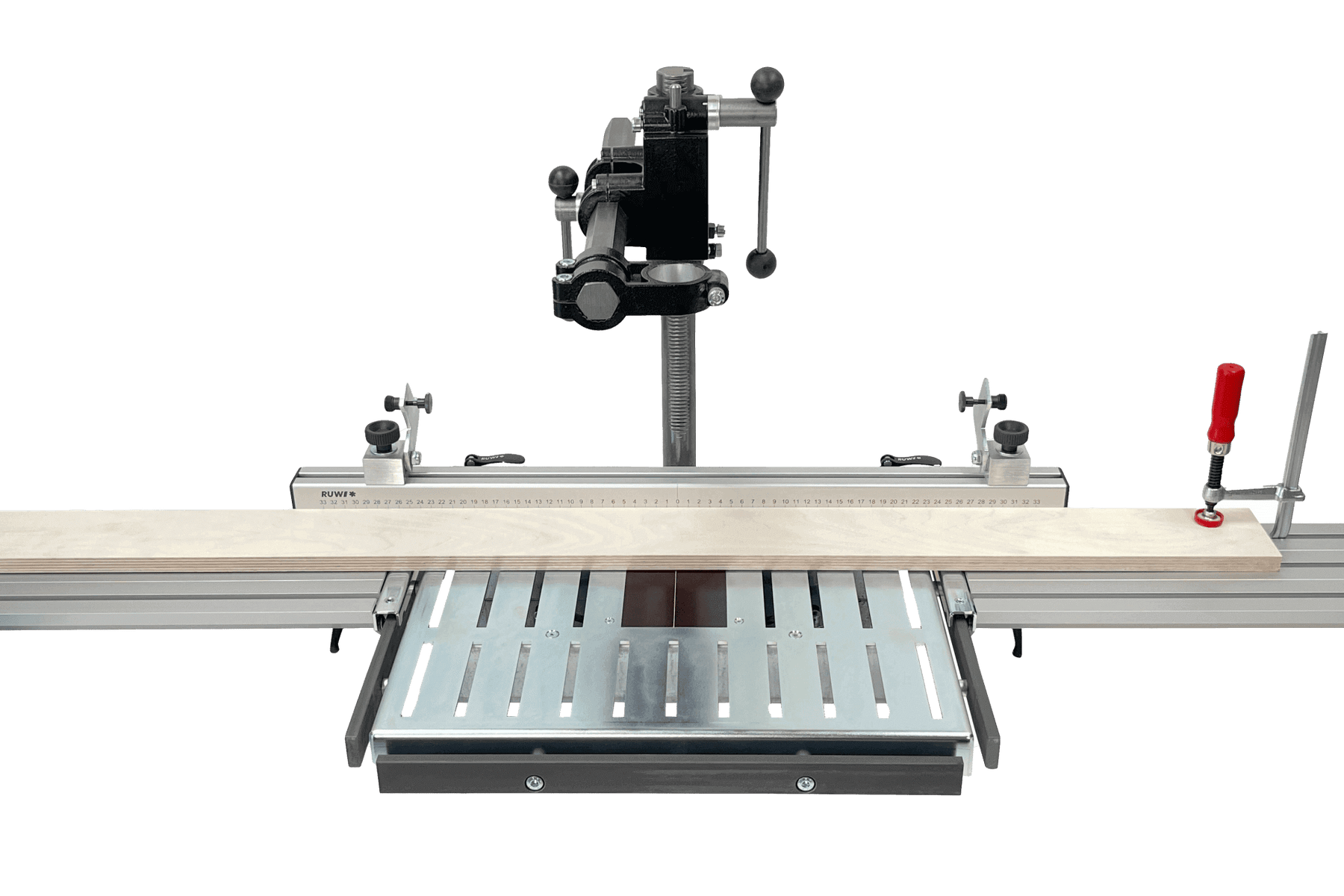

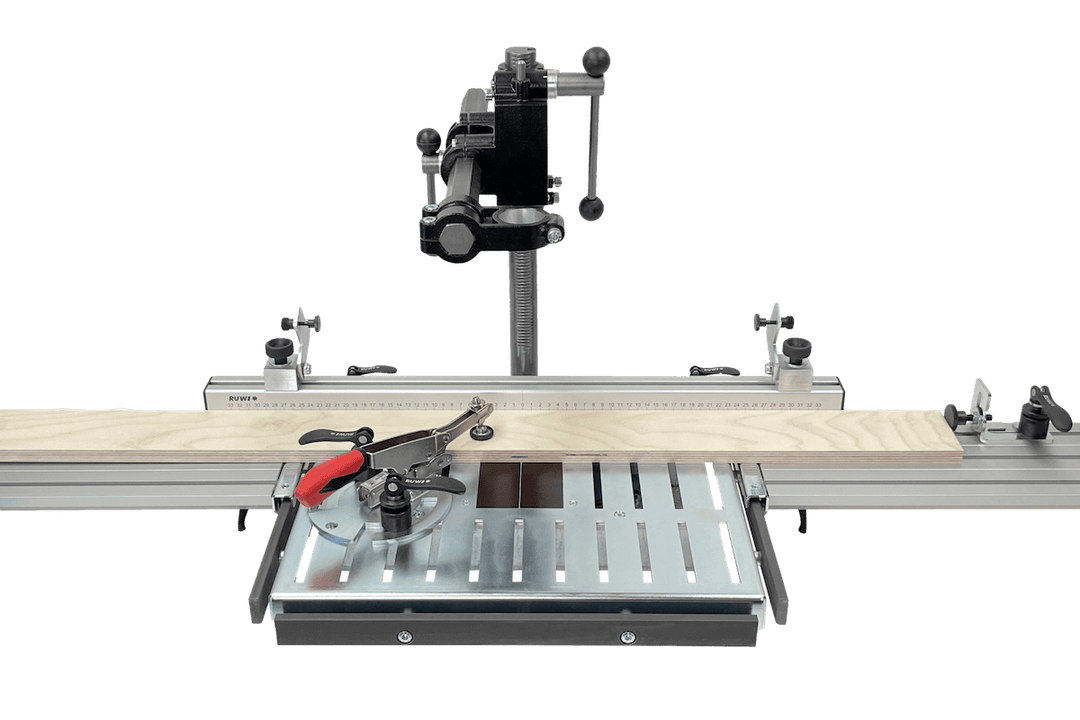

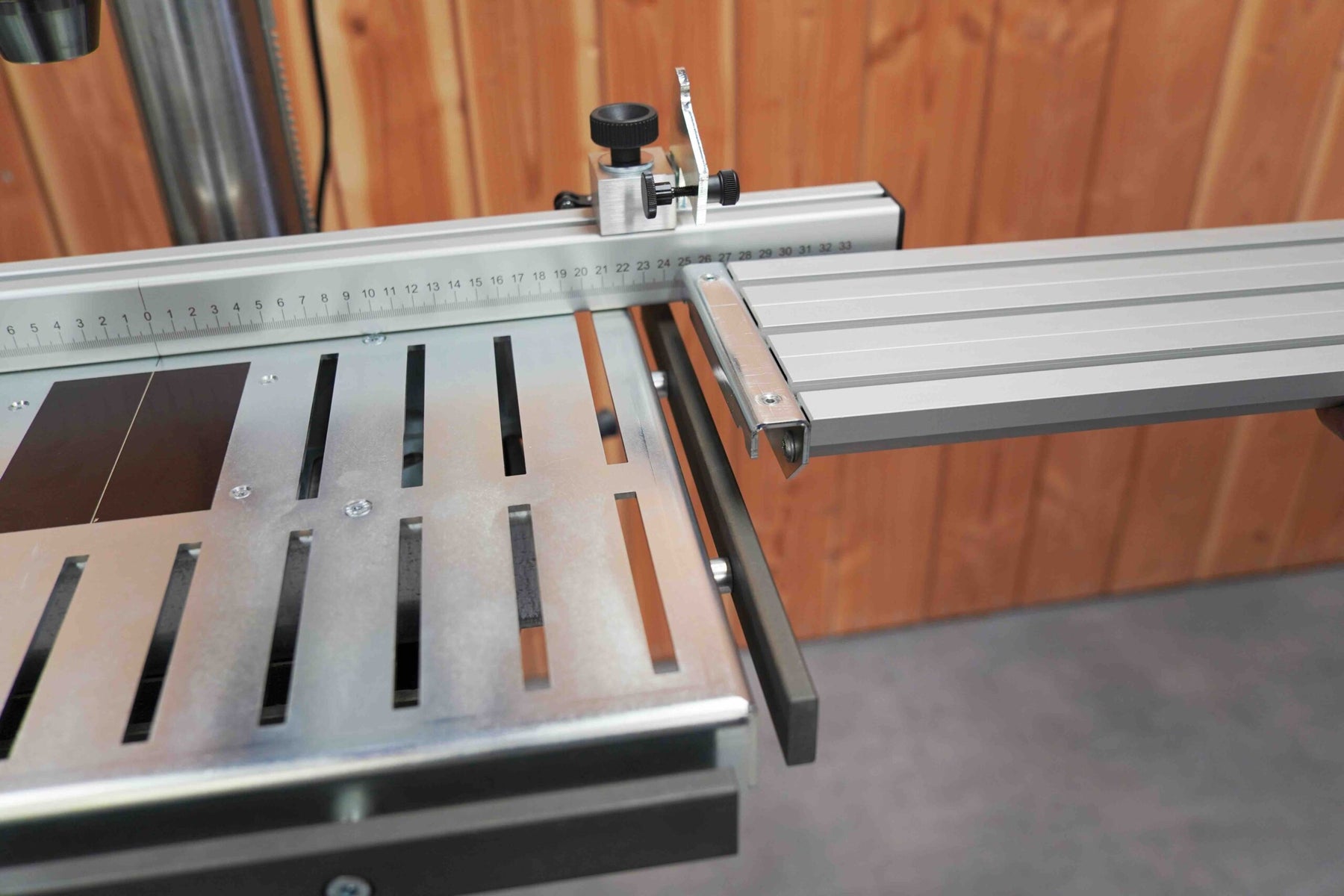

The Premium package includes the RUWI table extension 1,060 × 150 mm): tool-free from 72 to 107 cm; can be mounted on the left, right, or front. This allows you to securely place long workpieces such as doors, stair stringers, or large furniture parts on the table. You can connect additional extensions in a row using the end piece with an adapter.

Applications

• In-line and serial drilling with consistent spacing using the laser-etched scale

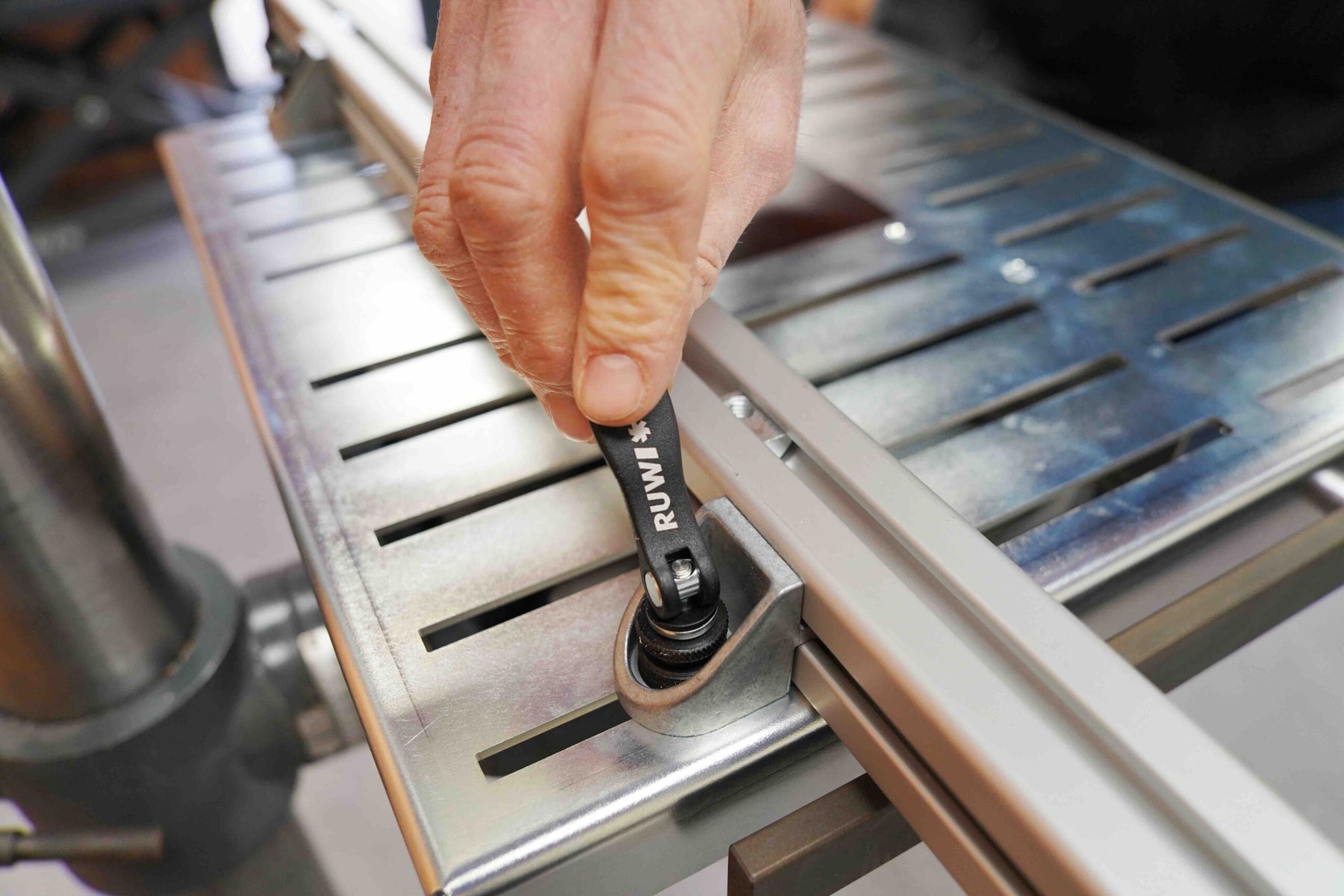

• Two folding stops with fine adjustment – precisely set, and you can fold them up if you need to
• table extension long workpieces (doors, stair stringers, furniture parts) on the height-adjustable table extension
• Mount table extension , right, or front, and connect it to additional extensions
• slots stops, clamping devices, and screw clamps tool-free the slots tool-free
• A reversible splinter guard protects your drill bit and workpiece when drilling through.

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• clamping plate base
- Table surface 450 × 400 mm made of galvanized sheet steel
- slot
- Mounts on bench and column drills

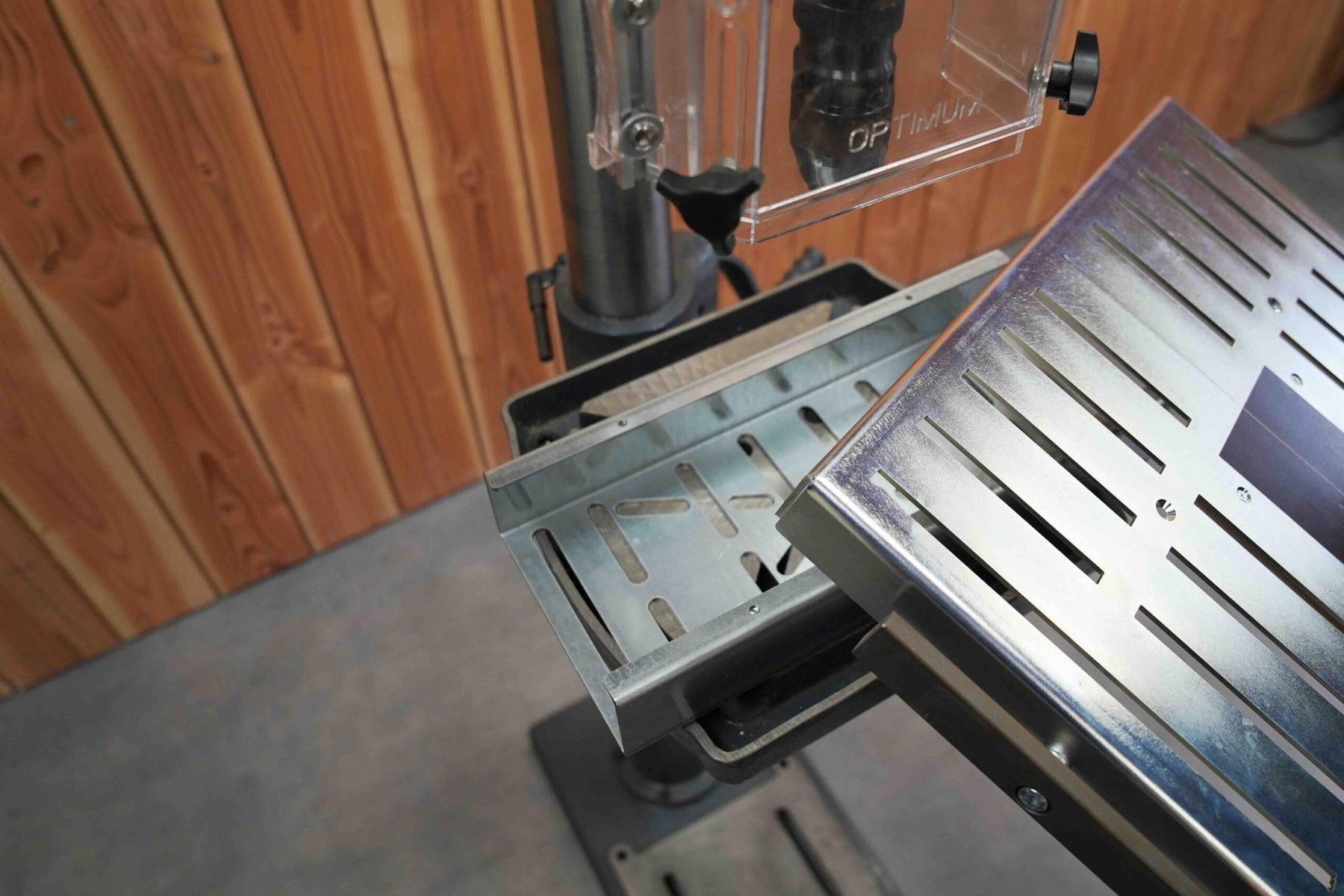

• Chip guard
- Can be used on both sides and is interchangeable

• Stop Ruler
- Length 720 mm, anodized aluminum with laser-etched scale
- 2 folding stops with fine adjustment

• table extension included)
- Dimensions 1,060 × 150 mm
- Height adjustment 72 to 107 cm, tool-free
- Can be mounted on the left, right, or front

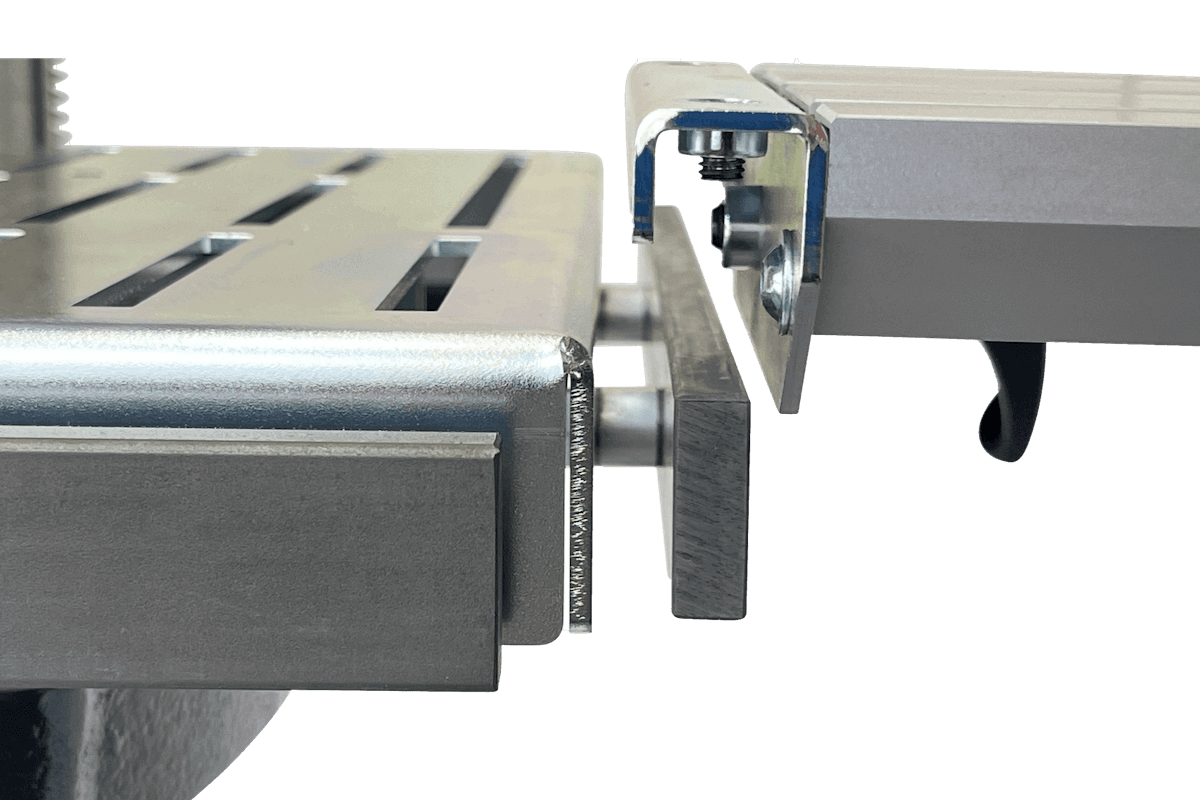

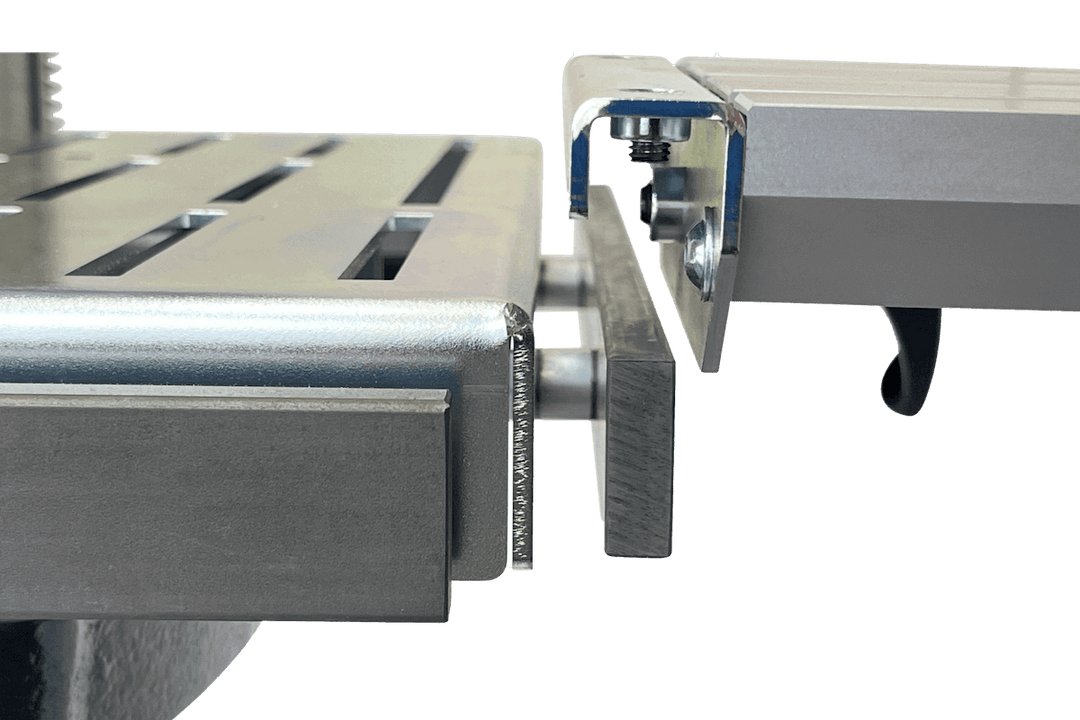

- End piece with adapter – multiple extensions in a row

• Weight and origin
- net weight 15.5 kg
- “Made in Germany”
