RUWI , HPL Perforated Panel, Swivel, with Drawer

Brief description

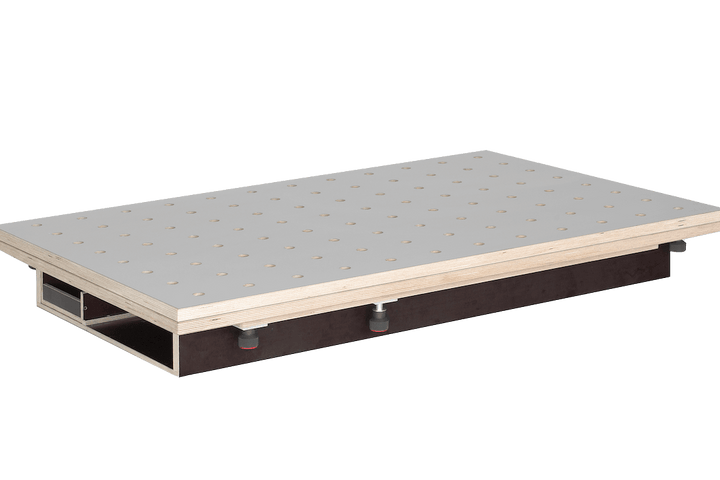

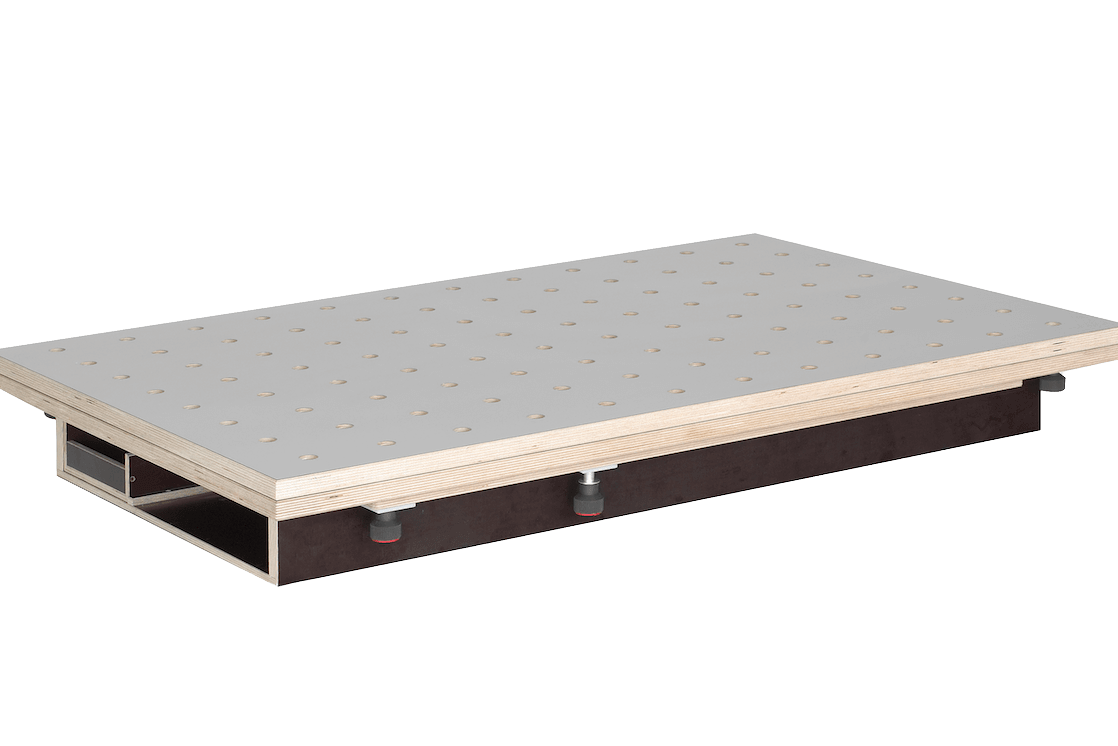

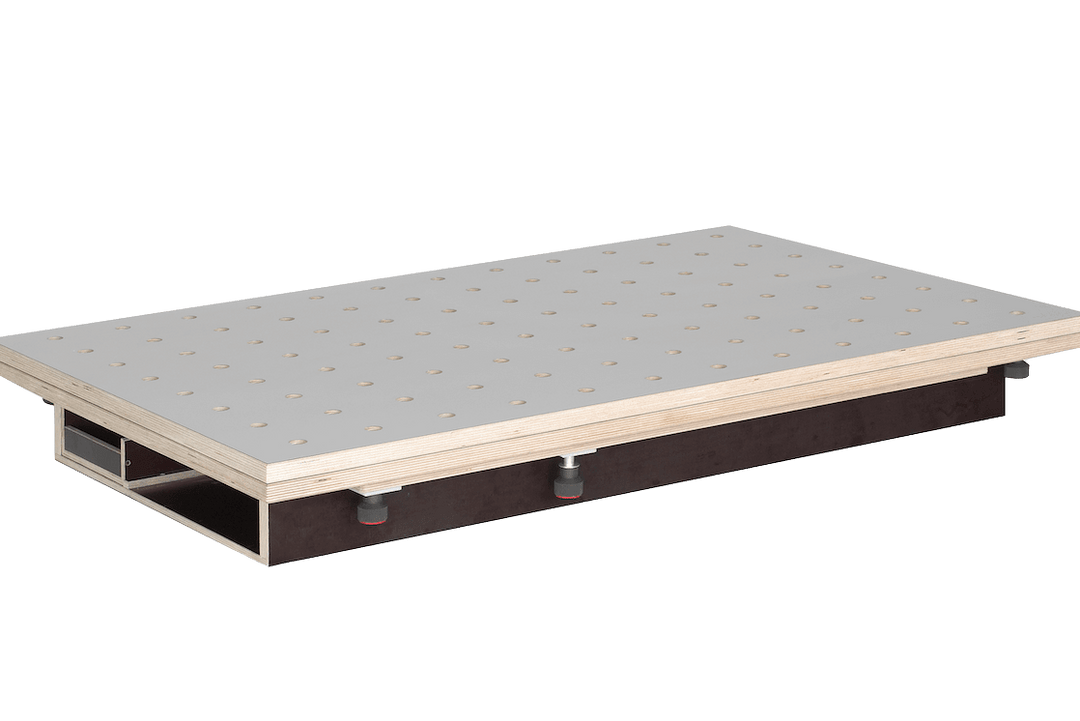

This tabletop with a drawer is a perforated panel with a second panel that folds up—the same swivel mechanism as on the RUWI lifting table , here as a separate tabletop with storage space. When folded down, the work surface measures 1,200 × 800 mm. If you need more space, you can fold up the second perforated panel tool-free seconds to expand the surface to 1,600 × 1,200 mm—a continuous clamping surface that can support even large and bulky components. When the full surface isn’t needed, simply fold the panel back down to save space.

The removable drawer under the worktop keeps the small parts of the 20-mm system within easy reach— clamping bolt, bench hooks, clamping brackets, and quick-release clamps are right where you need them when changing setups. Both table top halves feature a hole grid spaced at 96-mm intervals—96 holes in a 1,200 × 800 mm area, 192 across the entire surface. This means you can clamp across the entire unfolded surface. The panel is made of multiplex with HPL coating on both sides—scratch-resistant, moisture-resistant, and tension-balanced thanks to the double-sided coating, ensuring it remains flat. Glue does not adhere to HPL, and cured residue flakes off: it is also suitable as a gluing surface. The grid follows the established 20-mm standard, so accessories from Festool MFT, Sauter Variobench, or other 20-mm tables are compatible.

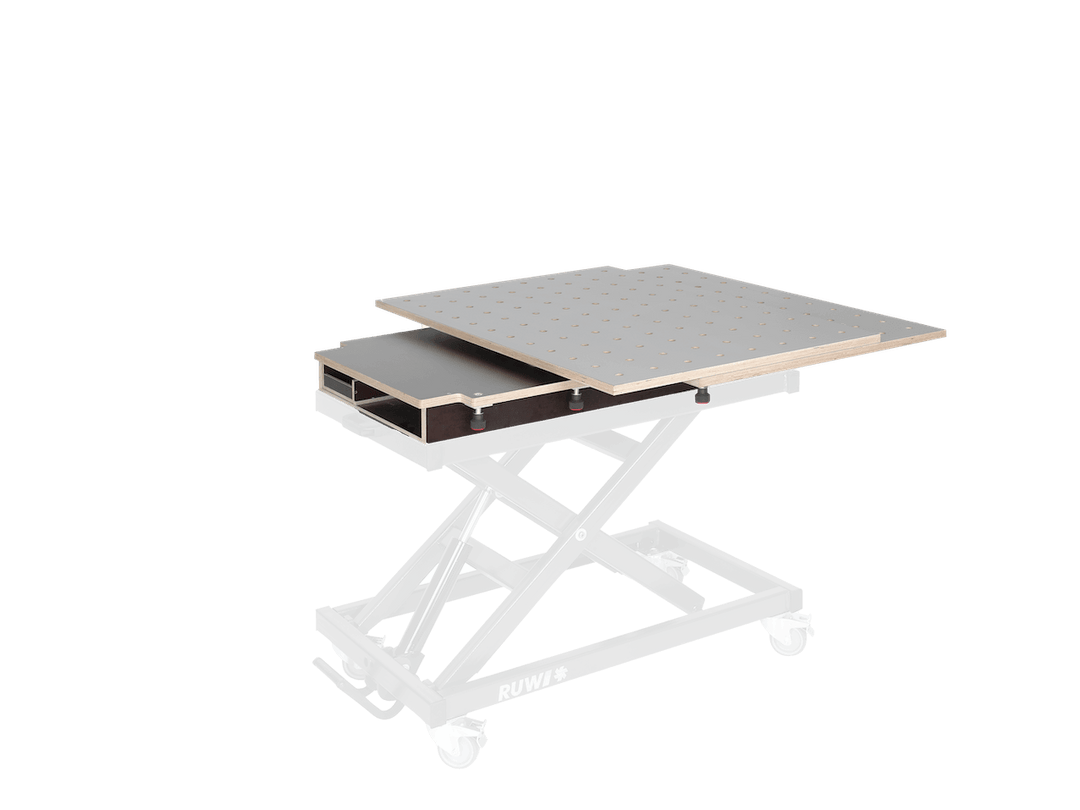

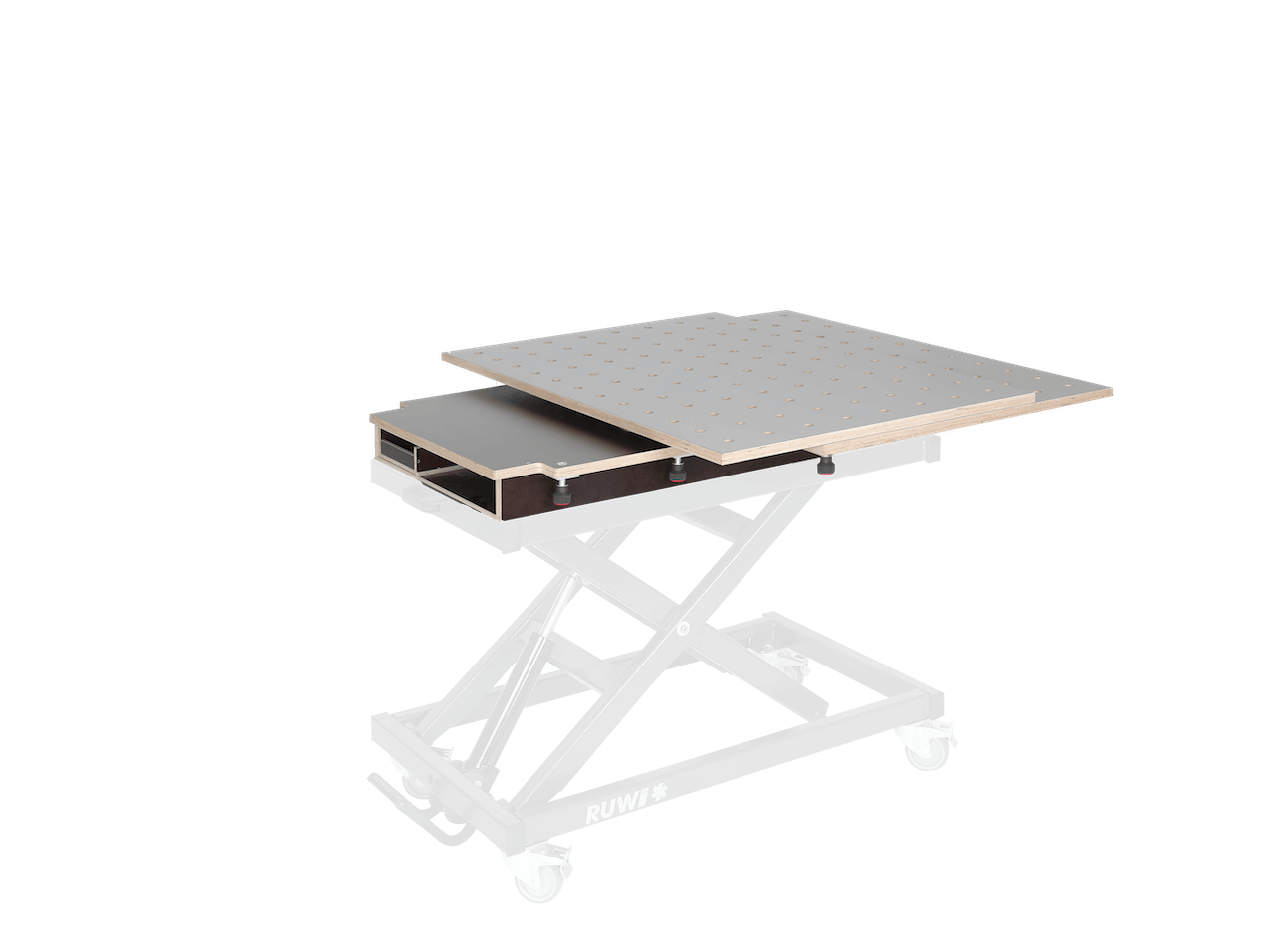

The tabletop sits on the RUWI lifting tablebase frame can also be base frames on other compatible base frames . The complete table, featuring this swivel tabletop and clamping system package, is available as lifting table RUWI lifting table . If you don’t need a drawer, the same tabletop is available as a swivel perforated tabletop without a drawer.

Applications

• Expand the clamping area from 1,200 × 800 mm to 1,600 × 1,200 mm using a swivel mechanism— tool-free seconds
• Clamp and assemble large and bulky parts on a continuous hole grid surface.
• Keep clamping bolt, bench hook, and clamping bracket within easy reach in the removable drawer
• Space-saving: fold in the second plate when you don't need the full surface.
• Can be used on the RUWI lifting tablebase frame other compatible bases
• Compatible with the 20 mm standard (Festool MFT, Sauter Variobench and others).

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and Weight
- Folded: 1,200 × 800 mm, unfolded: 1,600 × 1,200 mm
- Weight: approx. 50 kg

• Material
- Plywood panel, HPL-coated on both sides
- Scratch-resistant, moisture-resistant, tension-balanced thanks to coating on both sides

• hole grid
- 20-mm-diameter holes spaced 96 mm apart
- 96 holes on a 1,200 × 800 mm panel, 192 holes across the entire surface
- 20-mm standard, compatible with Festool MFT and Sauter Variobench

• Swivel function and storage space
- Second perforated panel tool-free
- Removable drawer with storage space under the work surface
