RUWI drilling table Classic

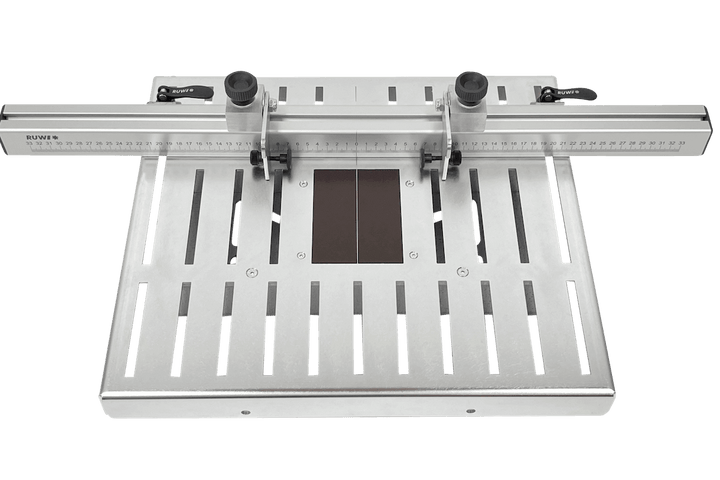

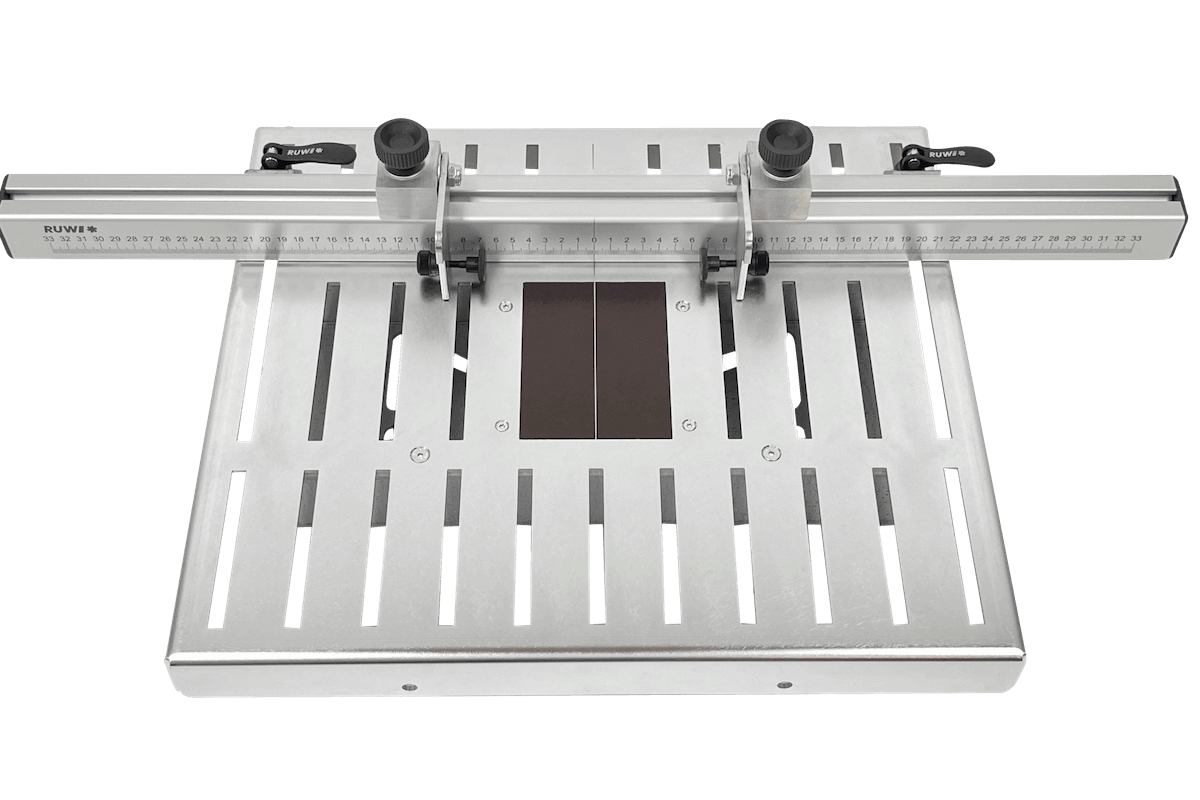

The RUWI drilling table Classic upgrades your bench or pillar drill into a drilling station with a stop and clamping system. You can mount the clamping plate (450 × 400 mm), made of galvanized sheet steel, onto the machine table using the included mounting bracket; the slot clamping system allows you to secure workpieces, stops, and clamping devices tool-free in any position.

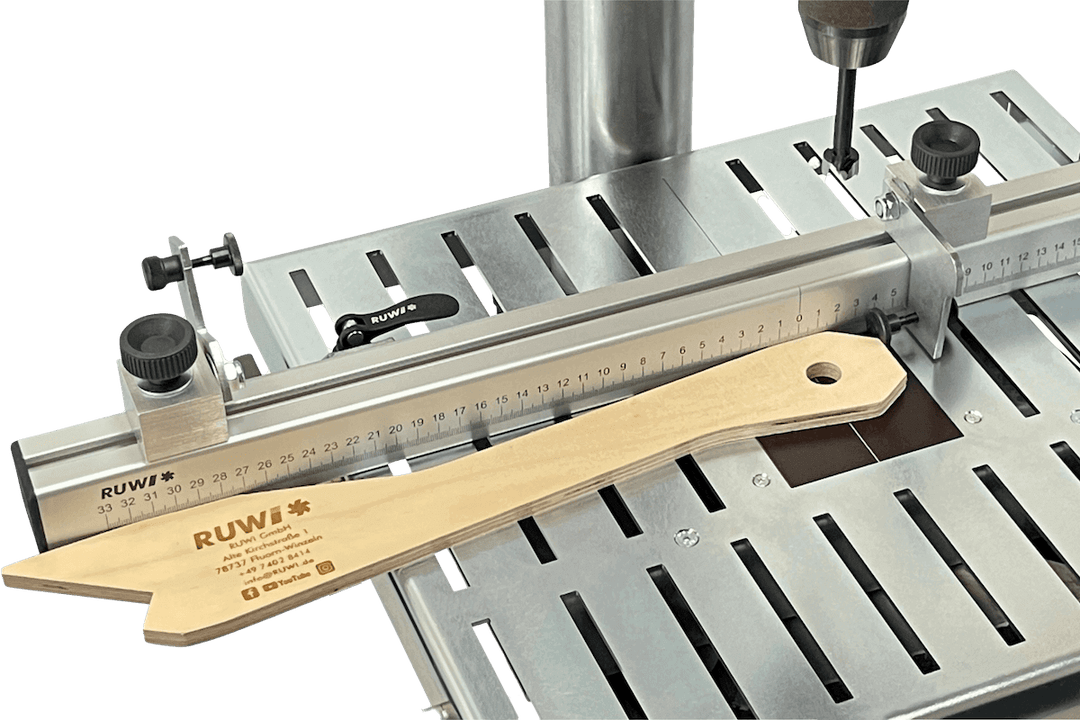

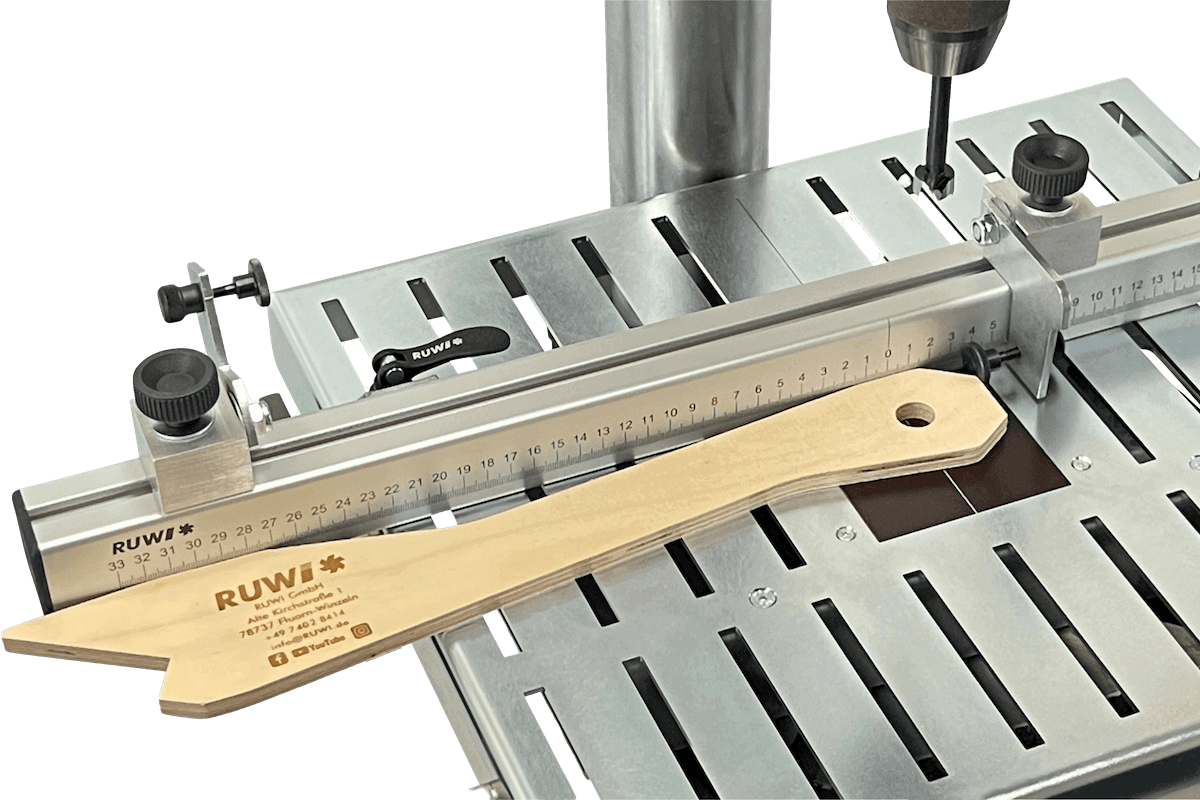

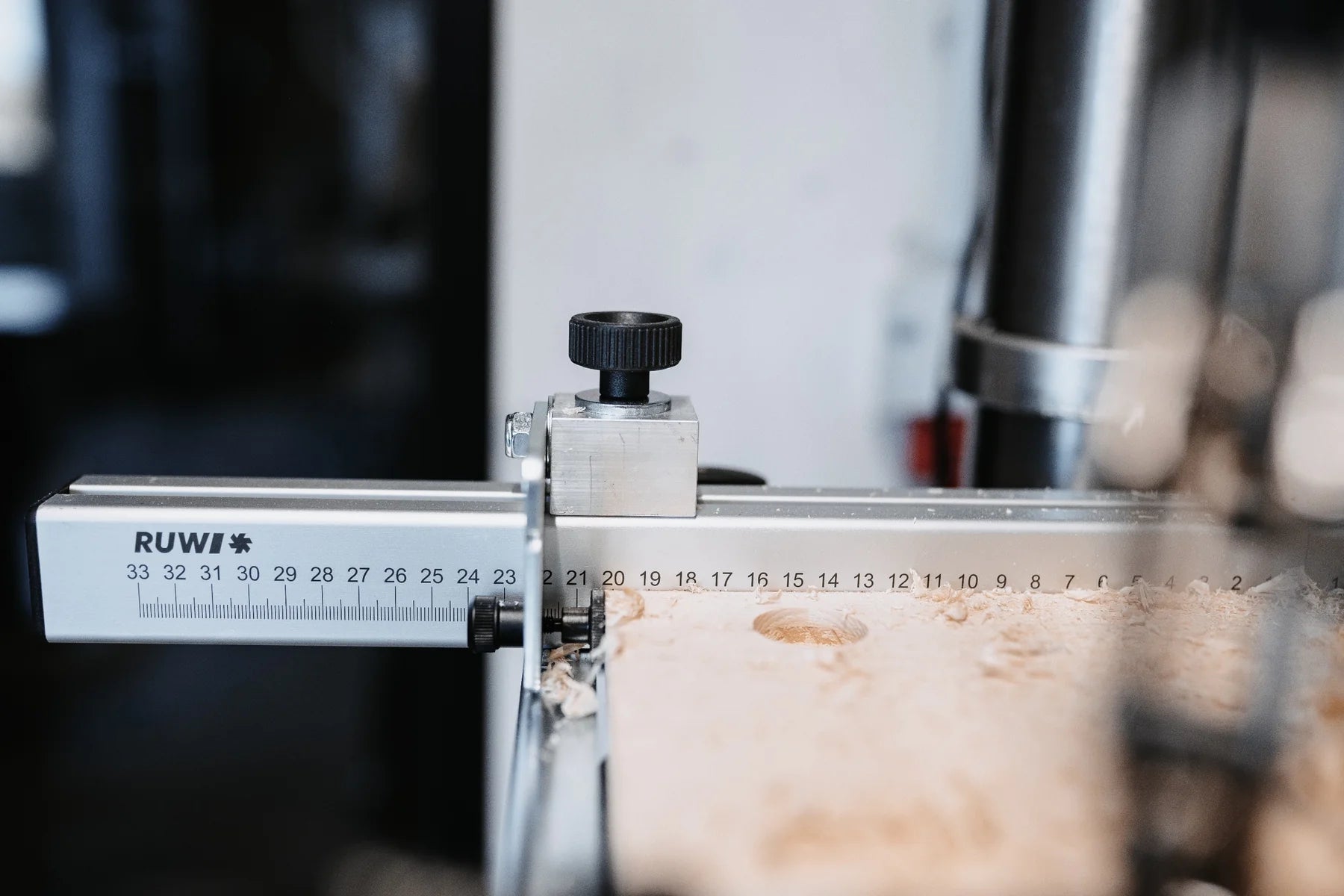

The anodized aluminum guide rail (720 mm) features a laser-etched “ scale.” You can adjust the two folding stops with fine-tuning to within a tenth of a millimeter—and fold them up when you’re not using them. This allows you to drill rows, pot hinges, or connectors at consistent intervals without having to mark them out each time. A splinter guard that can be used on both sides is located beneath the drilling point: It supports the exit edge and protects the drill bit tip by preventing it from hitting the steel plate.

Here's how to use it

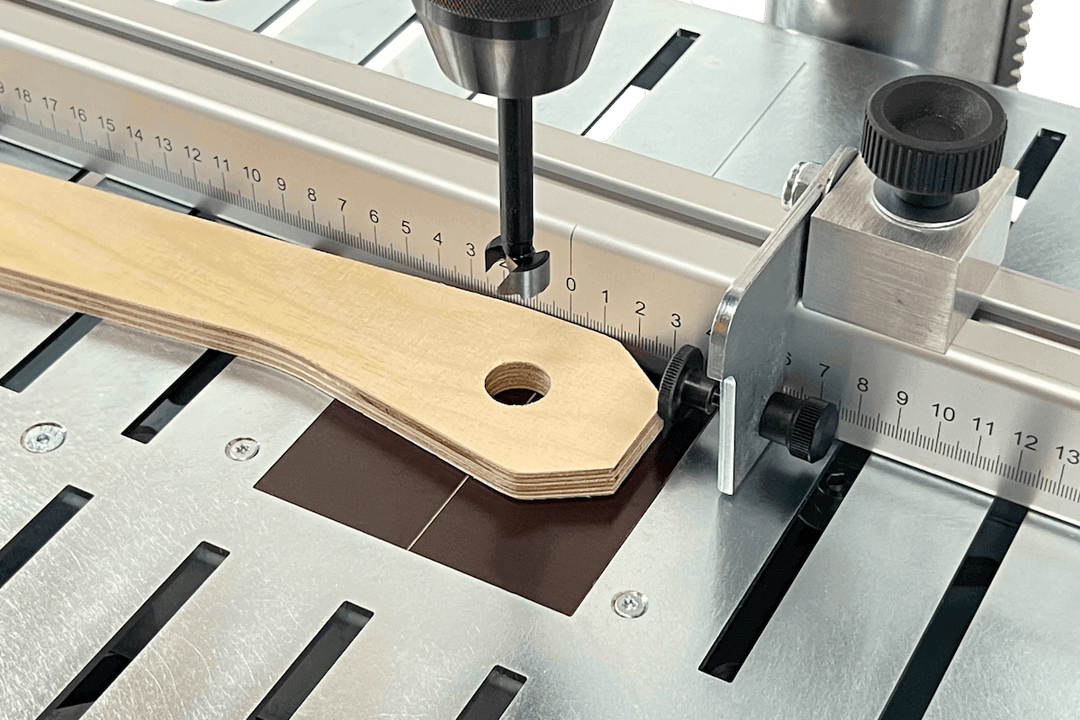

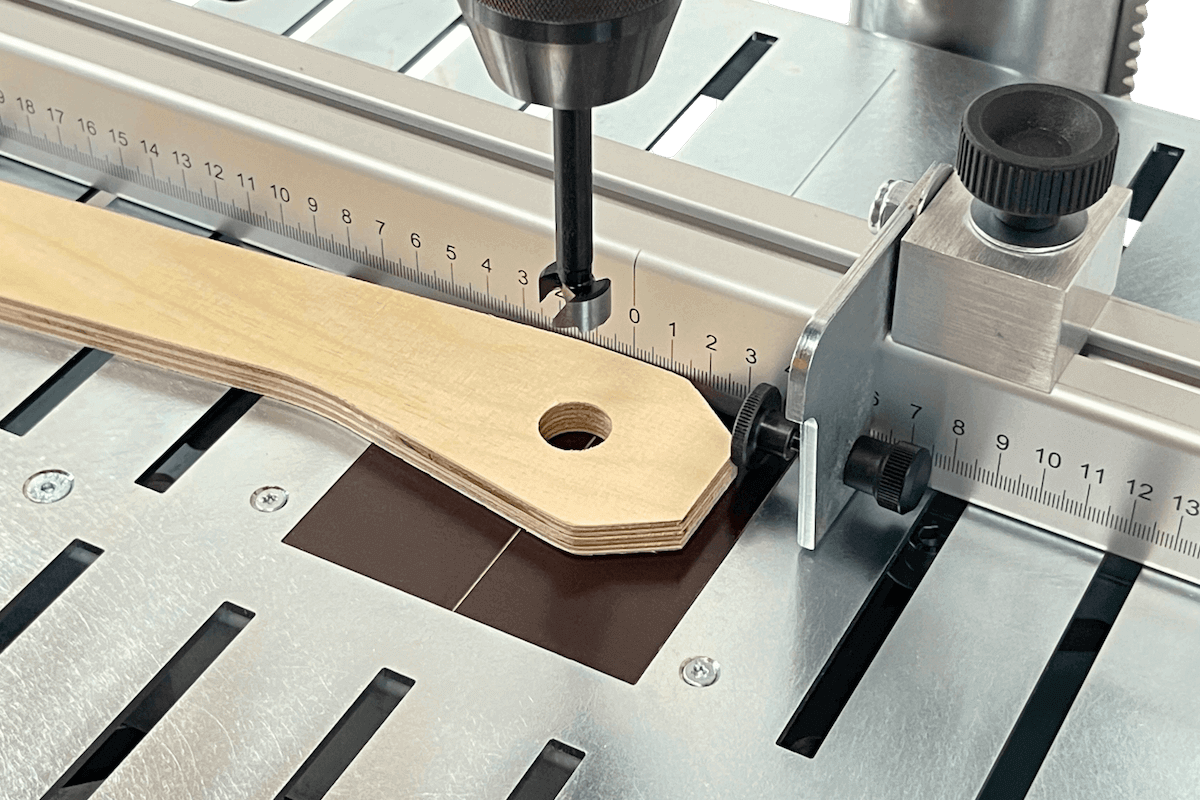

• Drilling rows of holes at consistent intervals: Set the measurement using the laser-etched scale, position the folding stop—cabinet shelves, rows of holes, and hardware holes will all be in the same position without having to mark them again.

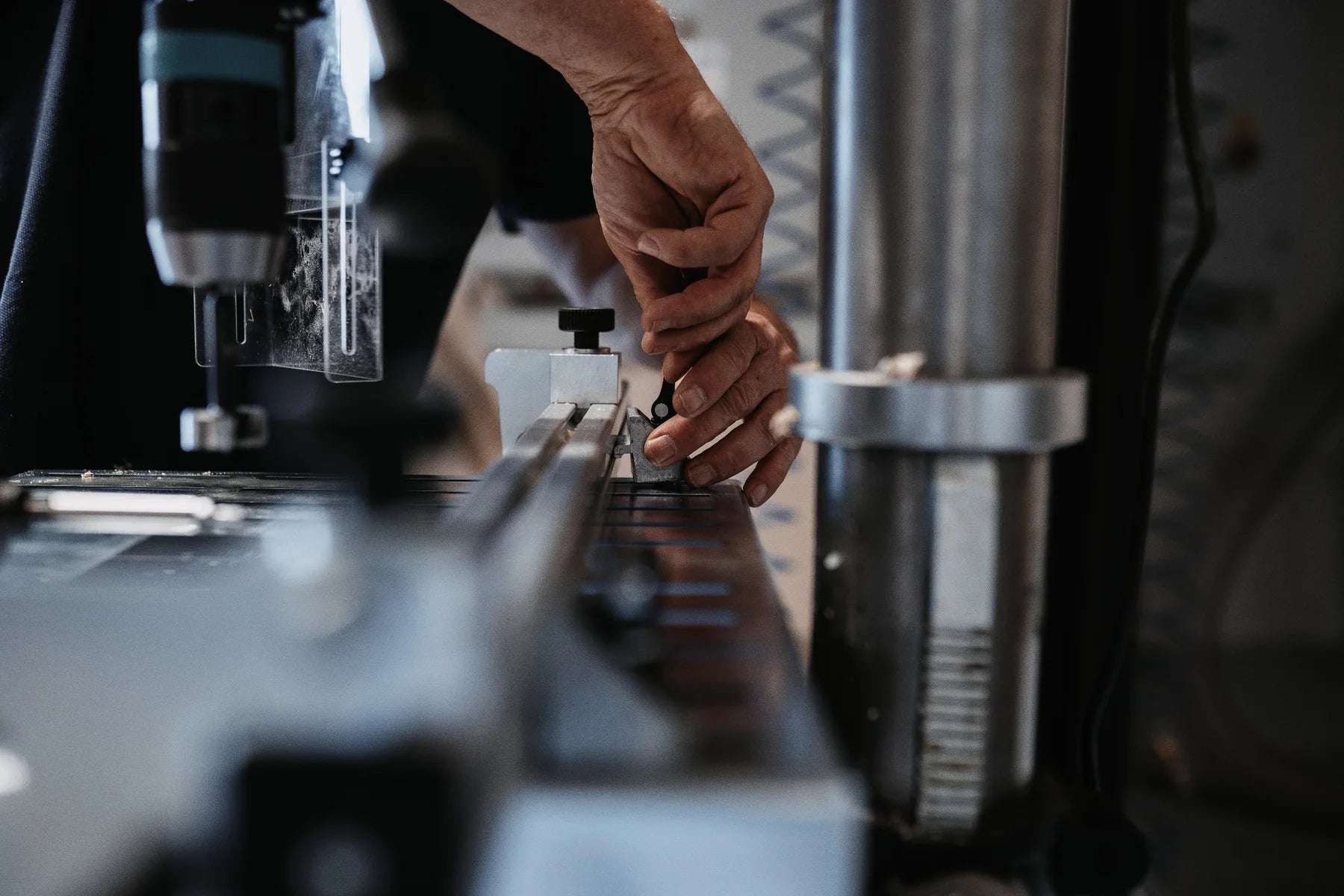

• Drilling hinges and connectors: Fine-tune both hinged stops and test them one at a time; the stop you're not currently using is folded up and remains in position.
• Setting up clamping devices: Machine vise, vertical and horizontal toggle clamp are mounted tool-free in the slot clamping system—the clamping point moves along with the task.
• Drill without chipping: the chip guard supports the exit edge, and the milled zero line helps align the drilling point. When it wears out, simply replace it; it’s available separately as a replacement part.

Does this fit your drill?

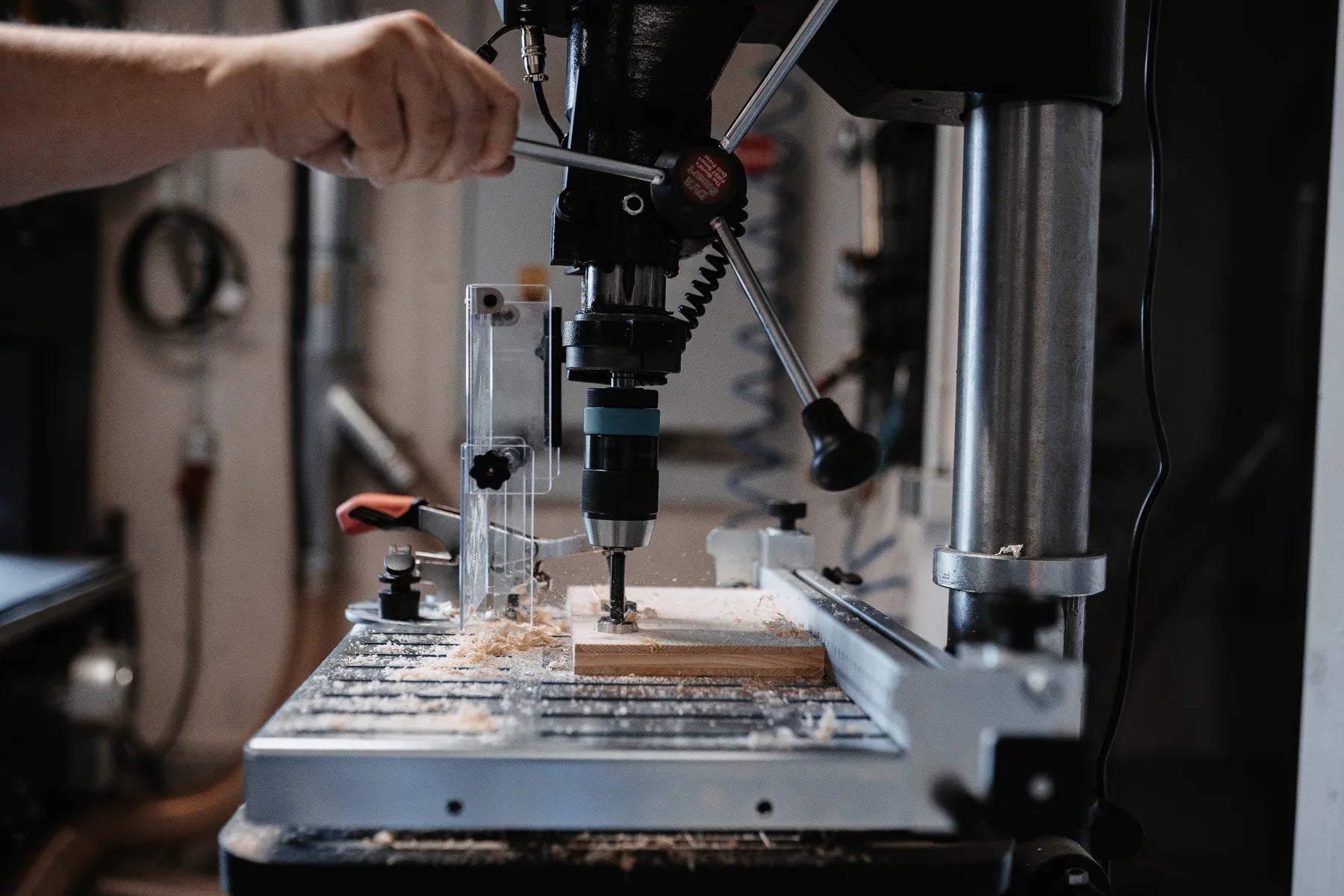

The " drilling table " is compatible with bench and pillar drill presses as well as drill stands. It is secured to the machine table using the included mounting bracket; the plate measures 450 × 400 mm and weighs 8.9 kg net weight.

The Classic is the version without the “ table extension.” If you often drill into long workpieces such as doors or stair stringers, go with the “RUWI ”drilling table Premium —it comes complete with the height-adjustable “ table extension ” and mounting rails. You can also upgrade later: RUWI table extension plus mounting adapters.

All the details

Clamping System and Surface
Table Surface: 450 × 400 mm, galvanized sheet steel
Groove System: for workpieces, clamps, and fixtures

Splinter Guard
Design: reversible and interchangeable

Stop Ruler
Length: 720 mm, anodized aluminum
Scale: laser-etched scale
Folding Stops: 2 pieces, with fine adjustment

Weight
net weight : approx. 8.9 kg
