TW 16 collet with adapter washer and clamping bolt , 20 mm diameter - RUWI | Tools for Woodworking Professionals
Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm

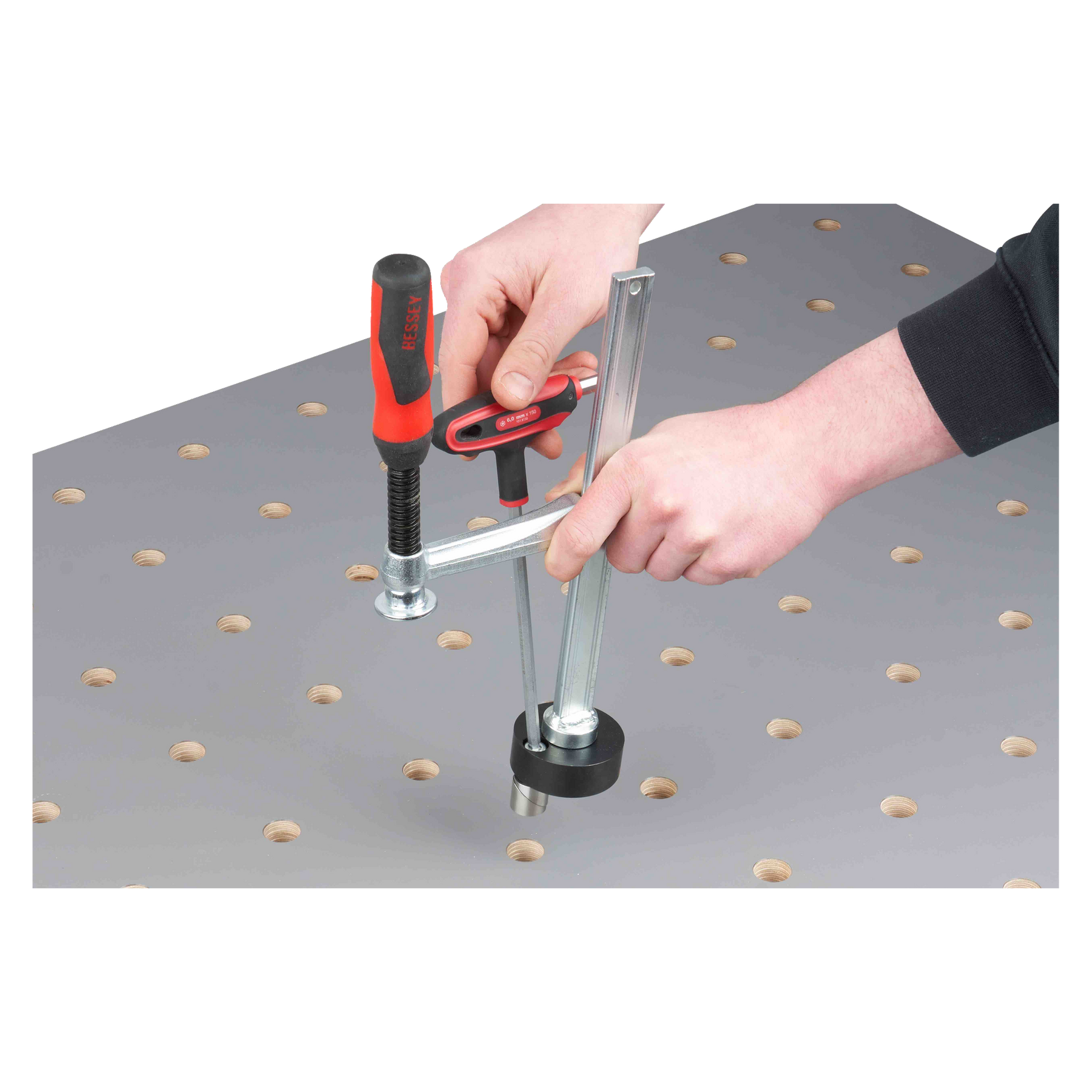

Clamp TW 16, when tightening with an Allen wrench over a workpiece on the perforated plate
Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm
Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm
TW 16 collet with adapter washer and clamping bolt , 20 mm diameter - RUWI | Tools for Woodworking Professionals
Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm
Clamp TW 16, when tightening with an Allen wrench over a workpiece on the perforated plate
Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm
Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm

Bessey Screw Clamp 200 mm TW 16 clamping bolt , Ø 20 mm

RUWI27706

€113,31
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €113.31 gross
Calculate with your headset →Which lifting table does this fit? Go to the configurator →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

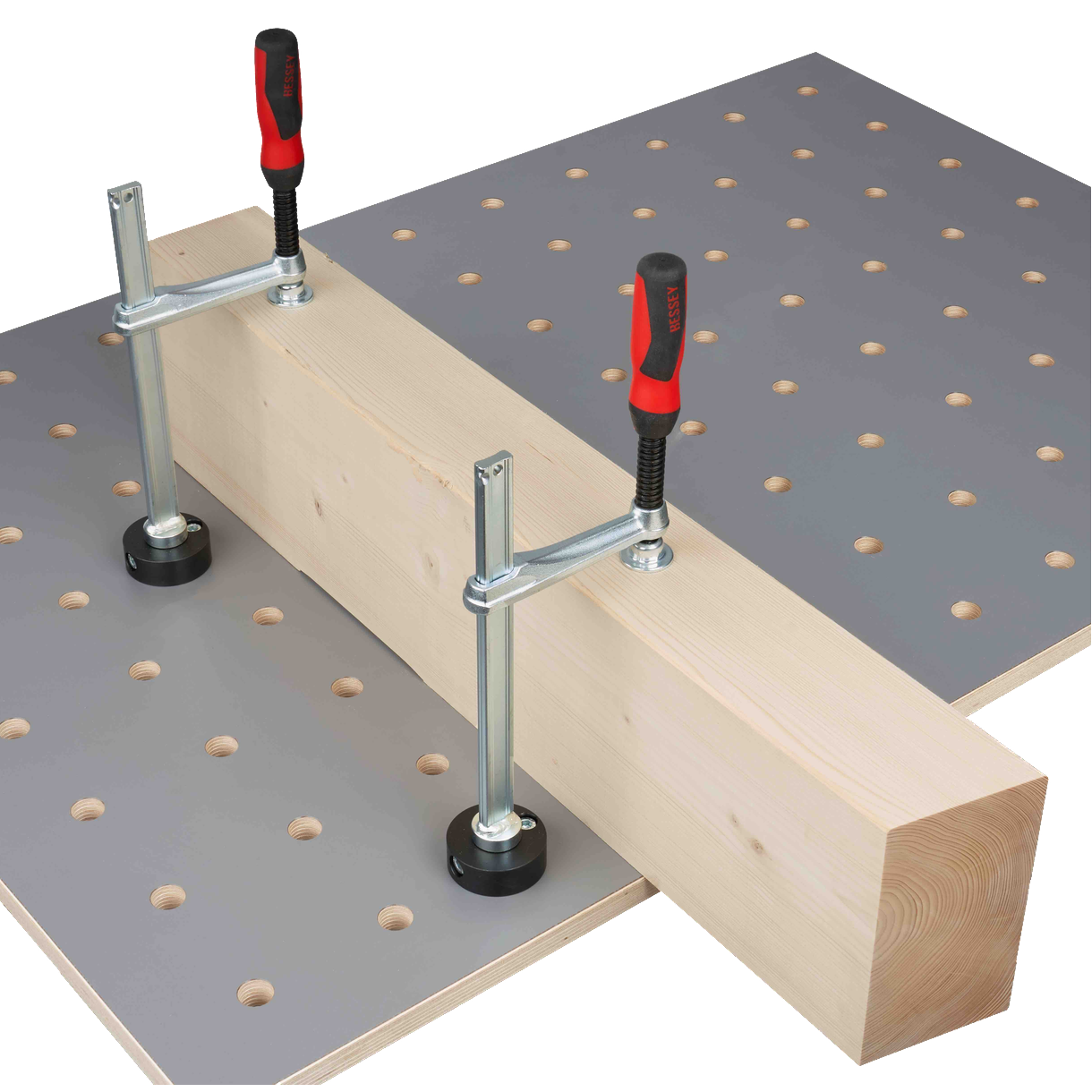

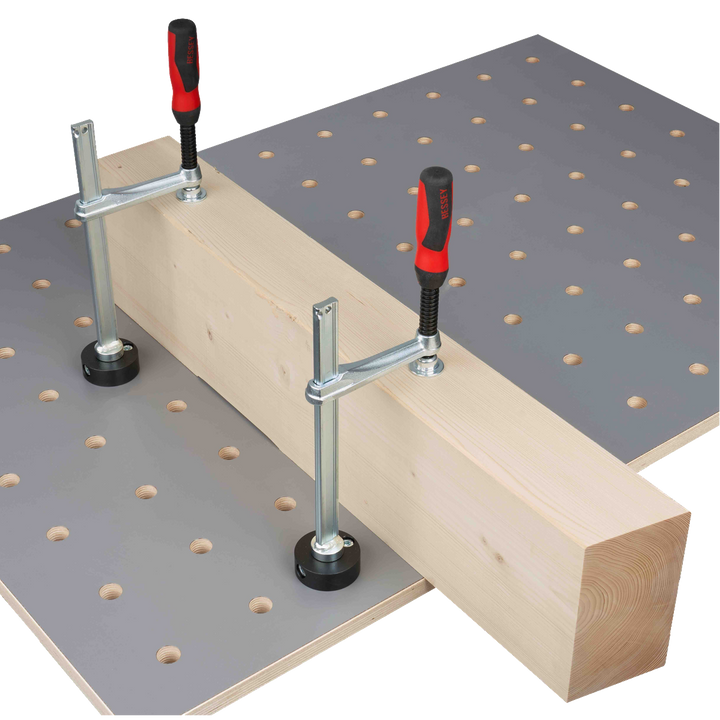

The Bessey TW 16 screw clamp, with a 200 mm clamping width and 100 mm reach, is the powerful clamping element for the 20-mmhole grid. Using the adapter disc (Ø 60 mm) mounted by RUWI with a clamping bolt Ø 20 mm, you can secure it in any 20-mm hole: A half-turn with the Allen wrench secures the disc firmly in the table, and then the clamp holds your workpiece down from above.

The TW 16 clamps with up to 3,000 N (according to Bessey) — significantly more than tool-free lever clamps. The real advantage over a standard screw clamp is its positioning: You can anchor it at any grid hole, even in the middle of the board, where a conventional clamp cannot reach due to its overhang. The adapter washer distributes the pressure and protects the hole edges and surface.

Here's how to use it

  • Straightening warped boards: anchor them in the center of the board and press down with full force—the 3,000 N of force is more than lever clamps can handle.
  • Gluing and assembly: Apply pressure exactly where the glue joint is located—regardless of the table edge.
  • Clamping tall workpieces: The 200-mm clamping width accommodates even thick assemblies and shims, and the 100-mm overhang extends beyond the edge.
  • Quick to do: Loosen by half a turn, move to the next hole, tighten by half a turn—the clamping point moves along with the glue sequence.

Does this go with your table?

The clamping bolt fits into any 20-mmhole grid – any RUWI lifting table , Festool MFT, Sauter Variobench, and homemade workbenches. For welding tables and other grid sizes, the same clamp is available with clamping bolt Ø 16 or Ø 28 mm.

If you need it to be faster and tool-free and can get by with less effort, the vertical toggle clamp and horizontal toggle clamp are the alternatives—flip a lever instead of screwing.

All the details

clamping range
Span: 200 mm
Projection: 100 mm
clamping force : up to 3,000 N (manufacturer's specification, Bessey)

Handle and rail
Handle: 2-component plastic
Rail: 22 × 8.5 mm

Adapter and clamping system
Adapter disc: Ø 60 mm
clamping bolt: Ø 20 mm, for hole grid Ø 20 mm

Weight
net weight: approx. 1.38 kg

★★★★★
