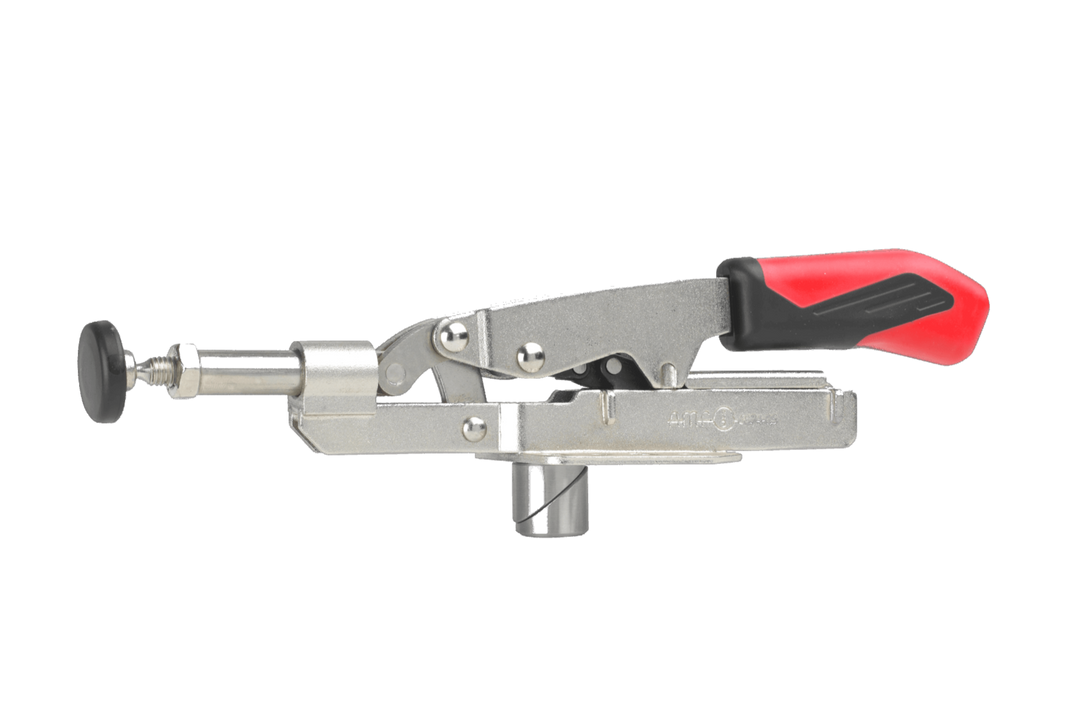

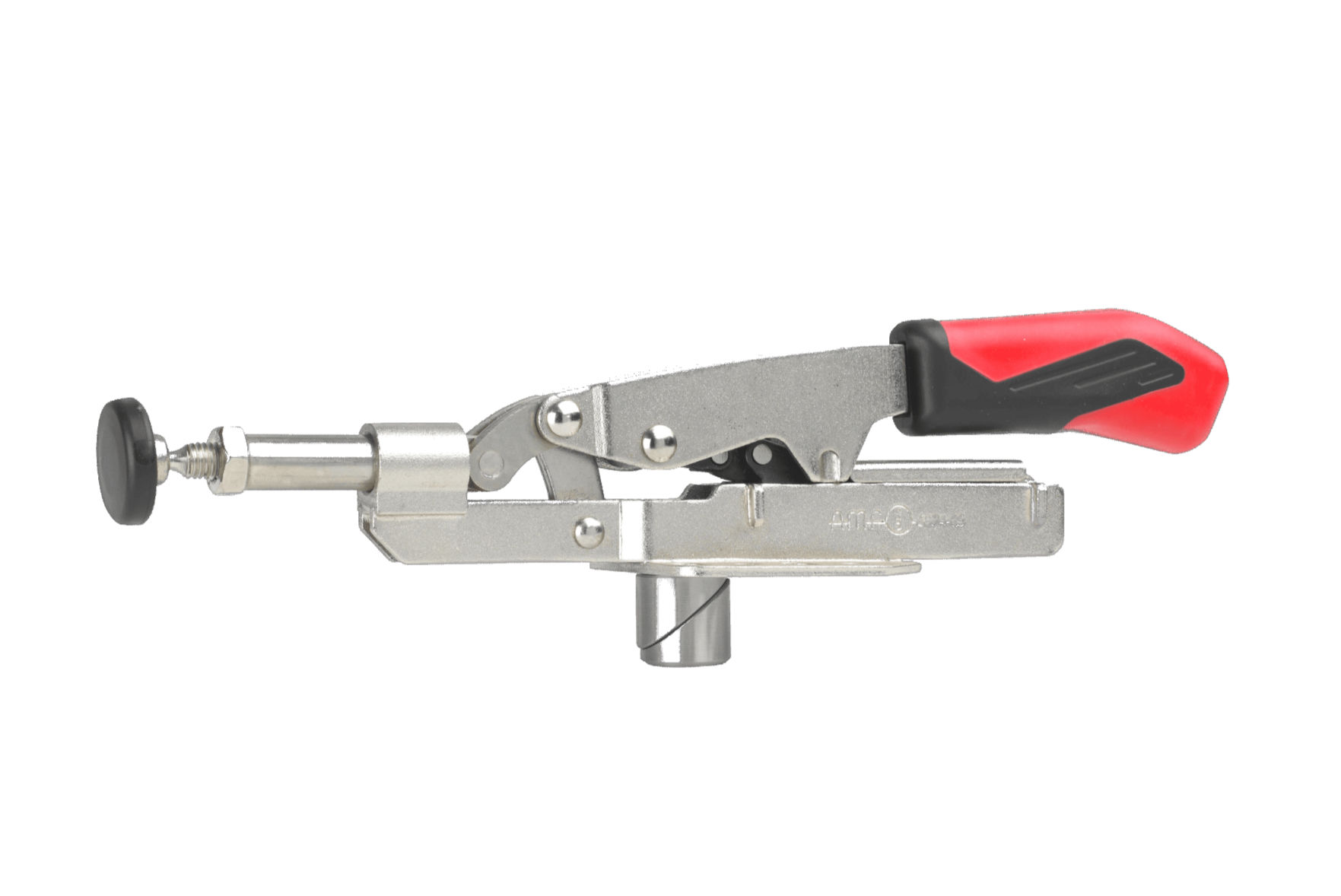

Horizontal clamp with clamping bolt (20 mm diameter)

Brief description

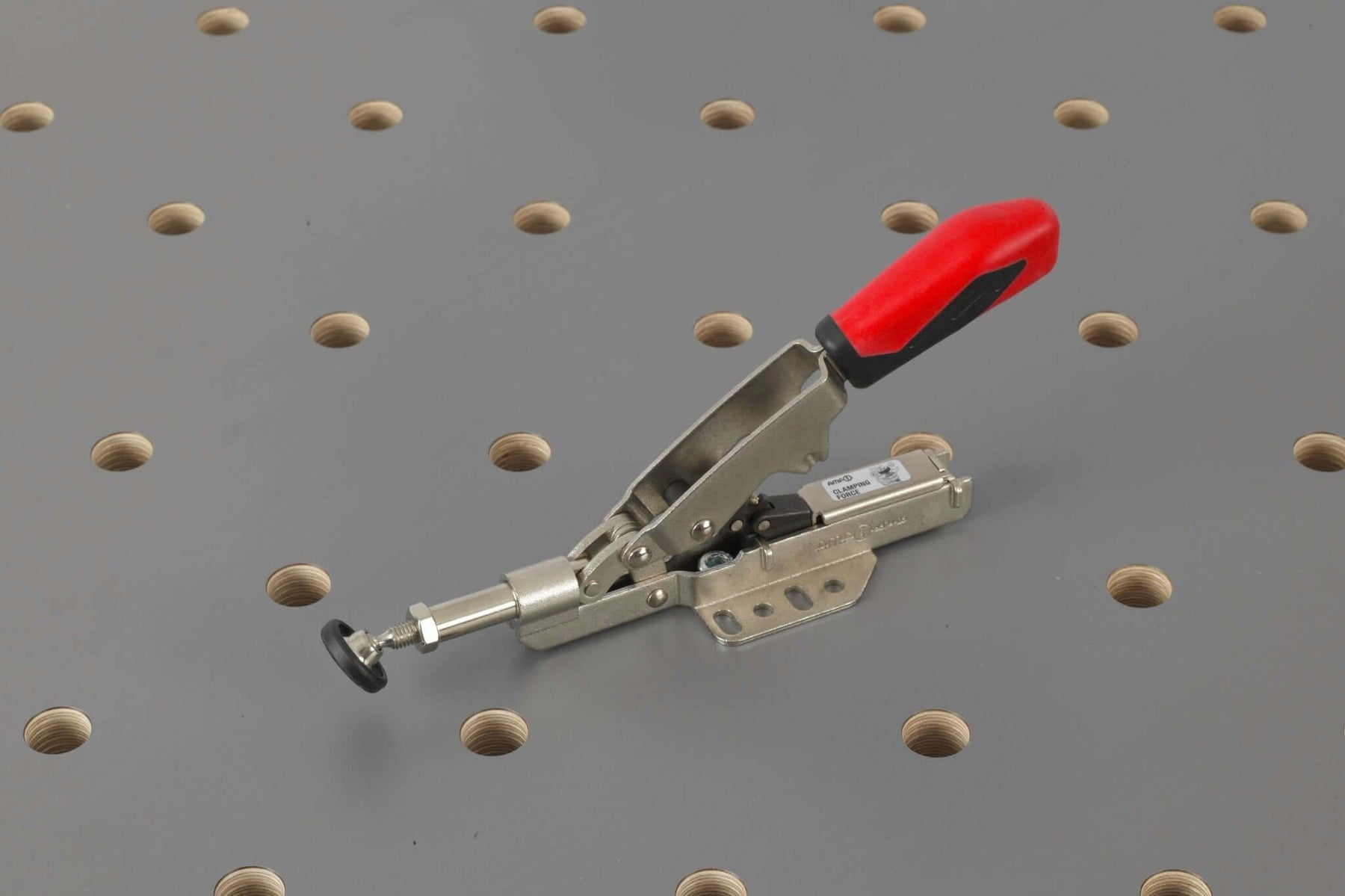

The RUWI horizontal clamp presses your workpiece horizontally against a stop, a positioning angle, or a second workpiece—the lateral counterpart to the vertical clamp. Using the stainless steel clamping bolt with an Allen screw (SW 6), you can secure it at any position in the 20-mm hole pattern. With a length of 253 mm, it can also reach clamping points further inside.

The infinitely adjustable 35 mm travel accommodates varying workpiece widths without requiring any setup changes. When opened, the clamp automatically retracts 13 mm and releases the workpiece—speeding up the changeover when clamping multiple parts in succession. It works best in combination with a stop: the stop defines the position, and the clamp holds the workpiece securely in place.

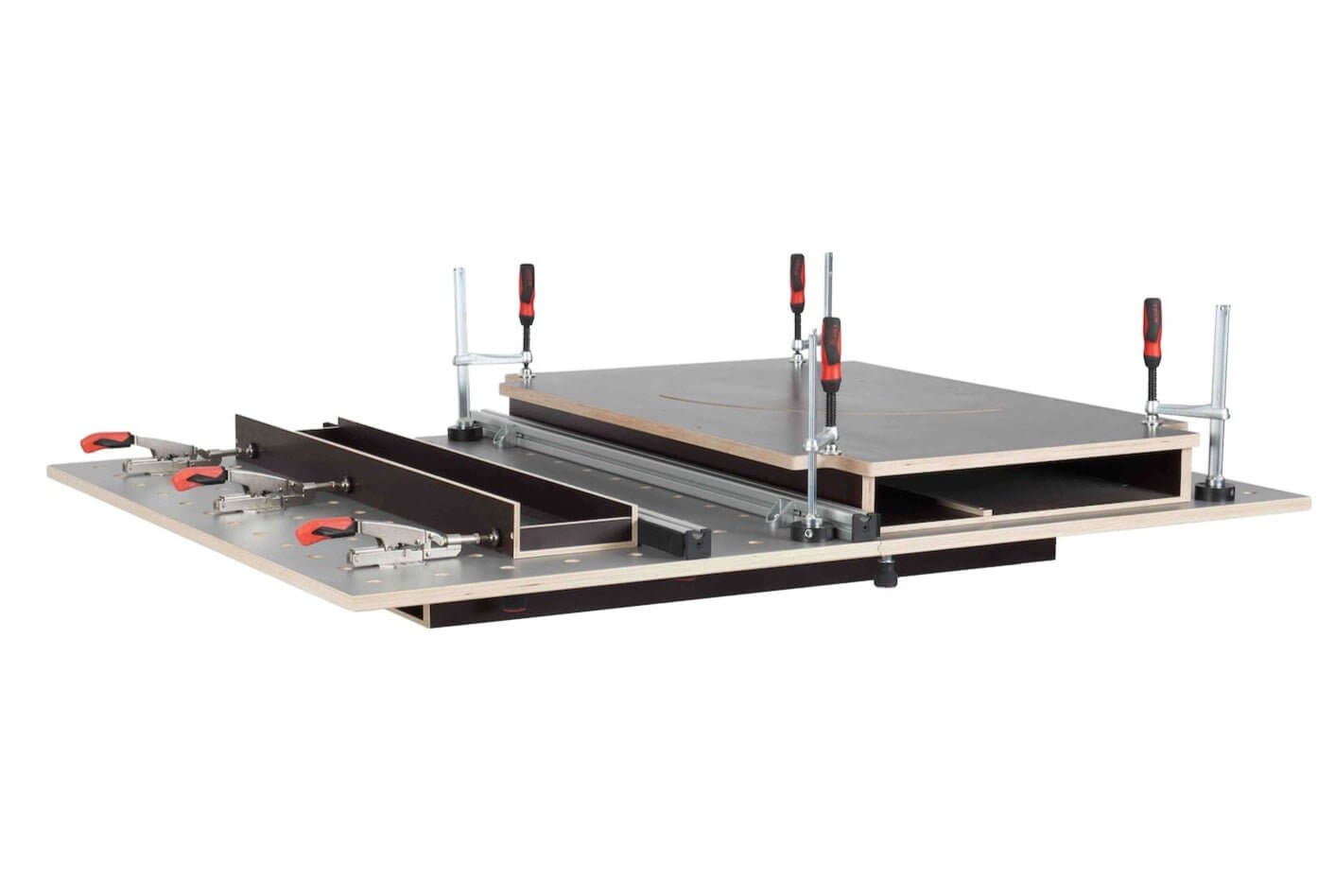

As a fixed counter-clamp, it works well in combination with the positioning angle; the vertical clamp secures it from above. The horizontal clamp fits any RUWI lift table and any table with a 20-mm standard thread. You can find additional clamping accessories in the lift table system.

Possible applications

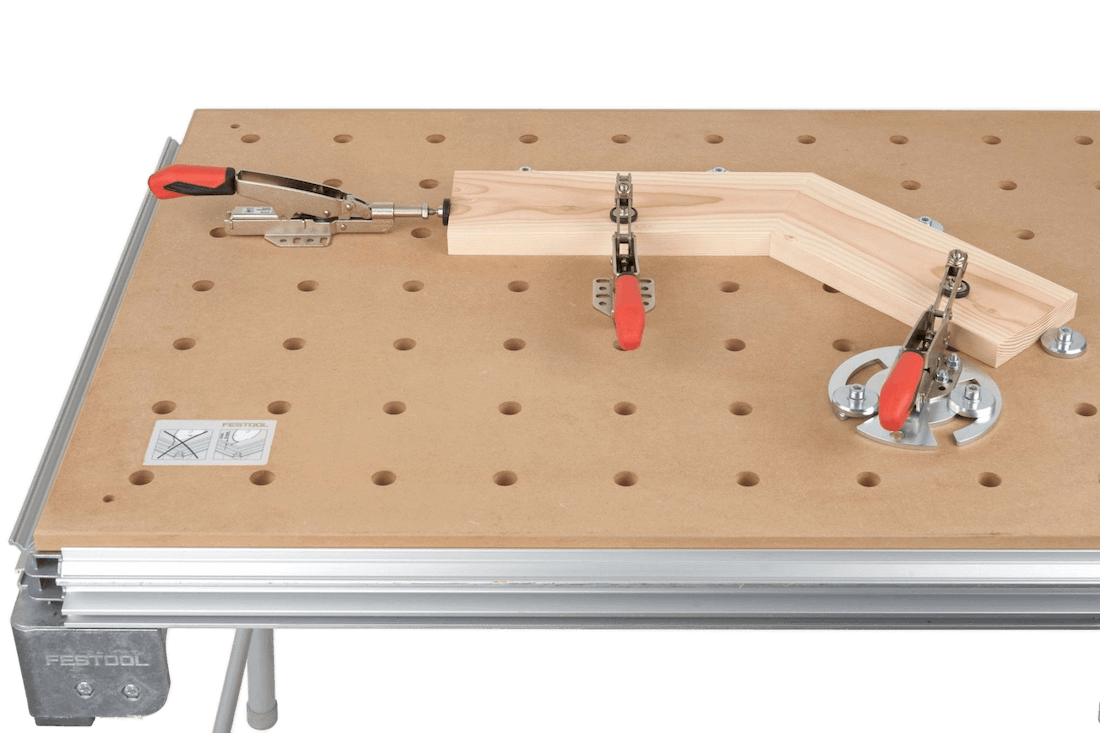

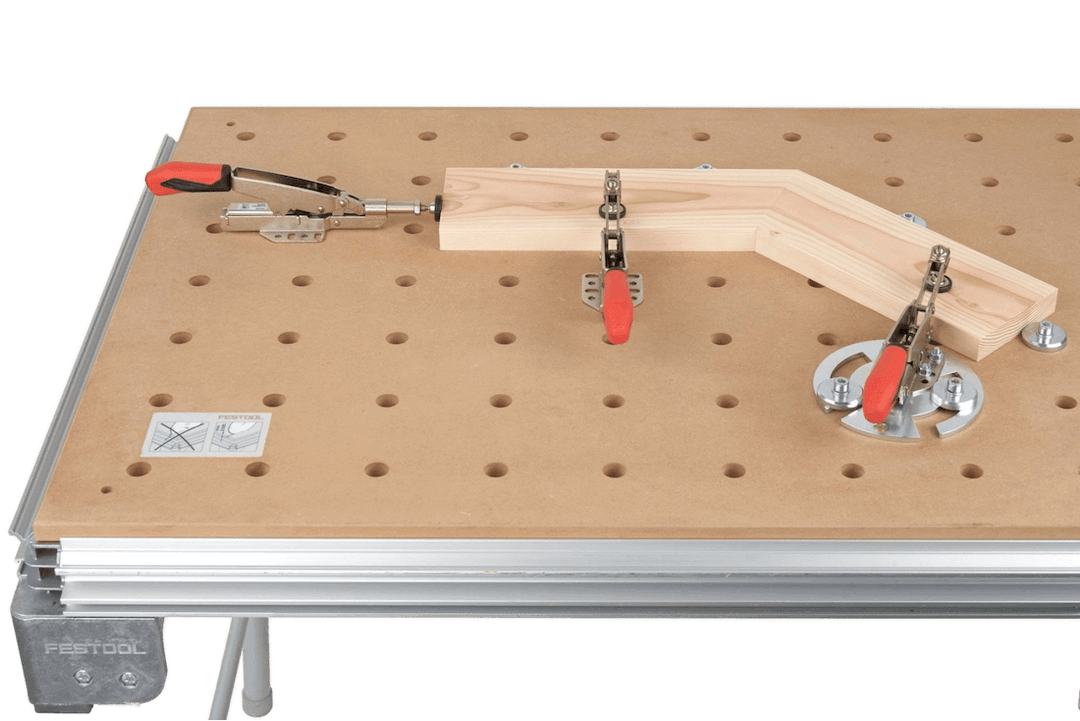

• Press workpieces horizontally against a stop, positioning angle, or a second workpiece
• Combine with a positioning angle or stop rail to create a stop-and-clamp system
• Continuous adjustment up to 35 mm – varying spans without retooling
• Automatic 13 mm retraction upon opening – quick workpiece change

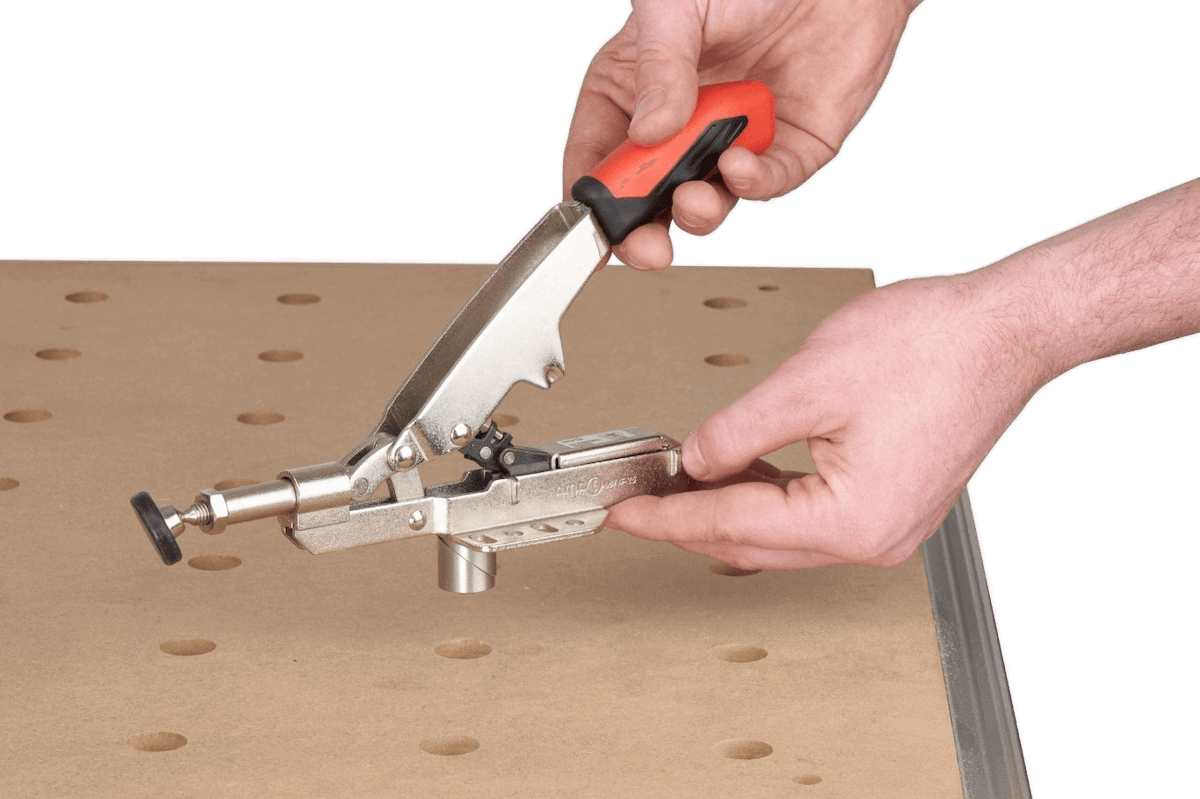

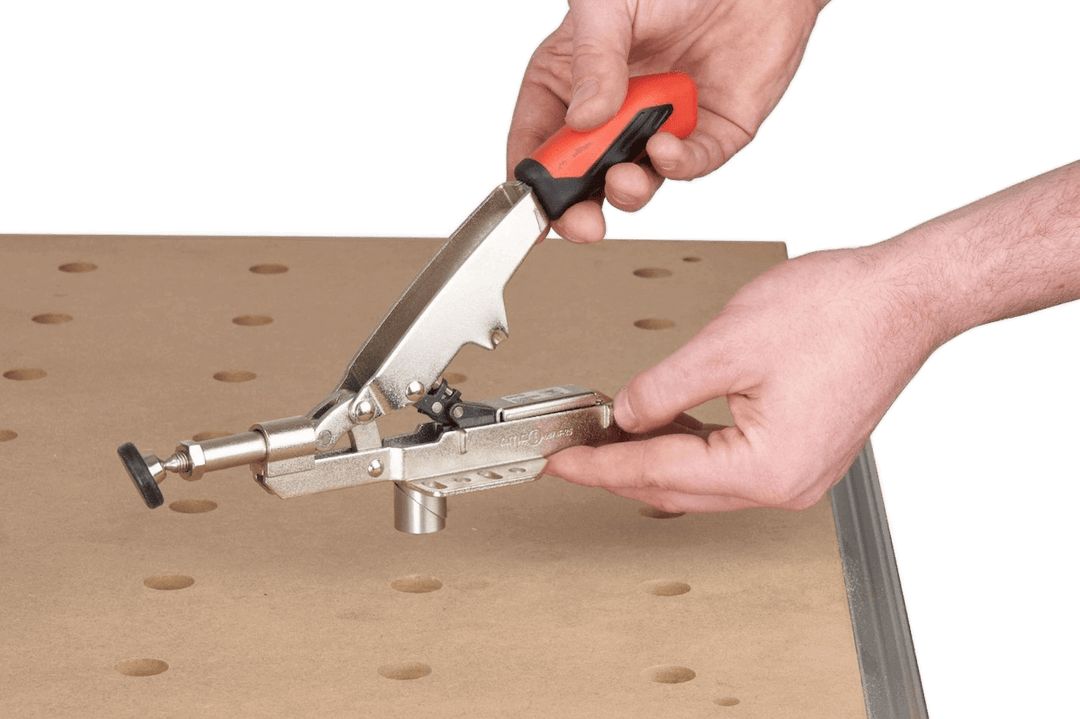

• Secure using the stainless steel clamping bolt with an Allen screw (SW 6) in the 20-mm hole
• Compatible with any RUWI lift table and any table with a 20-mm standard

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and weight
- Length 253 mm
- Weight 0.5 kg

• Clamping technology and function
- Stepless compensation function, max. compensation 35 mm
- Automatic return 13 mm upon opening
- For varying spans, compatible with the 20-mm hole pattern

• Clamping bolt
- Stainless steel, Ø 20 mm, with Allen screw
