Horizontal clamp with adapter plate and quick-release clamp for groove - RUWI I Tools for wood professionals

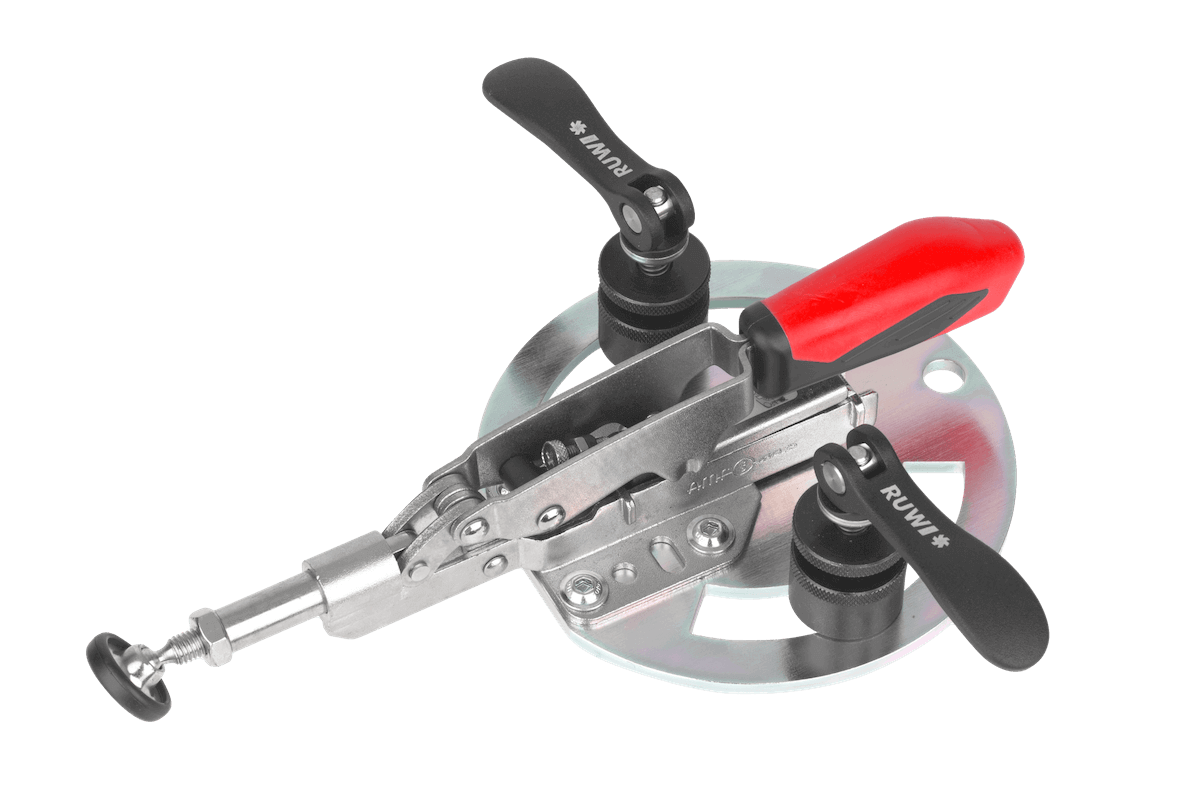

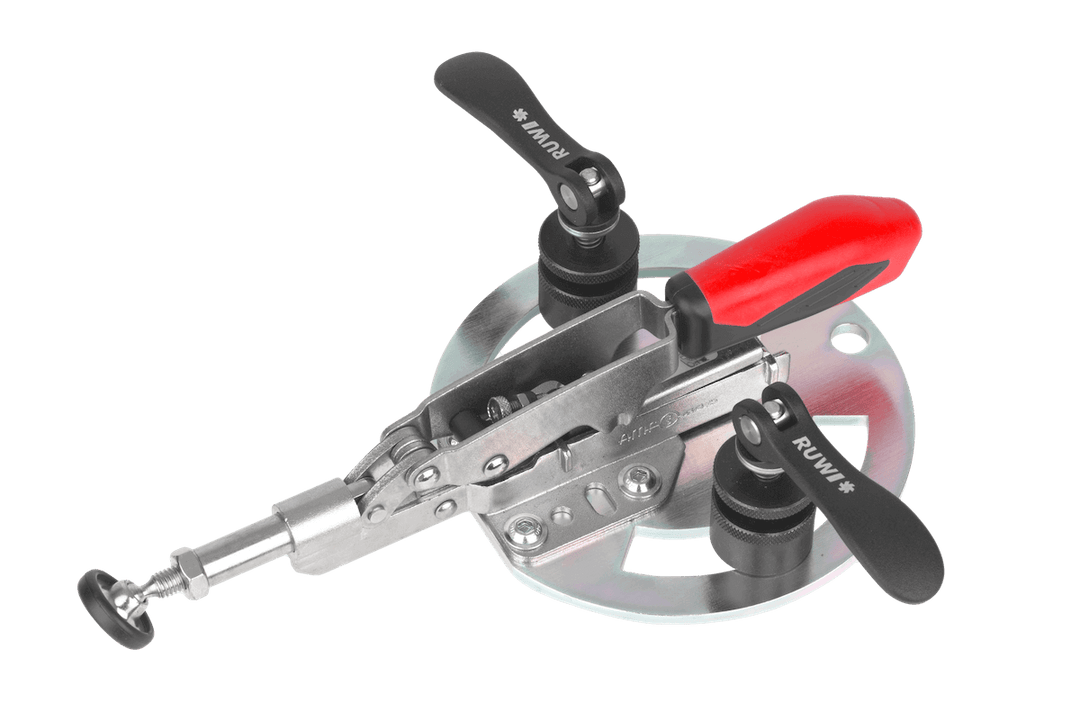

Horizontal clamp with adapter plate and quick-release clamp for groove

€164,01

incl. VAT plus shipping costs

Made in Germany

From wood professionals for wood professionals

Spare parts are always in stock

In stock - in your workshop in 3-5 working days
Reordered - back soon

Take a look first, then decide

Not sure if this is right for your workshop? During our workshop consultation, we’ll take a look together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation

Prefer to ask us directly? +49 7402 8414

Our tools are shipped by DPD and DHL and usually arrive within 3-5 days. You will receive shipment tracking by e-mail.

Our larger tools are shipped by Schenker and arrive within a few working days. On request, the shipping company can also come at a desired time and you can coordinate with the shipping company by telephone.

Package Dimensions
• Shipped in a box via DHL or DPD
• Weight: 2.0 kg

Contents
• 1 × Horizontal clamp with round adapter plate (
) • 2 × Quick-release clamps (Ø 30 mm, slot 8)

Our tools and machines are built for long-term use. We only use high-quality components and have gained a lot of experience to avoid problems in the workshop. That's why we have no problems with warranty requests - even beyond the 2‑year warranty period. We are always looking for a good solution together.

We have 100% spare parts in stock.

Accessories

Brief description

The RUWI horizontal clamp with adapter plate presses your workpiece horizontally against a stop or a second workpiece—positioned to the side on the drill table, for example, for face drilling on narrow parts such as moldings or furniture components. You can install it into the groove tool-free using two eccentric quick-release clamps (Ø 30 mm). The round adapter plate (Ø 140 mm) with slotted holes allows you to position the clamp freely.

The infinitely variable adjustment of up to 35 mm compensates for variations in material thickness; when opened, the clamp automatically retracts 13 mm and releases the workpiece. The clamping range is 14 mm, and the length is 253 mm.

The clamp is designed for groove widths of 8 to 10 mm and fits directly into the groove clamping system of the drill table; it also fits RUWI welding tables with grooves and other grooved tables of this size. The vertical clamp is secured from above using an adapter plate. You can find an overview of the tables under RUWI drill tables. For tables with a 20-mm hole pattern instead of a groove, the horizontal clamp with an adapter plate for the 20-mm hole pattern is available.

Possible applications

Press workpieces horizontally against a stop—for example, when drilling end holes in strips and narrow parts
Secure in the groove without tools using two eccentric quick-release clamps (30 mm diameter)
Round adapter plate (140 mm diameter) with slotted holes – allow for free positioning of the clamp
Continuously adjustable compensation up to 35 mm, 13 mm return stroke when opening, clamping range 14 mm
For groove widths of 8–10 mm: RUWI drilling tables, welding tables with grooves, and other grooved tables

Downloads

RUWI Product Catalog 2026 (PDF)
Quick-Release Clamp Instructions (PDF)

All the details

• Dimensions and Weight
- Length 253 mm
- Round adapter plate Ø 140 mm
- Net weight 1.4 kg

• Clamping Technology and Function
- Clamping range 14 mm
- Maximum stroke compensation 35 mm, automatic return stroke 13 mm

• Clamping system and compatibility
- Two eccentric quick-release clamps, Ø 30 mm
- For groove widths of 8 to 10 mm, directly compatible with the RUWI groove clamping system

★★★★★
