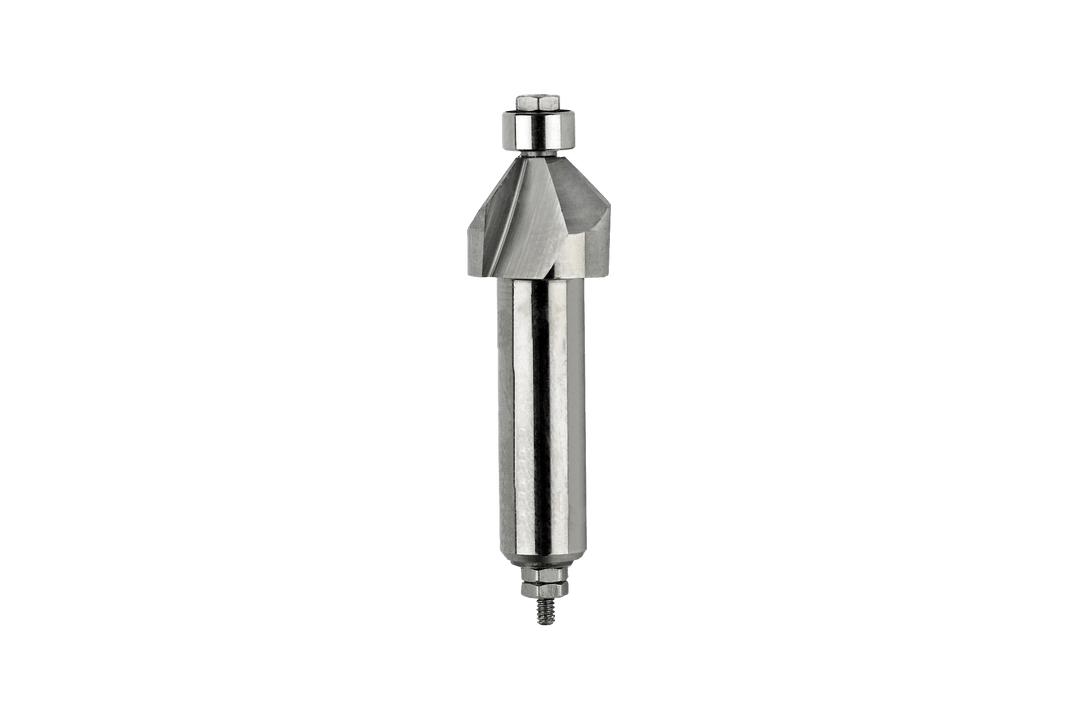

Miniature chamfer cutter 45° fixed tipped with ø5mm thrust bearing

Brief description

The miniature chamfering bit creates a 45° chamfer on edges—to round off sharp edges and create clean chamfers on solid wood, wood-based materials, and coated panels. Its contact ring measures just 5 mm in diameter, allowing you to reach tight inner radii and corners where a standard chamfering bit with a larger bearing would get stuck and leave a mark. With a 10 mm head and a 5 mm cutting length, it remains small and maneuverable.

The cutter is made of solid carbide and is right-handed. Its shank has a diameter of 6 mm—for use in the RUWI router table and in router machines, you will need the 6-mm collet (item no. 30400). Unlike an indexable insert router bit, it has a fixed insert; when it becomes dull, it is sent for regrinding.

For larger chamfers or straight edges without tight radii, you'll find additional chamfering and rounding cutters in the RUWI milling tool range.

Possible applications

• Cutting 45° bevels and rounding sharp edges – solid wood, wood-based materials, coated panels
• Chamfering tight inner radii and inner corners – thanks to the Ø 5 mm guide ring
• Solid carbide, right-hand cut, 10 mm head diameter, 5 mm cutting length
• Shaft Ø 6 mm – for use in the RUWI router table and in routers with a 6-mm collet (Item No. 30400)
• Pre-sharpened – suitable for re-sharpening

All details

- Chamfer & cutting
- 45° bevel - ideal for precise edge rounding
- Solid carbide with six cutting edges

- Dimensions & design
- Shank Ø 6 mm | Shank length: 19 mm
- Useful/working length: 5 mm
- Overall length: 34 mm | Outer diameter: Ø 10 mm
- Weight: approx. 11 g

- Bearing & rotation
- Thrust bearing Ø 5 mm
- Clockwise rotation

- Material quality
- Solid carbide

- Note on use
- Collet Ø 6 mm required (item no. 30400)
