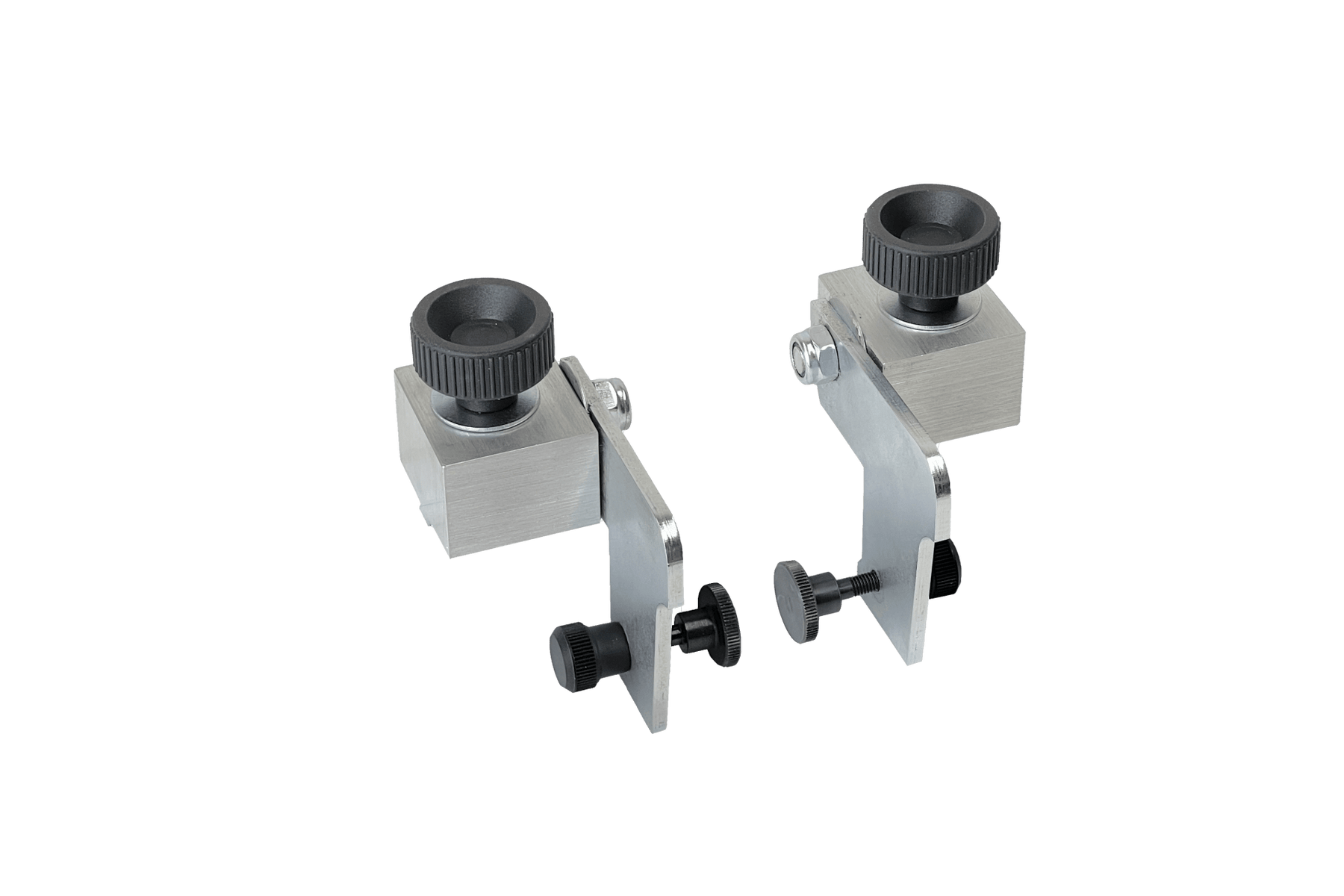

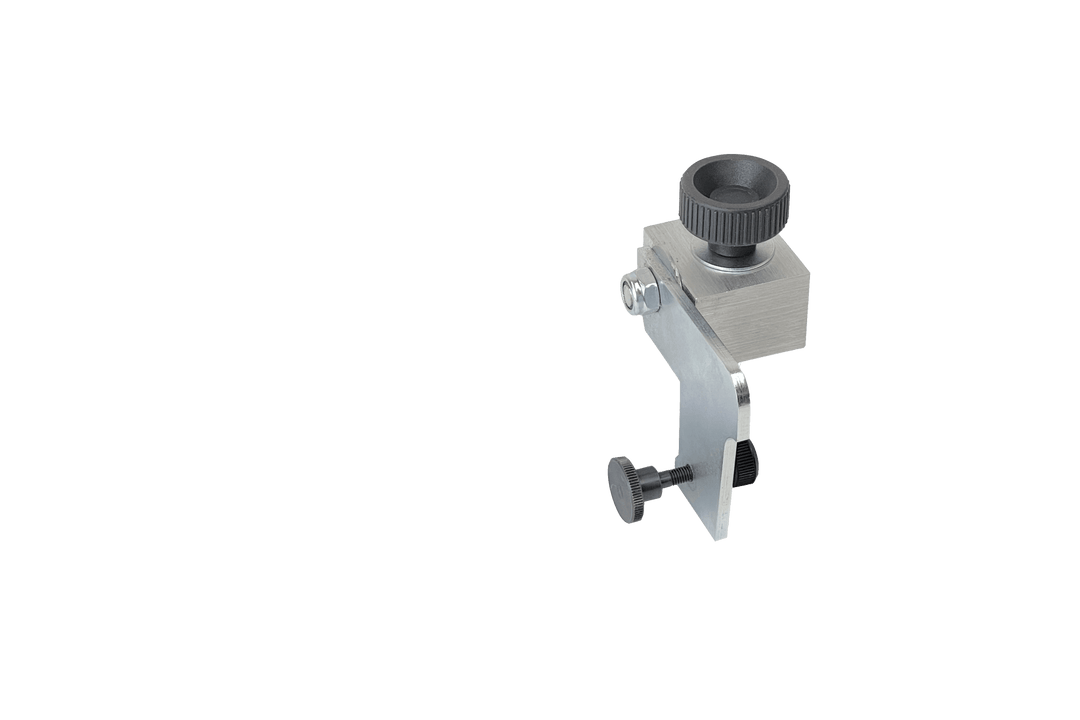

RUWI Folding stop with fine adjustment, left and right versions side by side

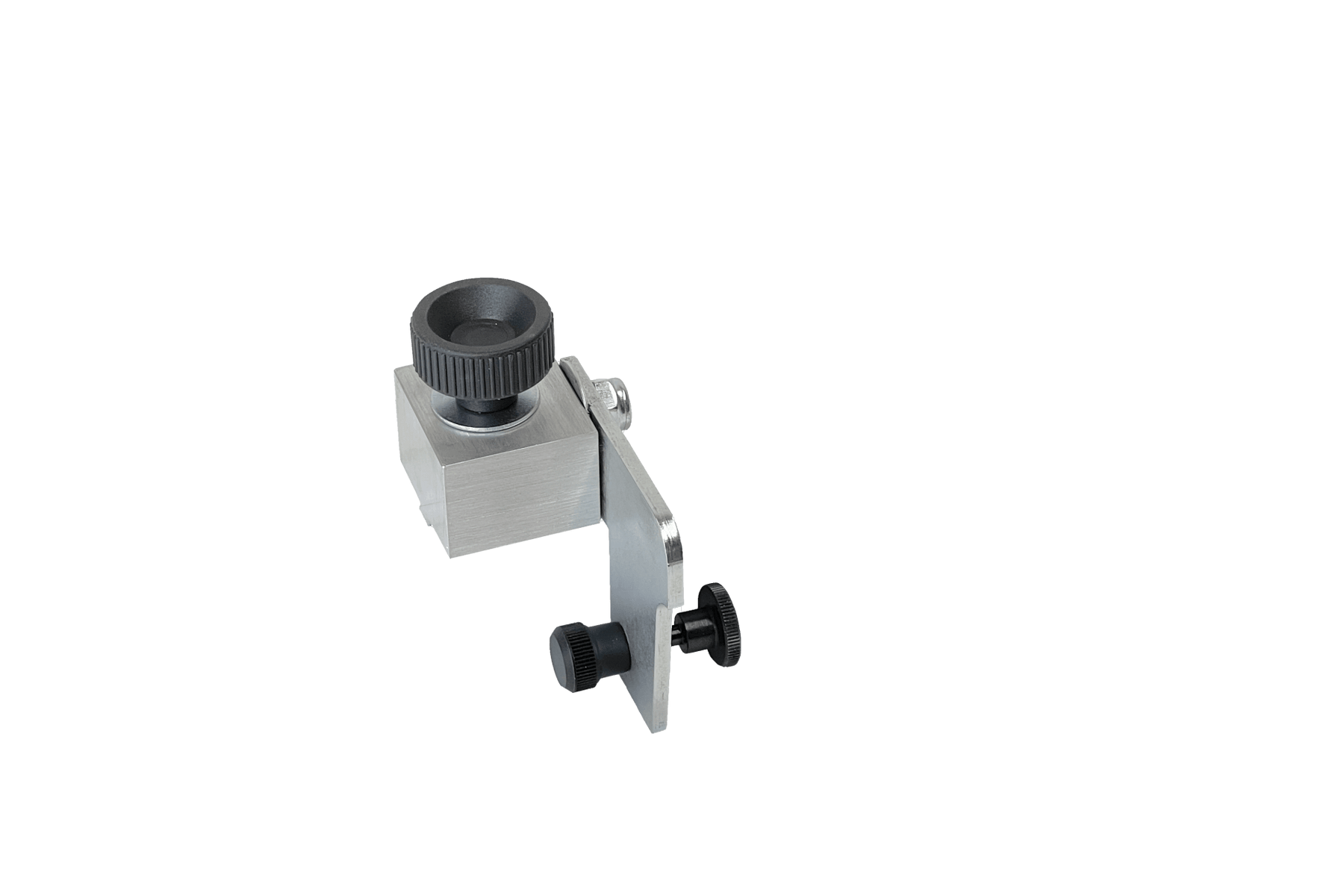

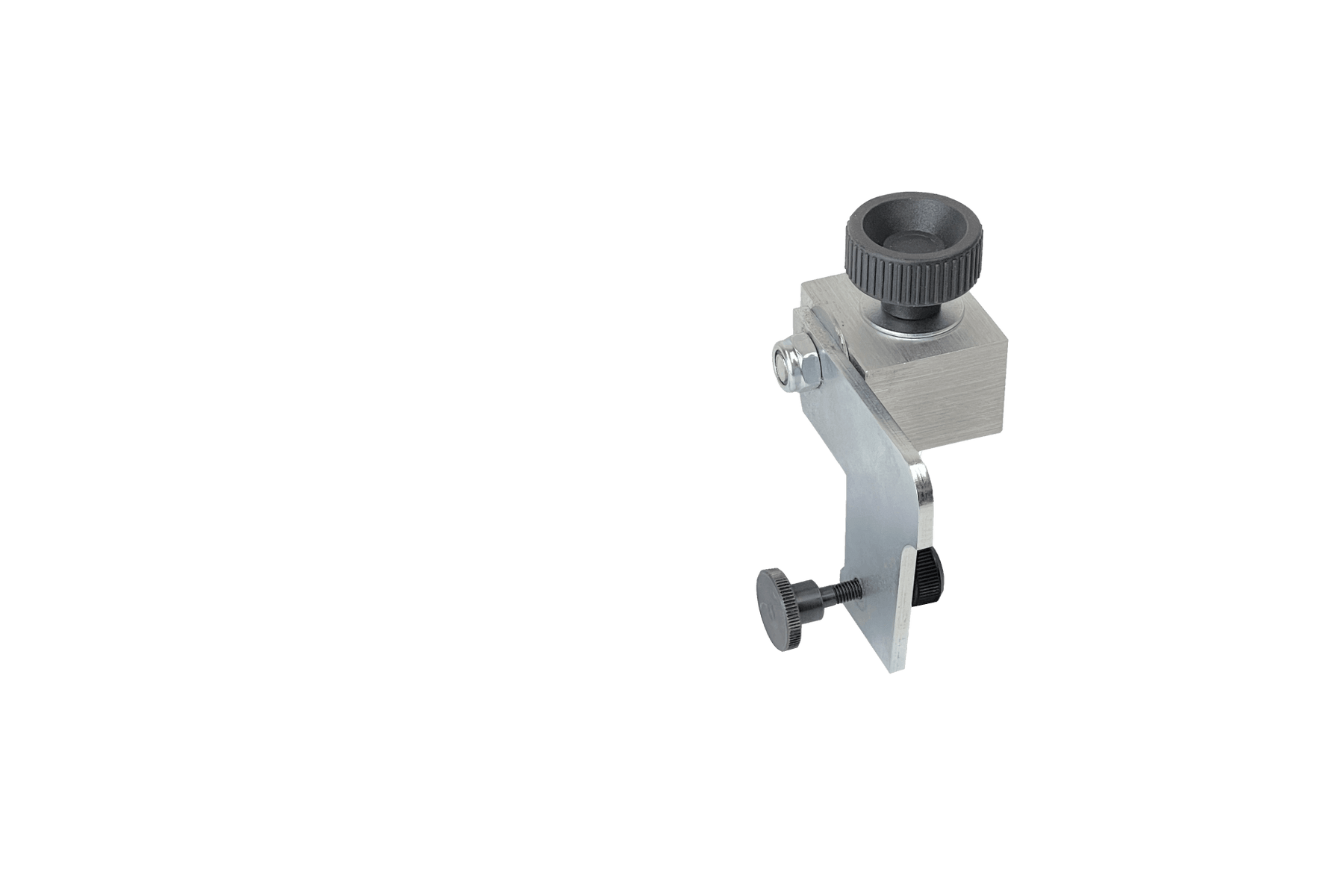

RUWI Folding stop with fine adjustment; single view with the stop folded up
RUWI Folding stop with fine adjustment, close-up from a slightly different angle
RUWI Folding stop with fine adjustment; both stops are highlighted on the drill table's stop rail
RUWI Folding stop with fine adjustment; close-up showing the " scale " applied using a wooden stencil on the drilling table
Folding Stop for the Drilling Table Fence Ruler with Fine Adjustment

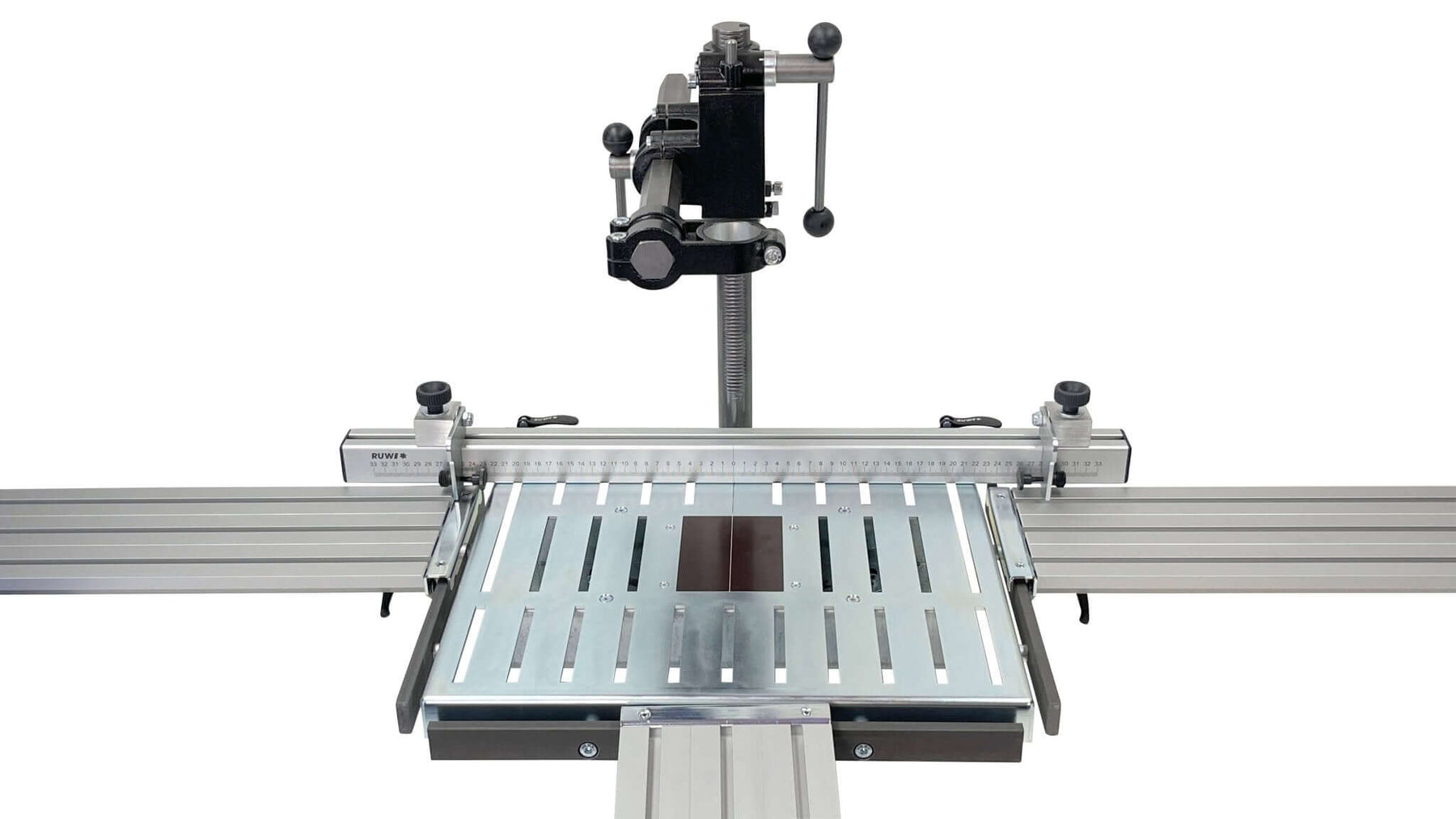

RUWI Folding stop with fine adjustment, mounted on both sides of the stop rail of a pillar drill

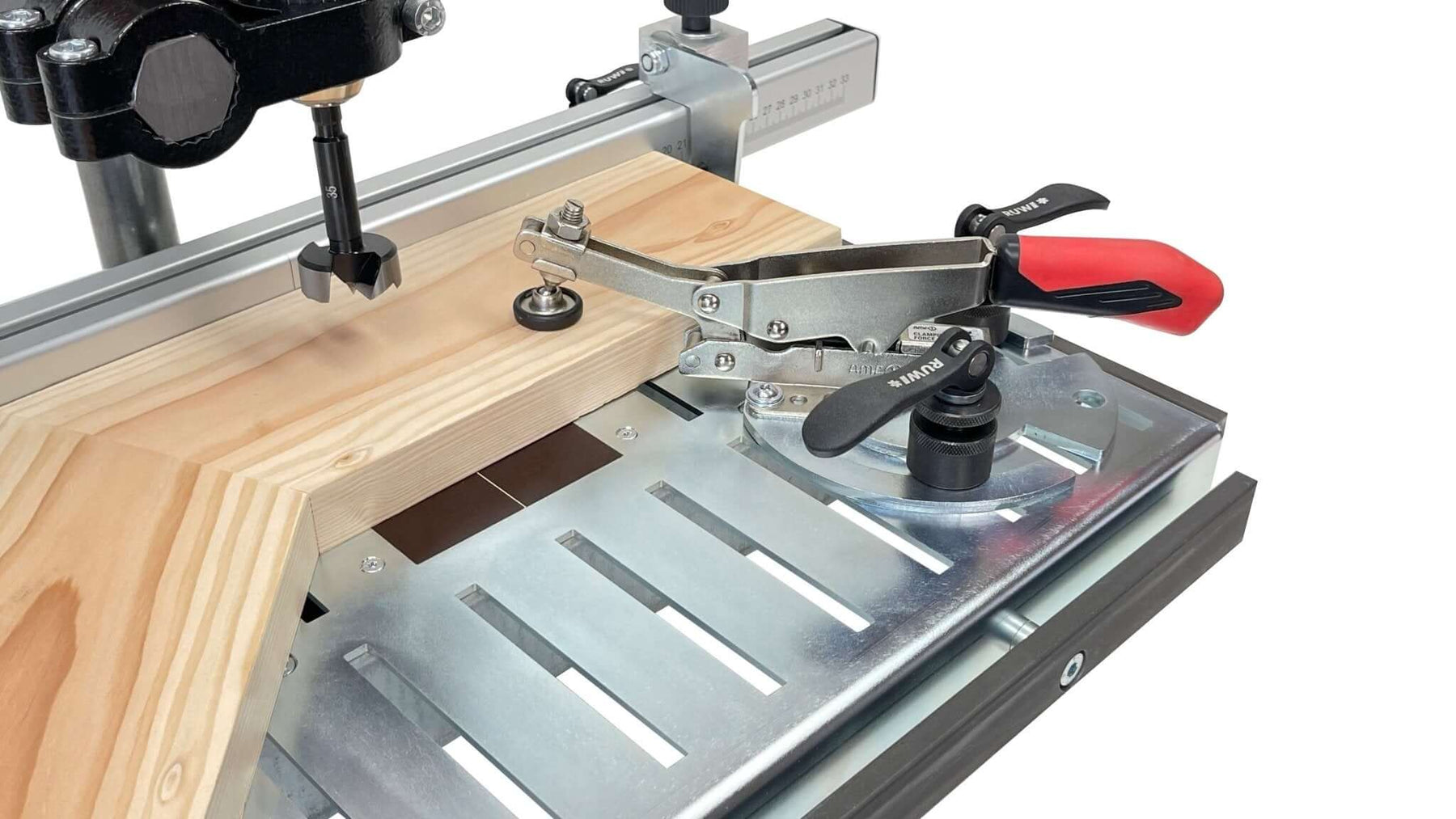

RUWI Folding stop with fine adjustment; workpiece secured under the drill with a “ RUWI ” quick-release clamp
Folding Stop for the Drilling Table Fence Ruler with Fine Adjustment

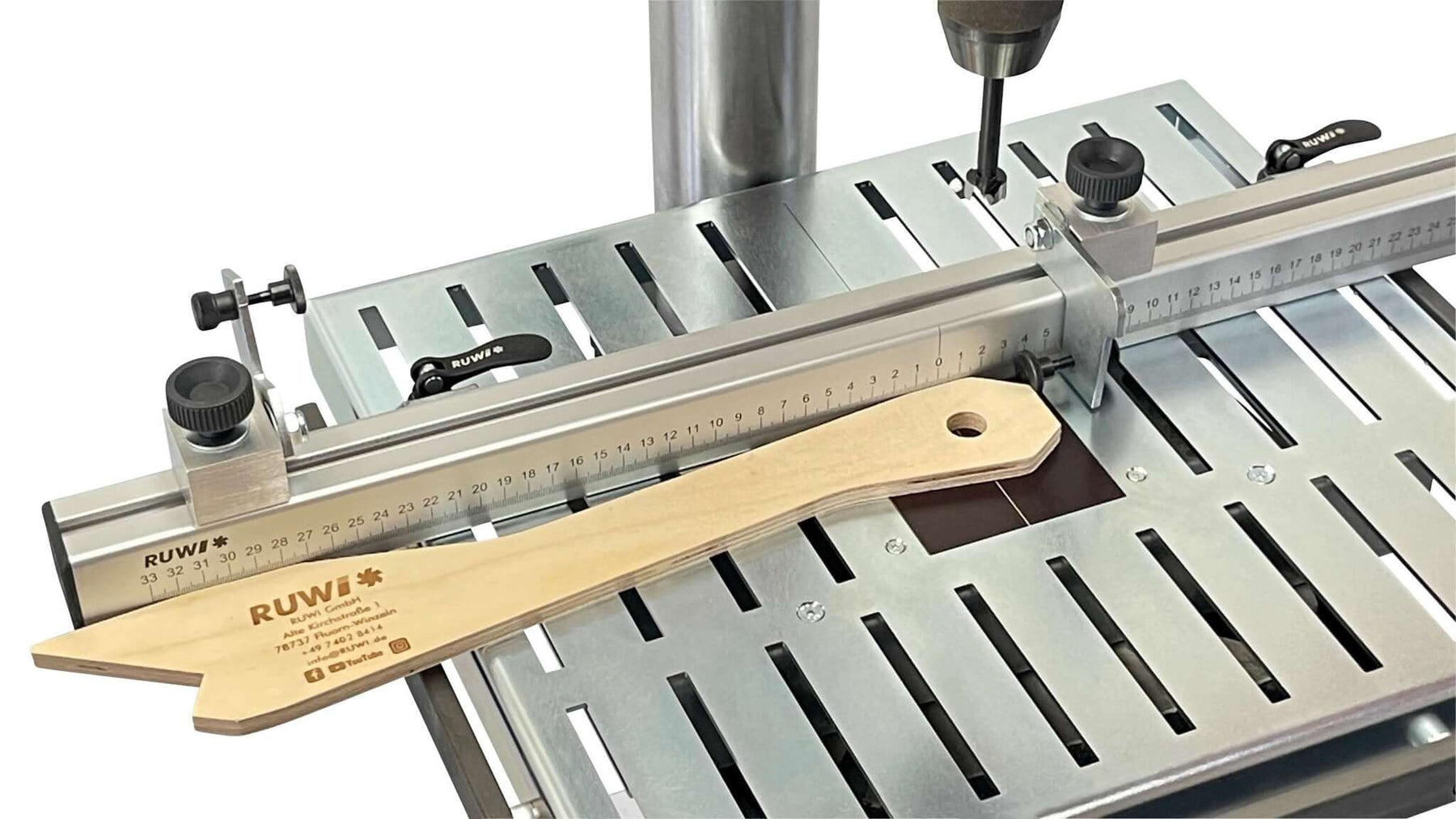

RUWI Folding stop with fine adjustment; wooden template aligned with the set stop

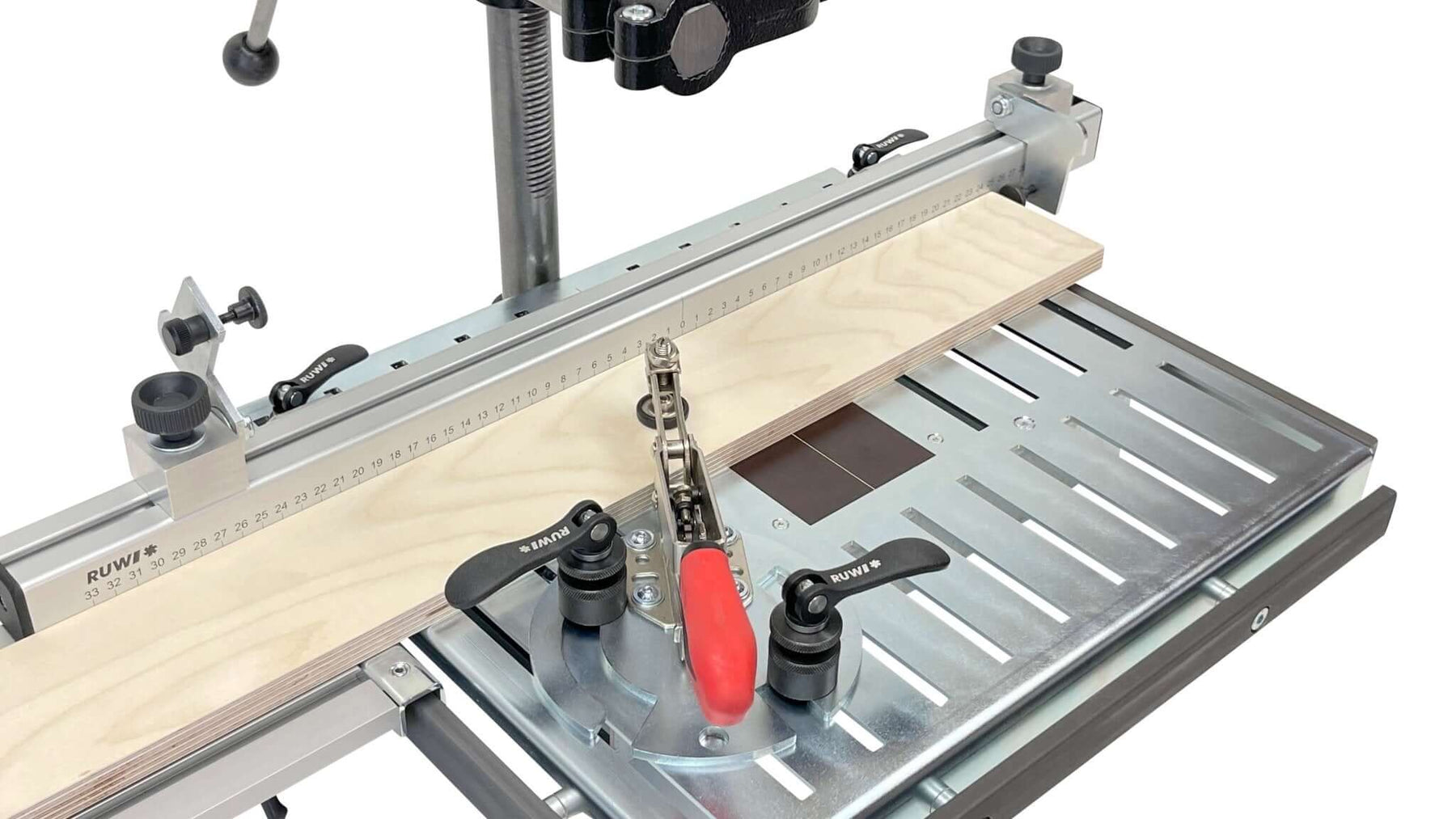

RUWI Folding stop with fine adjustment; long workpiece secured to the stop rail using a quick-release clamp ( RUWI )

Folding Stop for the Drilling Table Fence Ruler with Fine Adjustment

RUWI27056

Regular price€65,78
/
Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase—provided the item can be used on its own; accessories are capitalized along with the machine (Section 6(2) of the Income Tax Act) · €65.78 gross

Business, 30% tax rate, delivery this month. Special depreciation under Section 7g requires a maximum profit of €200,000 in the previous year—above that amount, only declining-balance depreciation applies. This is for informational purposes only and does not constitute tax advice.

Page
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Packages are shipped via DHL or DPD and usually arrive within 1–2 business days. You'll receive a tracking number via email.

Router tables, lifting tables, and other large tools are shipped via Schenker, usually arriving in about 3 business days. Upon request, the carrier can deliver on a specific date—just coordinate the details with them by phone. If delivery takes longer than expected, we'll let you know in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

The folding stop complements the RUWI fence ruler on the drilling table—either as a replacement or as an additional third stop. It comes fully assembled with slot nut; when ordering, choose the left or right version.

The anodized aluminum block slides freely within the ruler's T-slot and is secured using the tool-free quick-clamping system. You can fold the galvanized steel stop up and down; use the fine-tuning mechanism to adjust the stop position with tenth-of-a-unit precision.

Here's how to use it

  • Boring in batches in furniture making: Once adjusted to the drilling spacing, the stop ensures that every workpiece is positioned in the same place—simply fold it away to slide the workpiece through; the setting remains the same.
  • Set the third position: Move to another recurring drilling position in addition to the two stops on the ruler—for example, when drilling rows of holes with varying spacing.
  • Replace the stop: A damaged or lost stop can be replaced individually, without having to buy a whole new ruler.

Does this fit your marking ruler?

The folding stop fits into the T-slot on the RUWI 720-mm fence ruler—and thus onto the drilling table Classic, the drilling table Premium, and a drilling table Basic that has been retrofitted with the ruler.

About choosing a variant: The left version functions as a left stop, and the right version as a right stop—the folding mechanism and fine adjustment are the same for both. Simply choose the side you want to replace or add.

All the details

Function and Positioning
Application: Complements the stop ruler—as a left stop (RUWI27055) or a right stop (RUWI27056)
Block: Aluminum, anodised, freely adjustable and lockable along the slot

Material and Operation
Stop: Steel, galvanised, folds up and down
Mounting: Tool-free quick-clamping system

Fine Adjustment
Adjustment: Stop point adjustable to the nearest tenth

Weight
net weight : approx. 0.35 kg

★★★★★
