Bessey all-steel table clamp GTR 160/60

Brief description

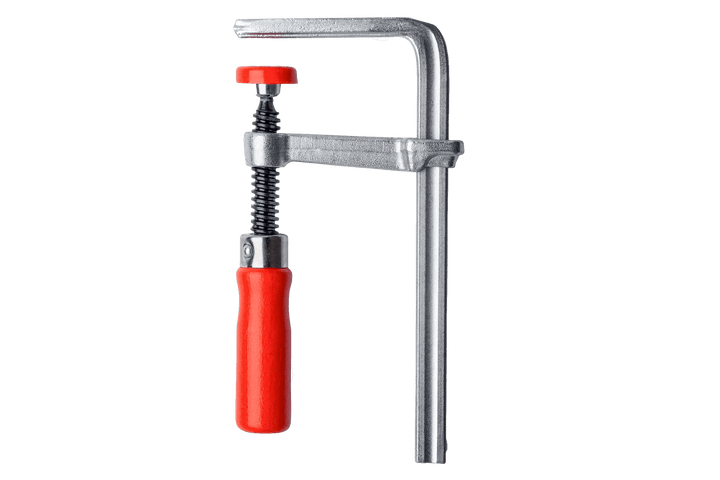

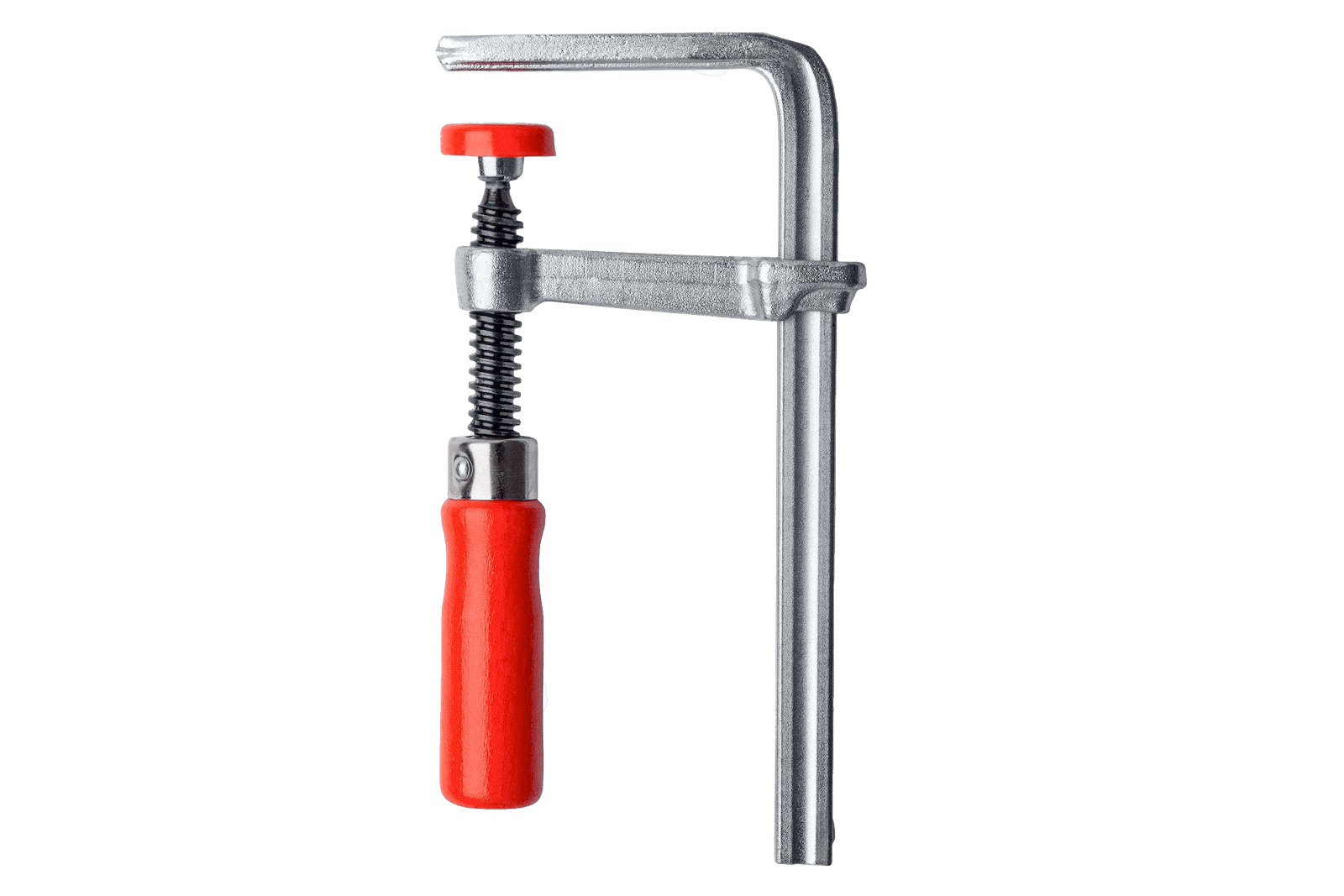

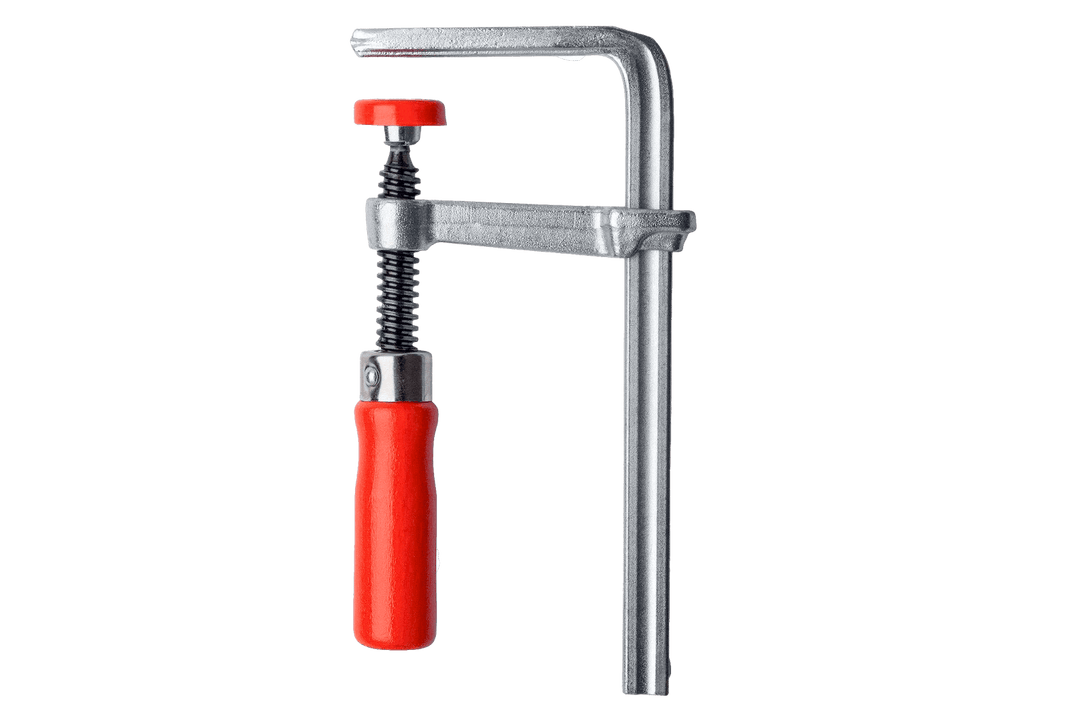

The Bessey GTR16 clamp is a high-quality all-steel bench clamp with a 160 mm clamping width and 60 mm throat depth - equipped with a comfortably shaped wooden handle. Its specially forged fixed bracket fits into 12 x 8 mm slots and makes it the ideal clamping solution for common guide rail systems from Festool, Makita, Metabo and others. Particularly practical: The clamp is fully compatible with the RUWI Classic lifting tables, the RUWI table extension, the various support rails with anti-slip coating and can even be used directly through the 20 mm holes in RUWI HPL perforated grid panels. This creates versatile clamping options directly on or at the side of the RUWI lift tables

Possible applications

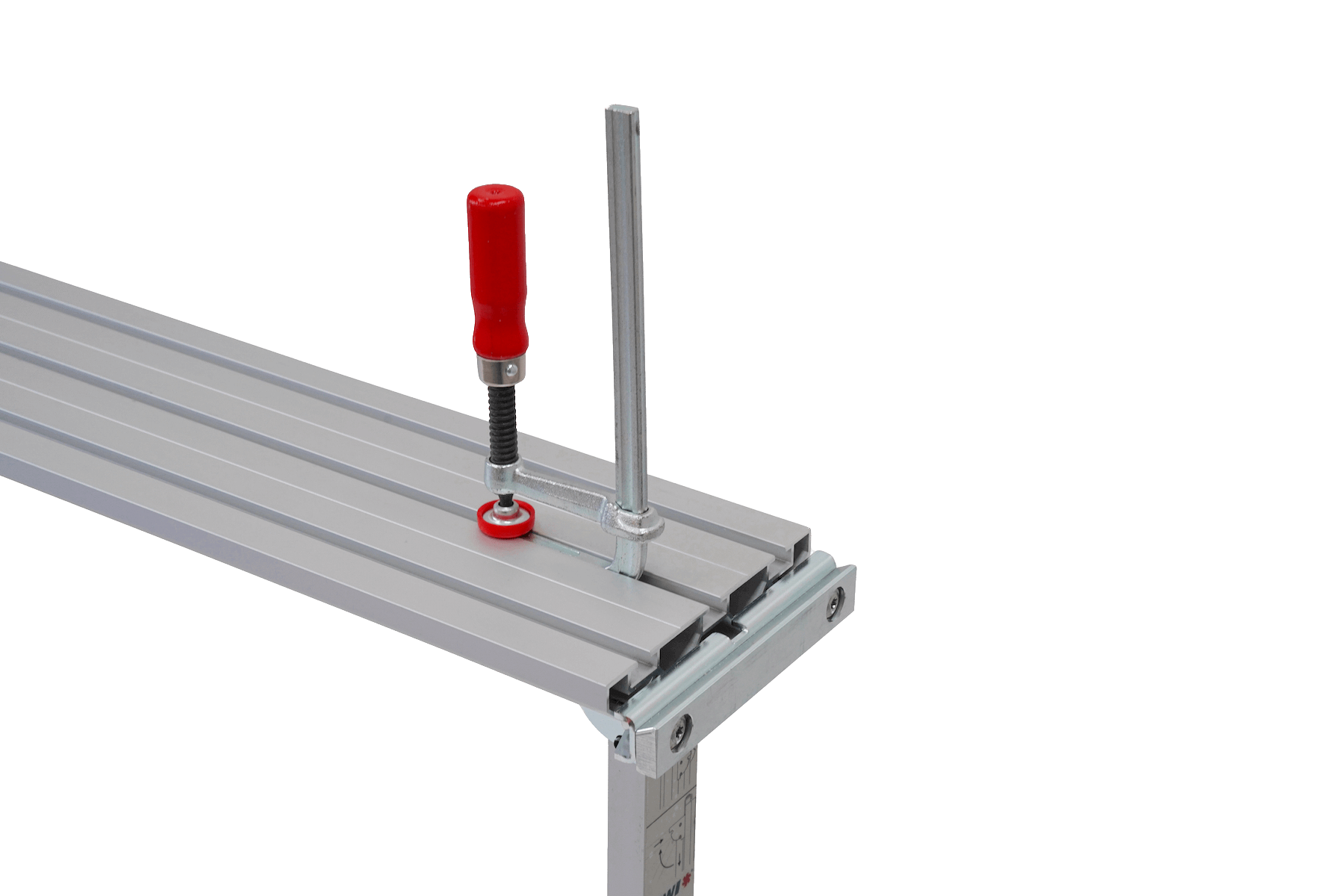

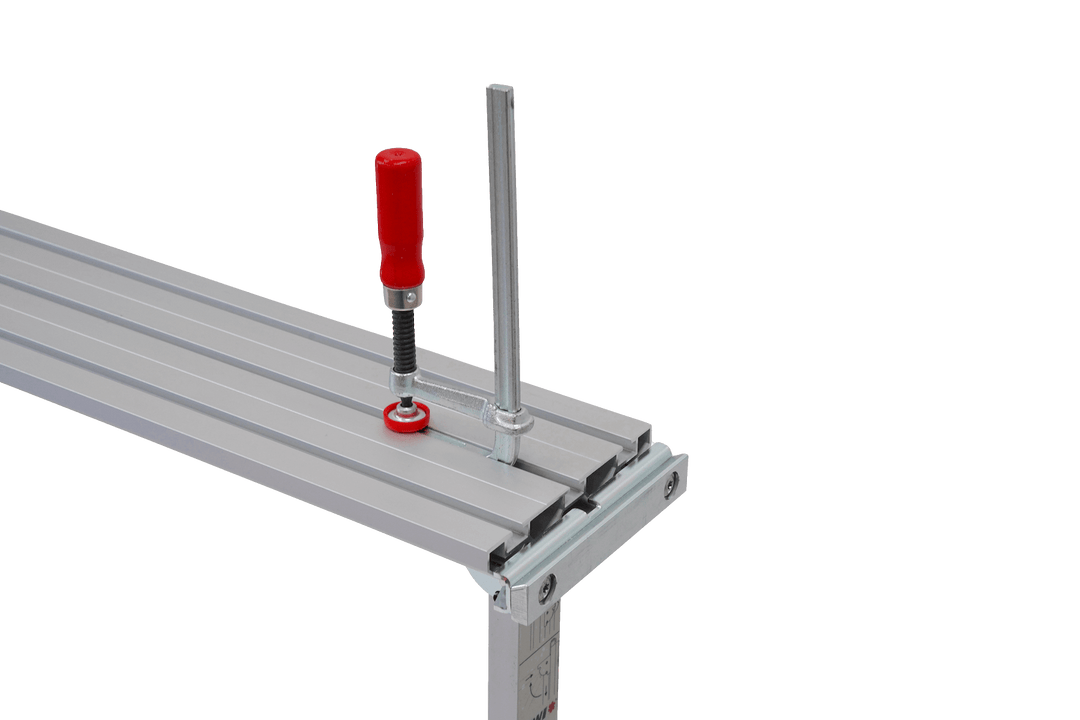

• Perfect fit for the grooves of the RUWI Classic models, the side clamping rail and the RUWI support rails with anti-slip coating - for secure and quick fixing directly to the table.

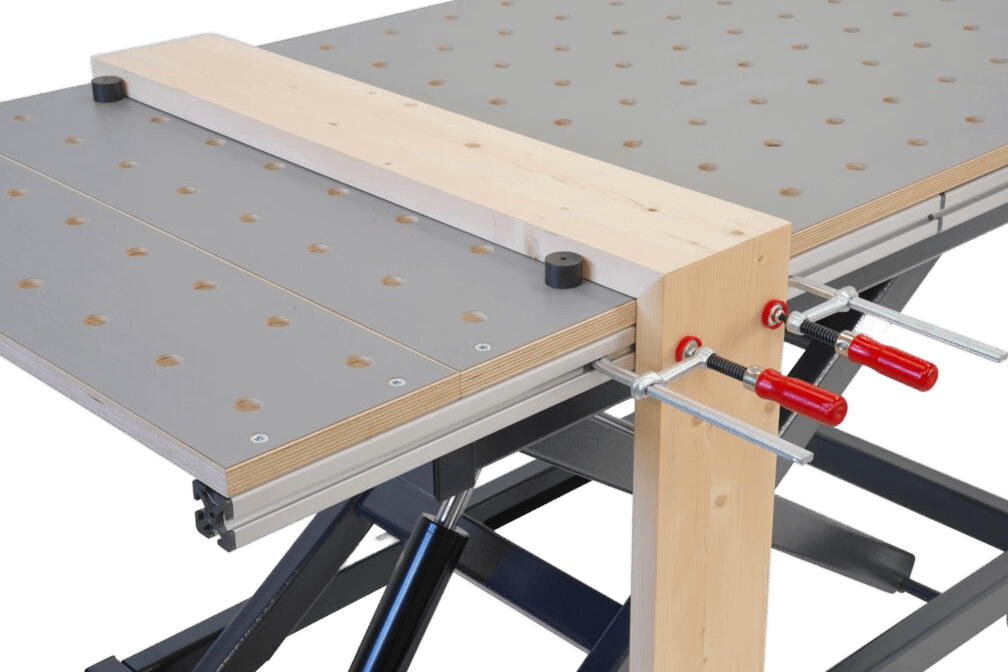

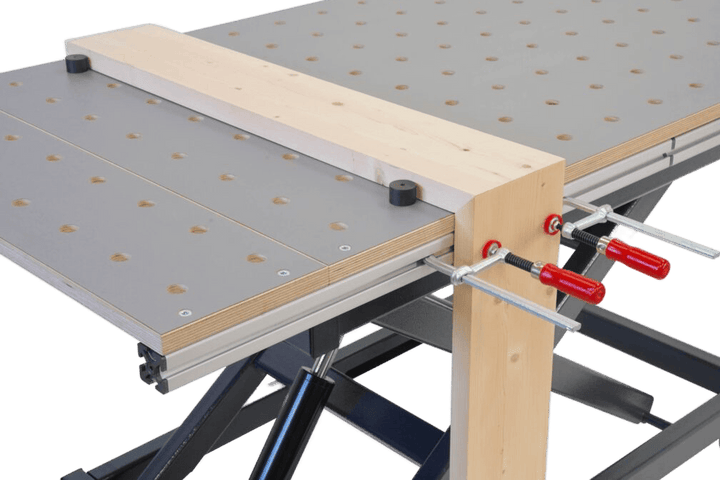

• With RUWI perforated grid panels, the clamp can simply be guided through the grid hole and clamped directly to the table - ideal for workpieces in the middle of the work surface.
• Ideal for fixing saw guide rails from popular manufacturers such as Festool, Makita, Metabo etc.
• Also compatible with 12 x 8 mm grooves - therefore also suitable for many MFT systems from Sautershop, Festool etc. or DIY multifunctional tables with T-slot rails.
• The classic wooden handle sits comfortably in the hand and enables both fine and powerful clamping of workpieces

Downloads

RUWI product catalog PDF

All details

- Span: 160 mm
- Projection: 60 mm
- Rail profile: 13.5 × 6.5 mm
- Suitable for grooves: 12 × 8 mm
- Clamping force: up to 1,800 N
- Handle type: Ergonomic wooden handle
- Material: All-steel, bright galvanized
- Weight: approx. 0.32 kg
- Special features: Suitable for many guide rail and work table systems (e.g. Festool, Makita, Metabo, RUWI)
