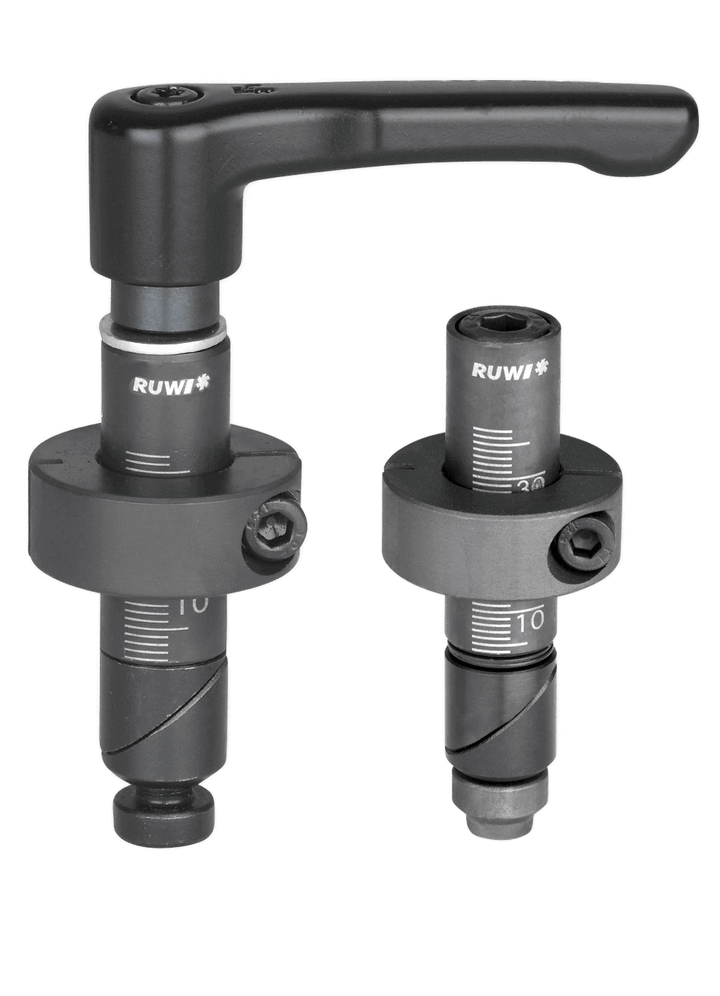

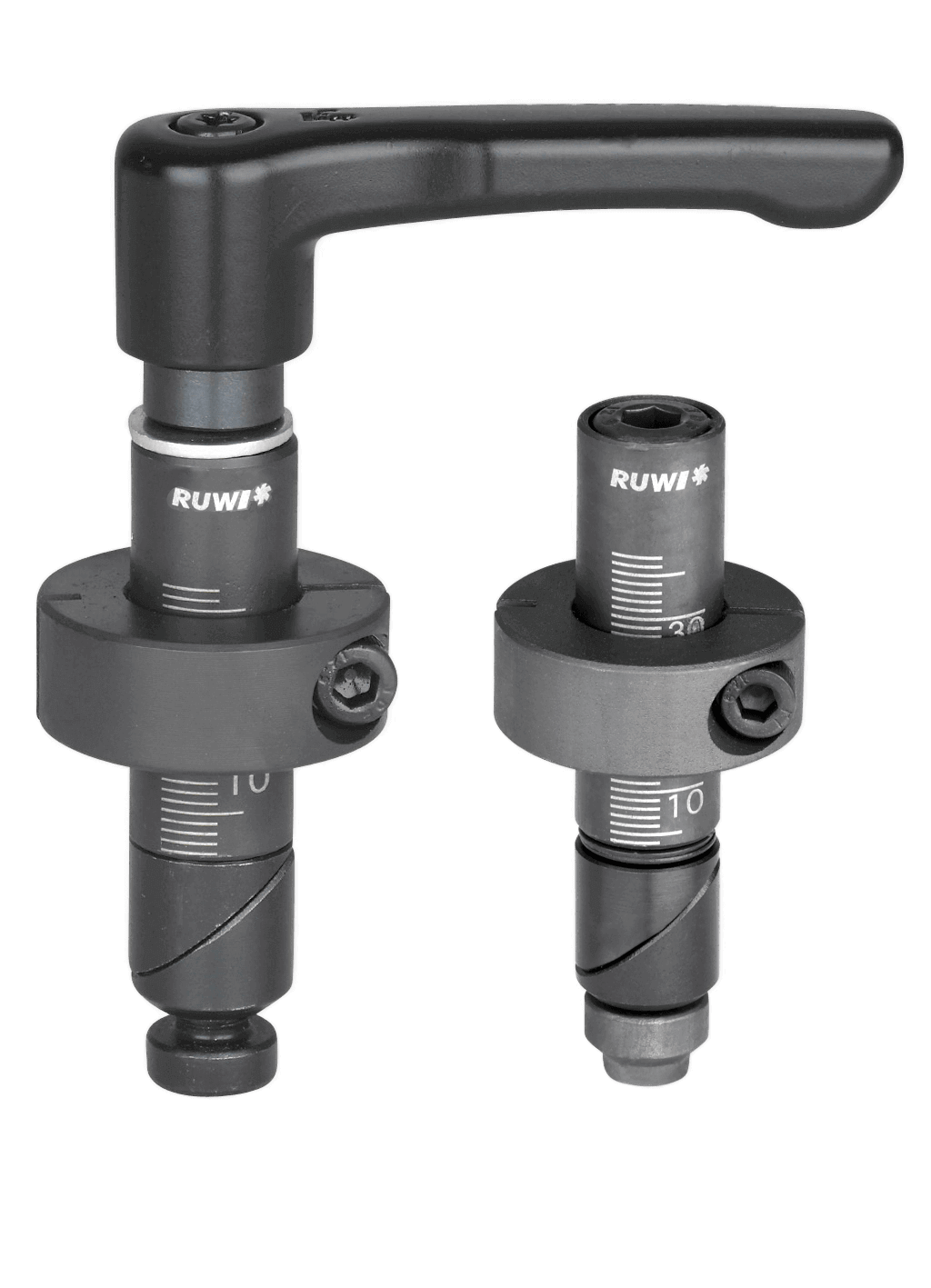

RUWI Comparison of Vario clamping bolts, Ø 16: K version with clamping lever (left) and S version without lever (right)
Vario Clamping Bolt, 16 mm diameter

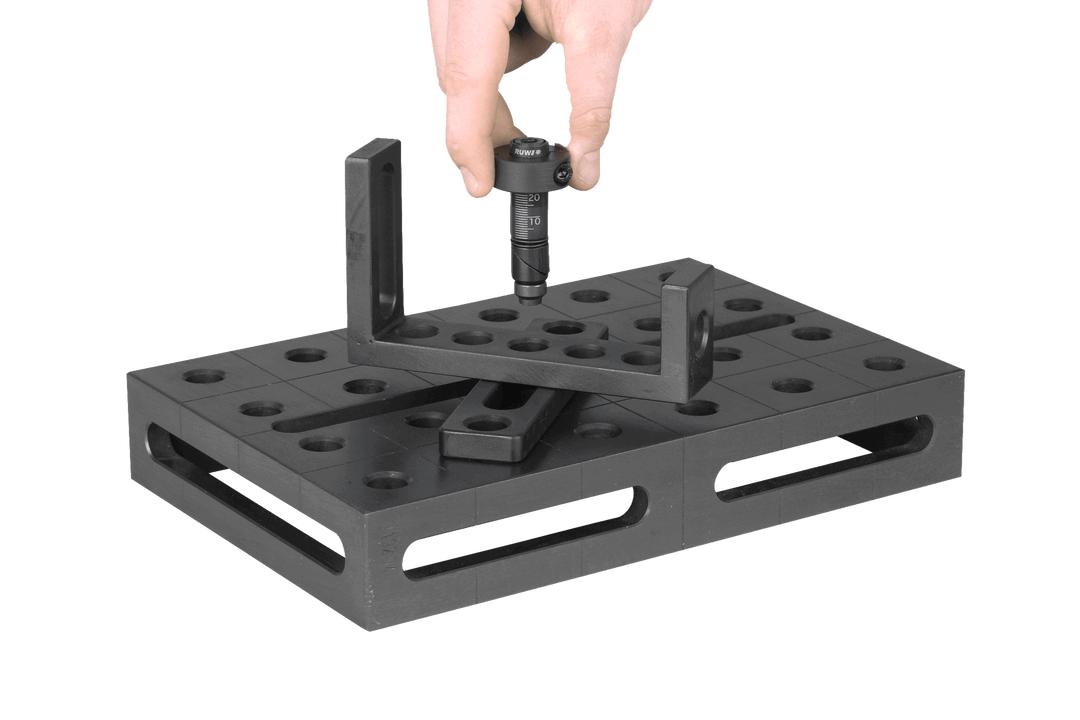

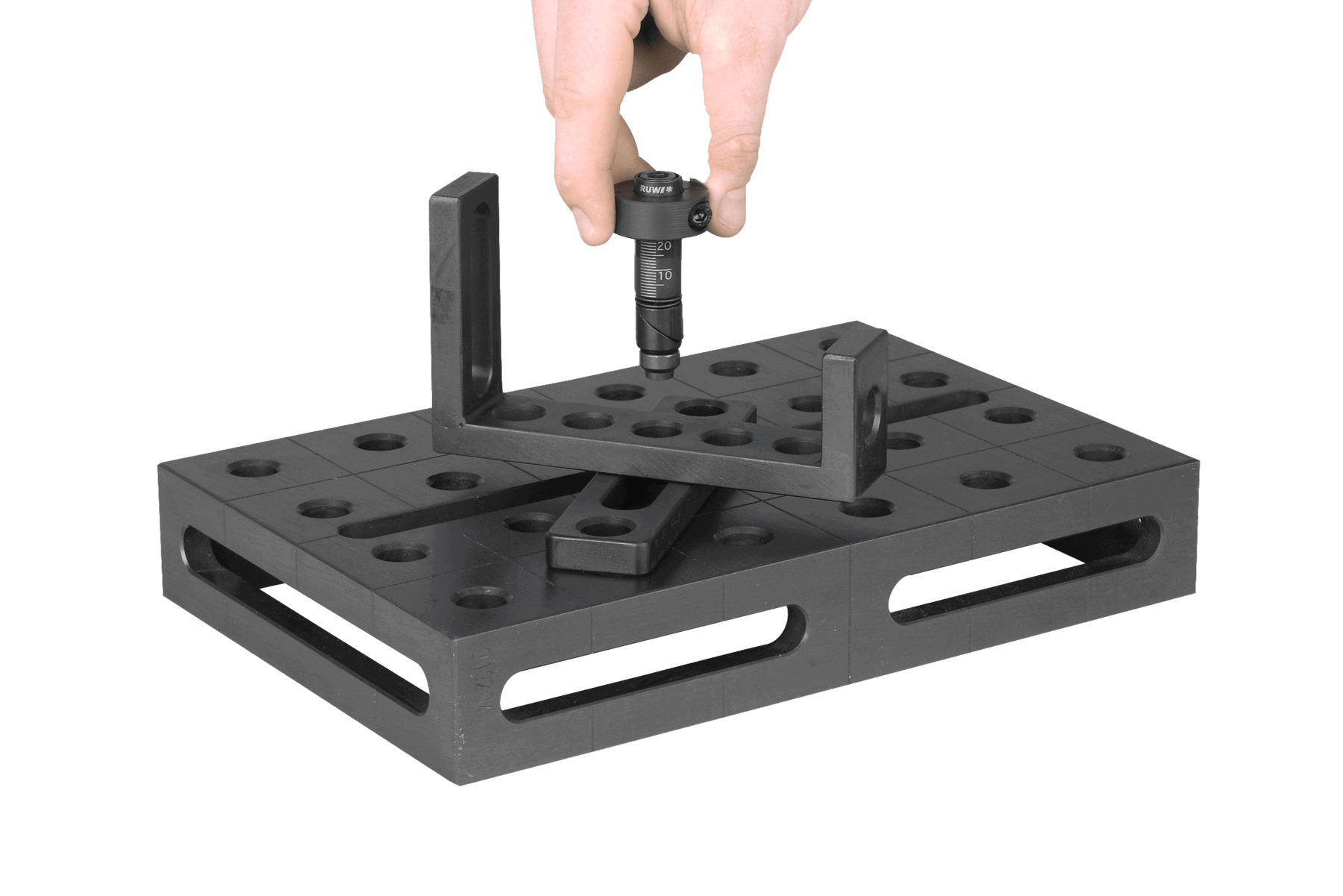

RUWI The Vario clamping bolt (Ø 16) is inserted by hand into the angle stop on the mounting plate with slotted holes.

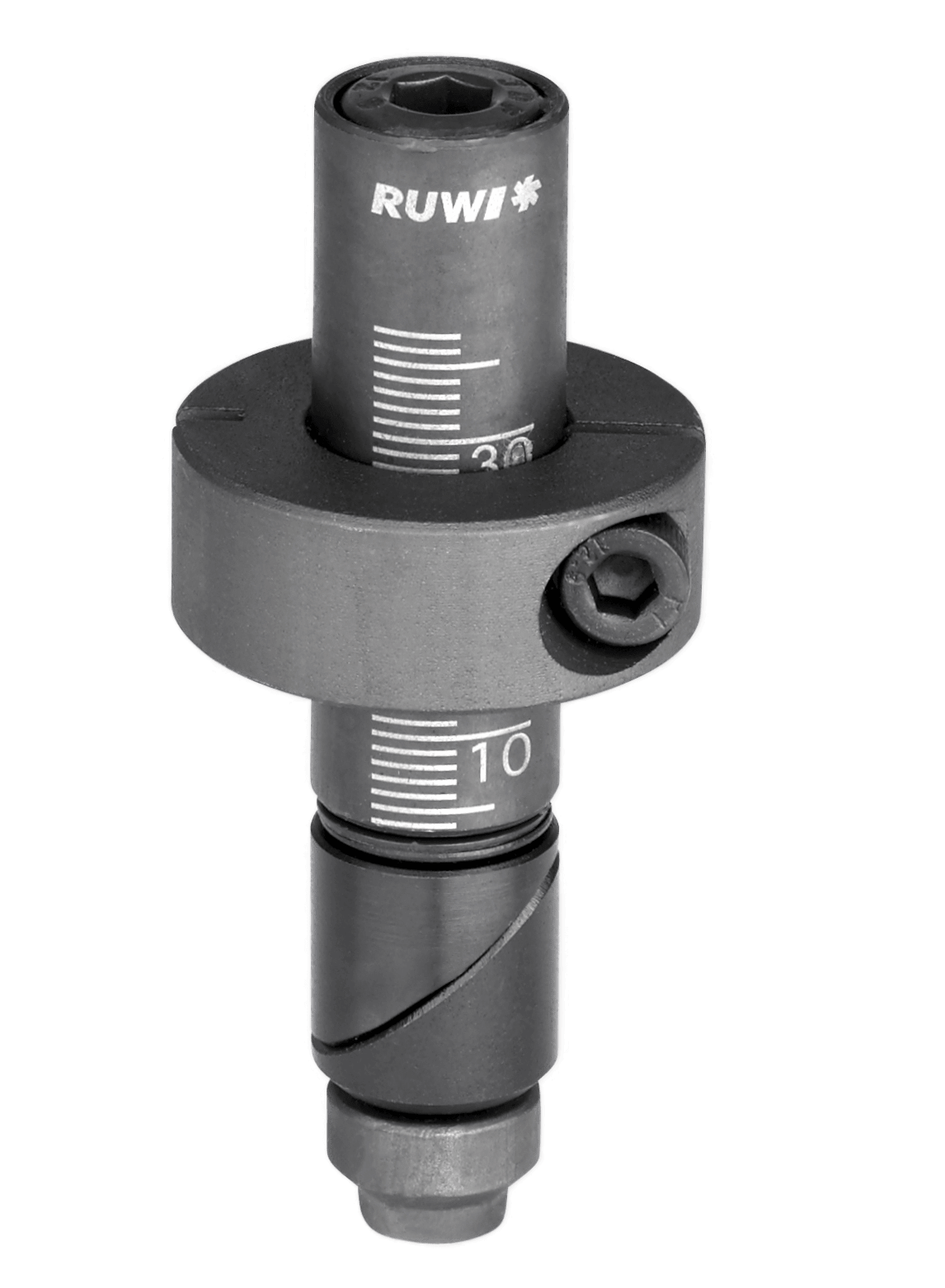

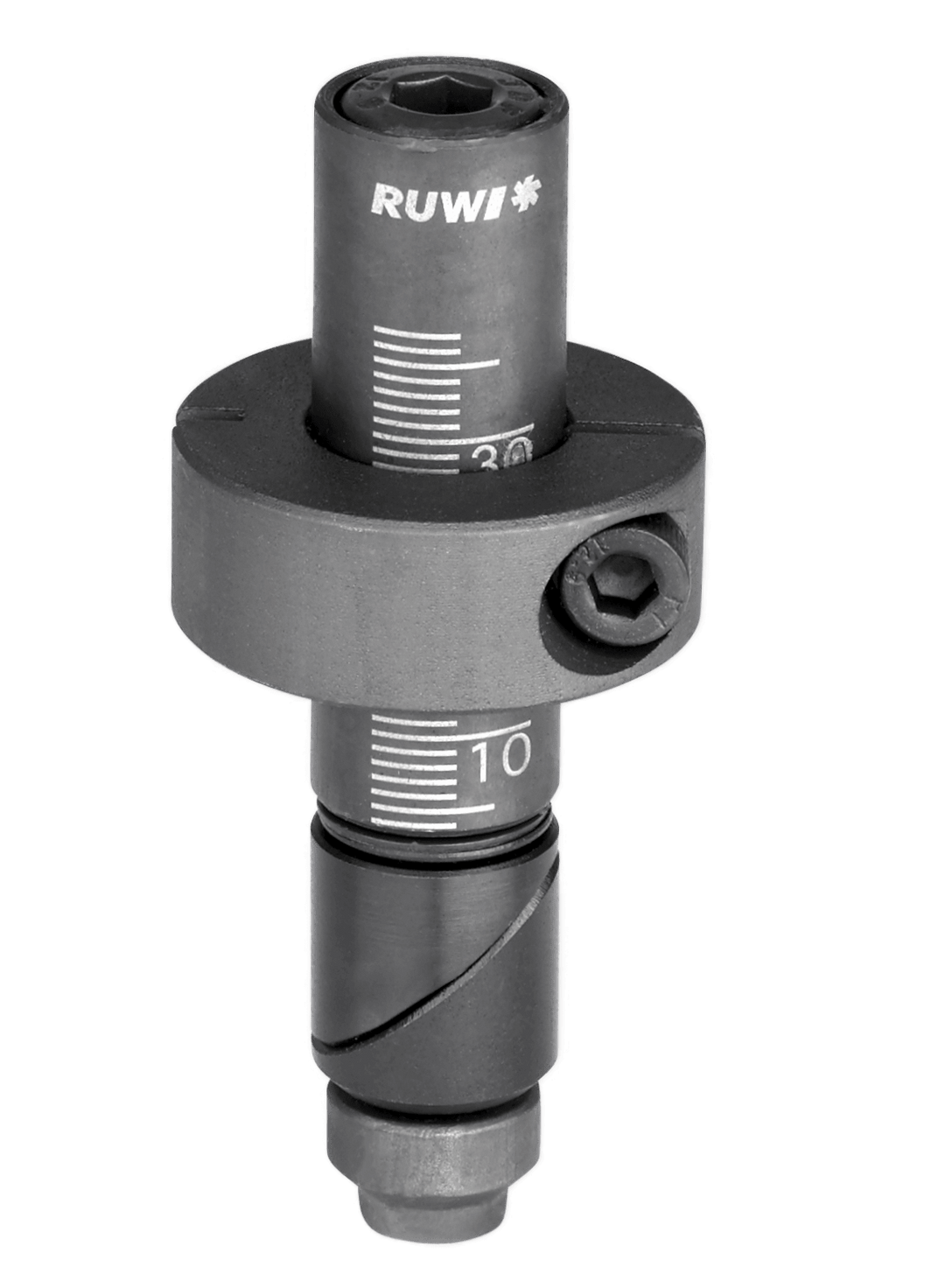

RUWI Vario clamping bolt, Ø 16, S-variant with screw fastening at the top, detail scale and clamping ring

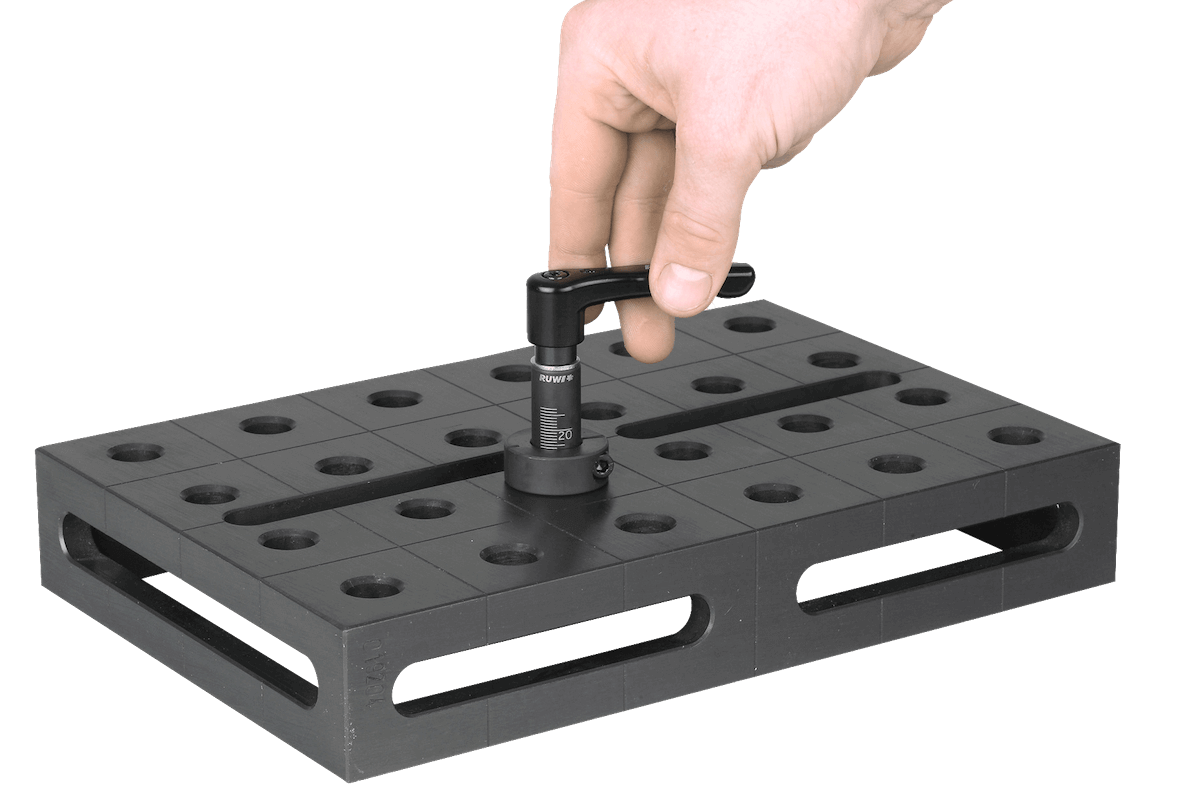

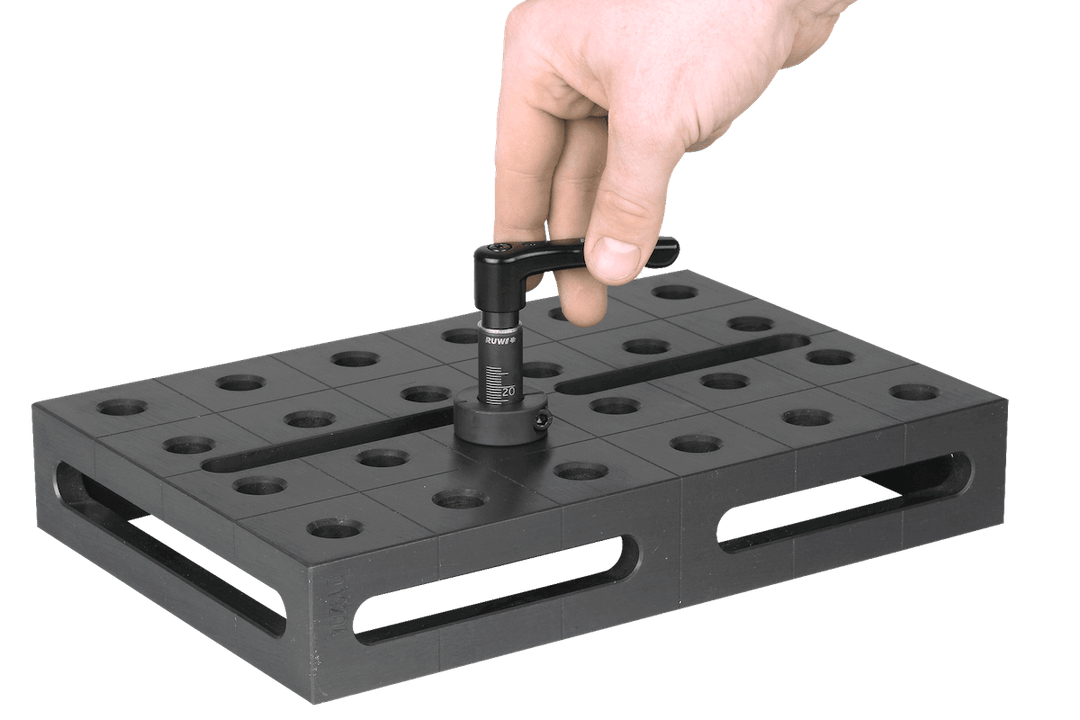

RUWI Vario clamping bolt, Ø 16; the K variant is tightened by hand onto the perforated plate at clamping lever

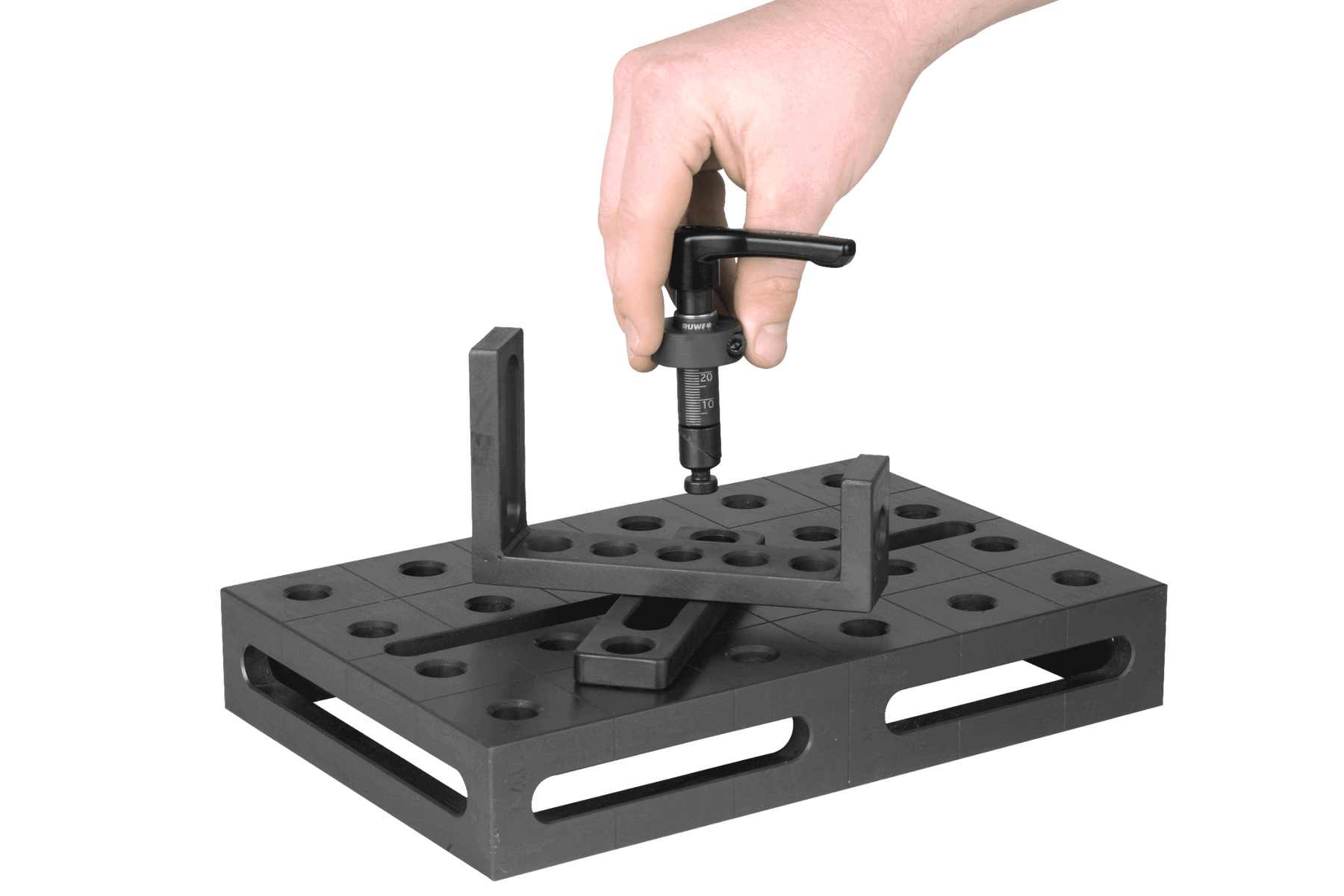

RUWI Vario clamping bolt, Ø 16; the K variant is turned by hand on the clamping lever into the angle stop on the perforated plate

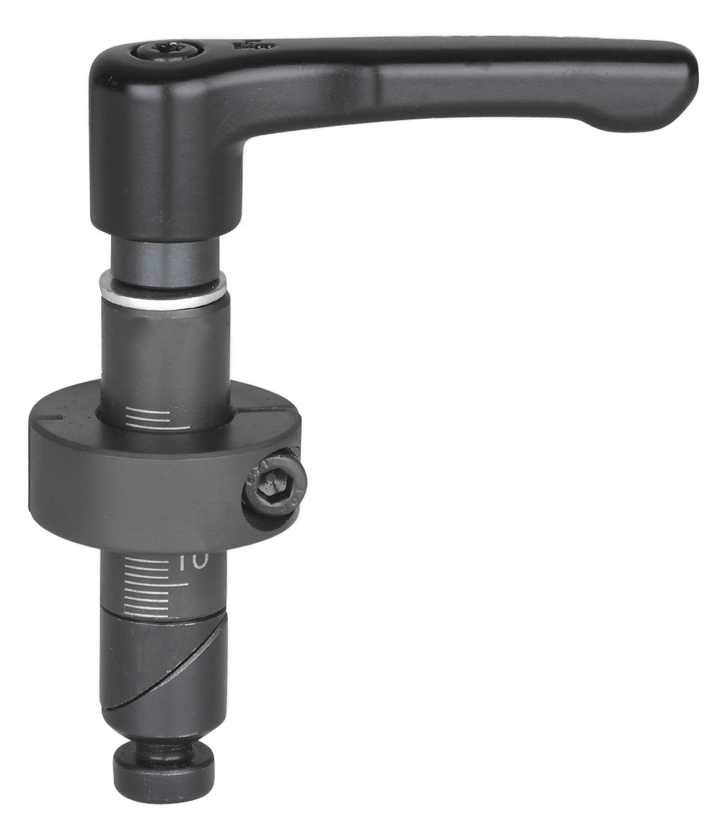

RUWI Vario clamping bolt, Ø 16, K-variant with clamping lever, detail scale , and clamping ring
RUWI Comparison of Vario clamping bolts, Ø 16: K version with clamping lever (left) and S version without lever (right)
Vario Clamping Bolt, 16 mm diameter
RUWI The Vario clamping bolt (Ø 16) is inserted by hand into the angle stop on the mounting plate with slotted holes.
RUWI Vario clamping bolt, Ø 16, S-variant with screw fastening at the top, detail scale and clamping ring
RUWI Vario clamping bolt, Ø 16; the K variant is tightened by hand onto the perforated plate at clamping lever
RUWI Vario clamping bolt, Ø 16; the K variant is turned by hand on the clamping lever into the angle stop on the perforated plate
RUWI Vario clamping bolt, Ø 16, K-variant with clamping lever, detail scale , and clamping ring

Vario Clamping Bolt, 16 mm diameter

RUWI27166

€73,05
/
Includes VAT Plus shipping costs

€61.39 (net)

Size
  • Made in Germany
  • Developed by carpenters in Fluorn-Winzeln
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

Questions before you buy? A carpenter is available by phone: +49 7402 8414

• 1 × Vario clamping bolt, Ø 16 mm, with screw (RUWI27165) or with clamping lever and screw (RUWI27166)

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 345 × 250 × 50 mm (RUWI27165) or 315 × 225 × 140 mm (RUWI27166)

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The Vario clamping bolt (Ø 16 mm) provides you with a height-adjustable clamping point for any perforated table with 16-mm holes (for material thicknesses of 4 mm or more, especially for metal). Using the adjustment ring, you can set the clamping height continuously from 0 to 36 mm and read it directly from the laser-etched scale —this allows the bolt to adapt to workpieces of varying thicknesses without the need for shims. The centering bolt and adjustment ring are made of phosphated steel; the clamping bolt is black-oxide finished.

Here's how to use it

  • Custom clamping: Rotate the ring to the workpiece height, insert the bolt into the hole—the pressure point is precisely positioned, and the part lies flat for tack welding.
  • Reproducible adjustment: The scale makes every height repeatable—the next time you make the same part, just turn it to the same value.
  • Functioning as a stop: In welding and assembly fixtures, the bolt also defines lateral reference points.

Does this go with your table?

When ordering, choose the mounting option: S with a screw (78 mm overall height) stays securely in place once adjusted; K with clamping lever (109 mm) loosens and shifts tool-free when the position changes frequently. Multiple bolts are available in Set 1 (8 pieces) or Set 2, which includes clamps and an organization panel; the overview shows the clamps, vertical and horizontal toggle clamps.

All the details

Dimensions
Clamping range : continuously 0 to 36 mm
overall height : 78 mm (RUWI27165, with screw) or 109 mm (RUWI27166, with clamping lever)
Weight: approx. 150 g (RUWI27165) or approx. 230 g (RUWI27166)
Scale: laser-etched scale

Material
Centering pin and adjustment ring: steel, phosphated
clamping bolt : steel, black-oxide

Clamping system
hole grid : Ø 16 mm (material thickness min. 4 mm)

★★★★★
