The principle behind it
Reiner Ruggaber

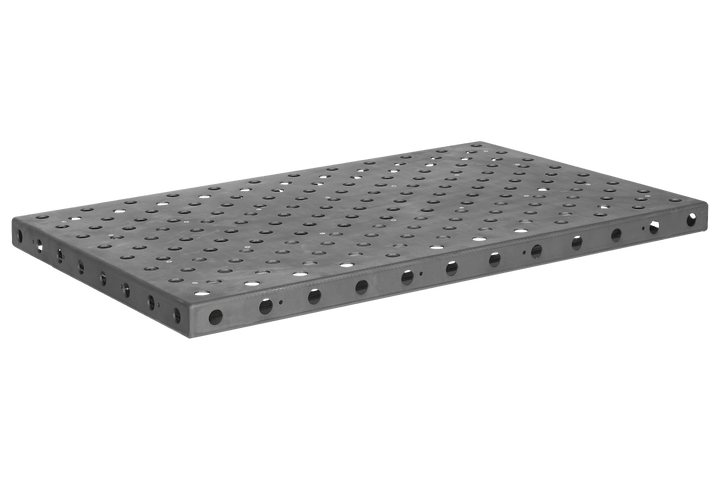

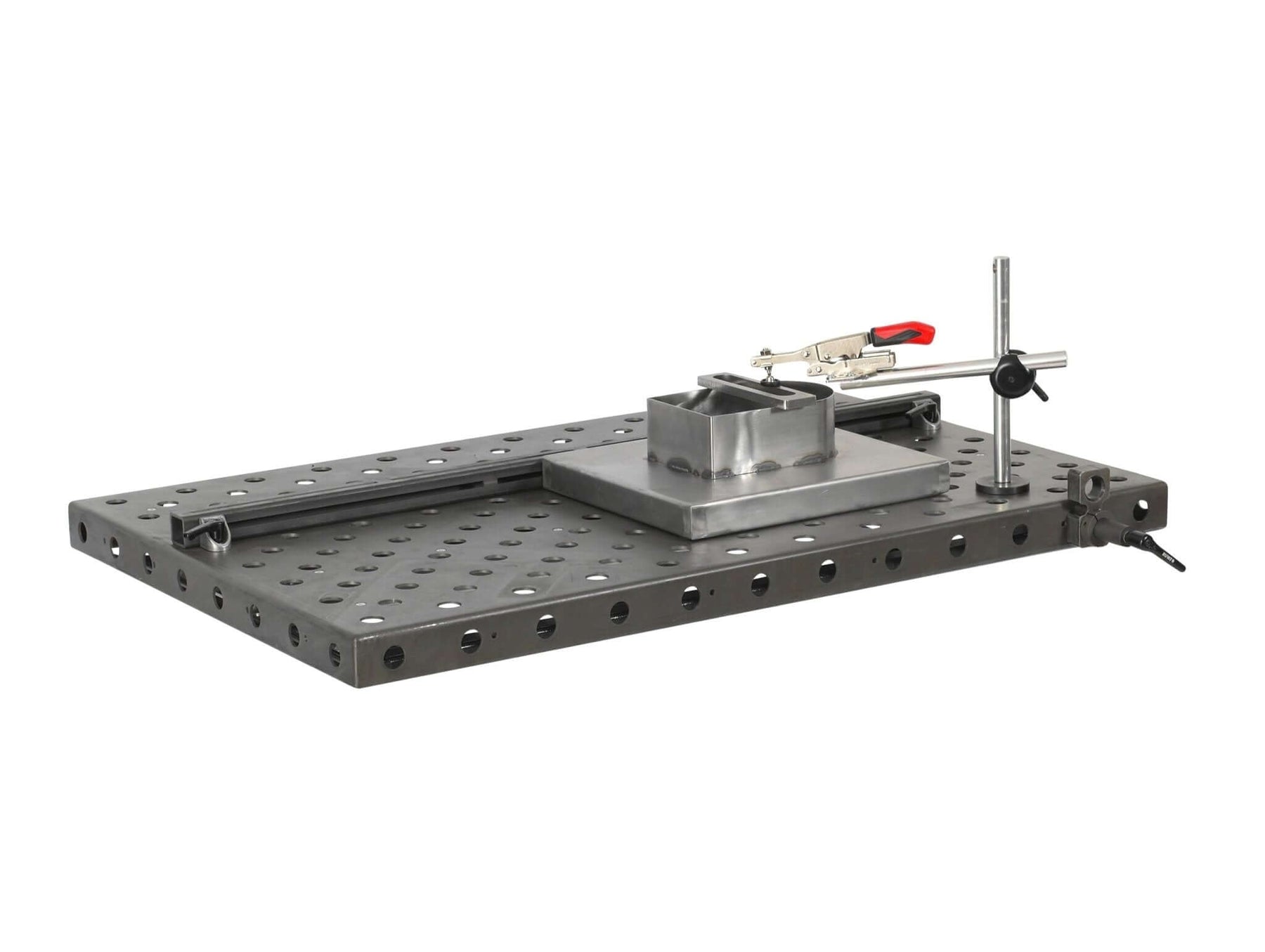

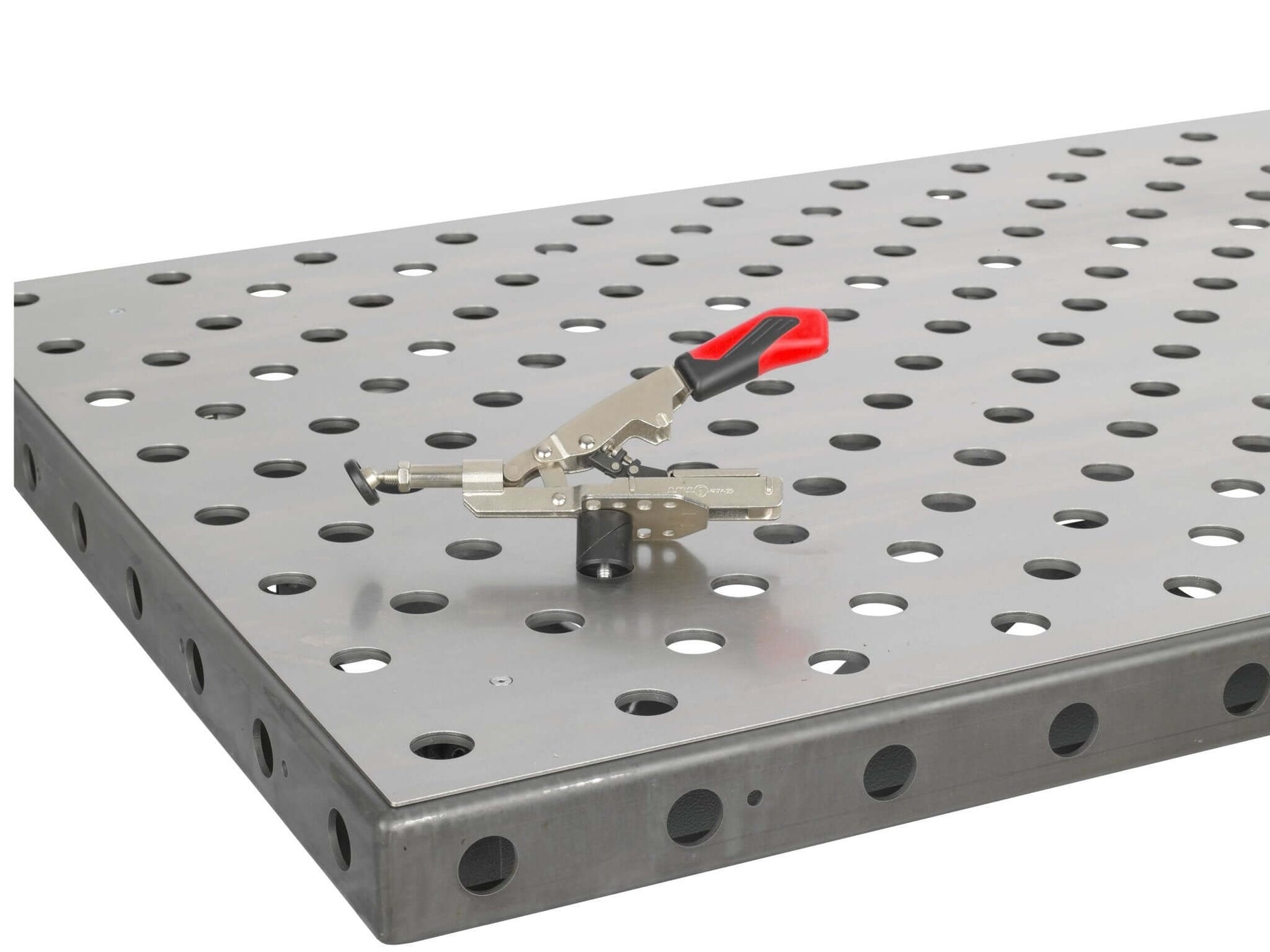

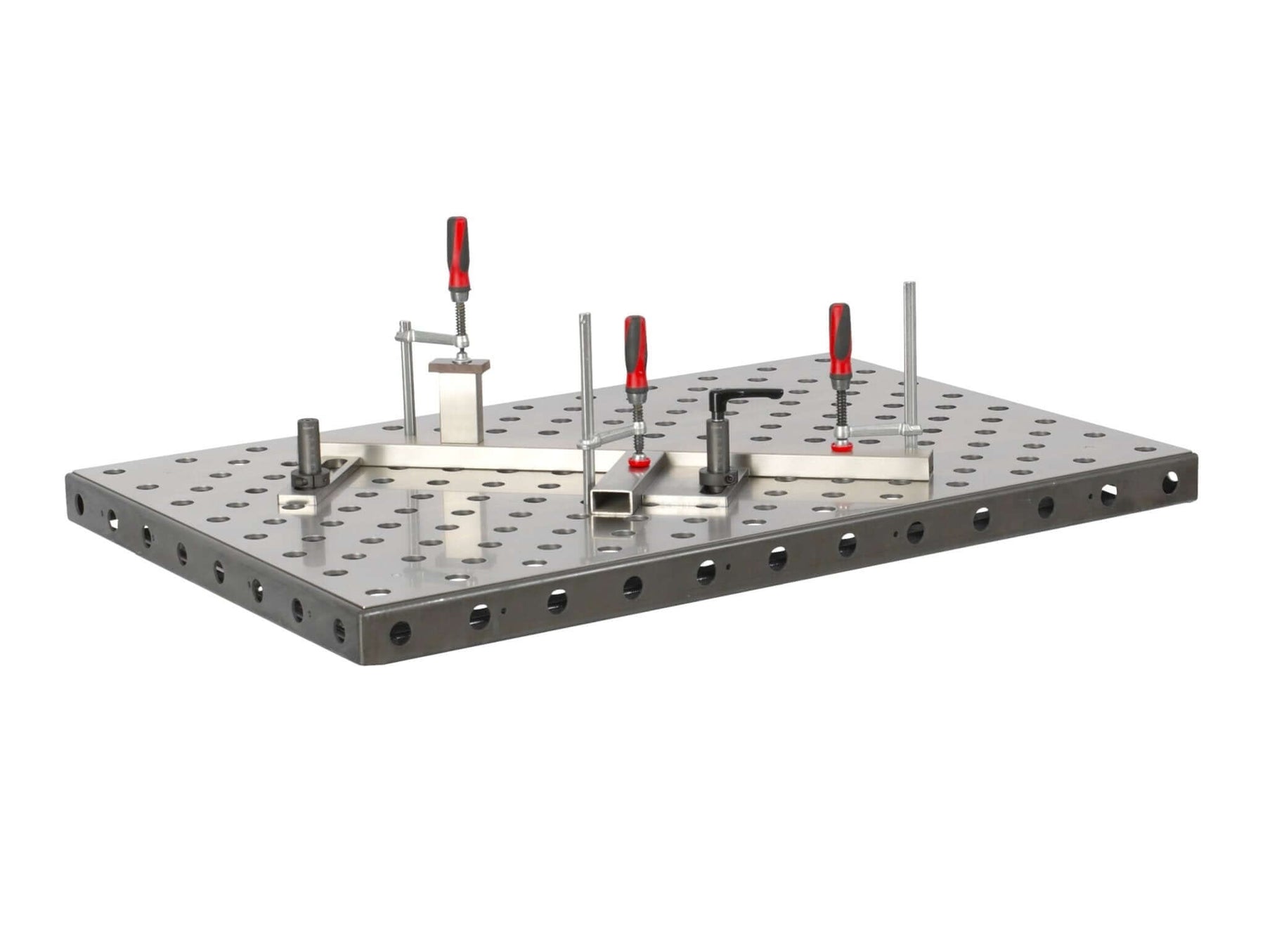

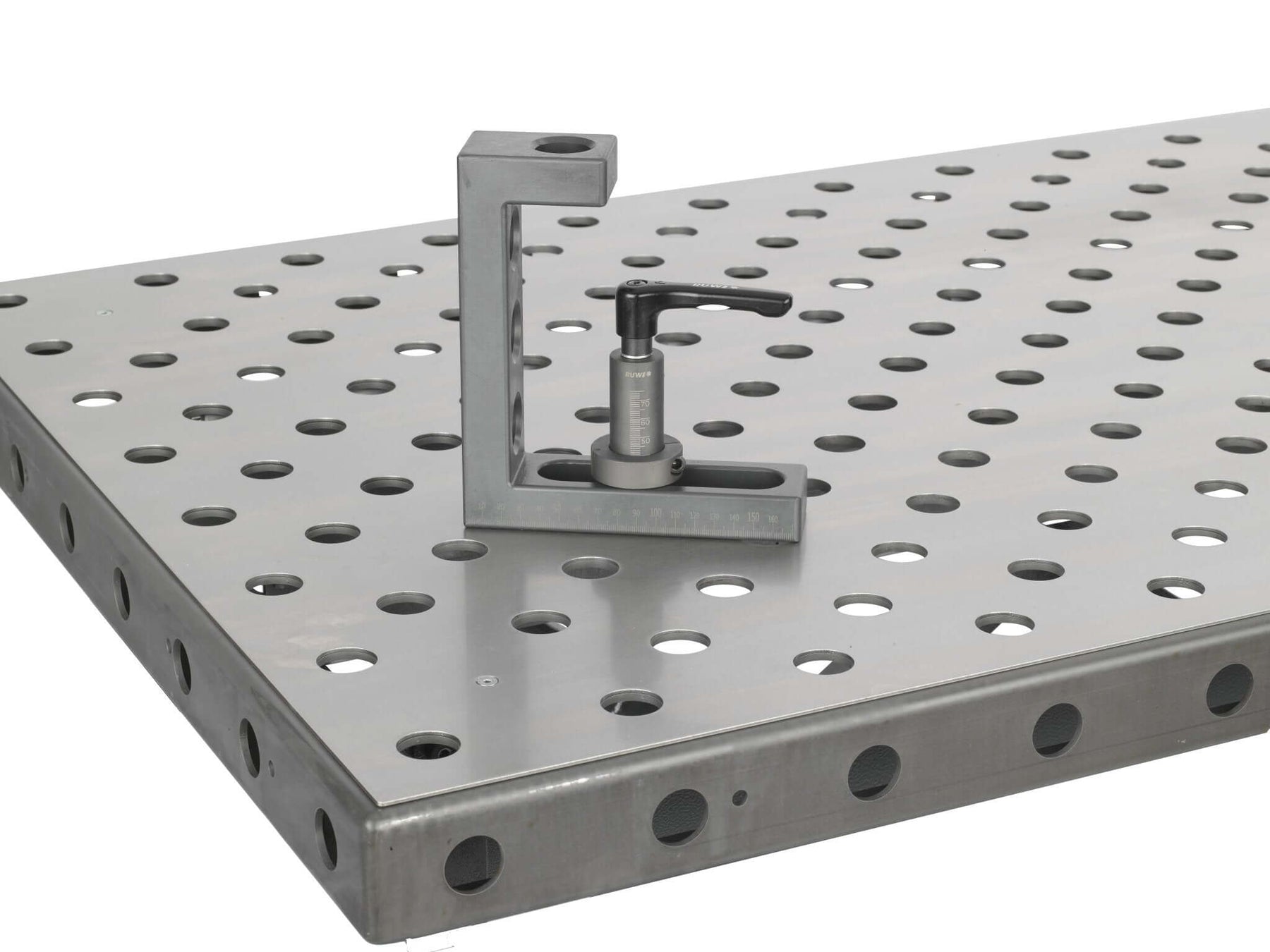

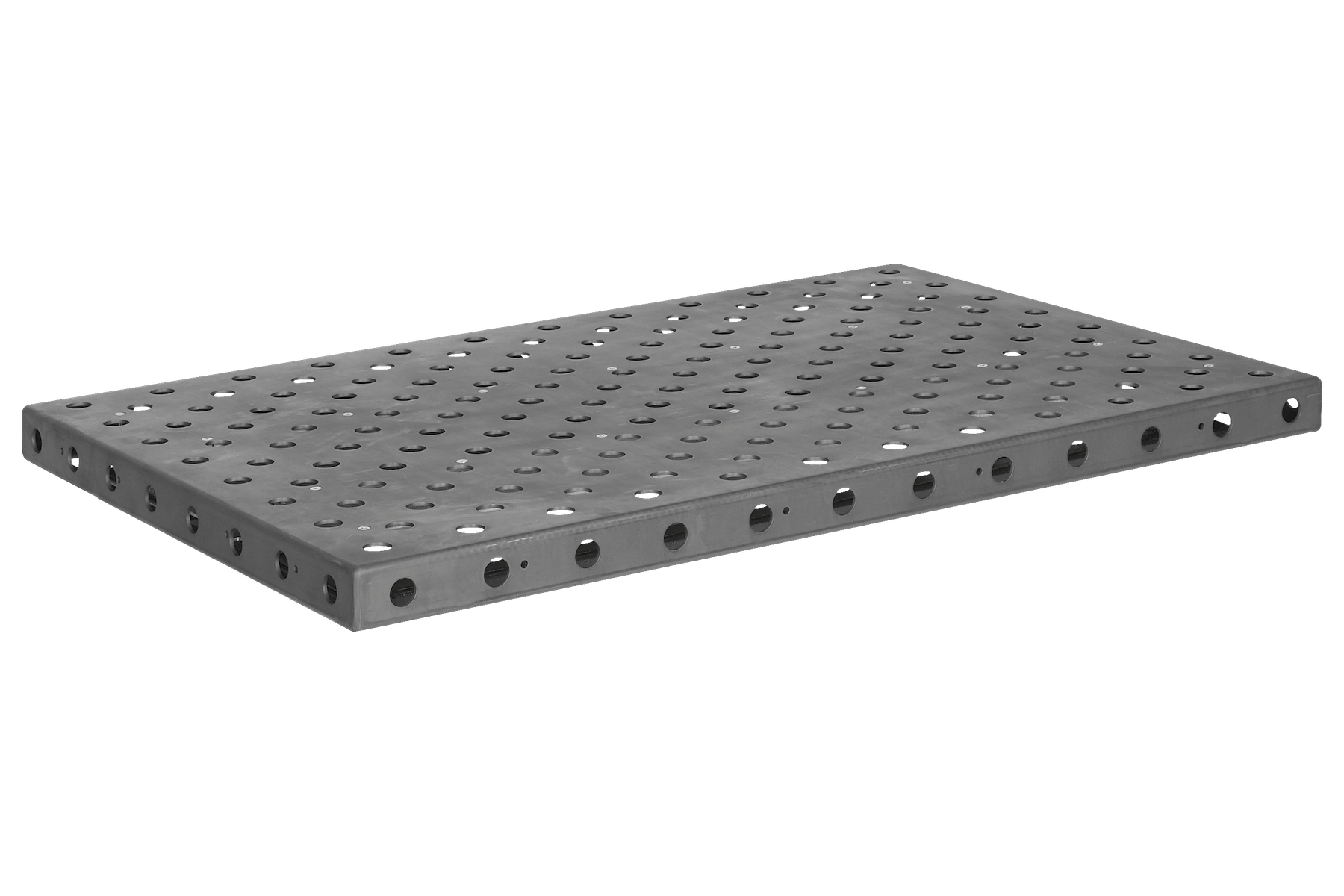

The RUWI welding table top offers you a robust and versatile work surface for welding, assembly and clamping work. The 4 mm thick steel plate with phosphated surface and 28 mm hole pattern fits perfectly with RUWI clamping technology and many other common stop elements.

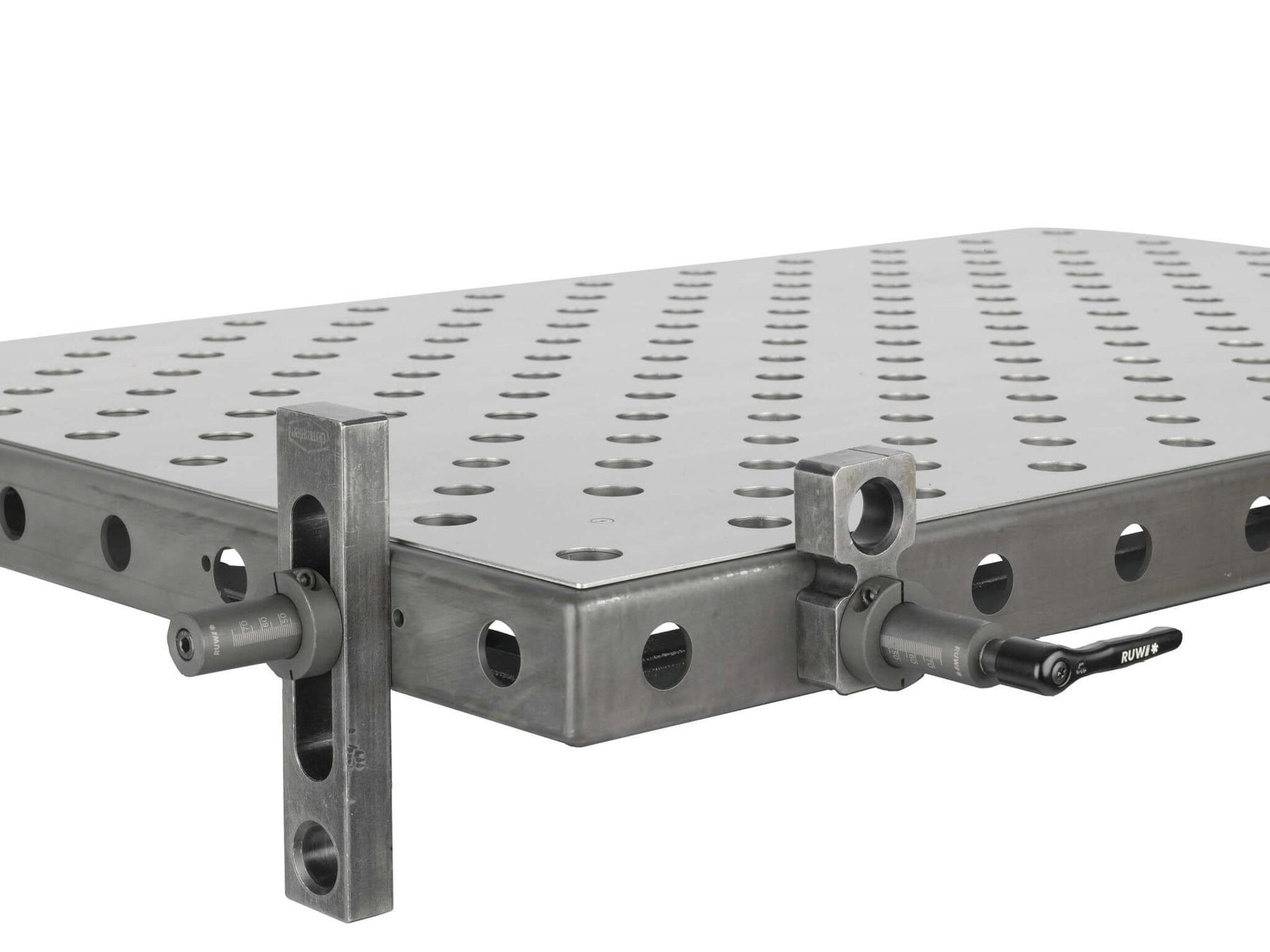

Thanks to the folded sides, you can easily clamp workpieces from the side. A bolted reinforcement cage and welded corners ensure that the table surface remains permanently flat and stable - exactly what you need for precise work. Fixing, welding, assembling - all done quickly, flexibly and safely.
Flexible in height and size
You can flexibly adjust the working height between 86 and 93 cm using adjustable articulated legs. If the 1200 x 800 mm work surface is not sufficient, you can simply place several welding tables next to each other and screw them together after alignment. Specially provided drill holes make this extension uncomplicated and stable.
Robust lightweight
The sturdy construction can easily support up to 500 kg - and weighs just 77 kg. Ideal if you want to stay mobile but can do without castors.
All details
