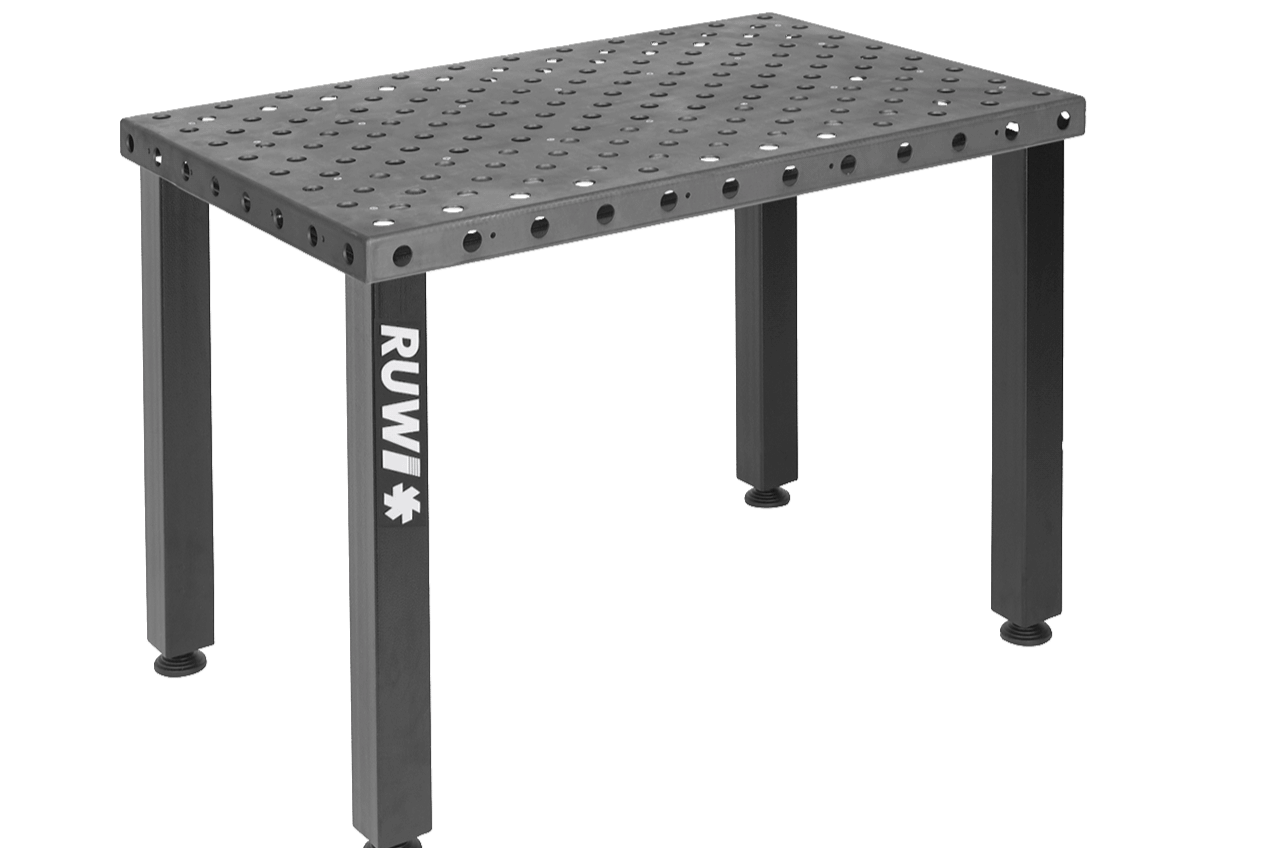

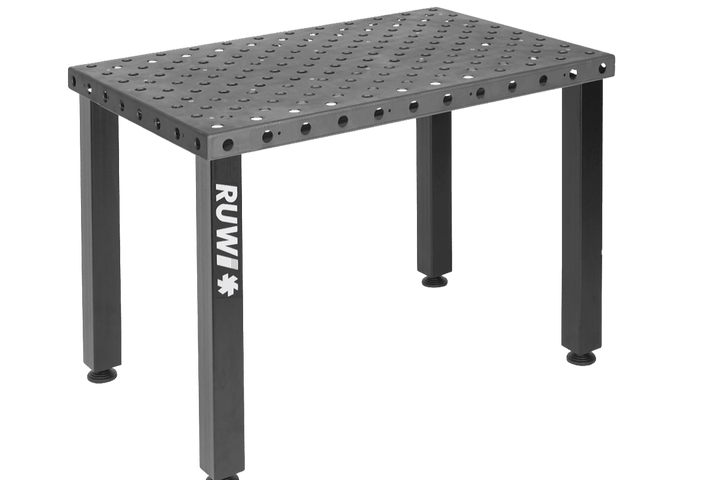

RUWI welding table Leg table 1,200 × 800 mm, perforated plate Ø 28 mm, cutout
RUWI Assembly and welding table Leg Table 1200 × 800 mm, Perforated Plate Ø 28 mm

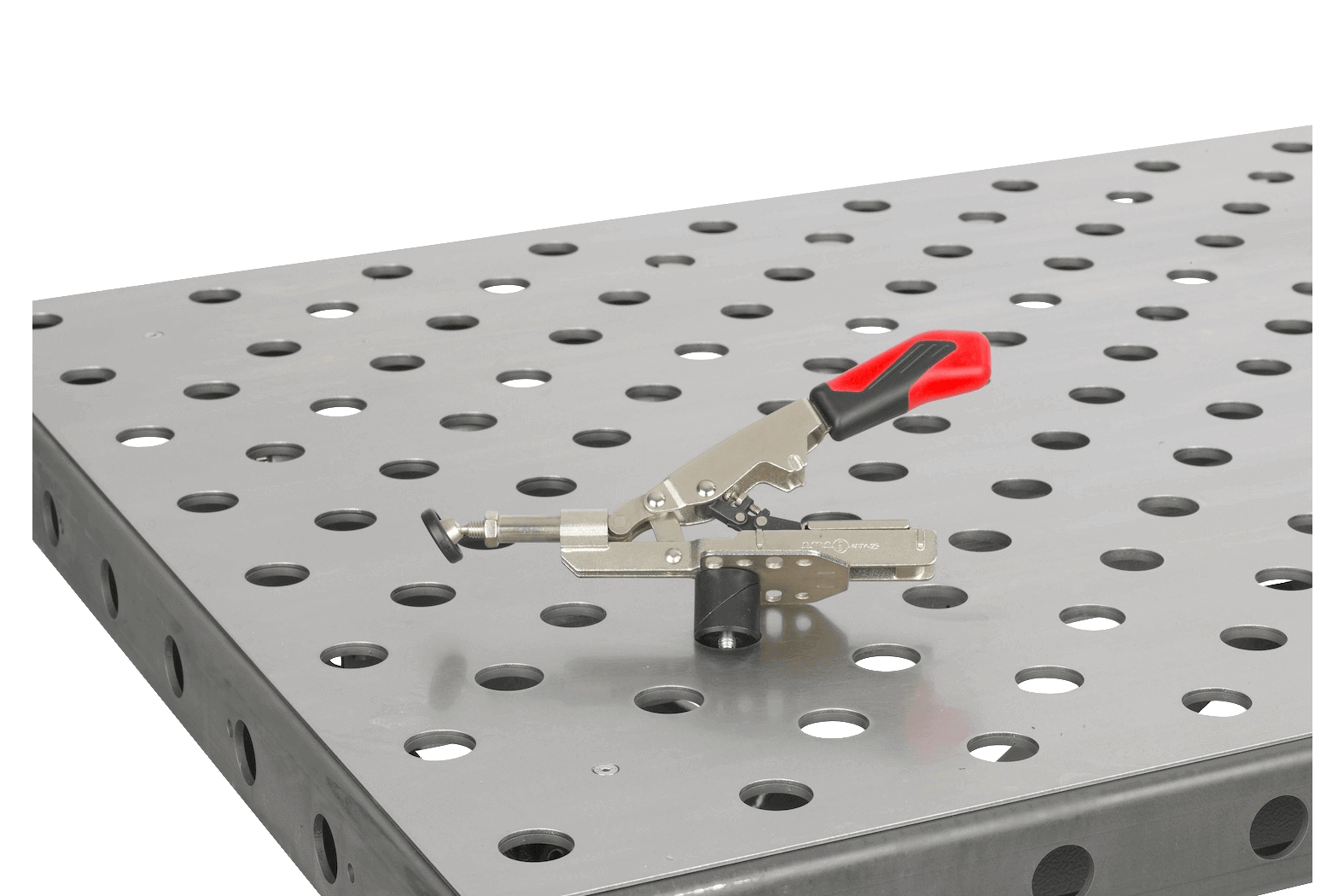

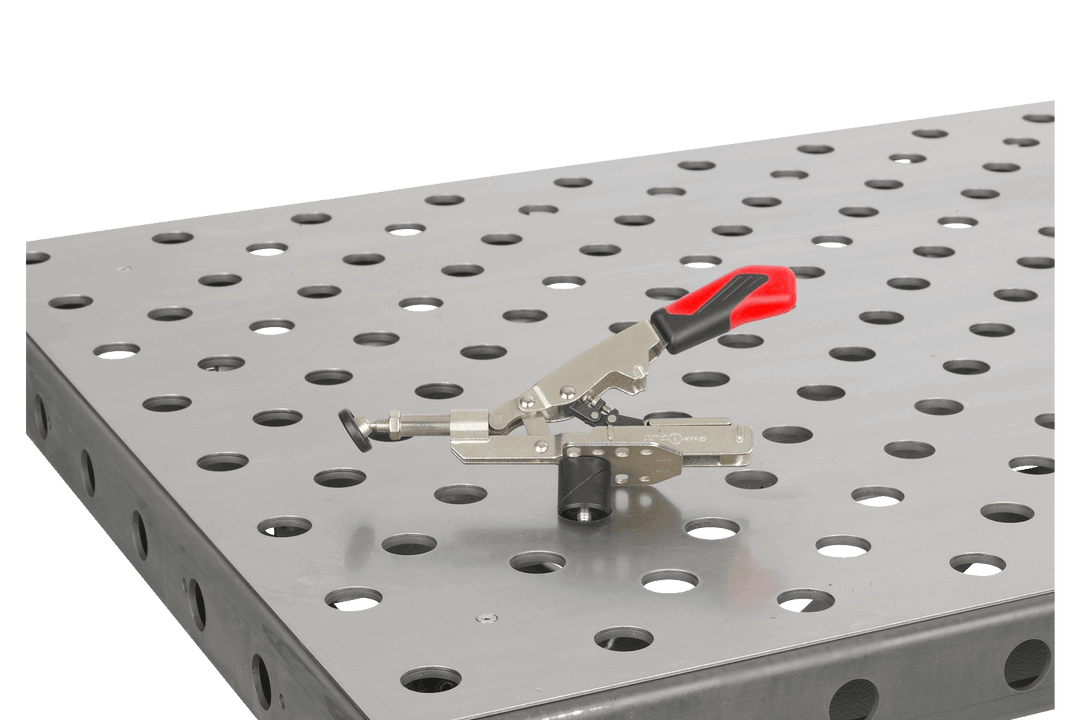

RUWI welding table Leg table, perforated plate Ø 28 mm, detail showing the assembled horizontal toggle clamp
RUWI Assembly and welding table Leg Table 1200 × 800 mm, Perforated Plate Ø 28 mm

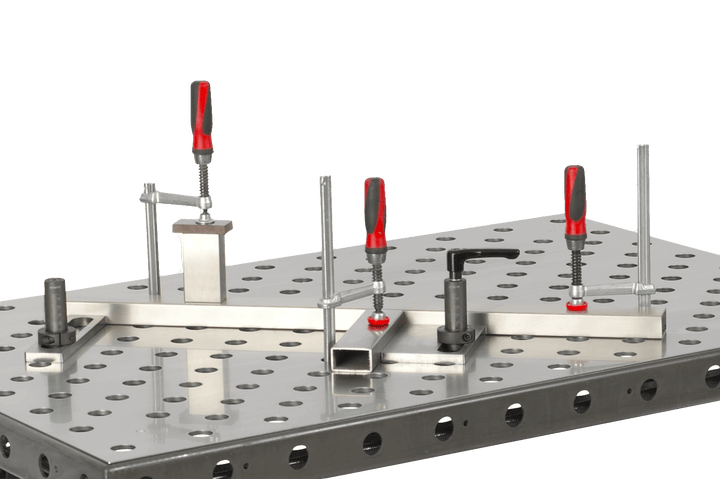

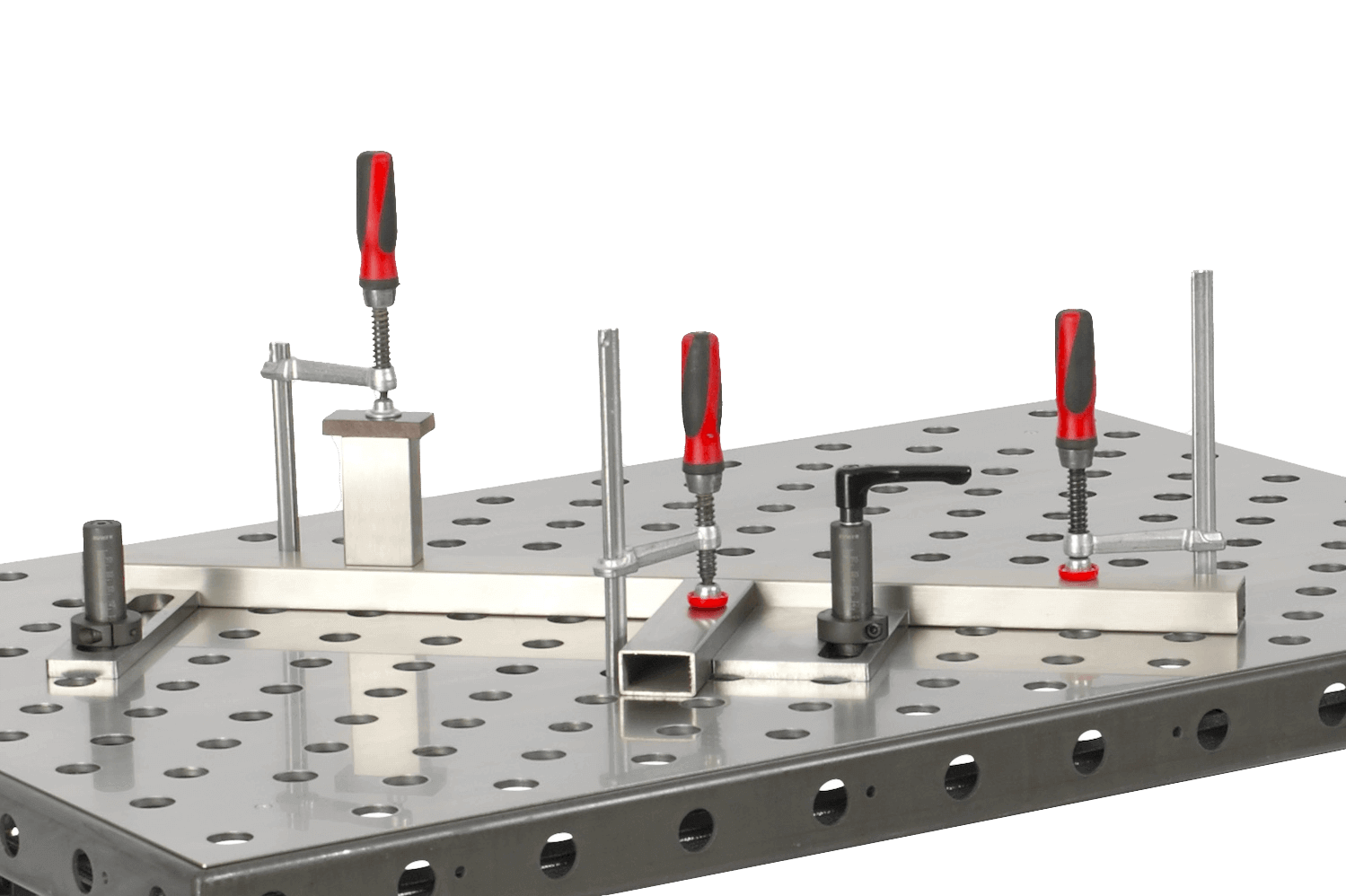

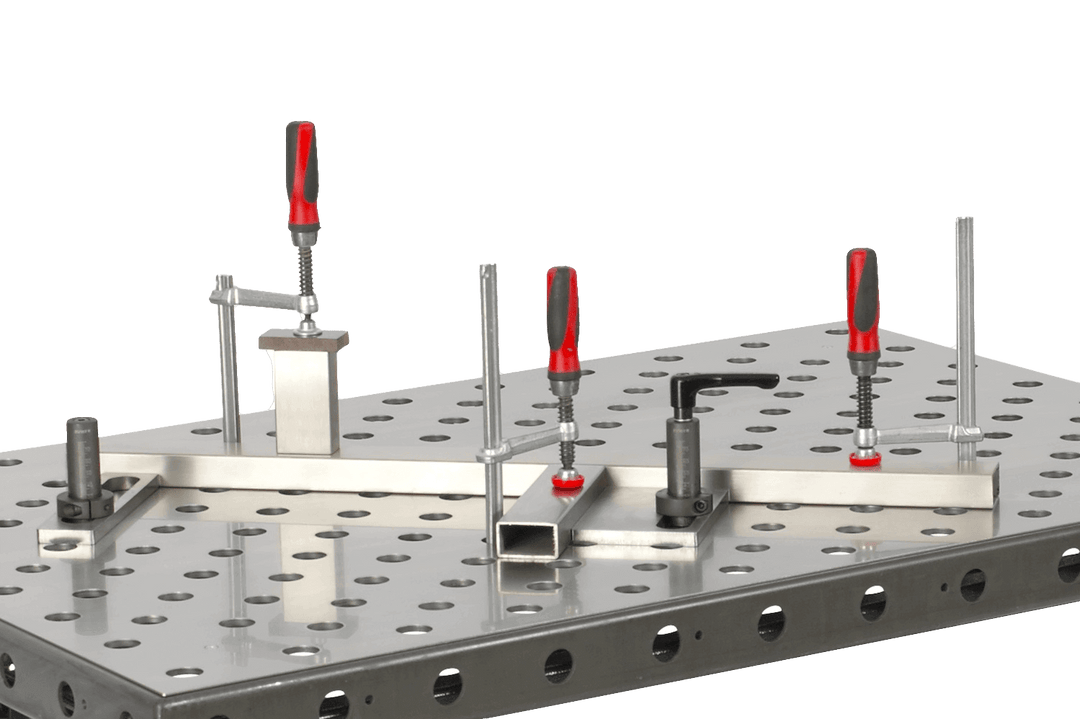

RUWI welding table Leg table, perforated plate Ø 28 mm, workpiece secured with several clamps

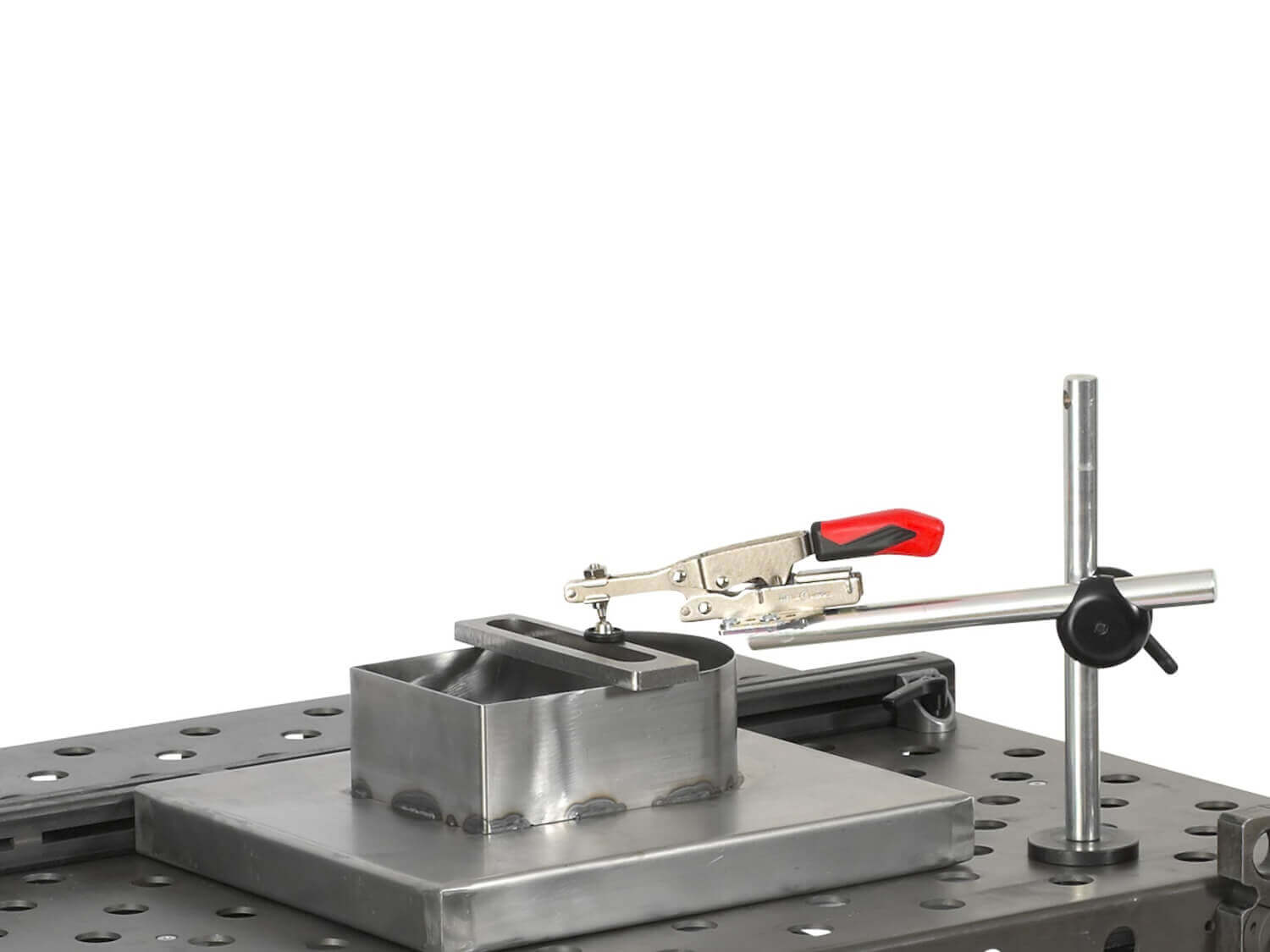

RUWI welding table Leg table, perforated plate Ø 28 mm, welded sheet metal box secured with horizontal toggle clamp
RUWI welding table Leg table 1,200 × 800 mm, perforated plate Ø 28 mm, cutout
RUWI Assembly and welding table Leg Table 1200 × 800 mm, Perforated Plate Ø 28 mm
RUWI welding table Leg table, perforated plate Ø 28 mm, detail showing the assembled horizontal toggle clamp
RUWI Assembly and welding table Leg Table 1200 × 800 mm, Perforated Plate Ø 28 mm
RUWI welding table Leg table, perforated plate Ø 28 mm, workpiece secured with several clamps
RUWI welding table Leg table, perforated plate Ø 28 mm, welded sheet metal box secured with horizontal toggle clamp

RUWI Assembly and welding table Leg Table 1200 × 800 mm, Perforated Plate Ø 28 mm

RUWI21078

€1.768,21
/
Includes sales tax Plus shipping costs
Calculated for your business
≈ €1,040 net for your business
after input tax and depreciation · €1,768.21 gross
Calculate using your tax rate →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped on a pallet via Schenker freight forwarder
• Dimensions: 1,220 × 820 × 320 mm
• Weight: approx. 104 kg

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The RUWI welding table leg table is a sturdy welding and clamping table with a Ø-28-hole grid (1,200 × 800 mm) for workpieces weighing up to 500 kg. The work surface is a 4-mm-thick, phosphated steel plate—folded at the edges, welded at the corners, and reinforced on the underside with a stiffening cage that keeps the plate flat and stable. phosphated It withstands welding heat and spatter, is rust-protected, and provides good adhesion for the weld metal.

The table stands on four height-adjustable articulated legs: This allows you to adjust the working height to a height between 86 and 93 cm and keep it stable even on uneven floors. You can connect multiple leg tables together using the holes to expand the work surface. Weighing 77 kg, it’s also lighter than the weldinglifting table and can be moved as needed.

Here's how to use it

  • Supporting heavy assemblies: 500 kg load capacity support frames, beams, and machine parts—the stiffening cage keeps the plate level even under load.
  • Level it on the workshop floor: the four adjustable feet compensate for slopes and unevenness—the table stands firmly, and the level is correct.
  • Connect tables in a line: Use the holes to screw multiple tables with legs together to form a continuous work surface—for long workpieces and growing orders.
  • Clamp all around: The Ø-28 grid accommodates clamps, clamping bolts, and tensioners at any position—even in the middle of the panel, where there is no table edge.

Does this fit in your workshop?

The Ø-28-hole grid is compatible with the RUWI welding clamping system: TW 16 screw clamp, Ø 28 Vario clamping bolt, vertical and horizontal toggle clamp as well as the eccentric clamp; the RUWI welding tables.

If you need stepless height adjustment and casters, the RUWI welding table lifting table (46–106 cm, up to 300 kg) is the mobile option; if you already have a base frame, the Ø 28 welding table top is available separately.

All the details

Table and Work Surface
Table Dimensions: 1,200 × 800 mm
Worktop: Steel, 4 mm, phosphated
net weight : approx. 77 kg

Clamping system
hole grid : Ø 28 mm

Height and stability
working height : 86 to 93 cm, via height-adjustable swivel feet
Load capacity: base frame to 500 kg

★★★★★
