TW 16 clamp with adapter washer and clamping bolt Ø 20 mm - RUWI | Tools for Woodworking Professionals

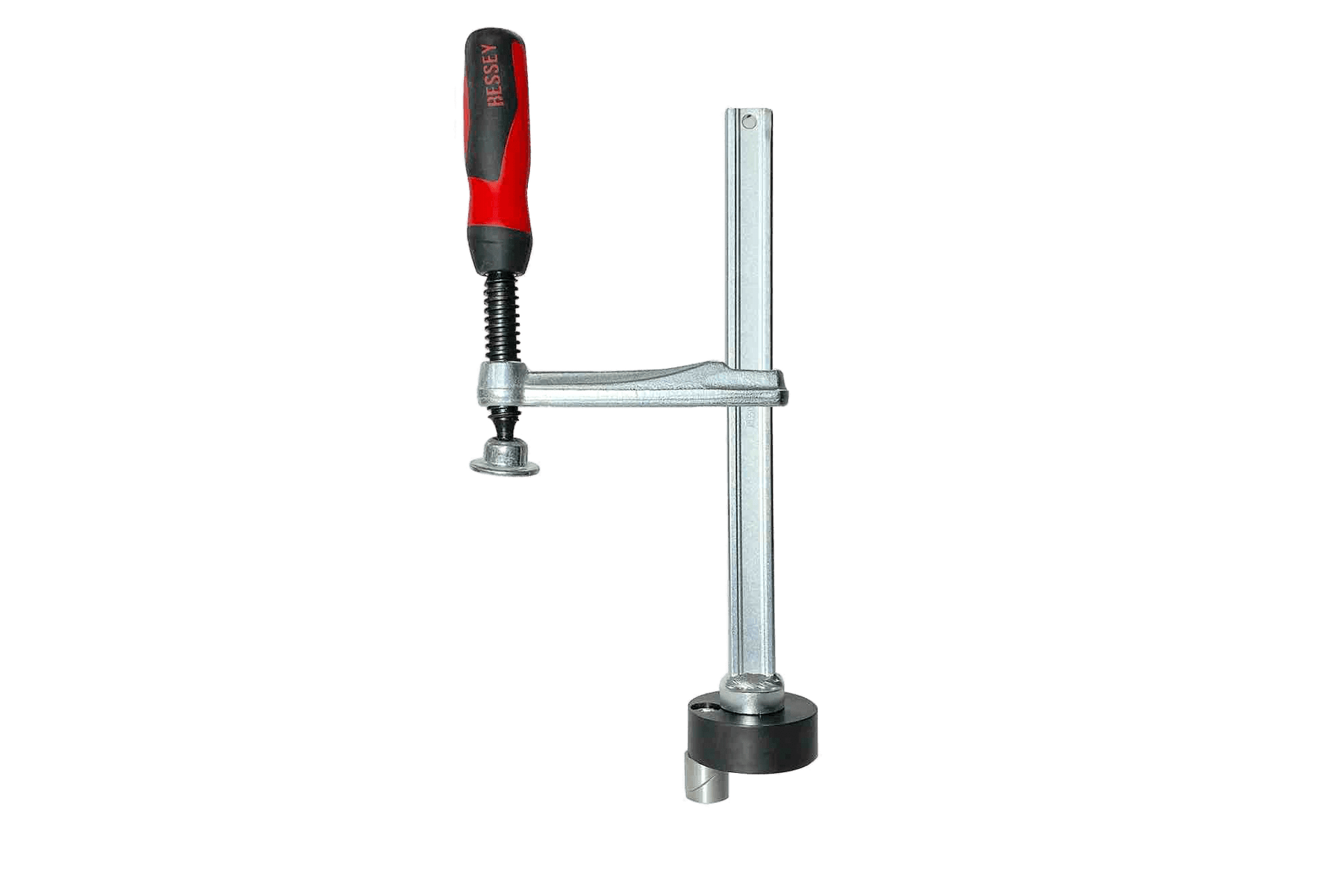

Bessey Screw Clamp 200 mm TW 16 clamping bolt Ø 20 mm

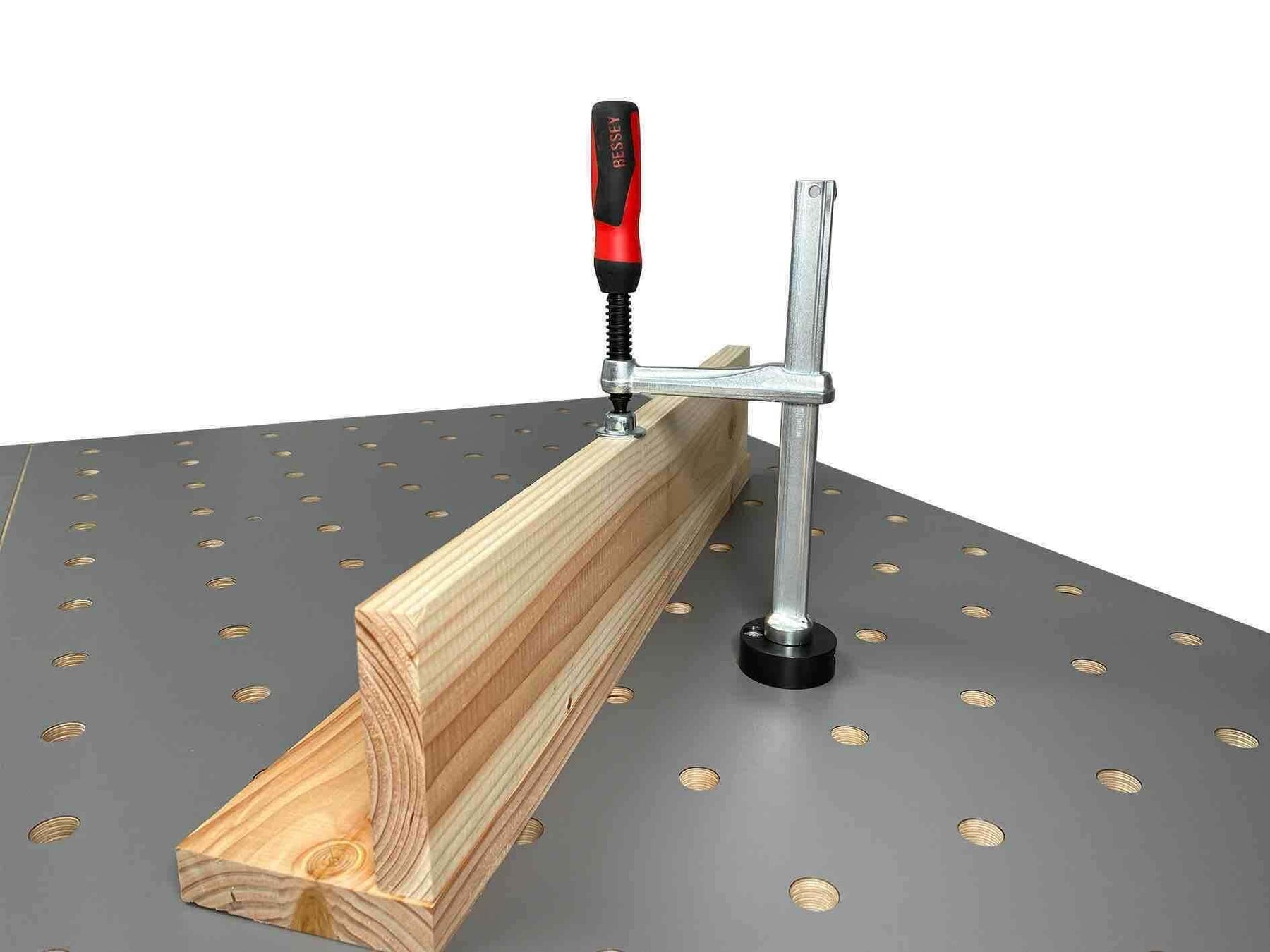

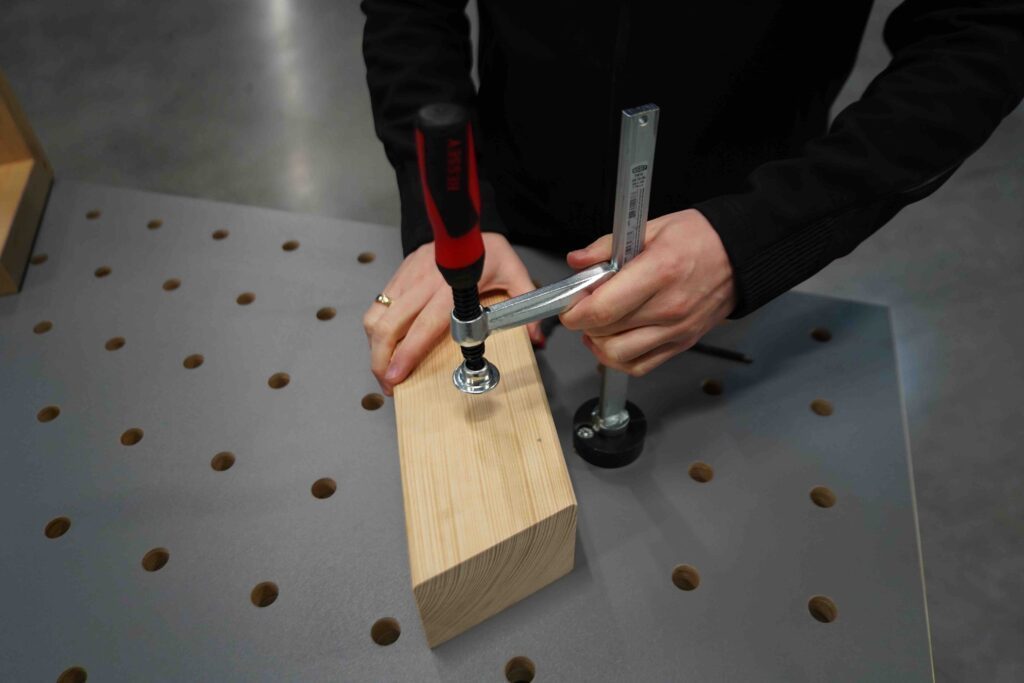

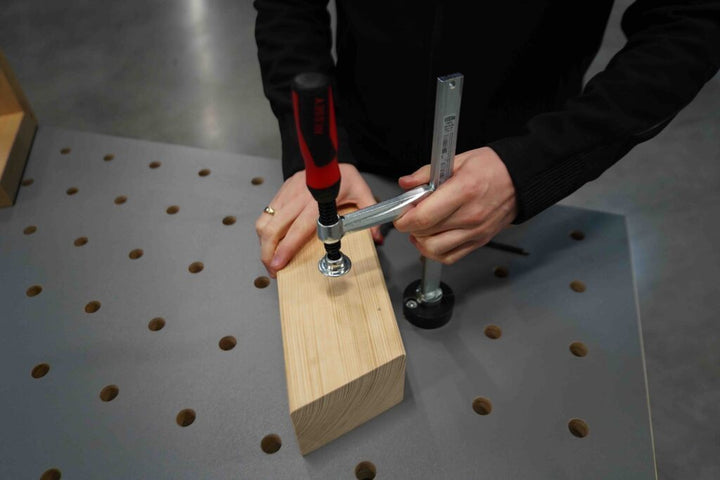

Clamp TW 16, when tightening with an Allen wrench over a workpiece on the perforated plate

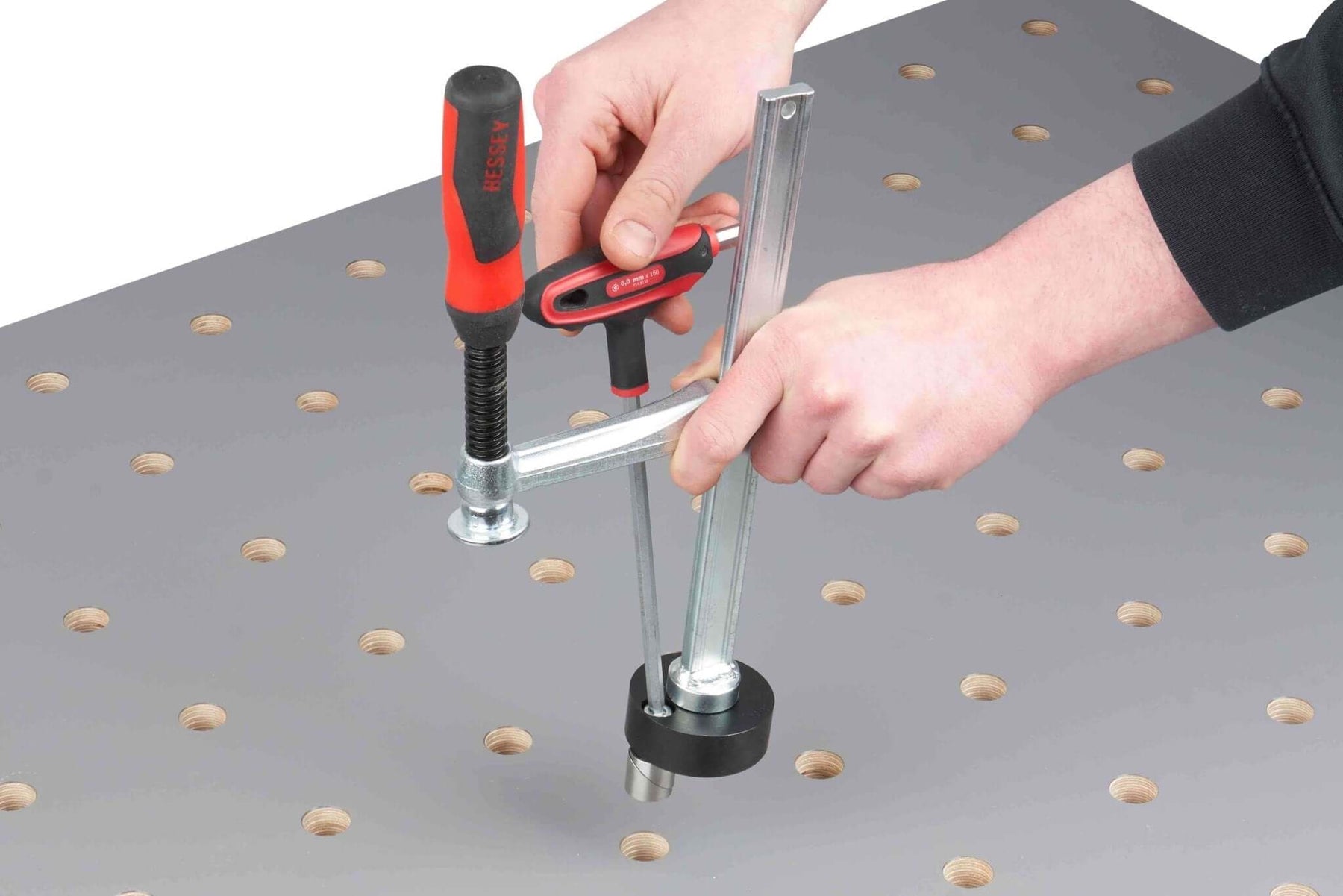

Zwinge TW 16, install the adapter washer using a 20-mm hex keyhole grid

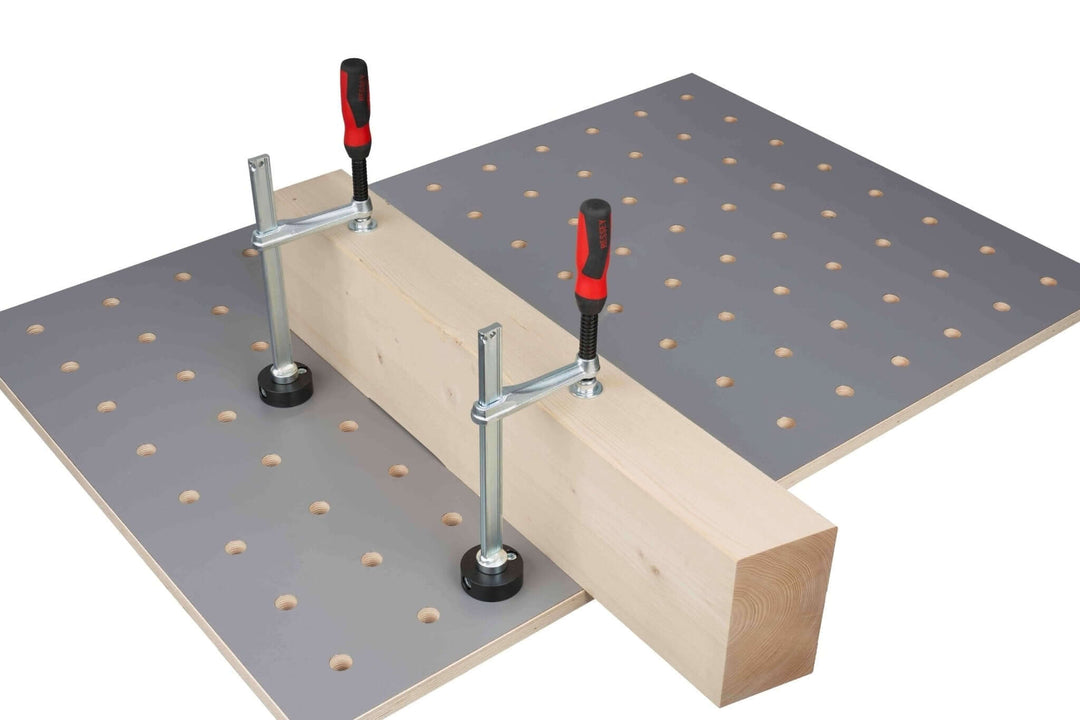

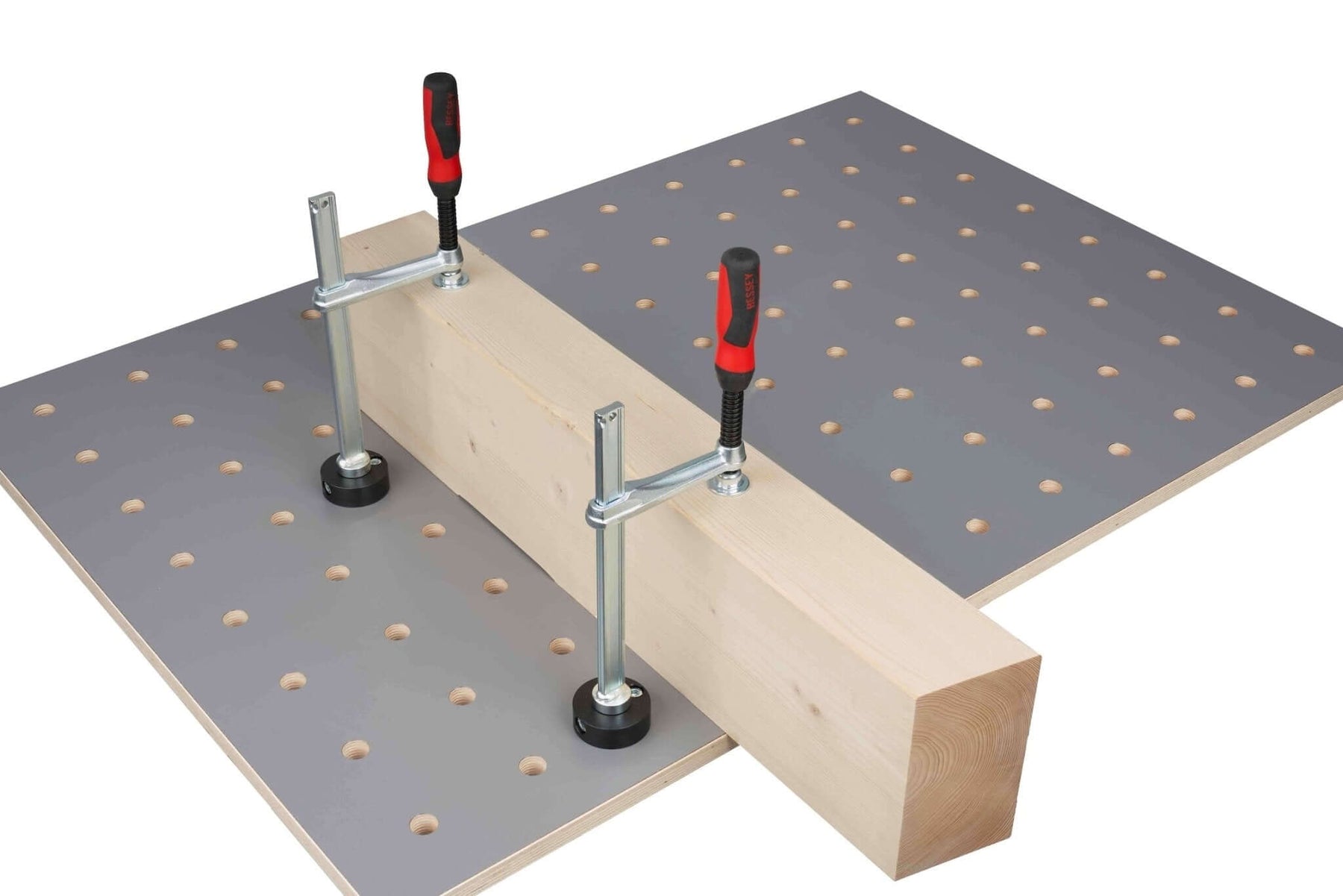

Clamp TW 16: Two clamps secure a long workpiece in the 20-mm-hole grid
TW 16 clamp with adapter washer and clamping bolt Ø 20 mm - RUWI | Tools for Woodworking Professionals
Bessey Screw Clamp 200 mm TW 16 clamping bolt Ø 20 mm
Clamp TW 16, when tightening with an Allen wrench over a workpiece on the perforated plate
Zwinge TW 16, install the adapter washer using a 20-mm hex keyhole grid
Clamp TW 16: Two clamps secure a long workpiece in the 20-mm-hole grid

Bessey Screw Clamp 200 mm TW 16 clamping bolt Ø 20 mm

RUWI27706

€113,31
/
Includes VAT Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase—provided the item can be used on its own; accessories are capitalized along with the machine (Section 6(2) of the Income Tax Act) · €113.31 gross

Calculate based on your tax rate and delivery month →Which lifting table does this fit? Go to the configurator →

Business, 30% tax rate, delivery this month. Special depreciation under Section 7g requires a maximum profit of €200,000 in the previous year—above that amount, only declining-balance depreciation applies. This is for informational purposes only and does not constitute tax advice.

  • Made in Germany
  • Developed by carpenters in Fluorn-Winzeln
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The Bessey TW 16 screw clamp, with a 200 mm clamping width and 100 mm reach, is the powerful clamping element for the 20-mm hole grid. Using the adapter disc (Ø 60 mm) mounted by RUWI with a clamping bolt Ø 20 mm, you can secure it in any 20-mm hole: A half-turn with the Allen wrench secures the disc firmly in the table, and then the clamp holds your workpiece down from above.

The TW 16 clamps with up to 3,000 N (according to Bessey) — significantly more than tool-free lever clamps. The real advantage over a standard screw clamp is its positioning: You can anchor it at any grid hole, even in the middle of the table top, where the reach of a conventional clamp falls short. The adapter disc distributes the pressure and protects the hole edges and surface.

Here's how to use it

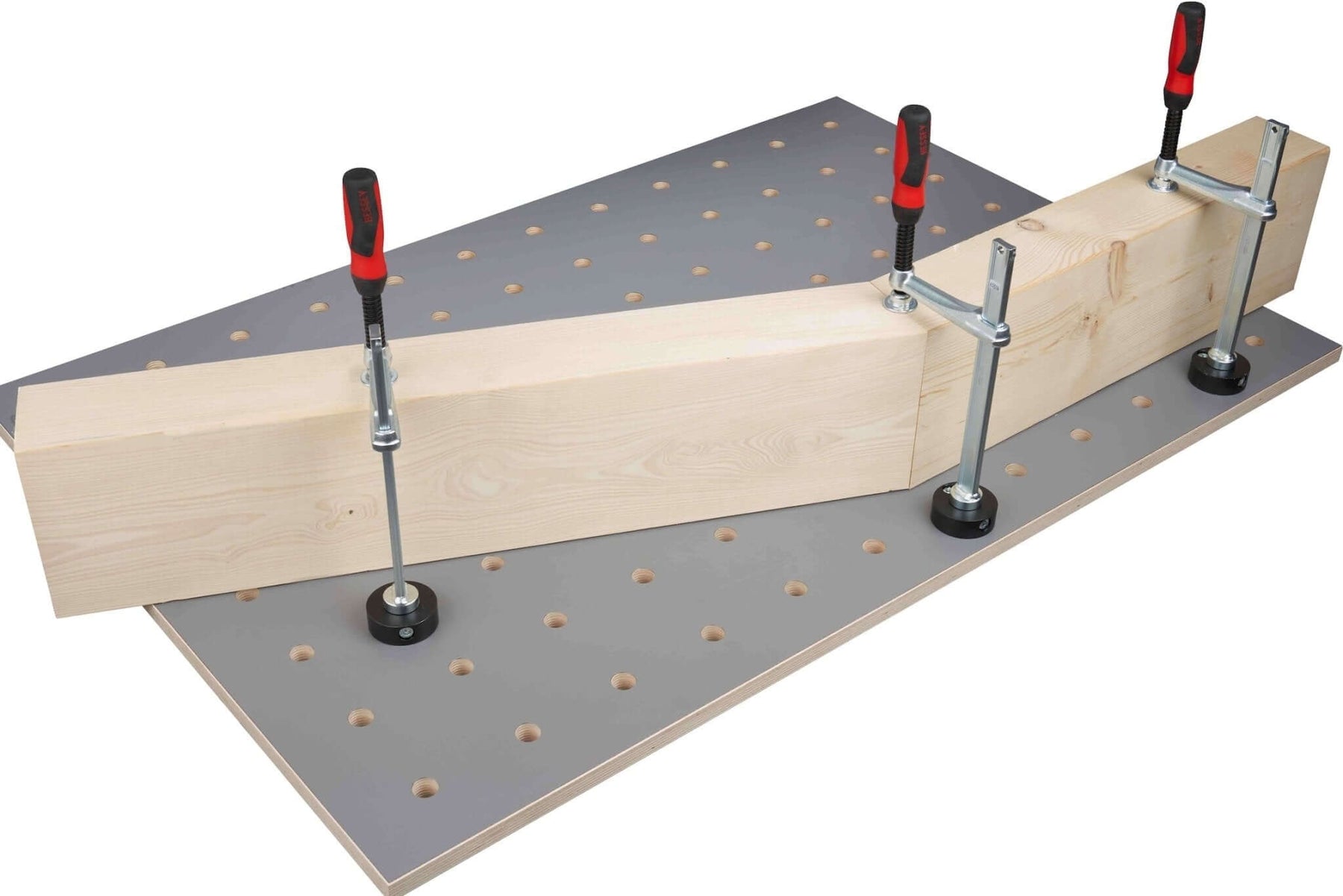

  • Straightening warped boards: anchor the clamp in the middle of the table top and press down with full force—the 3,000 N hold what lever clamps cannot.

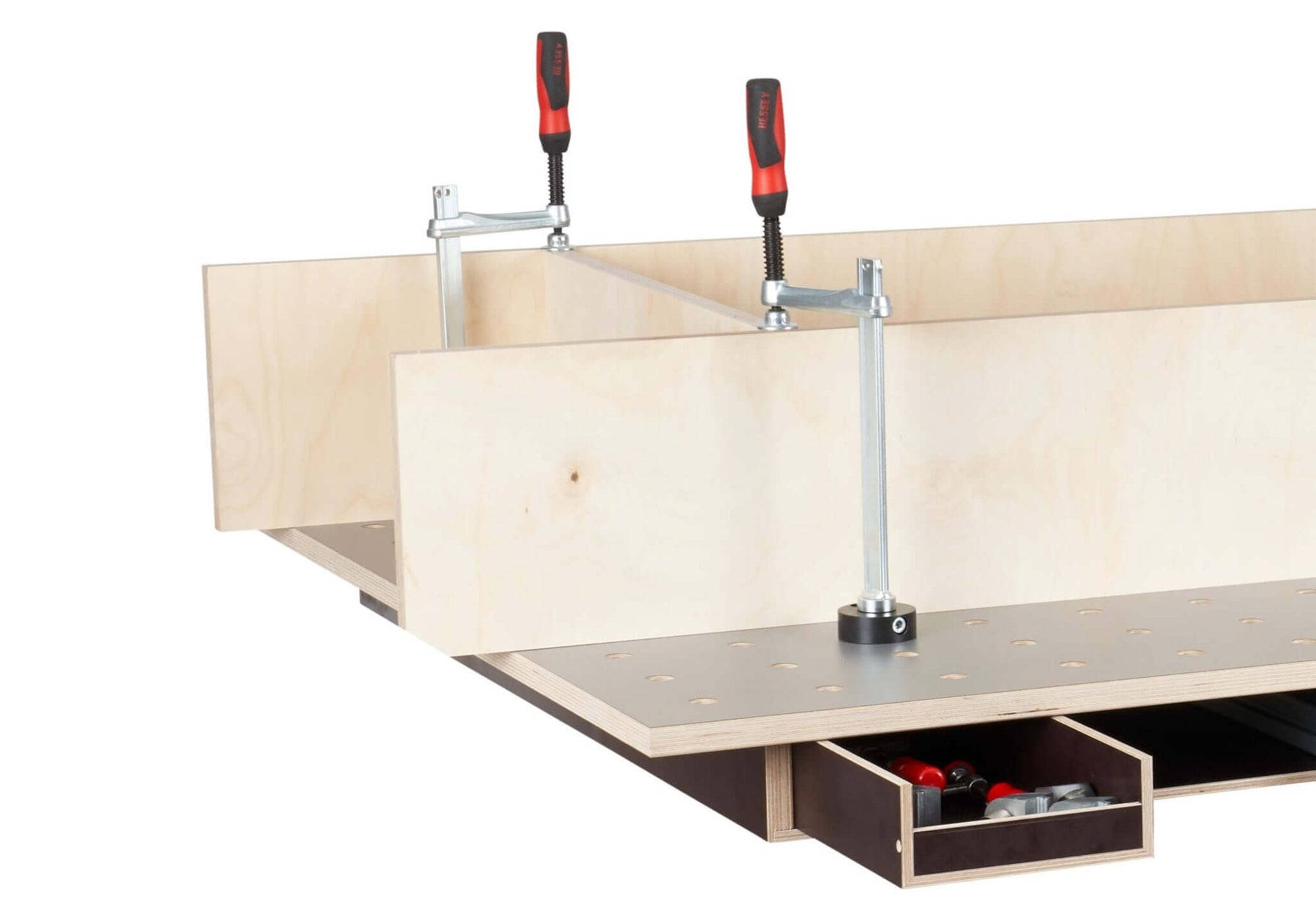

  • Gluing and assembly: Apply pressure exactly where the glue joint is located—regardless of the table edge.
  • Clamping tall workpieces: The 200-mm clamping width accommodates even thick assemblies and shims, and the 100-mm reach extends beyond the edge.
  • Quick to do: Loosen by half a turn, move to the next hole, tighten by half a turn—the clamping point moves along with the glue sequence.

Does this go with your table?

The clamping bolt fits into any 20-mm hole grid – any RUWI lifting table, Festool MFT, Sauter Variobench, and homemade workbenches. For welding tables and other grid sizes, the same clamp is available with clamping bolt Ø 16 or Ø 28 mm.

If you need it to be faster and tool-free and can get by with less force, the vertical toggle clamp and horizontal toggle clamp are the alternatives—flip a lever instead of screwing.

All the details

Clamping range
Clamping width: 200 mm
Reach: 100 mm
Clamping force: up to 3,000 N (manufacturer's specification, Bessey)

Handle and rail
Handle: 2-component plastic
Rail: 22 × 8.5 mm

Adapter and clamping system
Adapter disc: Ø 60 mm
Clamping bolt: Ø 20 mm, for hole grid Ø 20 mm

Weight
Net weight: approx. 1.38 kg

★★★★★
