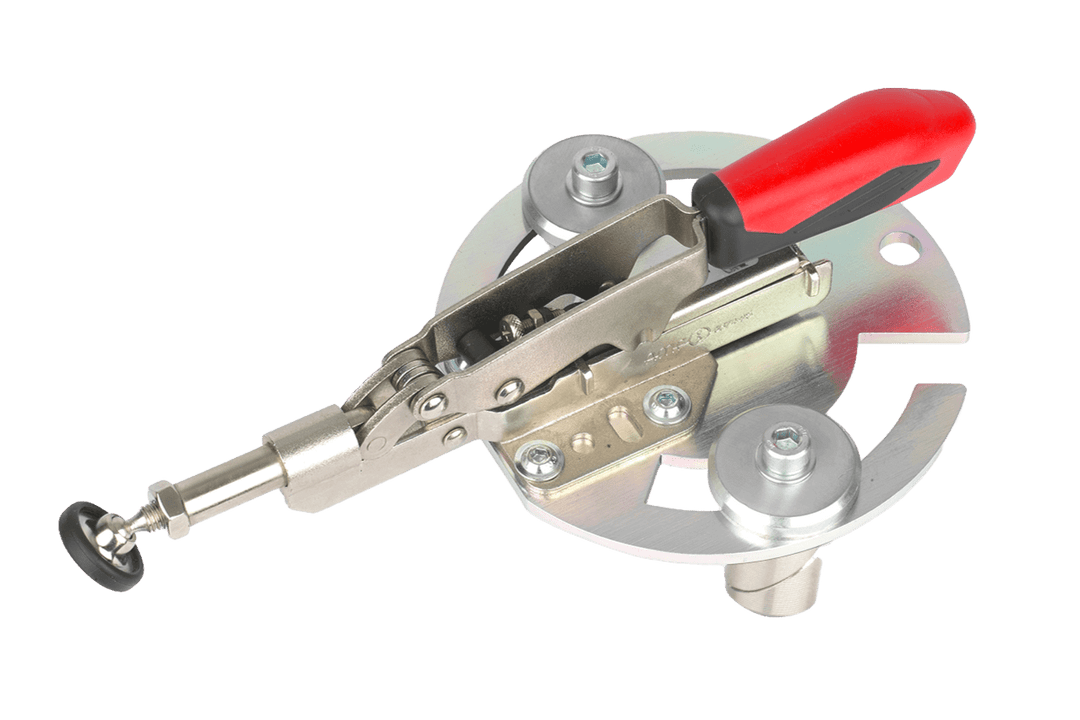

RUWI horizontal toggle clamp with round “ adapter plate ” and “ clamping bolt ” (20 mm diameter), cutout at an angle from the front
horizontal toggle clamp with round adapter plate and clamping bolt , Ø 20 mm

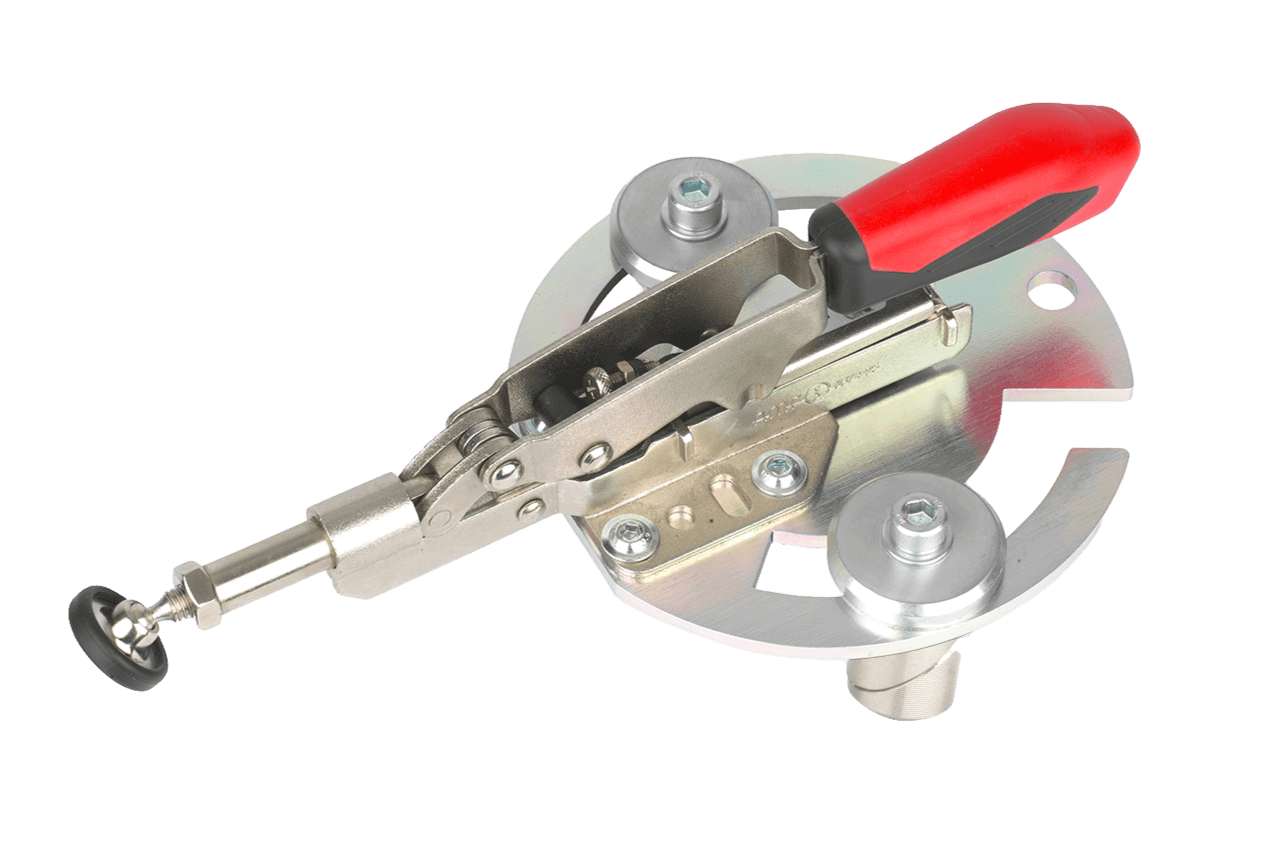

RUWI horizontal toggle clamp with round “ adapter plate ” and “ clamping bolt ” (20 mm diameter), cutout at an angle from the front
horizontal toggle clamp with round adapter plate and clamping bolt , Ø 20 mm

horizontal toggle clamp with round adapter plate and clamping bolt , Ø 20 mm

RUWI21153

€141,65
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €141.65 gross
Calculate using your tax rate →Which clamp holds your workpiece? Go to the finder →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

Which clamp holds your workpiece in place?

The Clamp Finder guides you from the workpiece to the right clamp.

Launch Finder →

The RUWI horizontal toggle clamp with adapter plate presses your workpiece horizontally against a stop or a second workpiece—the anti-rotation version for the 20-mmhole grid. The round adapter plate (Ø 140 mm) is secured to the grid with two stainless steelclamping bolt (Ø 20 mm, SW 6 Allen screw): Two anchor points hold the tensioner in place even under lateral forces, where a single bolt might twist.

Using the plate’s elongated hole, you can freely position the pressure point anywhere between the grid holes—you’re not limited to the 96-mm dimension. The stroke compensation accommodates material thicknesses up to 35 mm, 13 mm of which are supported automatically without readjustment; with a length of 253 mm, you can also reach clamping points further inside.

Here's how to use it

  • Clamping under shear force: whether milling up against the stop or machining bulky parts, the two-point clamping system keeps the workpiece aligned—nothing shifts out of place.
  • Set the pressure point freely: the long slot allows the clamp continuously to slide between two grid holes—the pressure is applied precisely to the glue joint or edge, not beside it.
  • Batch timing: Open the lever, set to 13 mm automatic return stroke, change the part, close the lever—the setting remains the same.
  • Clamping workpieces of varying thicknesses: the 35 mm stroke compensation can accommodate workpieces of different dimensions without having to reposition the bolts.

Does this go with your table?

The two clamping bolt fit into any 20-mmhole grid —including any RUWI lifting table , Festool MFT, Sauter Variobench, and homemade workbenches. From above, the vertical toggle clamp holds with adapter plate; if a single anchor point is sufficient, the horizontal toggle clamp with a clamping bolt is the more compact solution. The positioning angle.

All the details

Dimensions and Function
Length: 253 mm
Weight: 1.2 kg
stroke compensation : up to 35 mm, automatic 13 mm
adapter plate : round, Ø 140 mm, with slotted hole

Clamping System
hole grid : Ø 20 mm
clamping bolt : stainless steel, Ø 20 mm, with Allen screw

★★★★★
