horizontal toggle clamp round adapter plate clamping bolt 20 mm)

Brief description

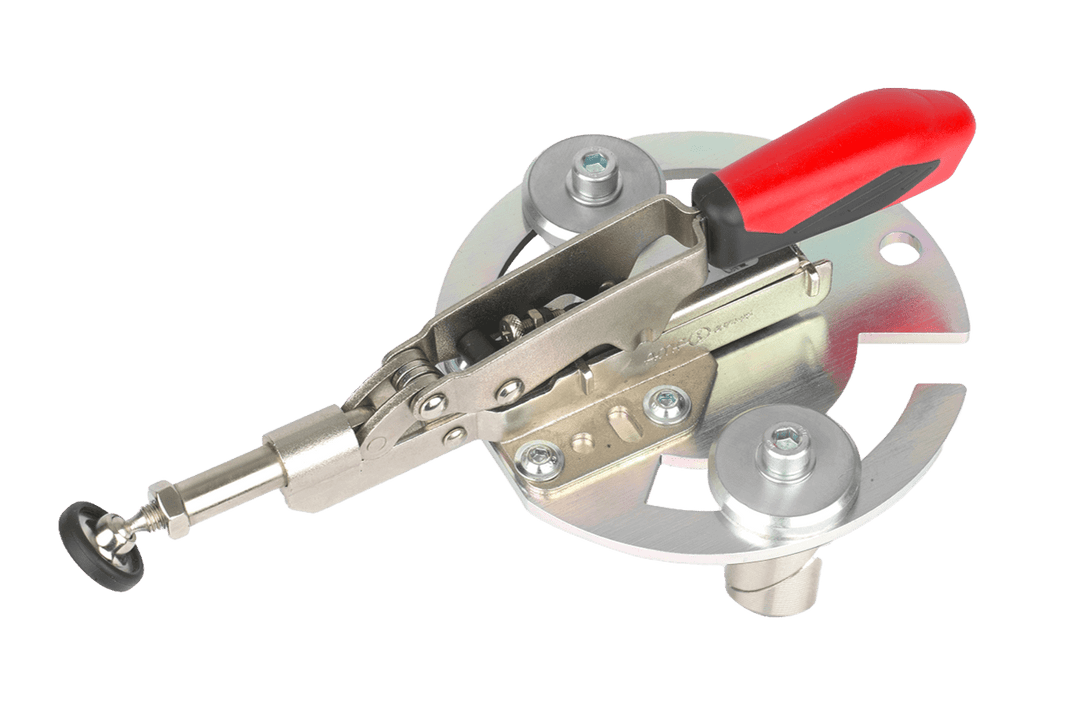

The RUWI horizontal toggle clamp adapter plate your workpiece horizontally against a stop or a second workpiece—forhole grid. The round adapter plate Ø 140 mm) is secured to the grid with twoclamping bolt Ø 20 mm, hex socket screw SW 6): two anchor points keep the clamp from rotating, even under lateral forces. You can freely position the pressure point using the plate’s elongated hole.

The stroke compensation material thicknesses up to 35 mm, 13 mm of which are adjusted automatically without the need for readjustment—this speeds up the changeover when you’re clamping and unclamping many identical parts. With a length of 253 mm, you can also reach clamping points further inside.

From above, the vertical toggle clamp is secured vertical toggle clamp adapter plate. If you need the horizontal toggle clamp adapter plate—attached directly with a clamping bolt—the horizontal toggle clamp hole grid is the sleek solution; the positioning angleserves as a fixed counterholder. You can find additional clamping accessories in lifting table.

Applications

• Press workpieces horizontally against a stop or another workpiece
• Round adapter plate Ø 140 mm) with a slot—position the pressure point freely
• Twoclamping bolt Ø 20 mm) – secure, twist-resistant hold, even under lateral forces
• stroke compensation 35 mm, of which 13 mm is automatic without readjustment
• Length 253 mm, fits any table withhole grid

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and weight
- Length 253 mm
- Round adapter plate 140 mm with slotted hole
- net weight . net weight kg

• Clamping mechanism and function
- Maximum stroke compensation mm
- Automatic stroke compensation mm

• clamping bolt clamping system
- Twoclamping bolt 20 mm, with Allen screws (SW 6)
- Compatible with thehole grid
