vertical toggle clamp clamping bolt 20 mm

Brief description

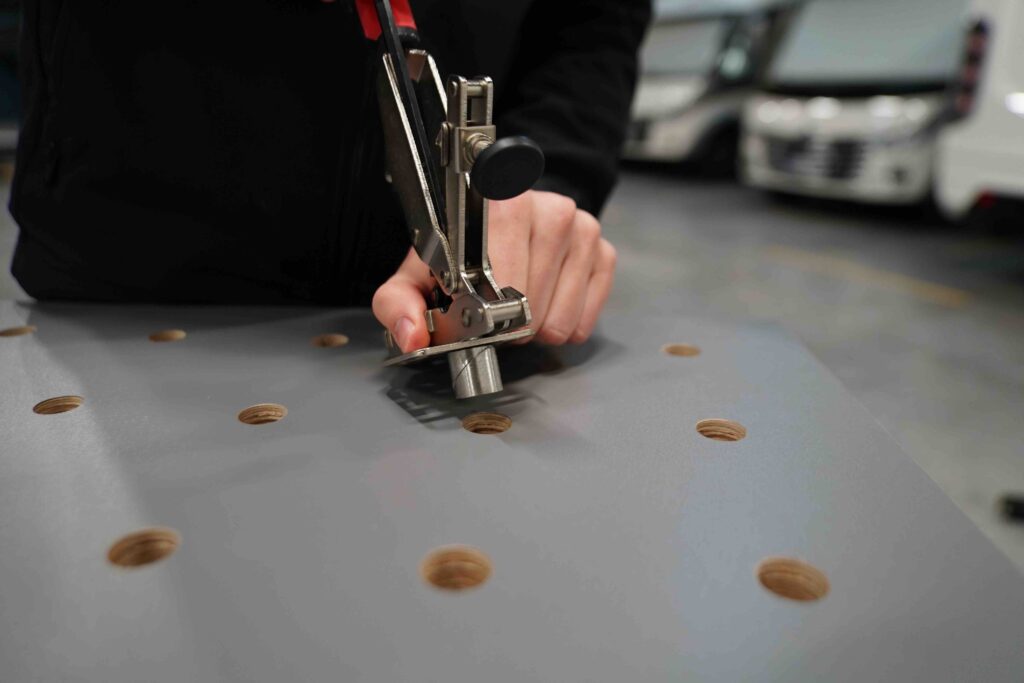

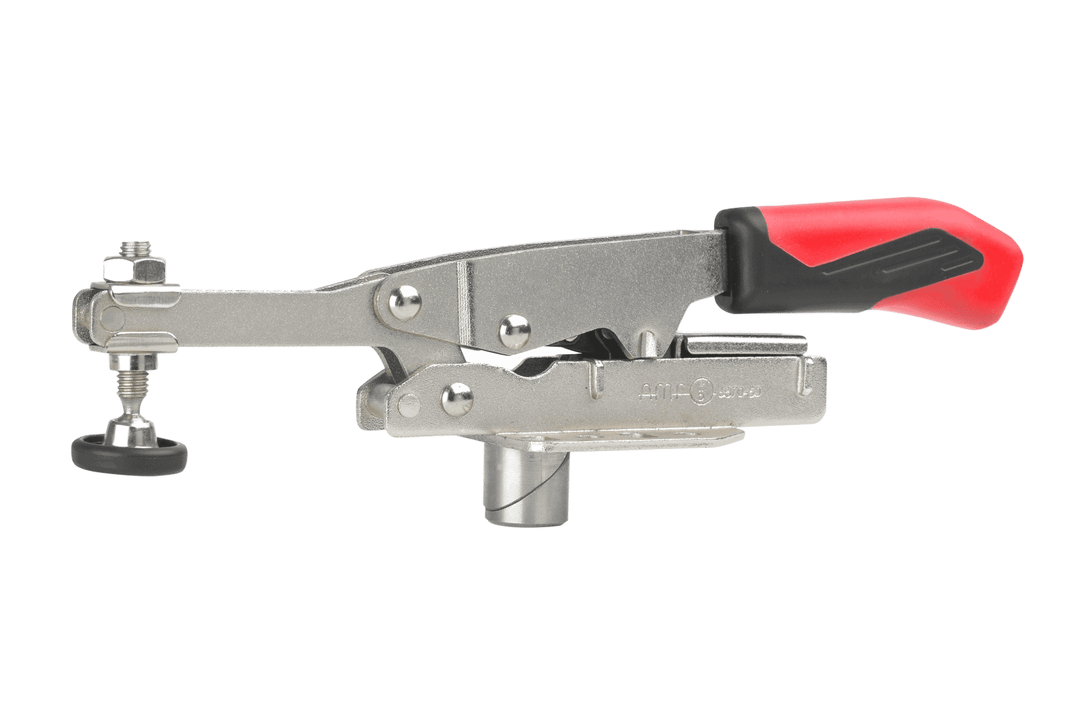

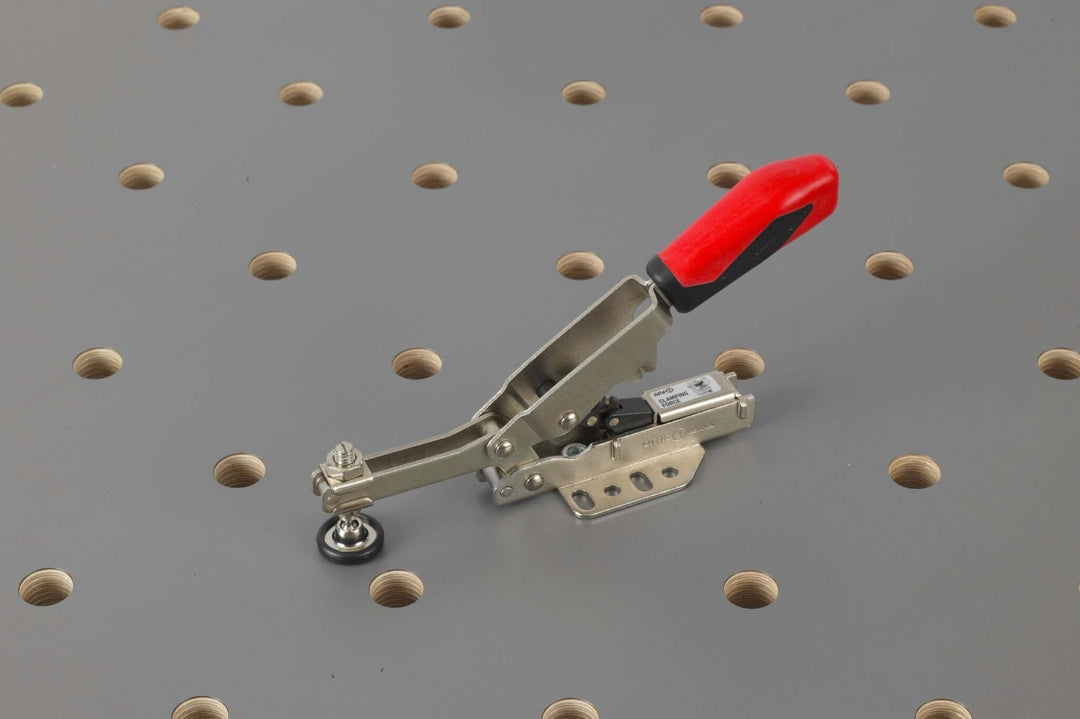

The RUWI vertical toggle clamp your workpiece in place on the table from above—a toggle clamp thehole grid. You can secure it at any grid position using theclamping bolt an Allen screw (SW 6). With a length of 244 mm, it easily spans panels, frames, and individual parts that you want to securely clamp in place while milling, drilling, or sawing.

Its advantage is the continuously height adjustment of up to 40 mm: Once roughly set, the lever compensates for varying material thicknesses without you having to retool. When opening, the arm automatically retracts 35 mm and releases the workpiece – this makes changes quick, especially when you're clamping and releasing many identical parts consecutively.

If you need more clamping force are using a screw for that purpose, the Bessey TW16 screw clamp is the more powerful alternative; you tighten it against a stop on the side using the horizontal toggle clampagainst a stop on the side. The vertical toggle clamp any RUWI lifting table any table with a 20-mm standard. You can find additional clamping accessories in thelifting table.

Applications

• Hold down workpieces from above – panels, frames, and individual parts when milling, drilling, or sawing.
• Continuously adjustable height compensation up to 40 mm – for varying material thicknesses without retooling
• automatic return stroke mm automatic return stroke during opening – fast workpiece change, even during continuous production
• Secure it using theclamping bolt an Allen screw (SW 6) in the 20-mm hole

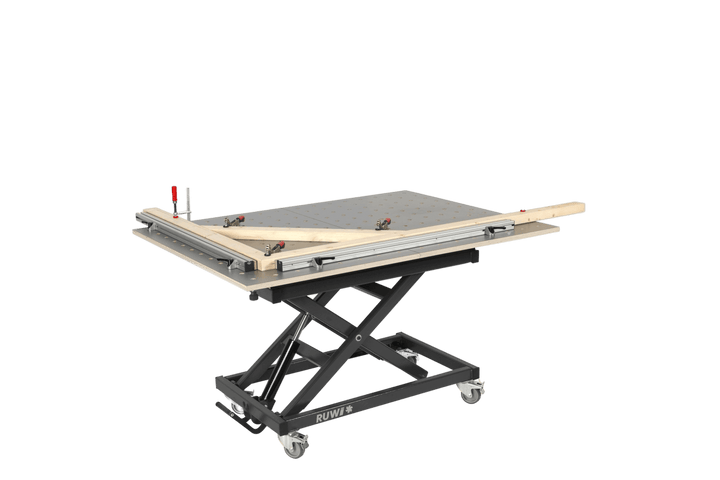

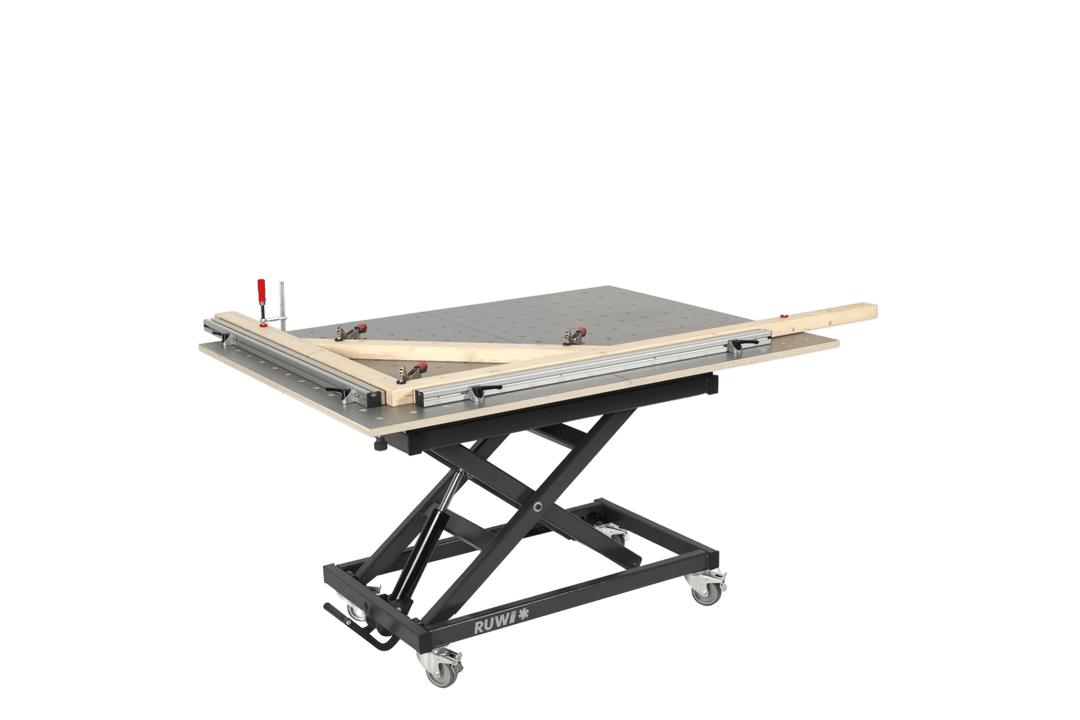

• Compatible with any RUWI lifting table any table with a 20-mm standard

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and Weight
- Length 244 mm
- net weight . net weight kg

• Function and compensation
- Stepless height adjustment for different material thicknesses
- Max. compensation 40 mm, automatic return stroke mm

• Clamping system and clamping bolt
- Compatible with thehole grid
-clamping bolt 20 mm with Allen screw
