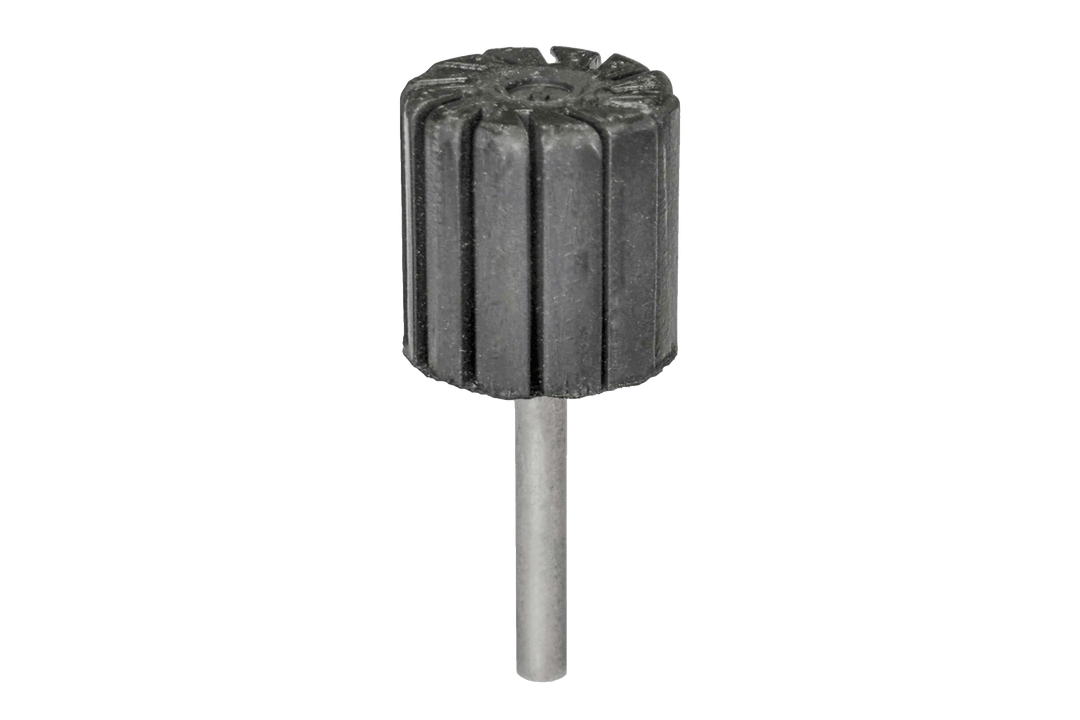

RUWI Sanding drum, Ø 30 mm, with shank, slotted backing

Sanding drum, Ø 30 mm, height 30 mm, shank 6 mm

RUWI30525

Regular price€21,50
/
Includes VAT Plus shipping costs

€18.07 (net)

  • Artisan Quality
  • Advice from a Master Carpenter
  • Fast and Reliable Shipping
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

• 1 × sanding drum, Ø 30 mm, height 30 mm

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

The sanding drum is a slotted holder (Ø 30 mm) onto which you slide a sanding sleeve. This allows you to cleanly sand inner radii, drill holes, and cutouts. With the sleeve attached, you’ll be working with a diameter of approximately Ø 33 mm; the smallest inner radius is about R16.5.

The slot is the key to its design: when rotating, the carrier expands slightly and clamps the sleeve from the inside—it fits securely without glue or screws and can be removed and replaced while the machine is stationary. The shank (Ø 6 mm, steel with zinc-nickel coating) works in any machine with a 6-mm collet—important note: maximum 19,000 rpm.

Here's how to use it

  • Finishing cutouts: Smooth out the sawed-out openings for sinks, electrical outlets, and handles all the way to the curves—where an orbital sander can’t reach.
  • Smoothing Drill Holes: Forstner and hole saw drill holes with a diameter of 33 mm or larger are given smooth walls.
  • Changing the sleeve while stopped: remove the old one, slide on the new one, and continue sanding—switch from coarse to fine grit in seconds.
  • Guiding contours on the table: In the router table, the carrier stays fixed, and you guide the workpiece—resulting in even pressure and a consistent finish.

Will this fit your machine?

The shank requires a 6-mm collet—on the RUWI router tables, it is available as an optional collet; hand-held routers accept it directly. The key factor is the speed: no more than 19,000 rpm—turn the stepless speed control of the RUWI router tables down accordingly.

The appropriate sanding sleeve (Ø 30) is a wear part and is not included—it is available in grits 50, 80, and 150. For smaller radii starting at R9, use the sanding drum (Ø 15); additional tools are listed in the overview of RUWI milling tools.

All the details

Dimensions
Carrier diameter: Ø 30 mm
Outer diameter: 33 mm
Carrier height: 30 mm
Shank: Ø 6 mm, shank length 41 mm
Overall length: 71 mm

Drive
Speed: up to 19,000 rpm

Material
Shank: steel with zinc-nickel coating, slotted

Application
Usage: Internal radii and bores with a radius of 16.5 mm or greater
Collet: Ø 6 mm required
Sanding sleeve: Sold separately (grit sizes 50, 80, 150)

★★★★★
