RUWI Classic lift table with accessories used

Brief description

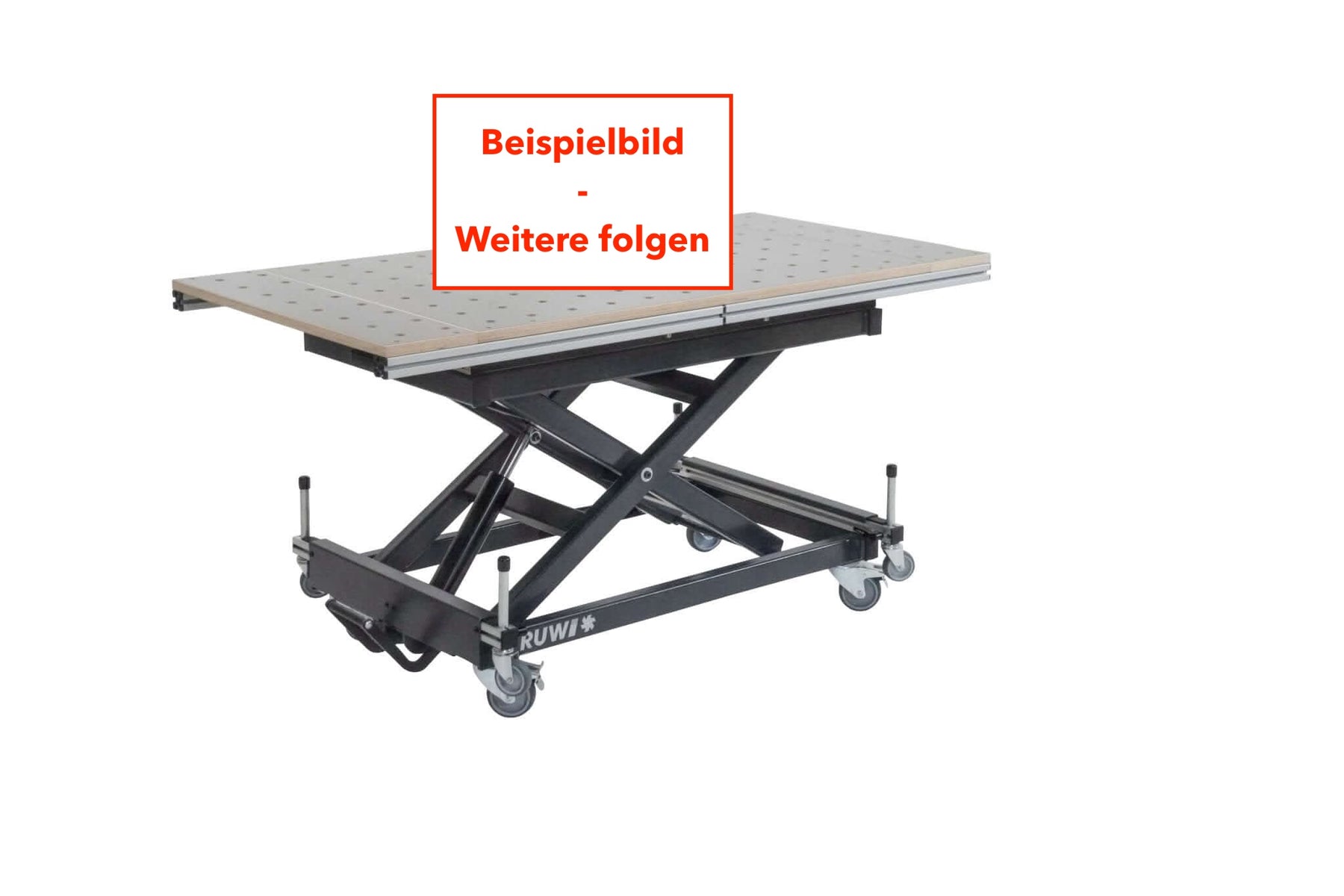

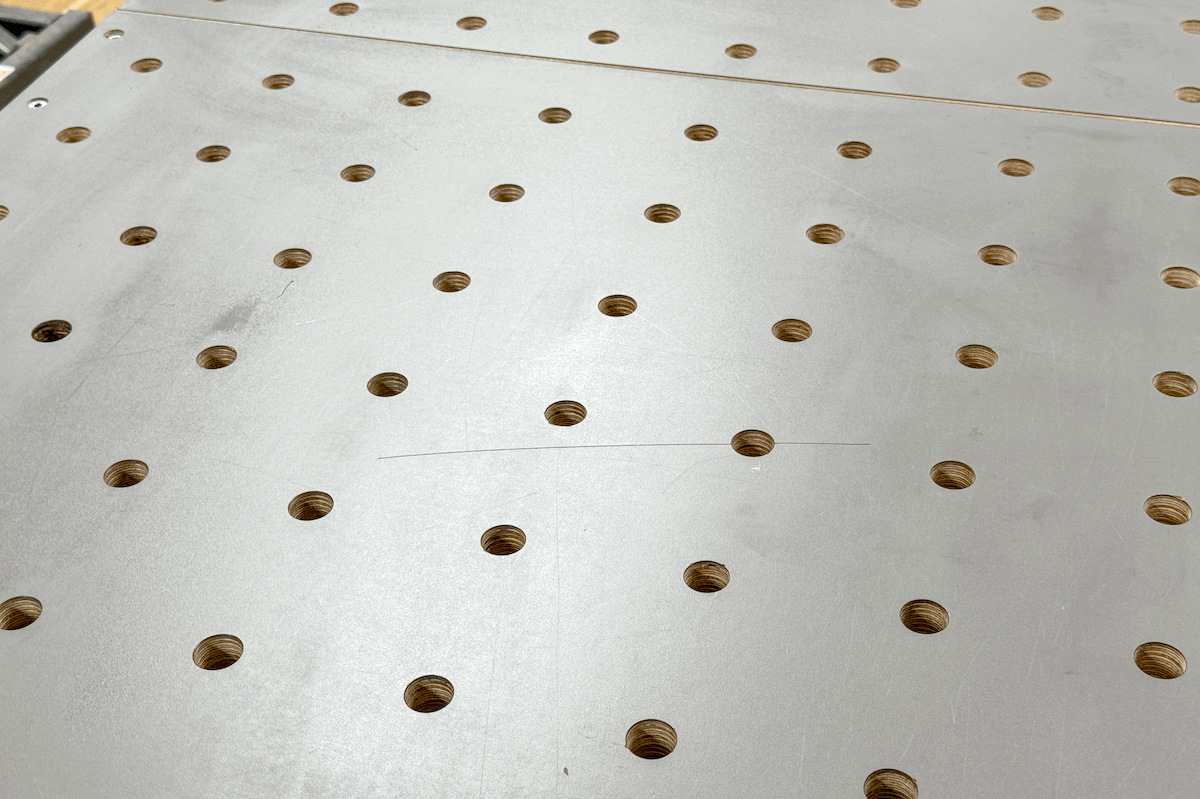

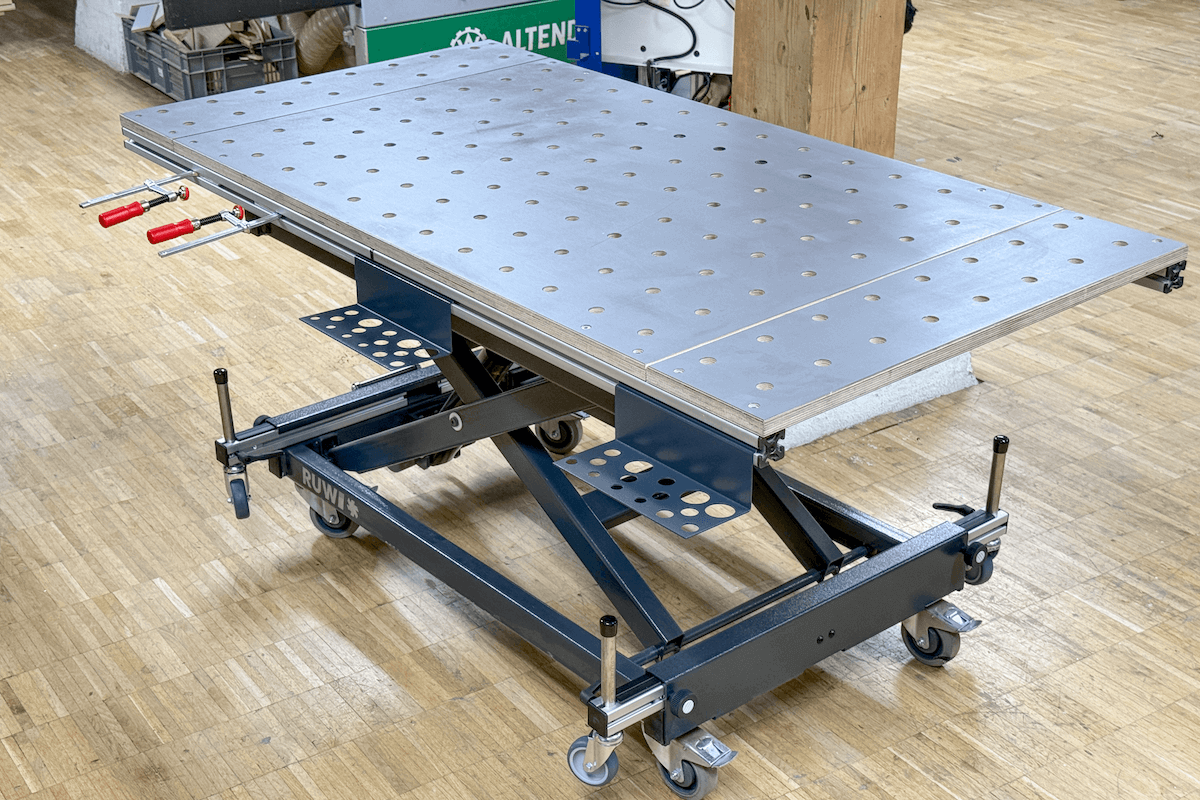

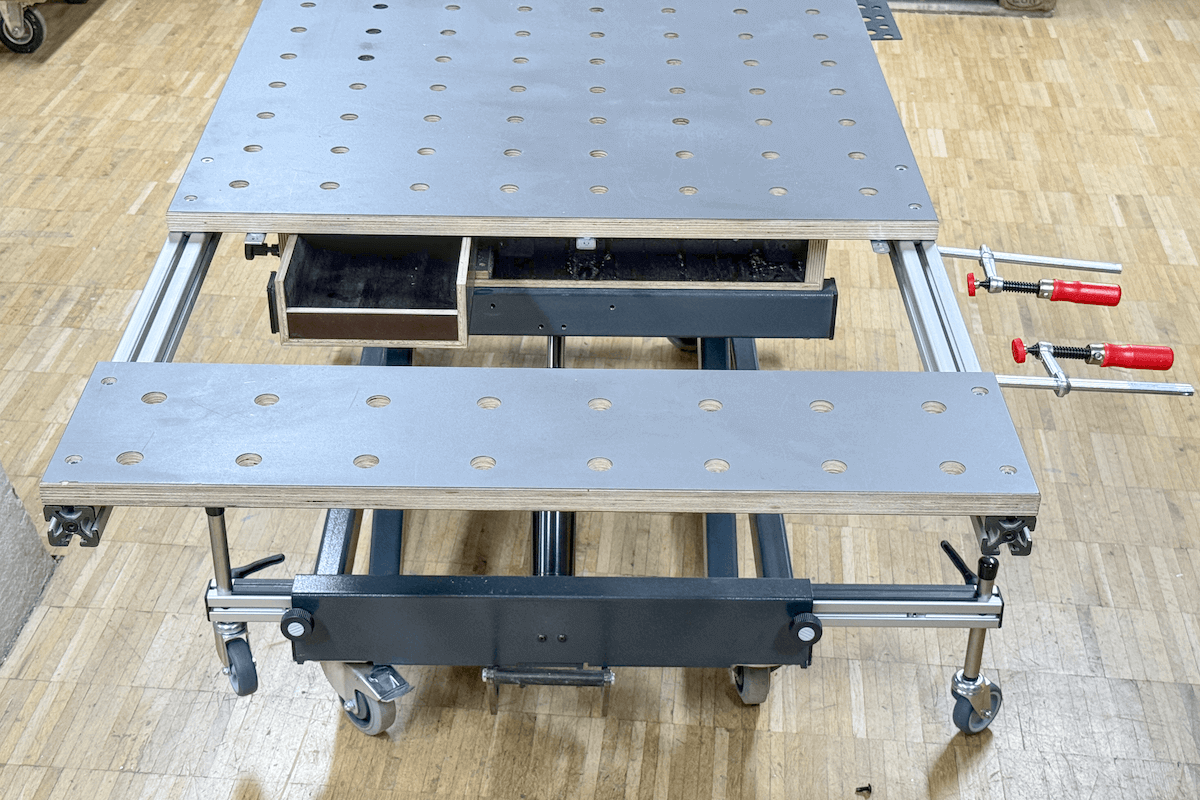

The RUWI Classic lift table combines maximum flexibility with practical organization. Its generous perforated grid top (160 x 80 cm) can be extended up to 220 cm and offers plenty of space for accessories with an integrated drawer. There are a few scratches and other signs of use on the surface of the perforated panel, but this does not affect its function. Workpieces can also be fixed vertically as the grooves in the side profiles are compatible with Bessey GTR and identical clamps. Thanks to its robust design and simple height adjustment (53-113 cm) using a foot pump, it quickly becomes an indispensable workshop solution - developed by makers, for makers.

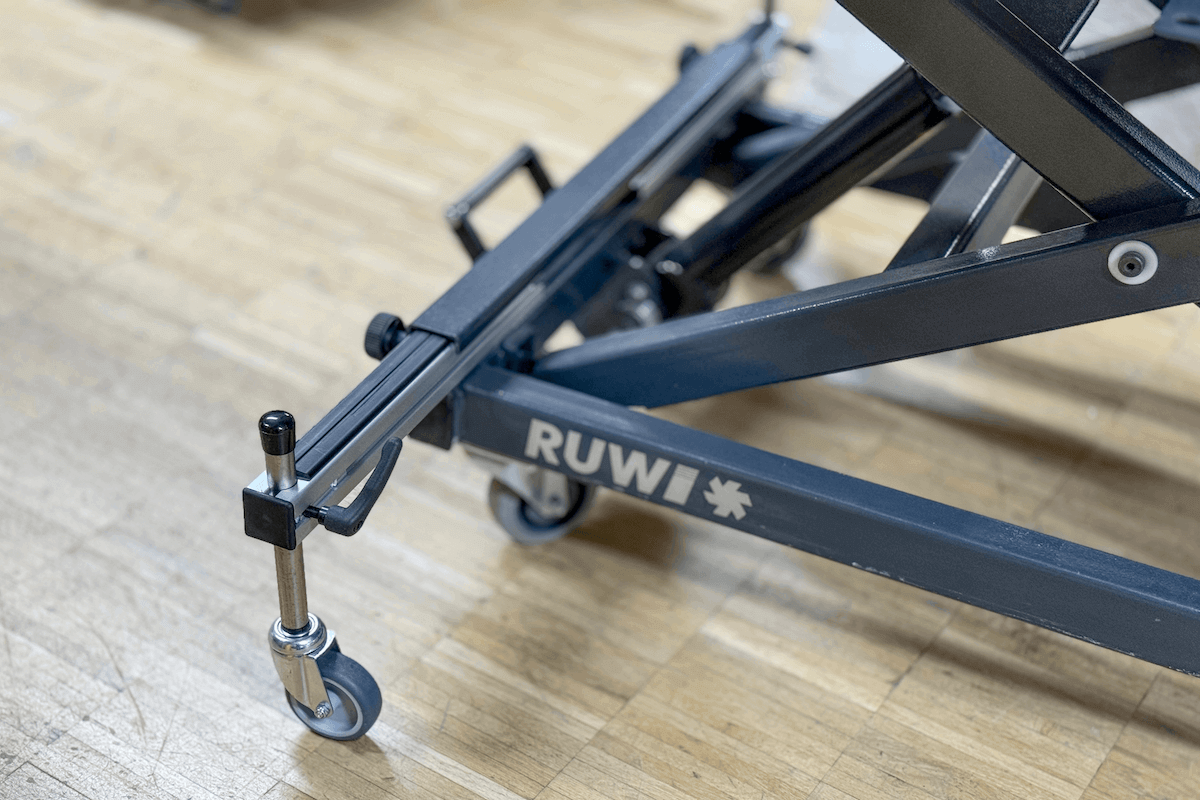

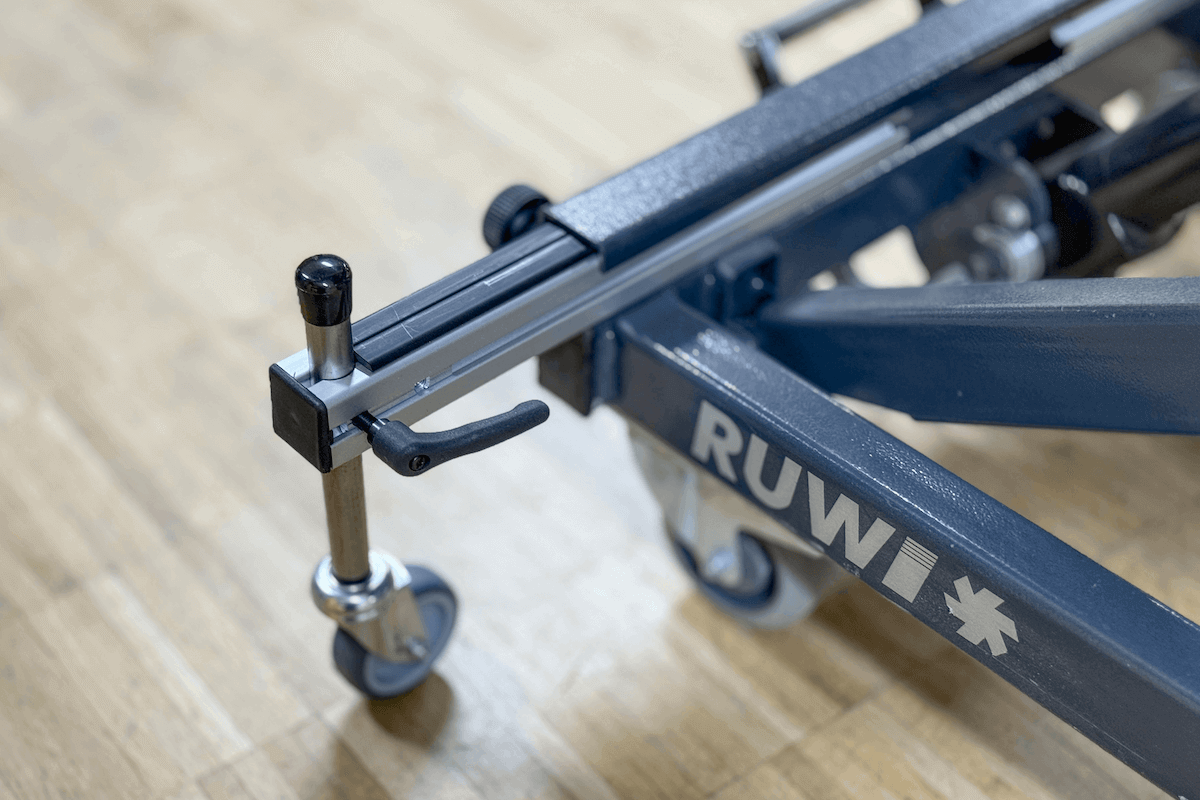

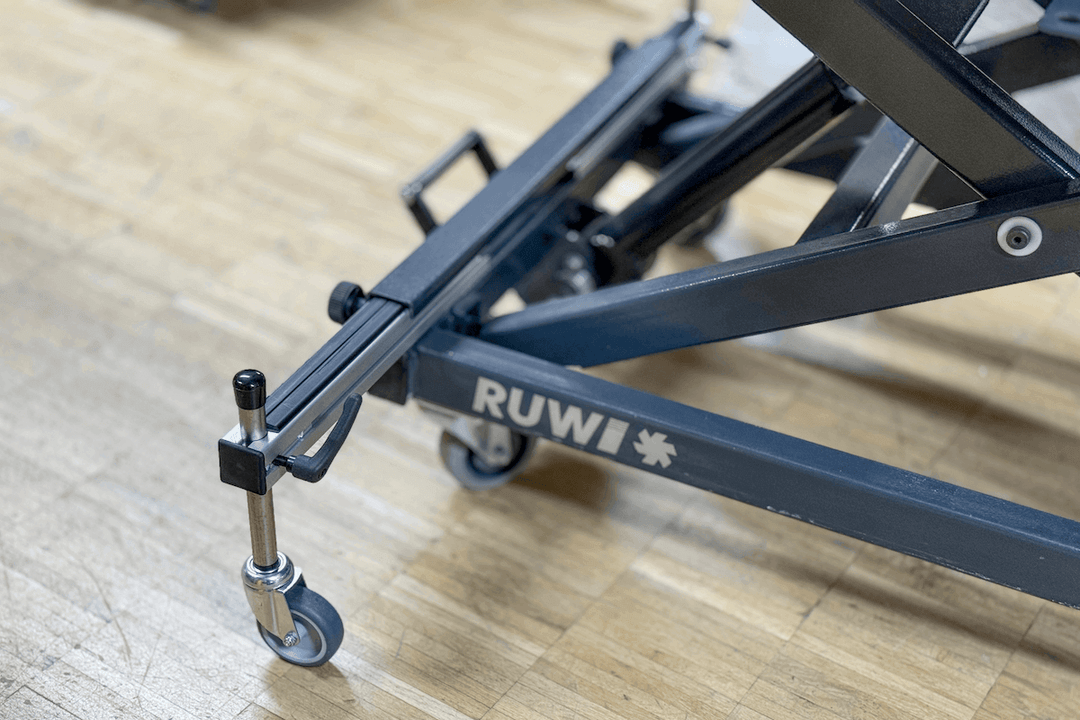

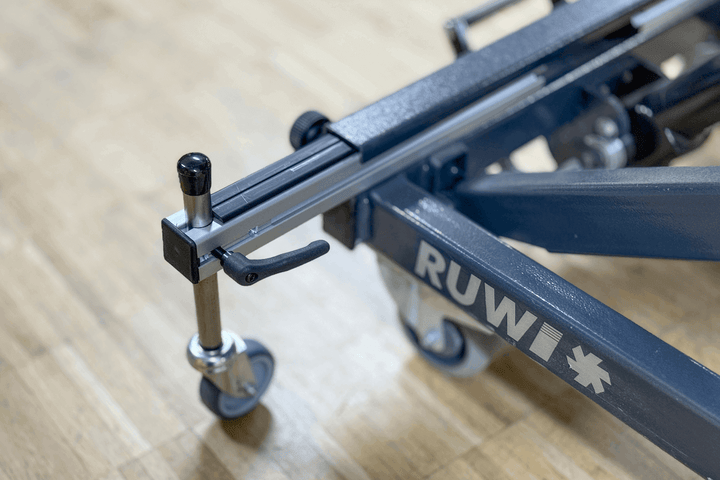

The support extension fits perfectly with the RUWI lift table 300 (not compatible with models 300 XL and 400 Akku). If required, simply pull it out and lower the integrated support rollers with rubber pads. Larger workpieces that are clamped to the side of the table are supported safely and cleanly without touching the floor. This protects your workpieces from damage or soiling, additionally stabilizes the lift table and ensures comfortable working.

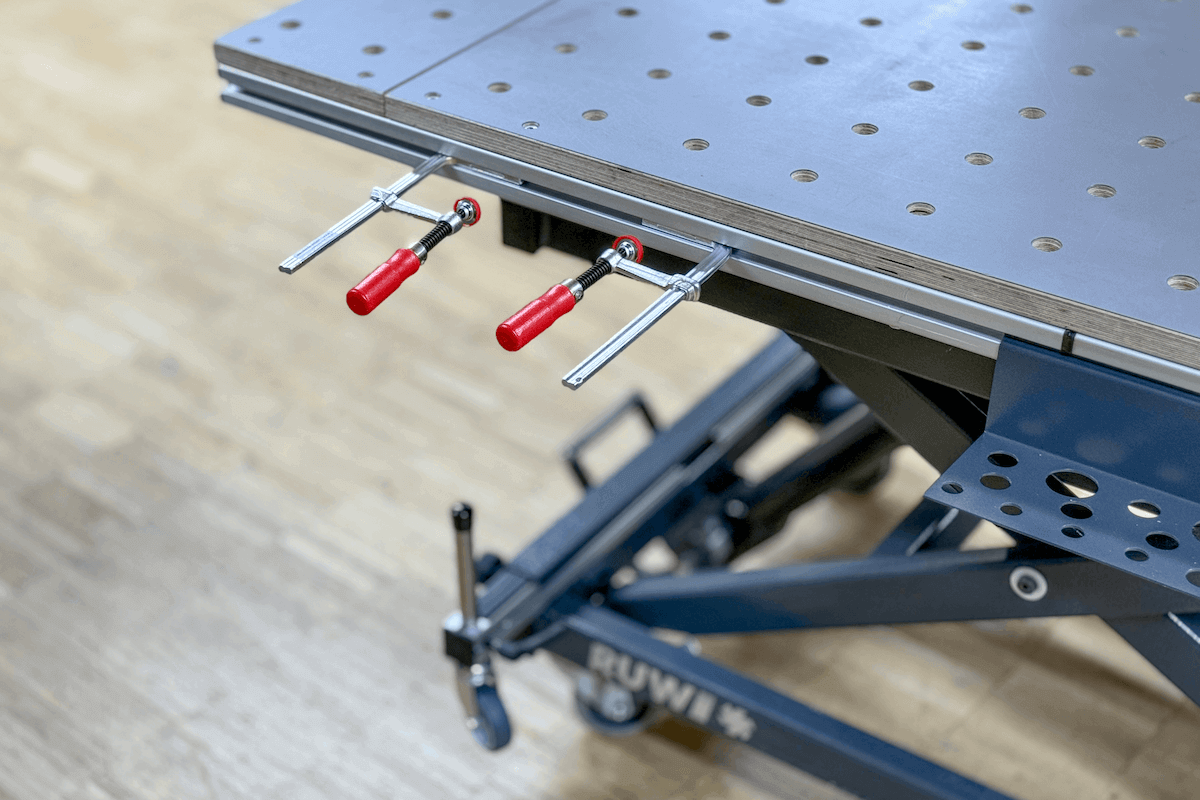

There are also two Bessey GTR clamps which can be slid sideways into the grooves of the table to fix small or large workpieces vertically.

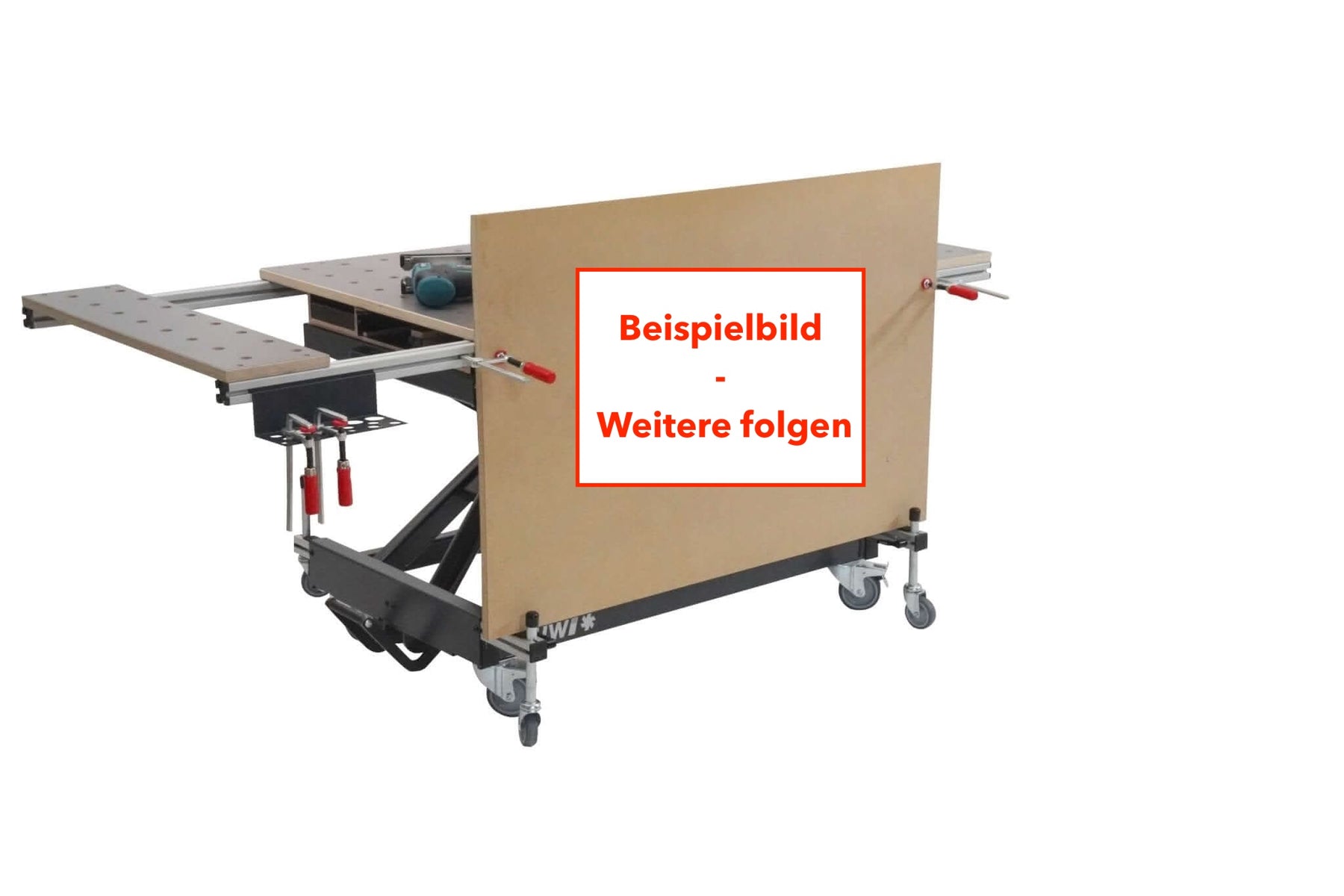

Together with the support extensions a perfect combination for clamping and processing large workpieces from the side

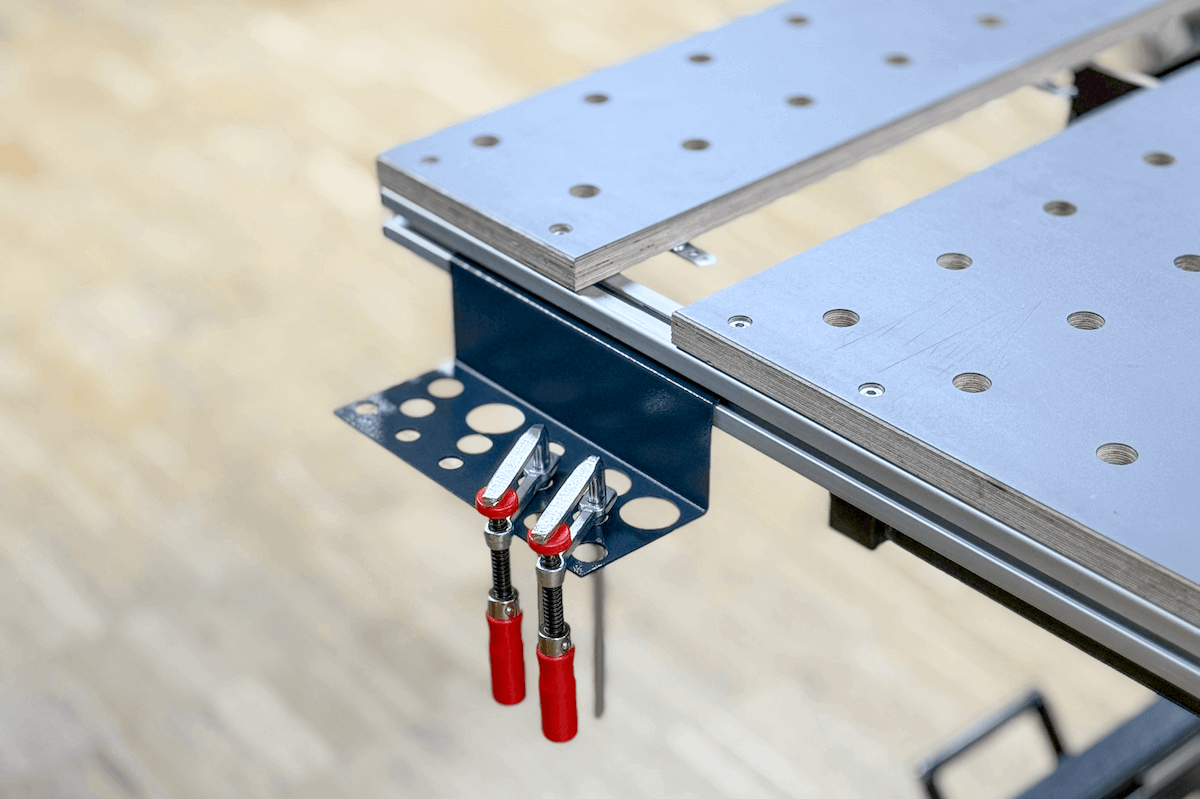

The two tool trays can be hooked into the grooves at the side and offer space for a number of tools. 2 pieces from the first prototype series are also included in the set.

Possible applications

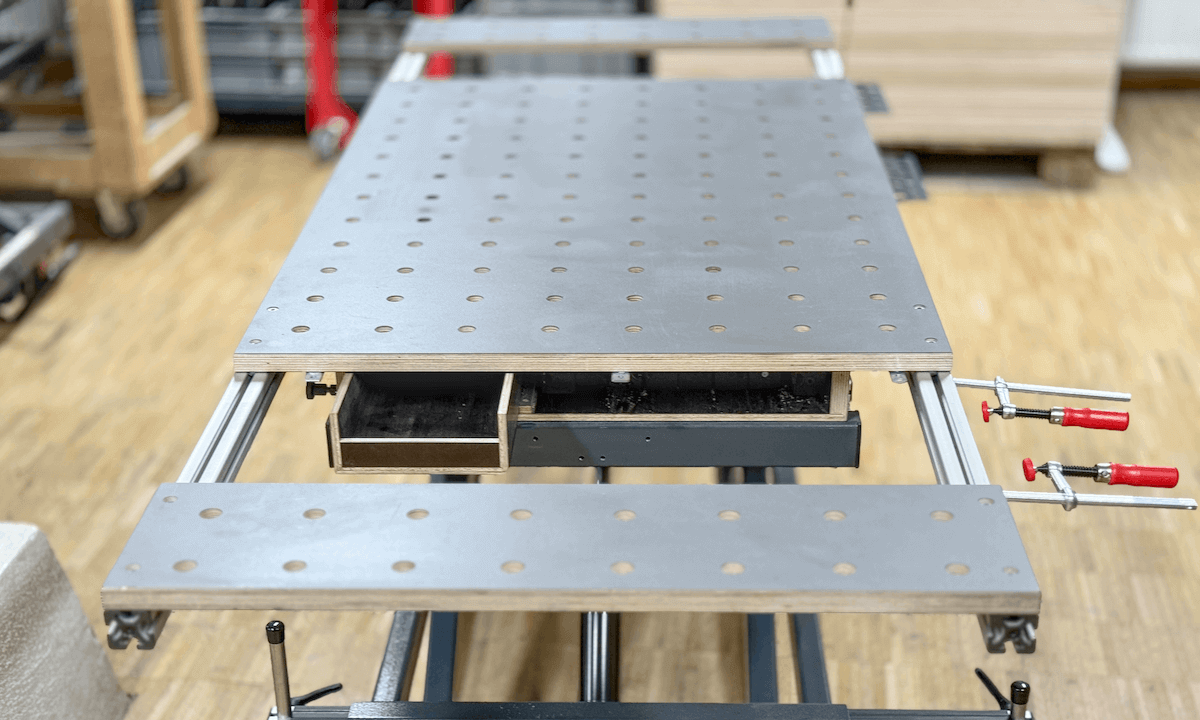

• Ideal for large pieces of furniture or workpieces that require a lot of space. Simply use the pull-outs and extend the space.
• Use it for gluing, drilling or as a flexible work island in the middle of the workshop.
• The integrated drawer keeps your tools and accessories to hand and saves valuable time.
• Support extension: Convenient support for long or large workpieces when sawing, milling and assembling
• Secure support of heavy materials to prevent damage or soiling
• Ideal addition to the RUWI lift table 300 for changing work tasks
• Ideal for use in professional workshops and craft businesses

Downloads

RUWI product catalog PDF
Instructions PDF

All details

- Function & load capacity
- Robust scissor lift and assembly table
- Load capacity up to 300 kg (incl. worktop)

- Work surface & expandability
- Basic dimensions: 1600 × 800 mm, extendable up to 2200 × 800 mm

- Height adjustment & ergonomics
- Hydraulic height adjustment via foot pump
- Working height continuously adjustable from 530 to 1130 mm

- Material & clamping technology
- Multiplex board, HPL-coated on both sides
- Hole grid with 128 chamfered Ø 20 mm holes
- Lateral clamping profiles for flexible workpiece clamping with clamps

- Mobility & storage space
- 4 solid rubber swivel castors (Ø 100 mm) with locking function
- Practical drawer for accessories under the table top

Support extension:
- Material & construction
- Guide rail made of powder-coated sheet steel
- Pull-out made of anodized aluminium with rubber coating

- Load capacity & ease of use
- Castors Ø 50 mm with double bearing ball bearing slewing ring
- Load capacity: up to 50 kg
