Name: Klemmbolzen Ø 20 mm mit Schraube
Brand: RUWI
SKU: RUWI21136
Price: 18.78 EUR
Availability: InStock

Clamping bolt with Allen screw Ø 20 mm - RUWI I Tools for wood professionals

Vertical clamp with clamping bolt ø 20 mm - RUWI I Tools for wood professionals

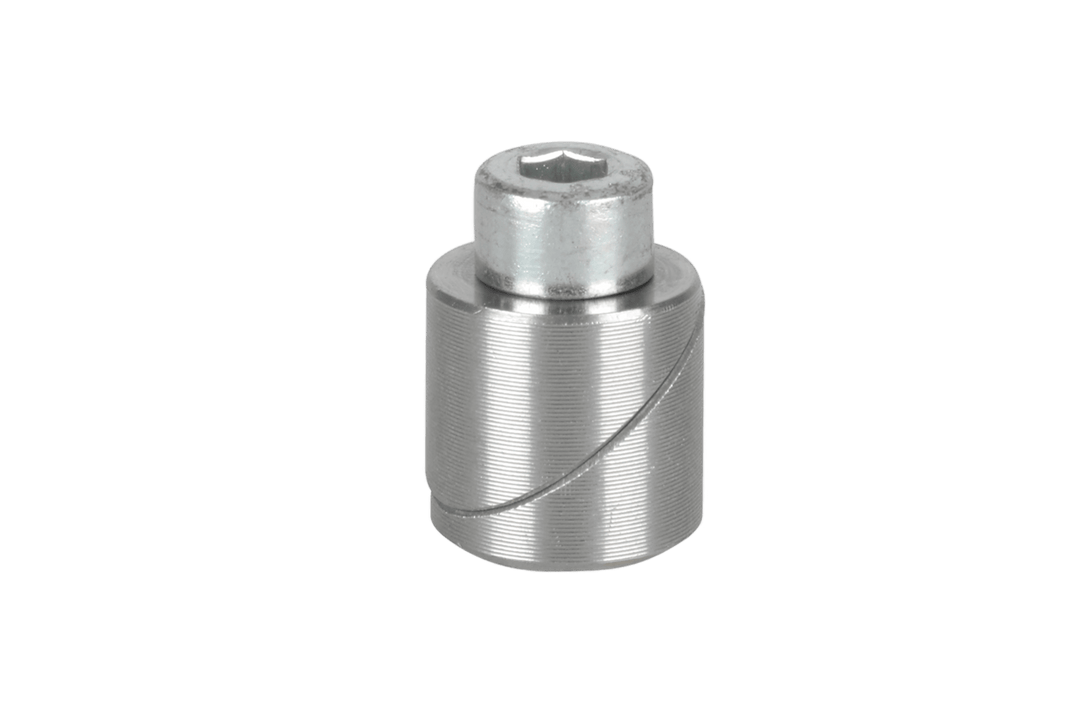

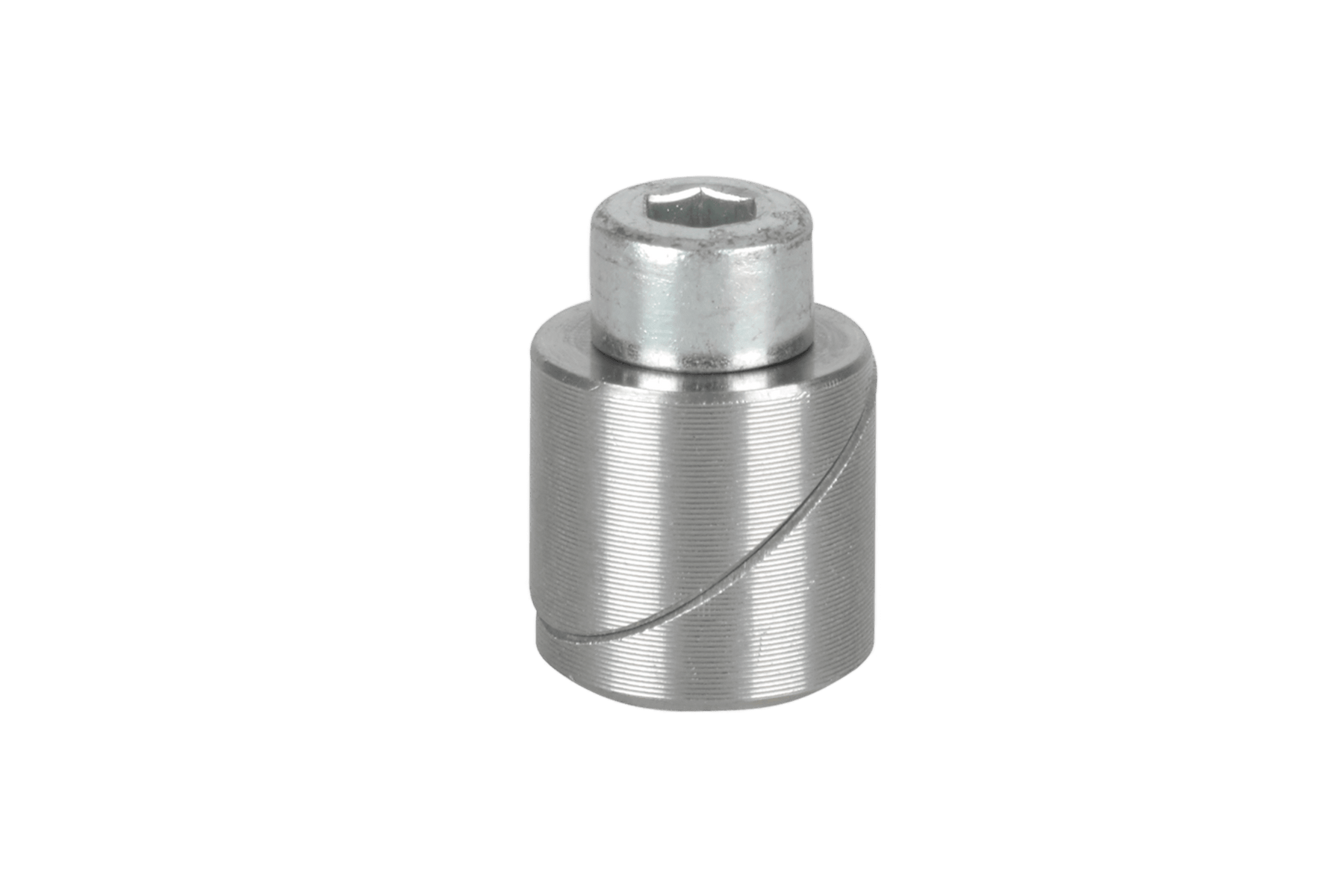

Clamping bolt, 20 mm diameter, with screw

€18,78

incl. VAT plus shipping costs

Made in Germany

From wood professionals for wood professionals

Spare parts are always in stock

In stock - in your workshop in 3-5 working days
Reordered - back soon

Take a look first, then decide

Not sure if this is right for your workshop? During our workshop consultation, we’ll take a look together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation

Prefer to ask us directly? +49 7402 8414

Our tools are shipped by DPD and DHL and usually arrive within 3-5 days. You will receive shipment tracking by e-mail.

Our larger tools are shipped by Schenker and arrive within a few working days. On request, the shipping company can also come at a desired time and you can coordinate with the shipping company by telephone.

Packaging dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm
• Weight: approx. 0.35 kg

Contents of the package
• 1 × Clamping bolt, Ø 20 mm
• 1 × Cylinder head screw

Our tools and machines are built for long-term use. We only use high-quality components and have gained a lot of experience to avoid problems in the workshop. That's why we have no problems with warranty requests - even beyond the 2‑year warranty period. We are always looking for a good solution together.

We have 100% spare parts in stock.

Accessories

Brief description

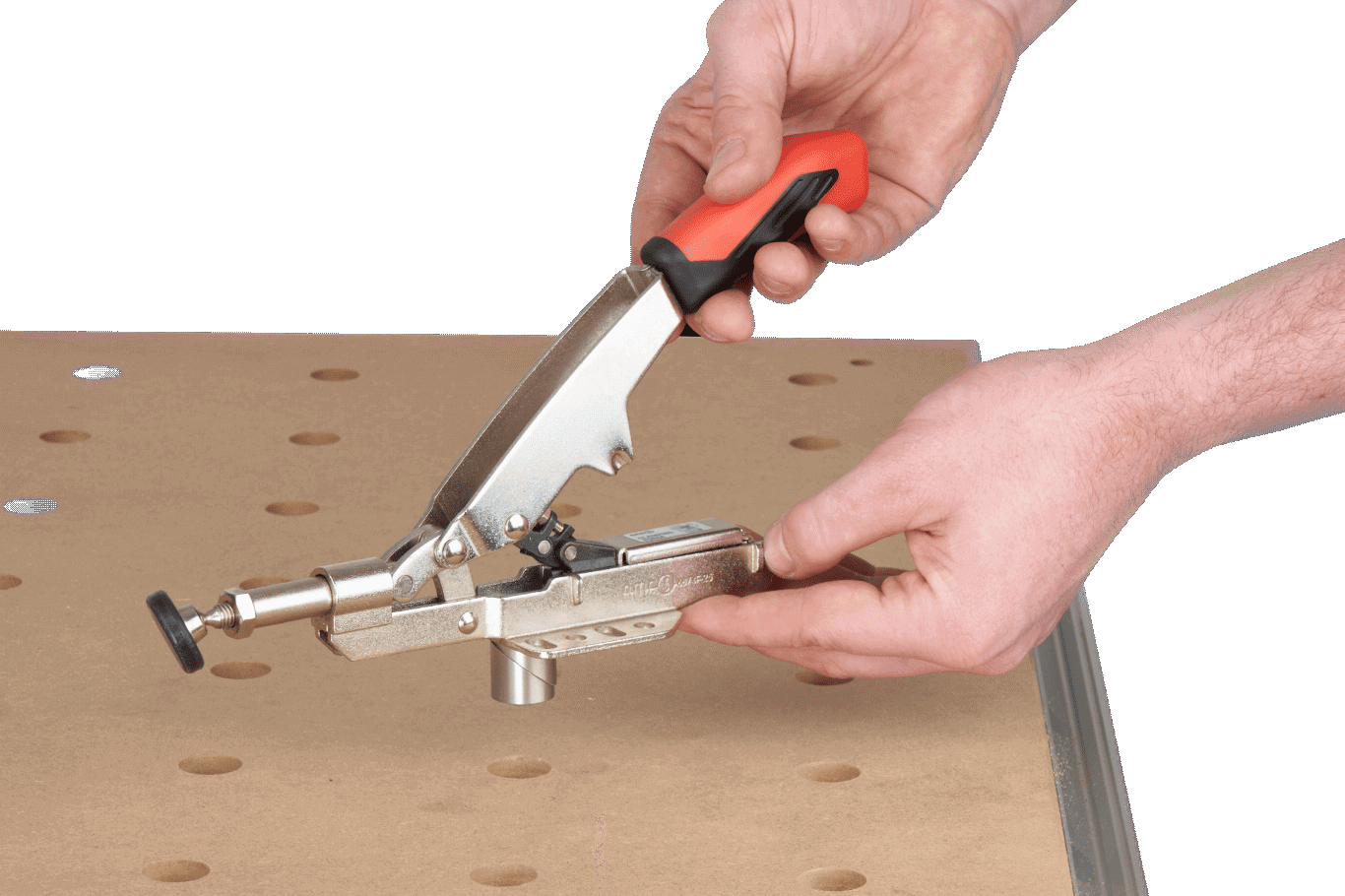

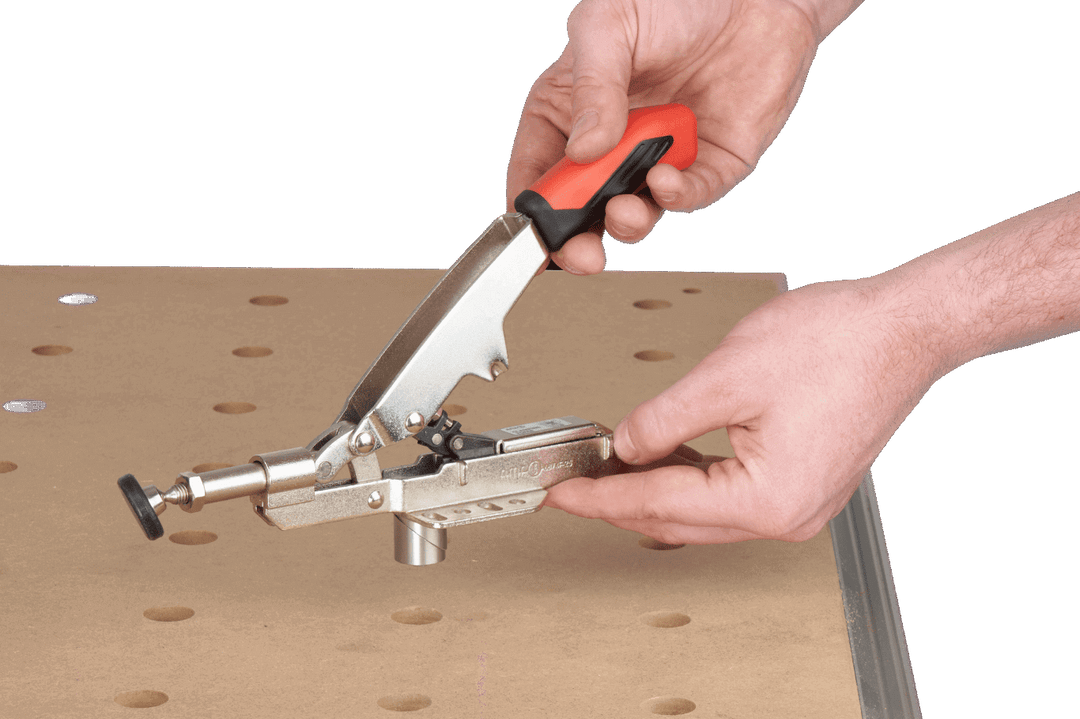

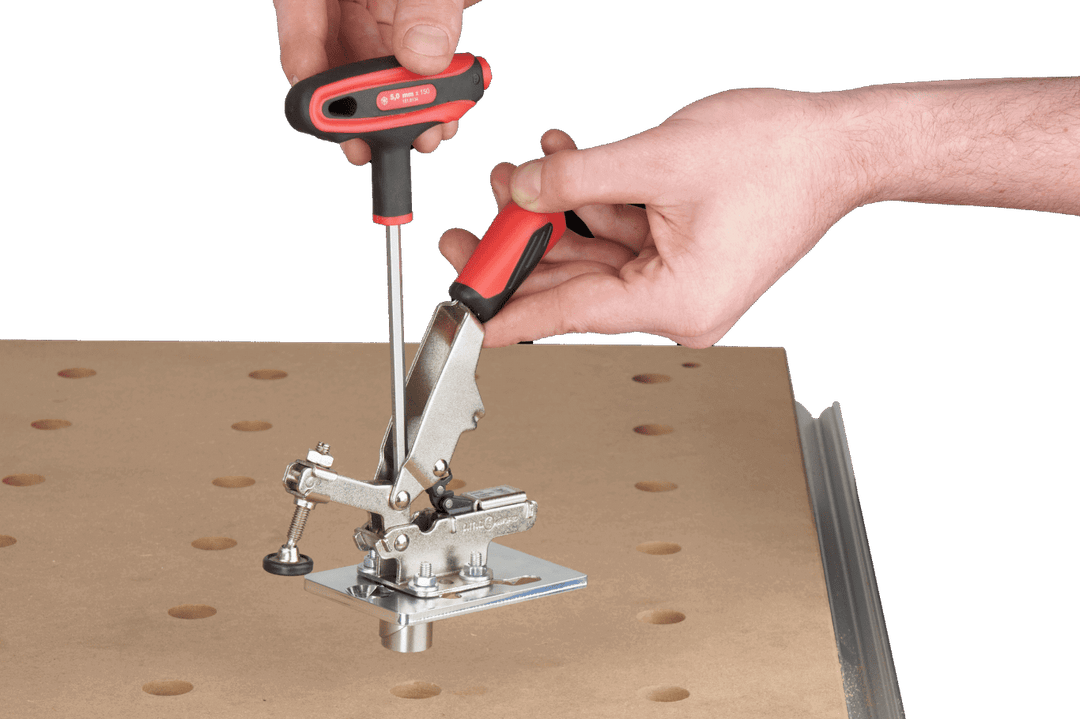

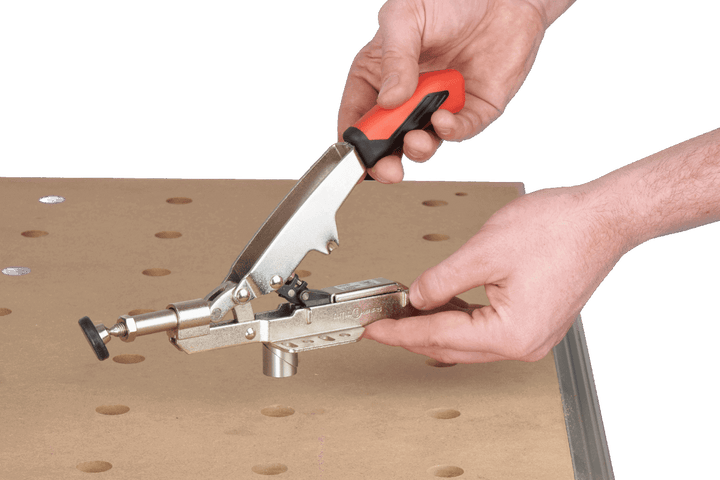

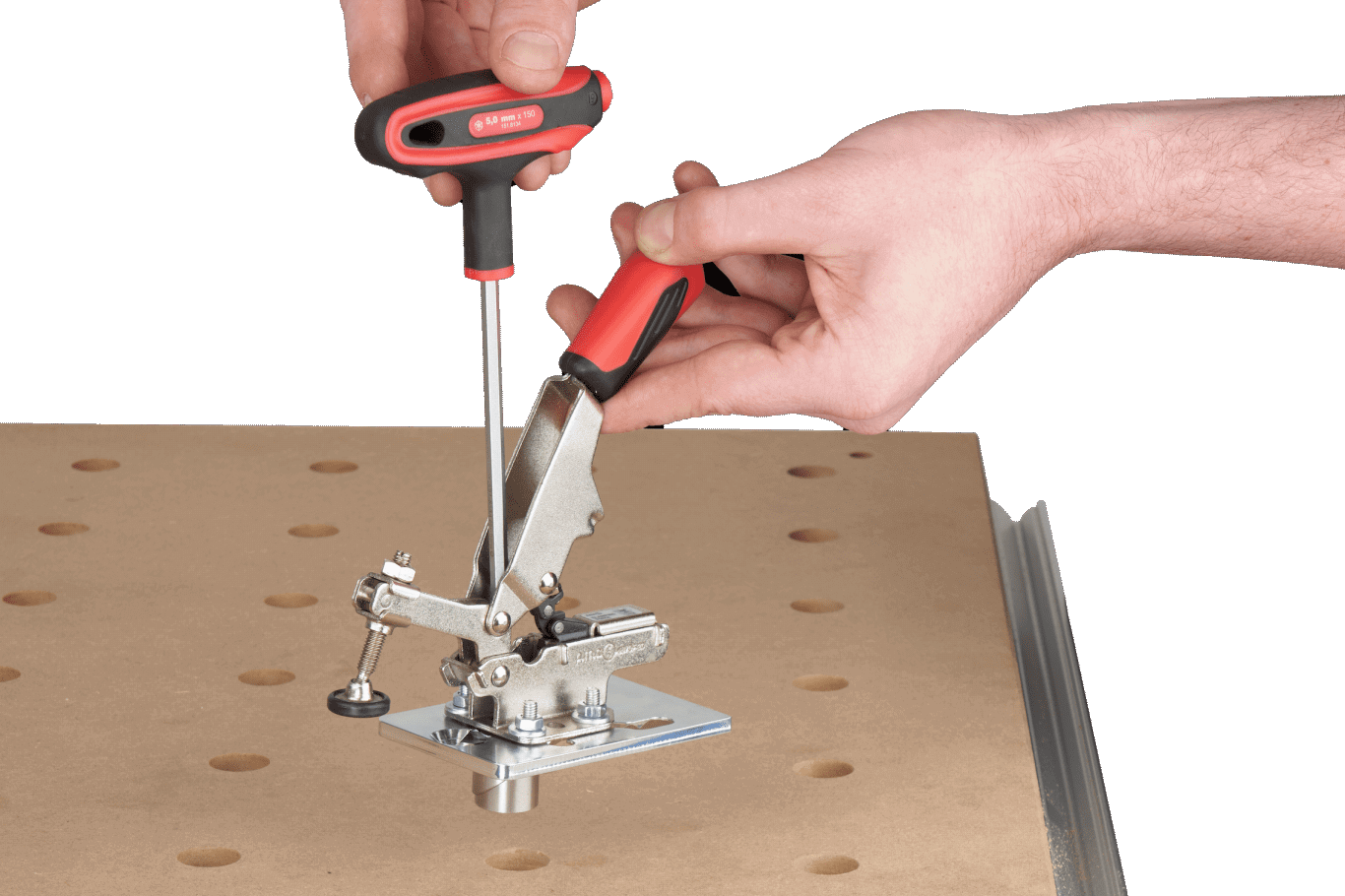

Use the clamping bolt to convert existing quick-release skewers with a center hole in the base plate to the 20-mm hole pattern. Insert the stainless steel clamping bolt through the base plate of the clamp and secure it with the included M8 hex socket screw (SW 6) – then insert the clamp from above into any 20-mm hole. This allows you to use push-rod, vertical, or horizontal clamps, such as those from Bessey or AMF, on perforated and multifunctional tables.

The clamping bolt features a stepless, automatic leveling function of 13 mm—allowing the clamp to automatically compensate for minor differences in height. The bolt is made of stainless steel, and the cylinder screw is galvanized.

You can find additional clamping accessories for the 20-mm hole pattern in the lift table system.

Possible applications

Convert existing quick-release skewers with a center hole to the 20-mm hole pattern
Secure push-rod, vertical, or horizontal clamps (such as those from Bessey or AMF) from above
Continuously adjustable automatic leveling function, 13 mm stroke compensation
Stainless steel clamping bolt, M8 hex head screw (6 mm hex socket), galvanized
Fits any table with a 20-mm hole pattern

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and weight
- Clamping bolt Ø 20 mm, stainless steel
- Weight 50 g

• Function and compensation
- Stepless automatic compensation function
- Automatic stroke compensation 13 mm

• Screw and clamping system
- Cylinder screw M8 (hex socket SW 6), galvanized
- Suitable for the 20-mm hole pattern

★★★★★
