RUWI lifting table Premium Clamping Technology Package

Brief Description

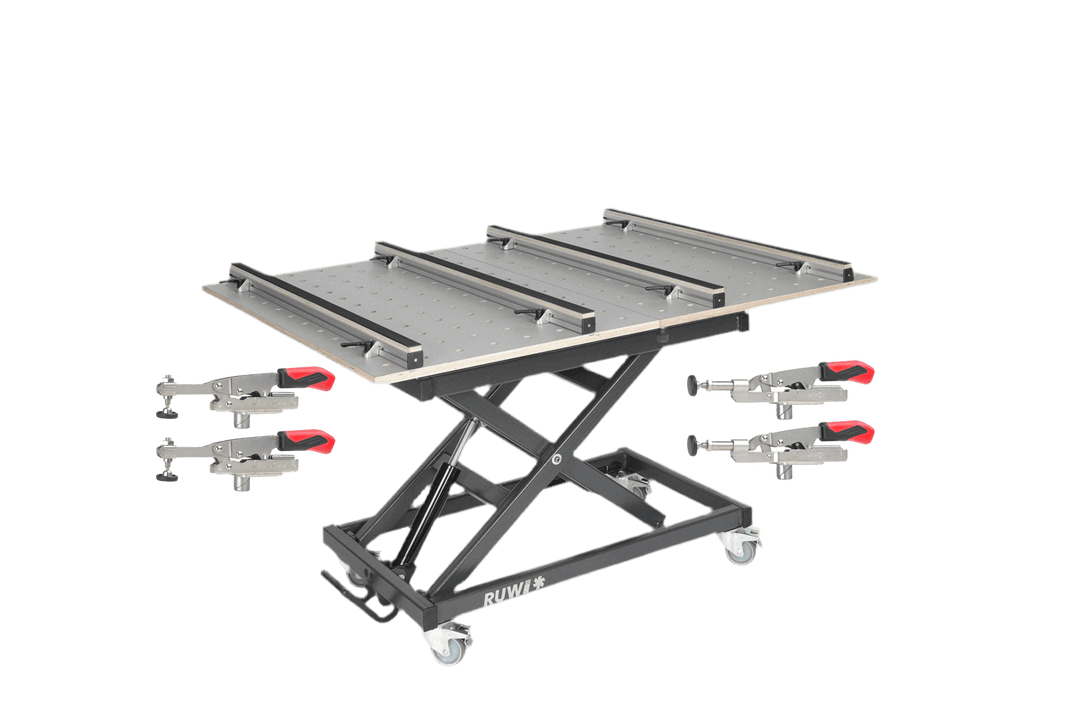

The Clamping System Package is the RUWI lifting table Premium, fully equipped with clamping hardware right out of the box. You get the swiveling hole grid work surface with a drawer and storage space, plus four support rails and four clamps—so you can secure workpieces from day one without having to assemble the clamping system piece by piece.

Place the four support rails with non-slip pads over the 192 holes (Ø 20 mm) in the panel to create a secure support for large boards and panels. Two vertical toggle clamp and two horizontal toggle clamp —each with clamping bolt Ø 20 mm—secure the workpiece from above and from the side. Eight clamping brackets hold rails and stops in any desired position.

The base is the Premiumlifting table: a multiplex perforated panel coated with HPL on both sides (1,200 × 800 mm, expands to 1,600 × 1,200 mm), which can be hydraulically continuously adjusted from 570 to 1,170 mm height-adjustable using a foot pump manufactured in Germany and can support loads of up to 300 kg. Four lockable solid rubber casterscastors (Ø 100 mm) make it mobile, and a drawer under the tabletop keeps tools within easy reach.

The package comes with the base frame for self-assembly—so it arrives in a compact, easy-to-ship package. If you don’t need the clamping system right away, the RUWI lifting table Premium is also available separately. You can find an overview of all models in the RUWI lifting tables section, and individual clamps and rails in thelifting table accessories section.

Possible Applications

• Clamp workpieces vertically and horizontally onto the perforated plate
• Safely load large boards and panels onto the four support rails
• working height Adjust using a foot pump to suit the task—whether sitting or standing
• Fold out the work surface from 1,200 × 800 mm to 1,600 × 1,200 mm
• Move it around the workshop and secure it in place
• Keep tools and small parts within easy reach in the drawer under the countertop

Downloads

RUWI-2026 Product Catalog (PDF)

All the details

Function and Load Capacity
Design: Scissor-lift and assembly table
Load Capacity: up to 300 kg

Work Surface and Clamping System
Table Surface: 1,200 × 800 mm, unfolded 1,600 × 1,200 mm
Tabletop: Multiplex perforated panel, HPL-coated on both sides, 192 chamfered holes, Ø 20 mm
Clamping system: 4 support rails with anti-slip coating, 8 clamping brackets, 2 vertical and 2 horizontal toggle clamp (clamping bolt , Ø 20 mm)

Lift and Drive
working height : 57 to 117 cm, continuously
Drive: hydraulic foot pump, no power connection required
Hydraulics: repairable, foot pump manufactured in Germany

Mobility and Storage Space
Casters: 4 lockable solid rubber casterscastors Ø 100 mm
Storage Space: Drawer under the work surface

Weight and Origin
net weight : approx. 125 kg
Origin: Foot pump and table top manufactured in Germany, base frame from an Austrian partner company
