Doppelabrund-/Fasenfräser R2,5

Brief description

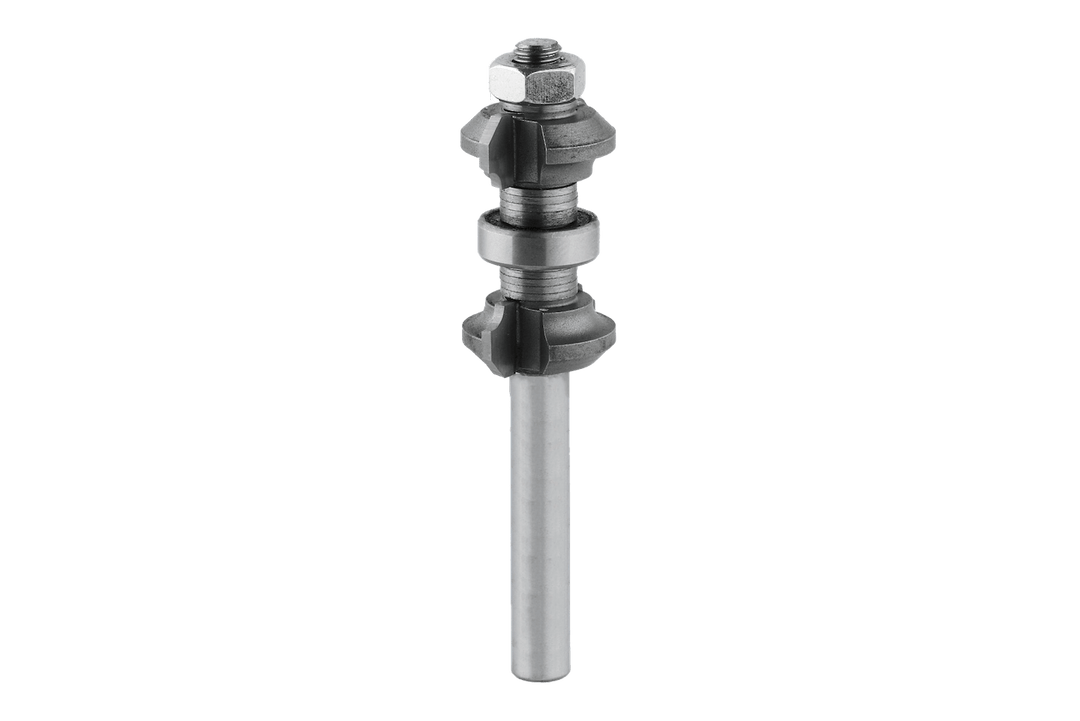

The router machines the top and bottom edges of a workpiece in a single pass. In the basic configuration, it cuts a 45° chamfer on both sides; if you swap the profile parts, it rounds both edges with a radius of R2.5 mm. The centrally mounted ball bearing (Ø 16 mm) runs along the workpiece edge and guides the cutter even along curved contours.

Use the included spacer discs to adjust the router bit to the thickness of the material—it is designed for workpieces between 11 and 22 mm thick, ensuring that the profiles are symmetrical at the top and bottom. The cutter has an outer diameter of 22 mm, a shank diameter of 8 mm, and is carbide-tipped, peripheral-cutting (Z2+2), and right-hand cutting.

It can be used in hand routers, bench routers, the RUWI router table, and on CNC machines. If you only need to chamfer or round a single edge, you’ll find simple chamfering and rounding cutters in the RUWI router bit selection.

Possible applications

• Machine the top and bottom edges of the workpiece in a single pass
• Chamfer both sides at 45°—or, after modifying the profile parts, round both sides to a radius of 2.5 mm
• Adjustable for material thicknesses from 11 to 22 mm – using the included spacers
• The center-mounted ball bearing (16 mm diameter) runs along the edge, even on curved surfaces
• For softwood, hardwood, and laminated panels
• 8 mm shank for hand-held routers, RUWI router tables, bench routers, and CNC machines

Downloads

RUWI Product Catalog 2026 (PDF)

All details

• Profil und Schneiden
- Verstellbarer Doppel-Fasenfräser, 45°
- Durch Tausch der Profilteile zu Doppel-Abrundfräser R2,5 mm umbaubar
- Bearbeitet obere und untere Kante gleichzeitig
- Hartmetall (HW), umfangschneidend, Z2+2
- Rechtsdrehend

• Maße
- Außendurchmesser Ø 22 mm
- Für Materialstärken 11 bis 22 mm
- Schaft Ø 8 mm, Schaftlänge 42 mm
- Gesamtlänge 85 mm
- Eigengewicht etwa 89 g

• Anlauflager
- Kugellager Ø 16 mm, mittig – führt an der Werkstückkante entlang

• Einstellung
- Beiliegende Distanzscheiben zum Anpassen an die Materialstärke

• Einsatz
- Für Weichholz, Hartholz und beschichtete Platten
- Für RUWI Frästische, Hand- und Tischoberfräsen sowie CNC-Maschinen
