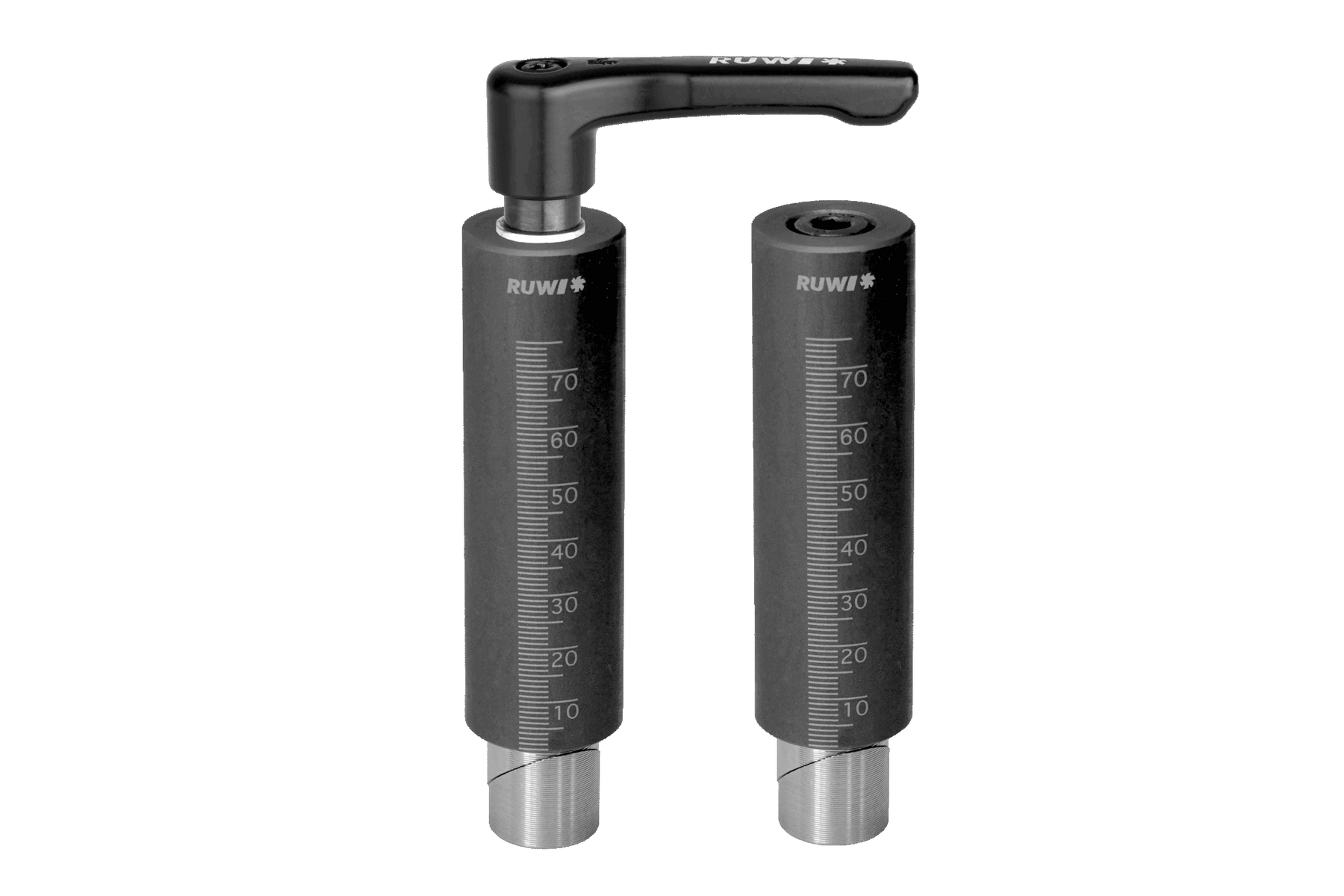

RUWI Bench dogs, two sizes side by side with a millimeter scale on the shank

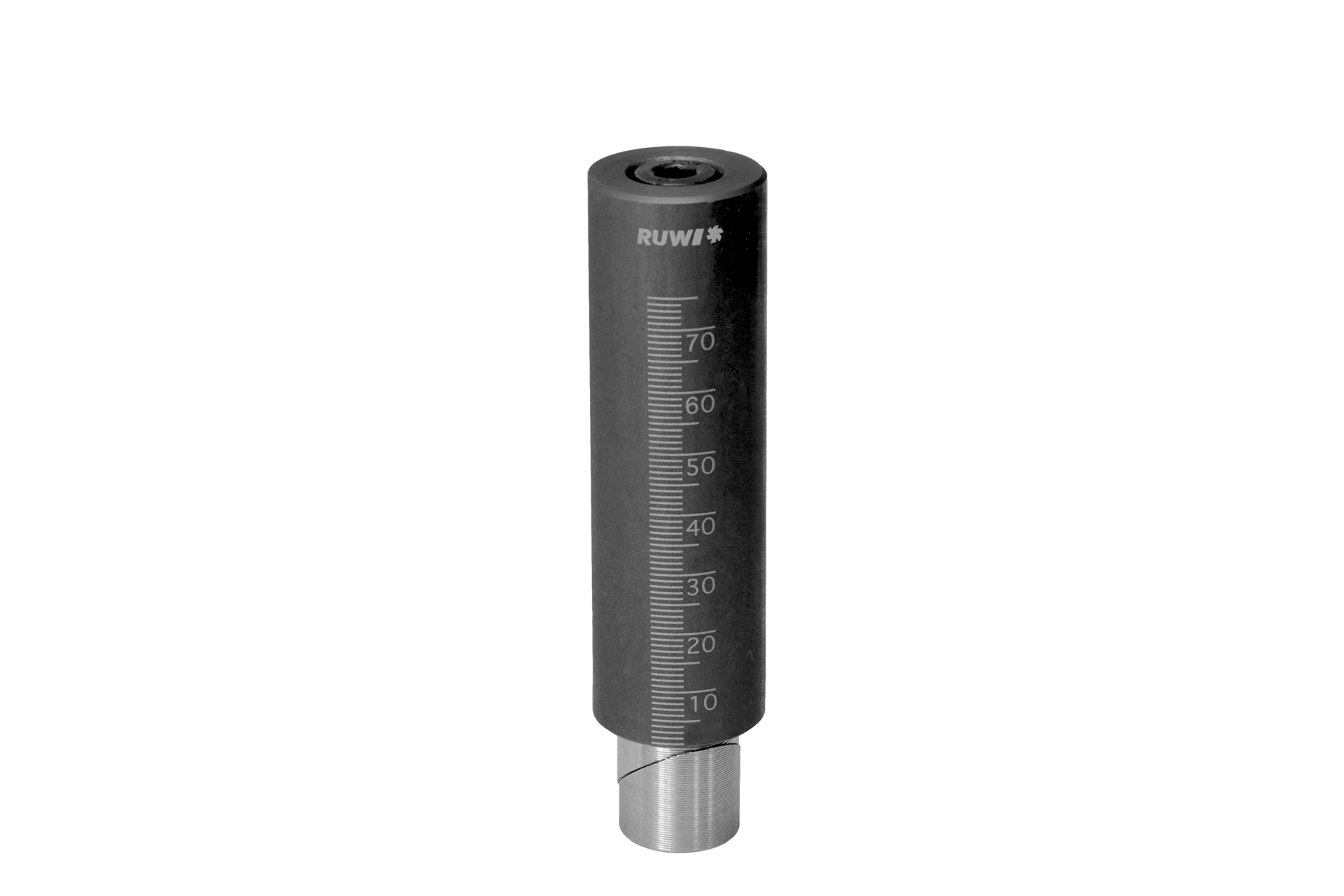

RUWI bench dog, single view from an oblique angle above, with a visible millimeter scale on the shank

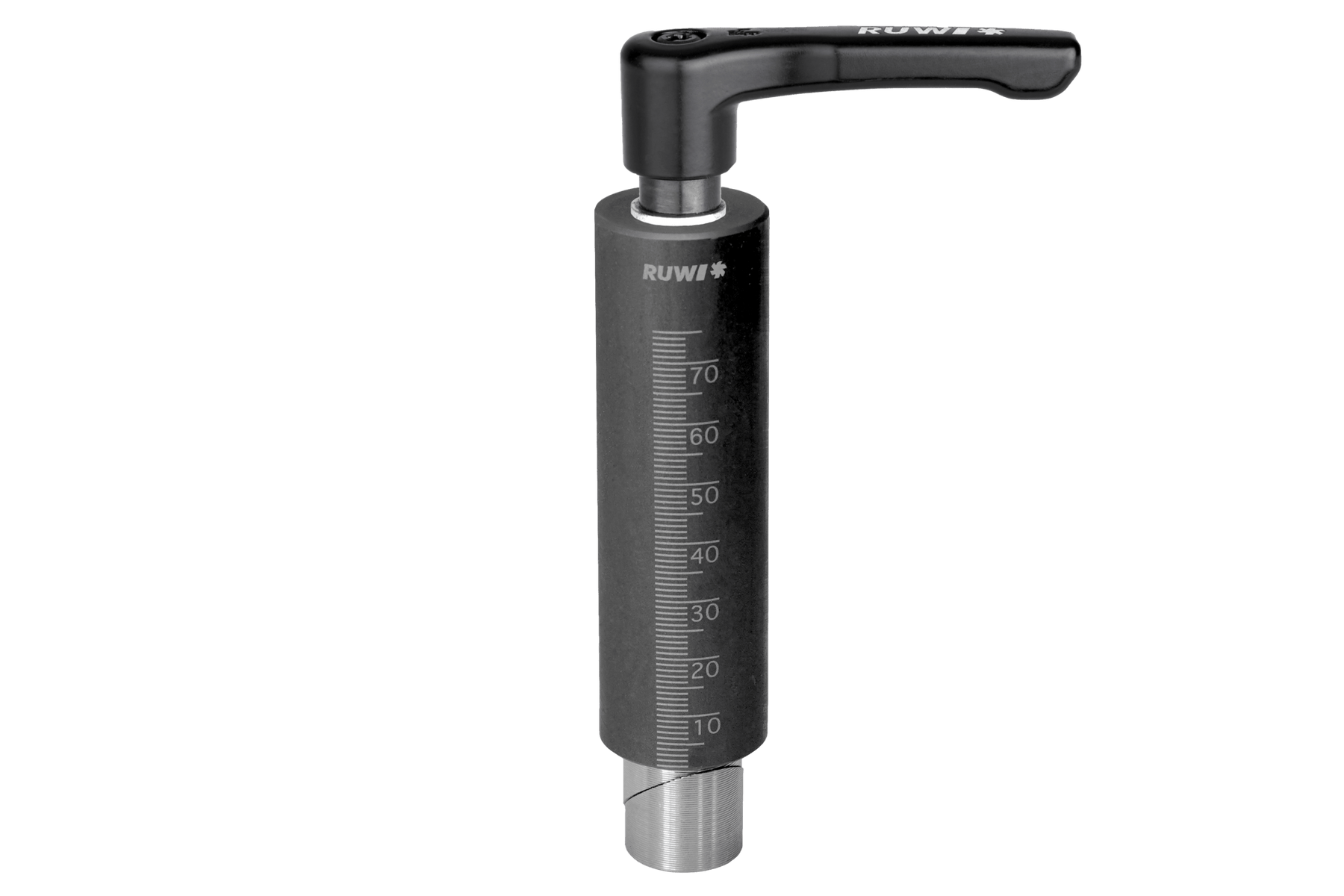

RUWI bench dog with angled handle, single view showing the millimeter scale on the shank

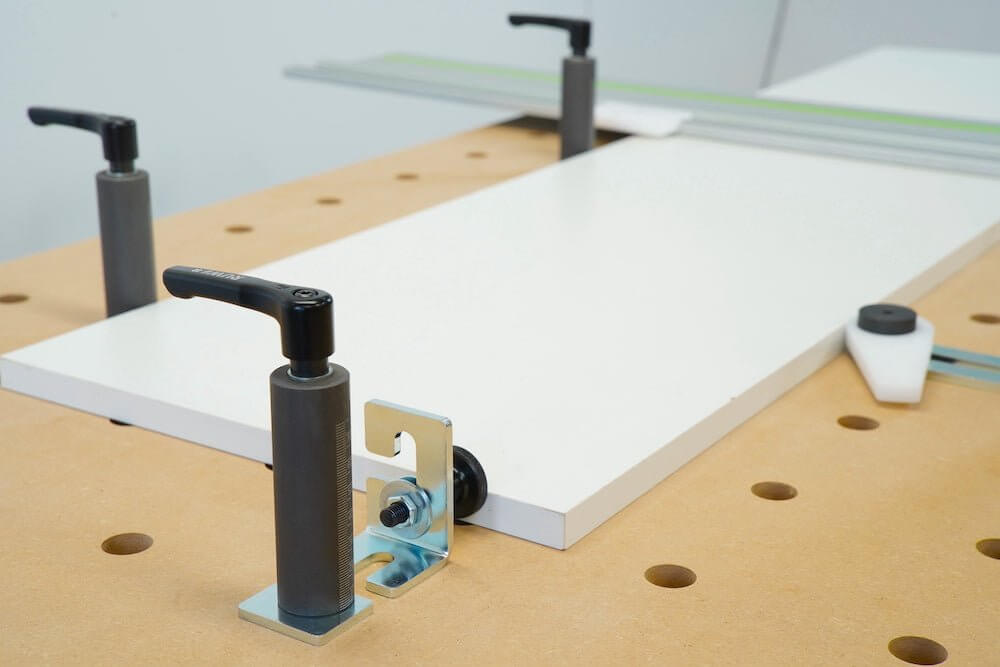

RUWI Bench dogs in use; several hooks in the hole grid of a workbench hold a panel in place
RUWI Bench dogs, two sizes side by side with a millimeter scale on the shank
RUWI bench dog, single view from an oblique angle above, with a visible millimeter scale on the shank
RUWI bench dog with angled handle, single view showing the millimeter scale on the shank
RUWI Bench dogs in use; several hooks in the hole grid of a workbench hold a panel in place

Bench Dog

RUWI27185

€30,36
/
Includes VAT Plus shipping costs

€25,51 netto

Size
  • Made in Germany
  • Developed by carpenters in Fluorn-Winzeln
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

Questions before you buy? A carpenter is available by phone: +49 7402 8414

• 1 × bench dog in the selected version (S with screw or K with clamping lever)

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 345 × 250 × 50 mm with screw, 190 × 140 × 50 mm with clamping lever

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

You’re probably familiar with the bench dog from your workbench—this is the round version designed for your table’s 20-mm hole grid. It fits into a 20-mm hole and provides your workpiece with a secure stop: You push the workpiece against the hook, and it won’t slip away while planing, sanding, or routing. The body is made of phosphated steel (108 mm long), and the ribbed stainless steel clamping bolt stays securely in place without cutting into the hole with a screw—which protects the hole wall.

When ordering, choose the mounting option: S with an Allen screw (SW 6) stays securely in place once adjusted and is the affordable entry-level option; K with a clamping lever can be tool-free loosened and repositioned if the position changes frequently.

Here's how to use it

  • Planing and sanding against the dog: the board is in place, and the feed pressure holds it firmly—no clamp gets in the way of the plane.
  • Surfaces between two points: between two bench dogs—or a hook and vertical toggle clamp — a flat workpiece is also securely held in place for surface machining.
  • Reading the cutting depth: The millimeter scale laser-etched on the side indicates the workpiece thickness—adjust the saw without having to reach for the caliper.
  • Setting reference points: Several hooks in the grid define stops for jigs and recurring parts.

Does this go with your table?

The hook fits into any RUWI HPL perforated panel and any table built to the 20-mm hole standard—Festool MFT, Sauter Variobench, and custom-built tables. Additional clamping accessories are available in the lifting table system.

All the details

Material
Body: Steel, phosphated
Clamping bolt: Stainless steel, Ø 20 mm, fluted

Dimensions
Length: 108 mm
Diameter: 28 mm
Weight: 0.46 kg with screw, 0.4 kg with clamping lever

Function
Application: fixed stop edge in 20 mm hole grid
Fastening: Allen screw (SW 6) or tool-free via clamping lever, depending on the model
Scale: millimeter scale laser-etched on the side

★★★★★
