Name: Waagrechtspanner mit Klemmbolzen Ø 16 mm und Ø 28 mm
Brand: RUWI
SKU: RUWI21131
Price: 66.62 EUR
Availability: InStock

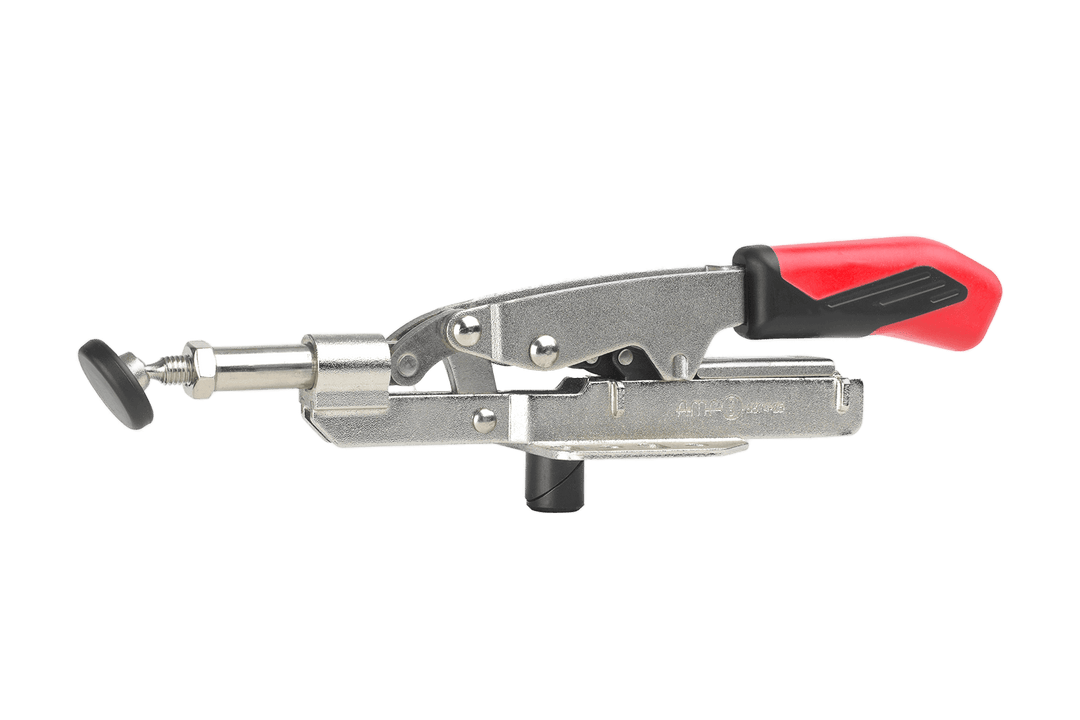

RUWI horizontal toggle clamp with " clamping bolt," cutout

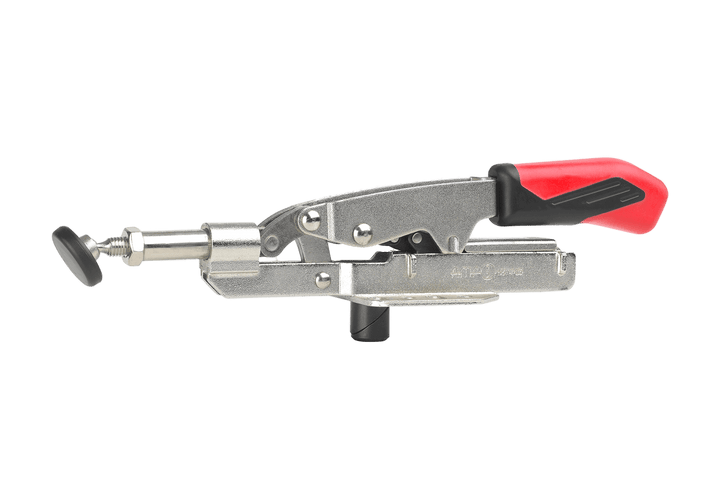

RUWI horizontal toggle clamp with clamping bolt, close-up

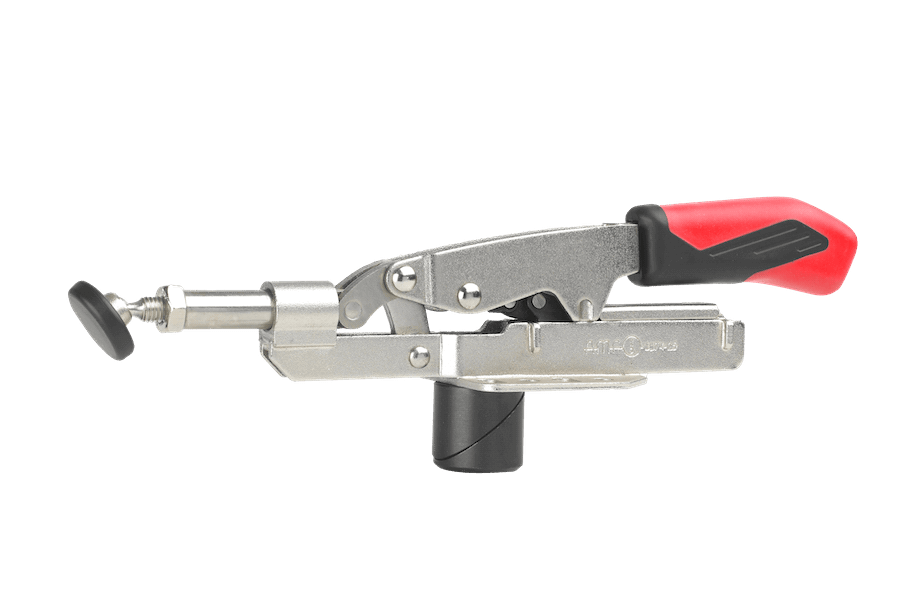

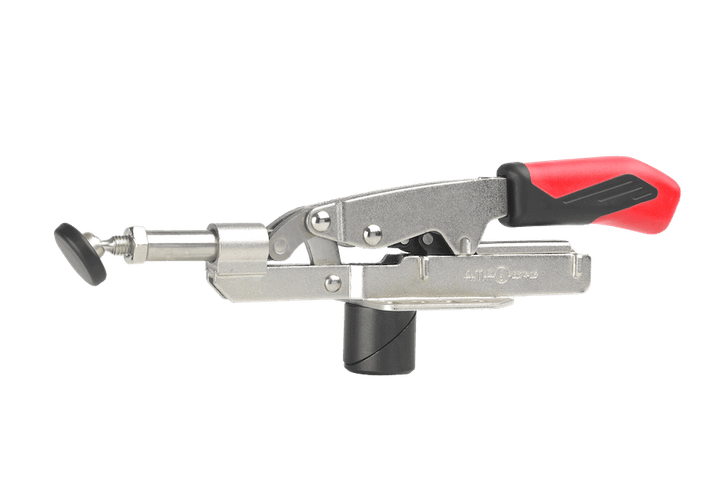

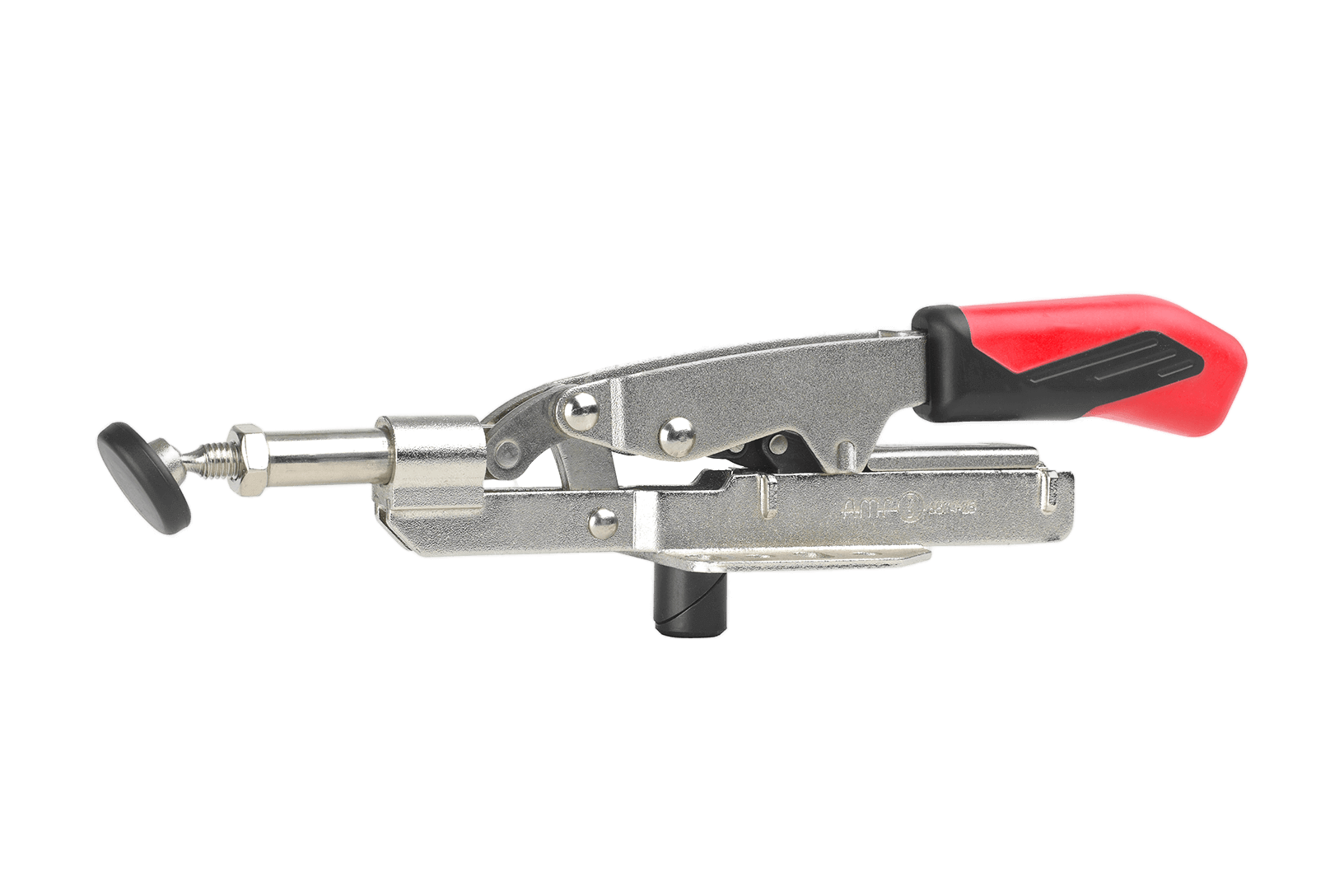

horizontal toggle clamp with clamping bolt Ø 16 mm and Ø 28 mm

€66,62

Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase · €66.62 gross

Calculate using your tax rate →

Guidance on a 30% tax rate and the purchase of a business—not tax advice.

Size

Ø 16 mm

Ø 28 mm

Made in Germany

By woodworking professionals, for woodworking professionals

Spare parts are always available

In stock – delivered to your workshop in 3–5 business days
Out of stock – coming back soon

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation

Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

[{"id":55194975469948,"title":"Ø 16  mm","option1":"Ø 16  mm","option2":null,"option3":null,"sku":"RUWI21131","requires_shipping":true,"taxable":true,"featured_image":{"id":74305389101436,"product_id":15245307216252,"position":2,"created_at":"2025-05-13T11:00:30+02:00","updated_at":"2025-05-18T21:47:25+02:00","alt":"RUWI Waagrechtspanner mit Klemmbolzen, Nahaufnahme","width":1632,"height":1088,"src":"\/\/ruwi.de\/cdn\/shop\/files\/waagrechtspanner-mit-klemmbolzen-217755_Bearbeitet.png?v=1747597645","variant_ids":[55194975469948]},"available":true,"name":"Waagrechtspanner mit Klemmbolzen Ø 16  mm und Ø 28 mm - Ø 16  mm","public_title":"Ø 16  mm","options":["Ø 16  mm"],"price":6662,"weight":800,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461088429","featured_media":{"alt":"RUWI Waagrechtspanner mit Klemmbolzen, Nahaufnahme","id":64712210743676,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1088,"width":1632,"src":"\/\/ruwi.de\/cdn\/shop\/files\/waagrechtspanner-mit-klemmbolzen-217755_Bearbeitet.png?v=1747597645"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55194975502716,"title":"Ø 28 mm","option1":"Ø 28 mm","option2":null,"option3":null,"sku":"RUWI21127","requires_shipping":true,"taxable":true,"featured_image":{"id":74305388577148,"product_id":15245307216252,"position":1,"created_at":"2025-05-13T11:00:30+02:00","updated_at":"2025-05-18T21:47:22+02:00","alt":"RUWI Waagrechtspanner mit Klemmbolzen, Freisteller","width":907,"height":605,"src":"\/\/ruwi.de\/cdn\/shop\/files\/waagrechtspanner-mit-klemmbolzen-800617_Bearbeitet.png?v=1747597642","variant_ids":[55194975502716]},"available":true,"name":"Waagrechtspanner mit Klemmbolzen Ø 16  mm und Ø 28 mm - Ø 28 mm","public_title":"Ø 28 mm","options":["Ø 28 mm"],"price":7783,"weight":800,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461088351","featured_media":{"alt":"RUWI Waagrechtspanner mit Klemmbolzen, Freisteller","id":64712210645372,"position":1,"preview_image":{"aspect_ratio":1.499,"height":605,"width":907,"src":"\/\/ruwi.de\/cdn\/shop\/files\/waagrechtspanner-mit-klemmbolzen-800617_Bearbeitet.png?v=1747597642"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":55194975469948,"title":"Ø 16  mm","option1":"Ø 16  mm","option2":null,"option3":null,"sku":"RUWI21131","requires_shipping":true,"taxable":true,"featured_image":{"id":74305389101436,"product_id":15245307216252,"position":2,"created_at":"2025-05-13T11:00:30+02:00","updated_at":"2025-05-18T21:47:25+02:00","alt":"RUWI Waagrechtspanner mit Klemmbolzen, Nahaufnahme","width":1632,"height":1088,"src":"\/\/ruwi.de\/cdn\/shop\/files\/waagrechtspanner-mit-klemmbolzen-217755_Bearbeitet.png?v=1747597645","variant_ids":[55194975469948]},"available":true,"name":"Waagrechtspanner mit Klemmbolzen Ø 16  mm und Ø 28 mm - Ø 16  mm","public_title":"Ø 16  mm","options":["Ø 16  mm"],"price":6662,"weight":800,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461088429","featured_media":{"alt":"RUWI Waagrechtspanner mit Klemmbolzen, Nahaufnahme","id":64712210743676,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1088,"width":1632,"src":"\/\/ruwi.de\/cdn\/shop\/files\/waagrechtspanner-mit-klemmbolzen-217755_Bearbeitet.png?v=1747597645"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

The RUWI horizontal toggle clamp presses your workpiece horizontally against a stop or a second workpiece on the welding table —the lateral counterpart to the vertical toggle clamp. Using the clamping bolt , you can clamp it in any position on the hole grid; with a length of 253 mm, it can reach even the innermost clamping points. When ordering, select the bolt that matches the grid: Ø 16 or Ø 28 mm.

The infinitely variable adjustment of up to 35 mm accommodates varying spans without requiring you to readjust the setup. When opening, the clamp automatically retracts 13 mm and releases the workpiece—the changeover is quick, especially during production runs.

Here's how to use it

Securing assemblies for tack welding: two profiles pressed against each other or against a stop—the joint is gap-free before the first spot is set.
Batch processing: Open the lever, reset by 13 mm, change the part, close the lever—the setting remains the same; only the workpiece changes.
Clamping varying profiles: The 35-mm shims accommodate different component dimensions without having to reposition the bolt.
Secure it on all sides: the horizontal toggle clamp applies pressure from the side, the vertical toggle clamp holds it from above, and the eccentric clamps it in time with the cycle—the workpiece remains in place for the entire seam.

Does this go with your welding table?

The Ø 28 mm version fits into the hole grid of the RUWI welding tables (material thickness of 4 mm or more—the phosphated RUWI welding table tops meet this requirement); the Ø 16 mm version fits into tables with a 16 mm grid. Compatible tables include the mobile welding table lifting table and the stationary welding table leg table.

From above, the vertical toggle clamp, and the lever quickly tightens the eccentric clamp; the RUWI welding tables.

All the details

Dimensions
Length: 253 mm
net weight : approx. 500 g

Function
stroke compensation : max. 35 mm
Reset: automatic, 13 mm

Clamping system
clamping bolt : Ø 28 mm or Ø 16 mm depending on model
hole grid : Ø 28 mm or Ø 16 mm depending on model (material thickness min. 4 mm)

★★★★★
