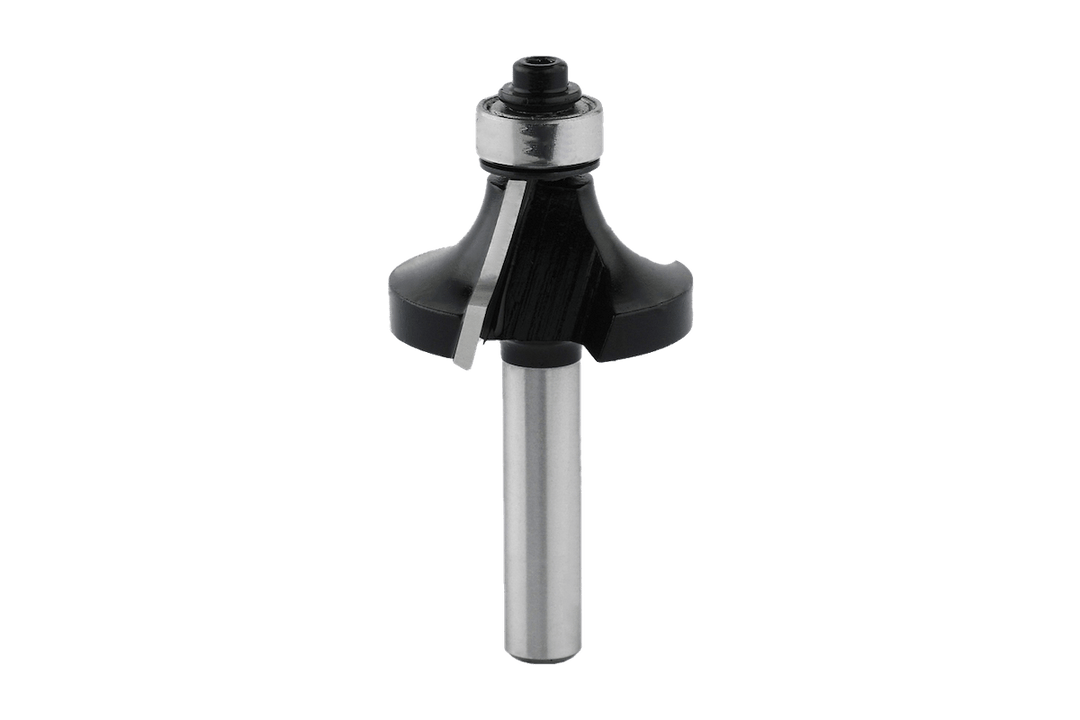

R10 rounding cutter with guide bearing

Brief description

The R10 rounding cutter rounds off wood edges with a 10-mm radius—a large radius for deeply rounded, easy-to-grip edges. The ball bearing (Ø 12.7 mm) on the cutter head runs along the edge of the workpiece and guides the cutter even along curved contours for which no stop fits. This allows you to round off straight edges as well as curved tabletops, handle strips, or handrails.

The cutter is double-edged and carbide-tipped (HW), right-hand cutting, with an outer diameter of 33 mm and a working length of 16 mm. Its 8 mm shank fits in hand routers, bench routers, and the RUWI router table (8 mm collet) as well as on CNC machines. It cuts softwood, hardwood, and laminated panels. If the ball bearing wears out, you can replace it—instead of replacing the entire router bit.

With this diameter and radius, the router bit should be used on a router table—at a reduced speed, which is safer and smoother than freehand routing. You can find more router bits in the RUWI router bit selection, and the matching tables in the RUWI router table selection.

Possible applications

• Rounding edges with a 10-mm radius – on straight and curved workpieces
• Milling curved contours without a stop—the guide bearing follows the edge
• Rounded edges on tabletops, handle strips, stair treads, and handrails
• Double-edged carbide end mill, right-hand cut, outer diameter 33 mm, effective length 16 mm
• Shaft Ø 8 mm for hand-held router, RUWI router table, and CNC
• For softwood, hardwood, and laminated panels
• Replaceable thrust ball bearing (12.7 mm diameter)

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

- Profile & cutting
- Rounding radius R10
- Double-edged (Z2)

- Dimensions & design
- Shank Ø 8 mm | Shank length: 32 mm
- Useful/working length: 16 mm | Total length: 63 mm
- Outer diameter: Ø 33 mm
- Weight: approx. 55 g

- Bearing & rotation
- Ball bearing Ø 12.7 mm
- Clockwise rotation

- Material & service life
- Carbide (HW)

- Application & compatibility
- Suitable for softwood, hardwood and coated boards
- Can be used in RUWI router tables, manual routers, router tables and CNC machines
