RUWI lifting table Clamping System Package

Brief description

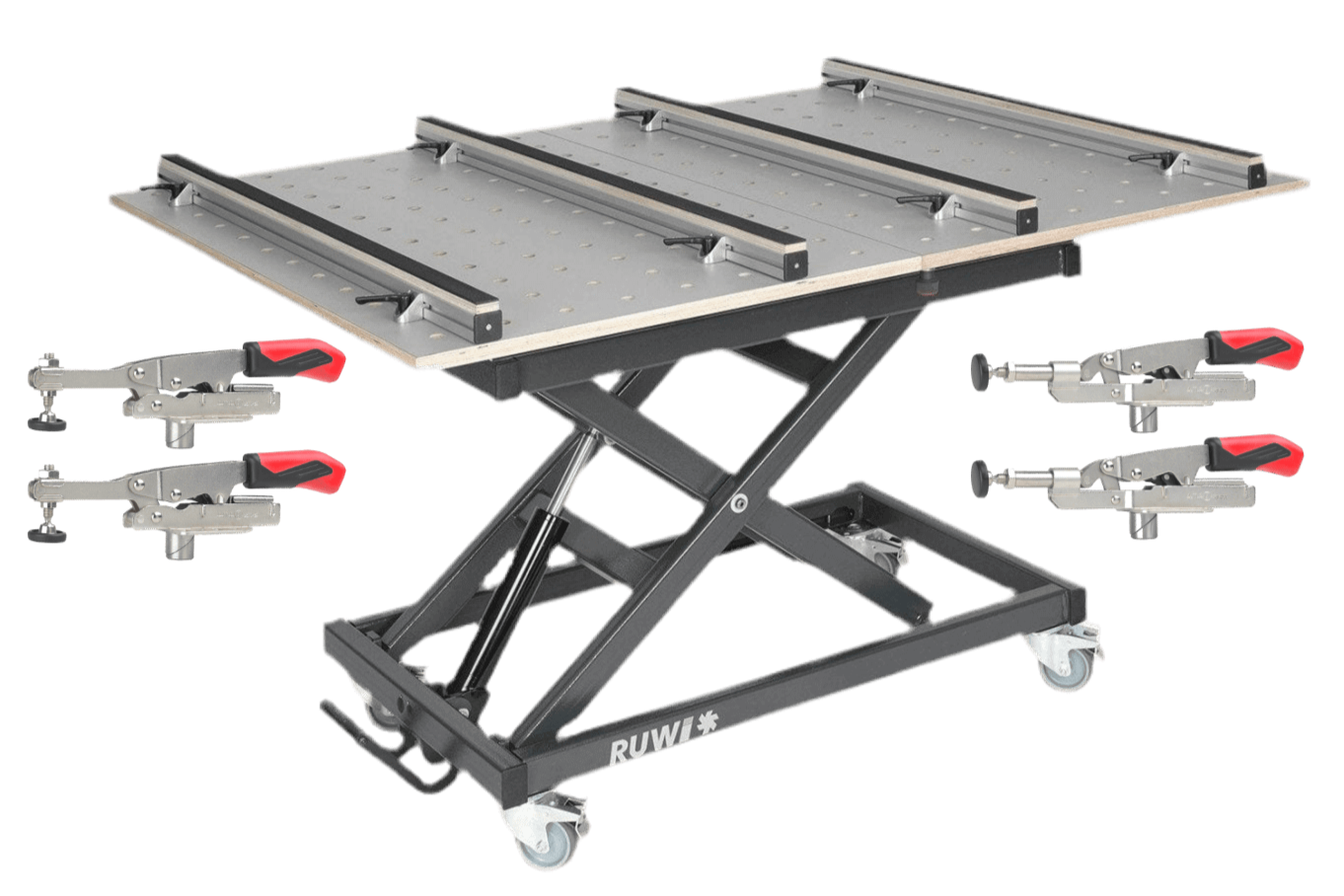

The clamping system package is the RUWI lifting table , which comes fully equipped with a clamping system right out of the box. You get the swiveling hole grid with a drawer and storage space, plus four support rails four clamps—so you can secure workpieces from day one without having to assemble the clamping system piece by piece.

Place the four support rails non-slip coating over the 192 holes (Ø 20 mm) in the plate to create a secure support for large boards and panels. Two vertical toggle clamp two horizontal toggle clamp each with clamping bolt 20 mm)—secure the workpiece from above and from the side. Eight clamping brackets hold the rails and stops in any desired position.

The base is thelifting table: a multiplex perforated panel coated with HPL on both sides (1,200 × 800 mm, expands to 1,600 × 1,200 mm when unfolded), height-adjustable hydraulically height-adjustable continuously 570 to 1,170 mm height-adjustable using a foot pump manufactured in Germany height-adjustable can support loads of up to 300 kg. Four lockablecastors Ø 100 mm) make it mobile, and a drawer under the panel keeps tools within easy reach.

The package comes with the base frame self-assembly—so it arrives in a compact, easy-to-ship package. If you don’t need the clamping system right away, the RUWI lifting table is also available separately. You can find an overview of all models under RUWI , and individual clamps and rails under lifting table.

Applications

• Clamp workpieces vertically and horizontally on the perforated grid plate.
• Place large boards and panels support rails on the four support rails
• Adjust working height the foot pump to suit the task—whether sitting or standing

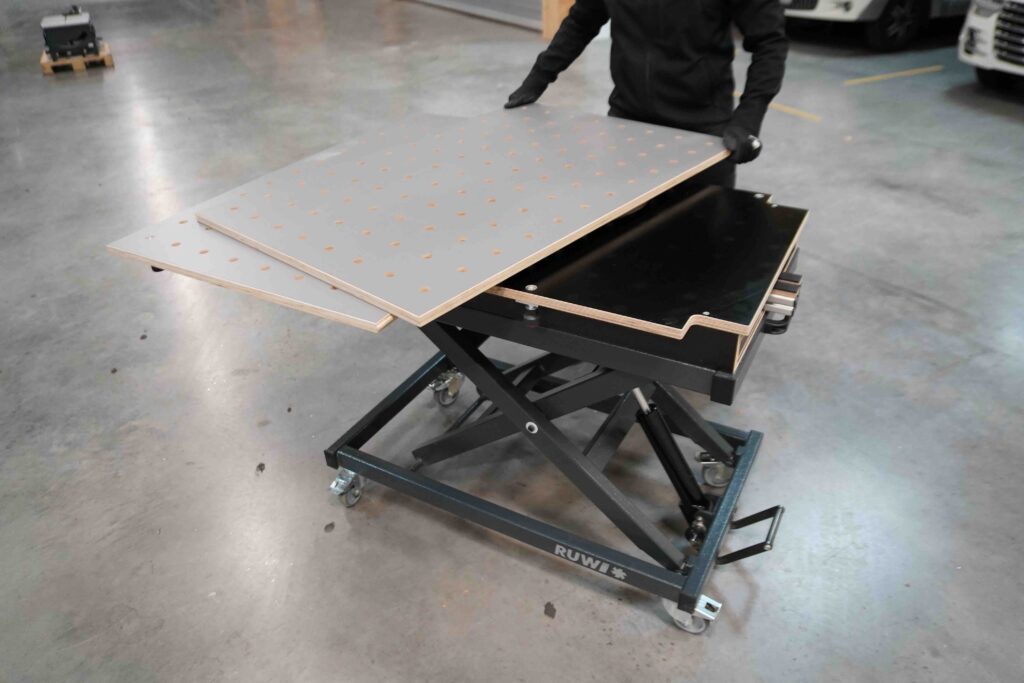

• Unfold the work surface from 1,200 × 800 mm to 1,600 × 1,200 mm

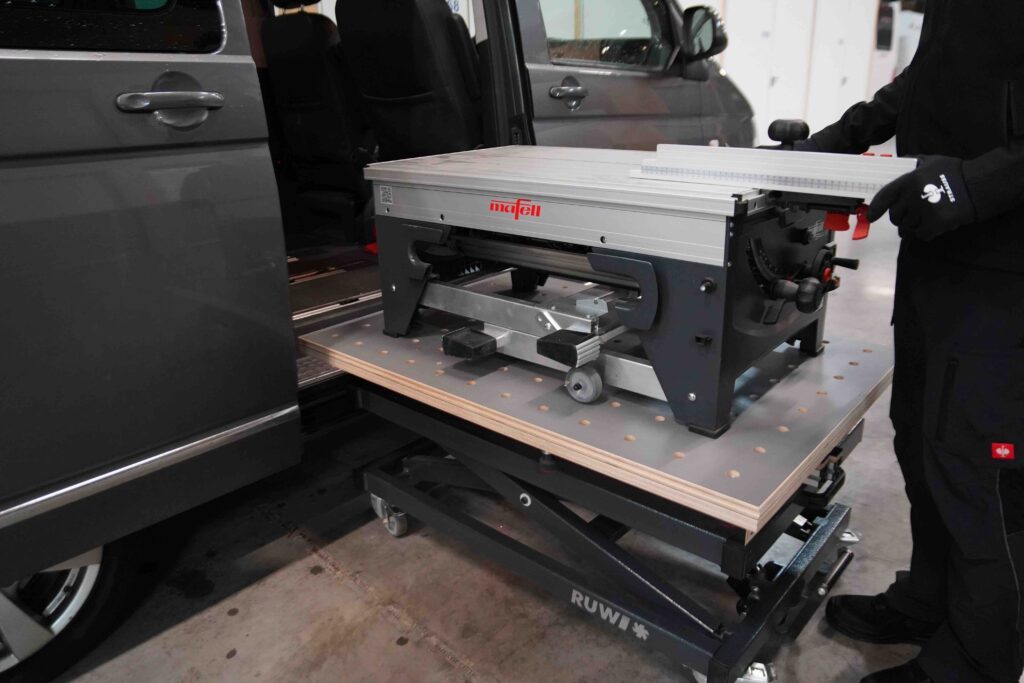

• Move it around the workshop and lock it securely in place.
• Keep tools and small parts handy in the drawer under the plate.

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Function and load capacity
- Scissor lift and assembly table, load capacity up to 300 kg

• Work surface and extension
- 1,200 × 800 mm, extendable to 1,600 × 1,200 mm
- Perforated multiplex panel, HPL-coated on both sides, 192 chamfered holes, Ø 20 mm

• Ergonomics and height adjustment
- Hydraulic, continuously 570 to 1,170 mm via foot pump

• Mobility and Storage Space
- 4 lockablecastors 100 mm
- Drawer under the work surface

• Weight and Origin
- net weight . 125 kg
- Manufactured in Germany
