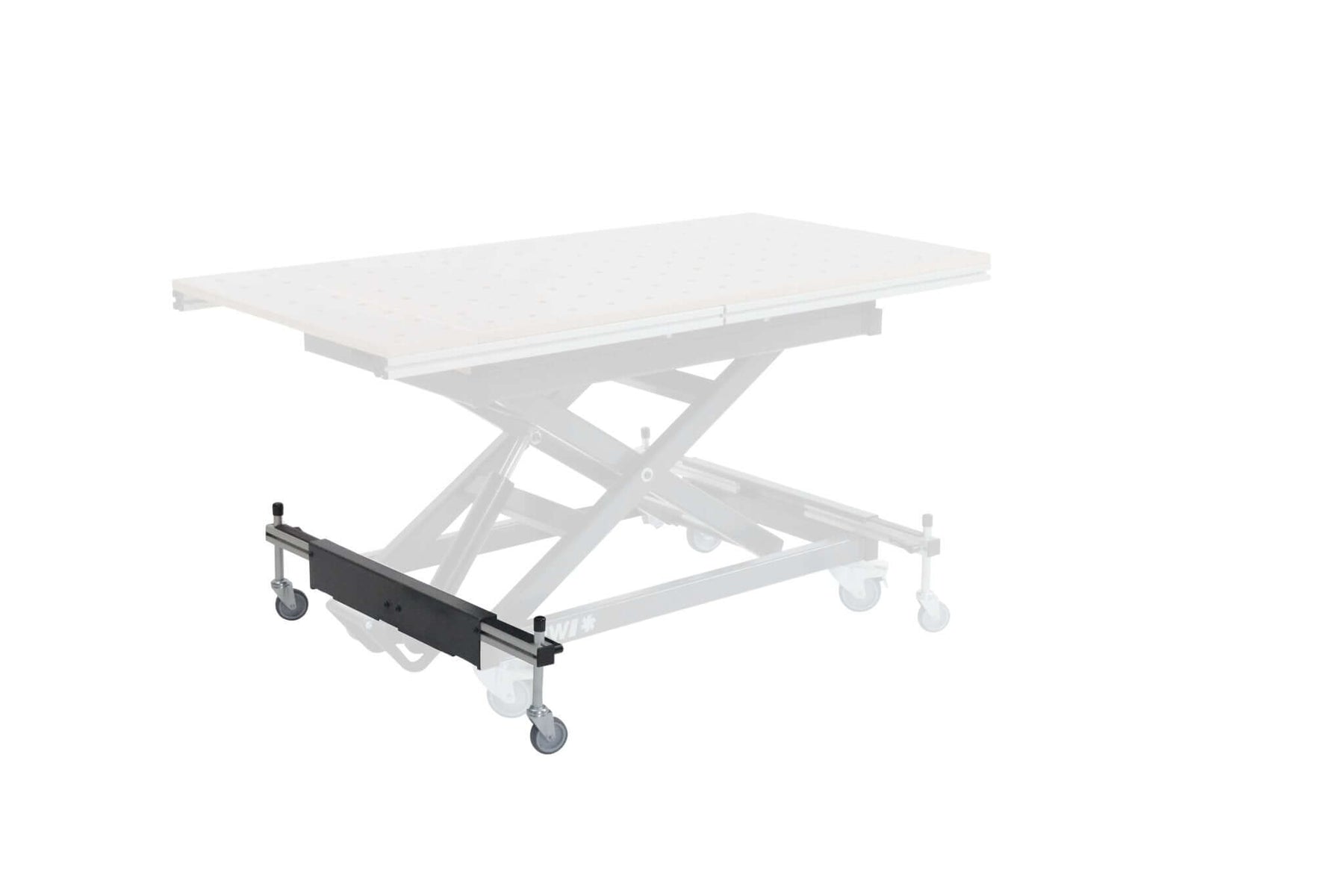

RUWI lifting table with support slide installed, rendered image showing the unit in its open position

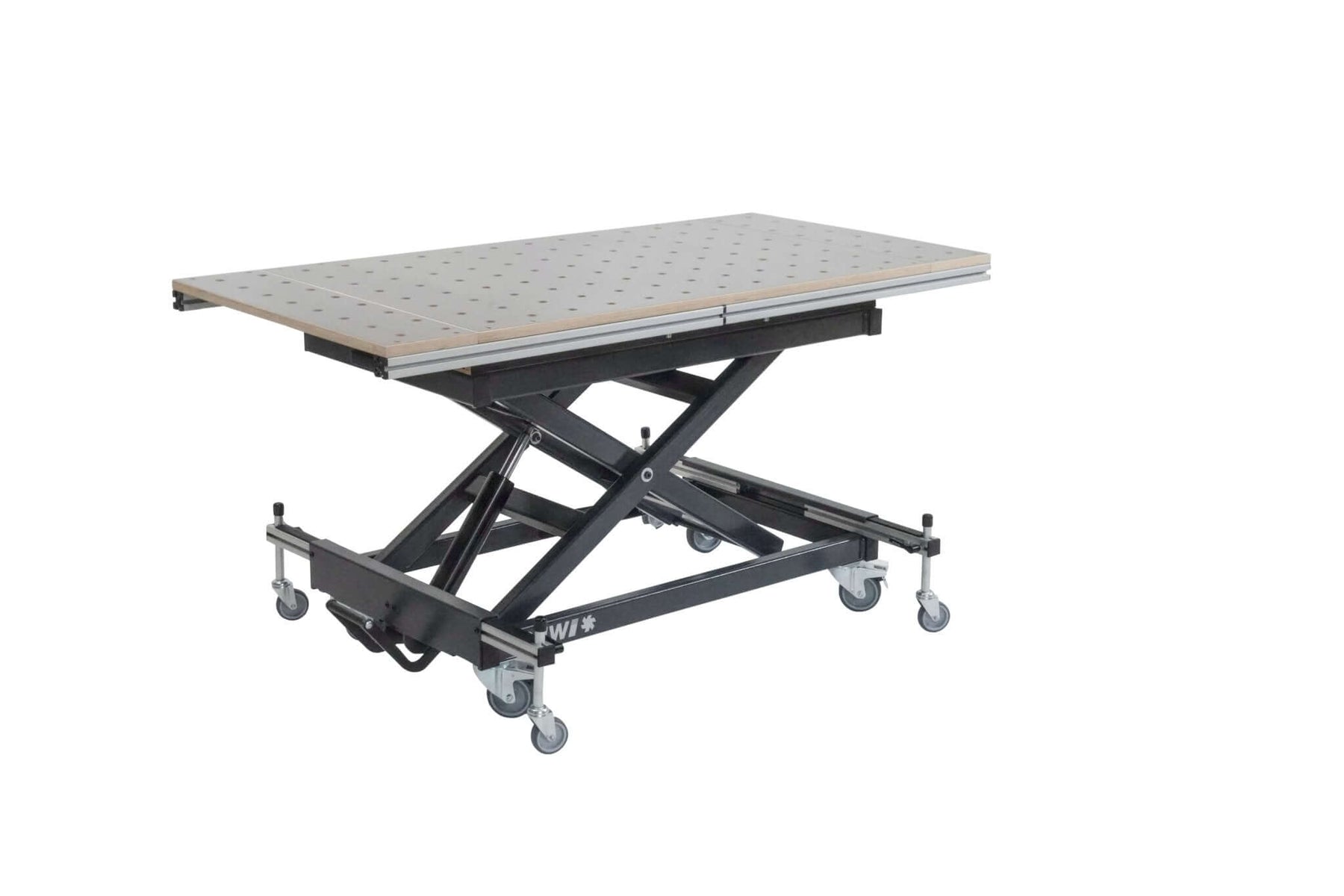

RUWI lifting table with support slide; side view with slide rails retracted

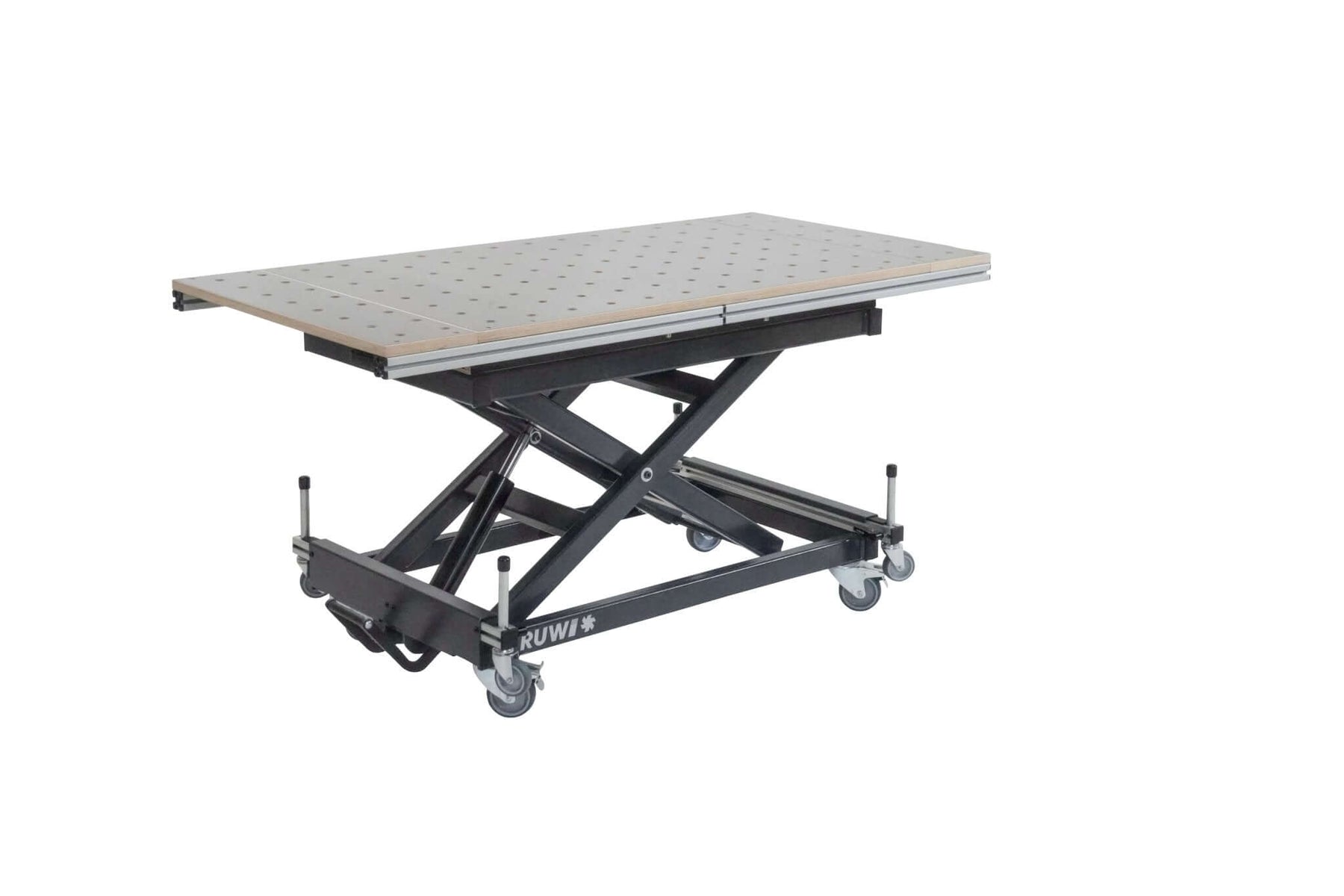

RUWI lifting table with support extension, rails that extend on both sides with support rollers
RUWI lifting table with support extension, rails extended as seen from a different angle

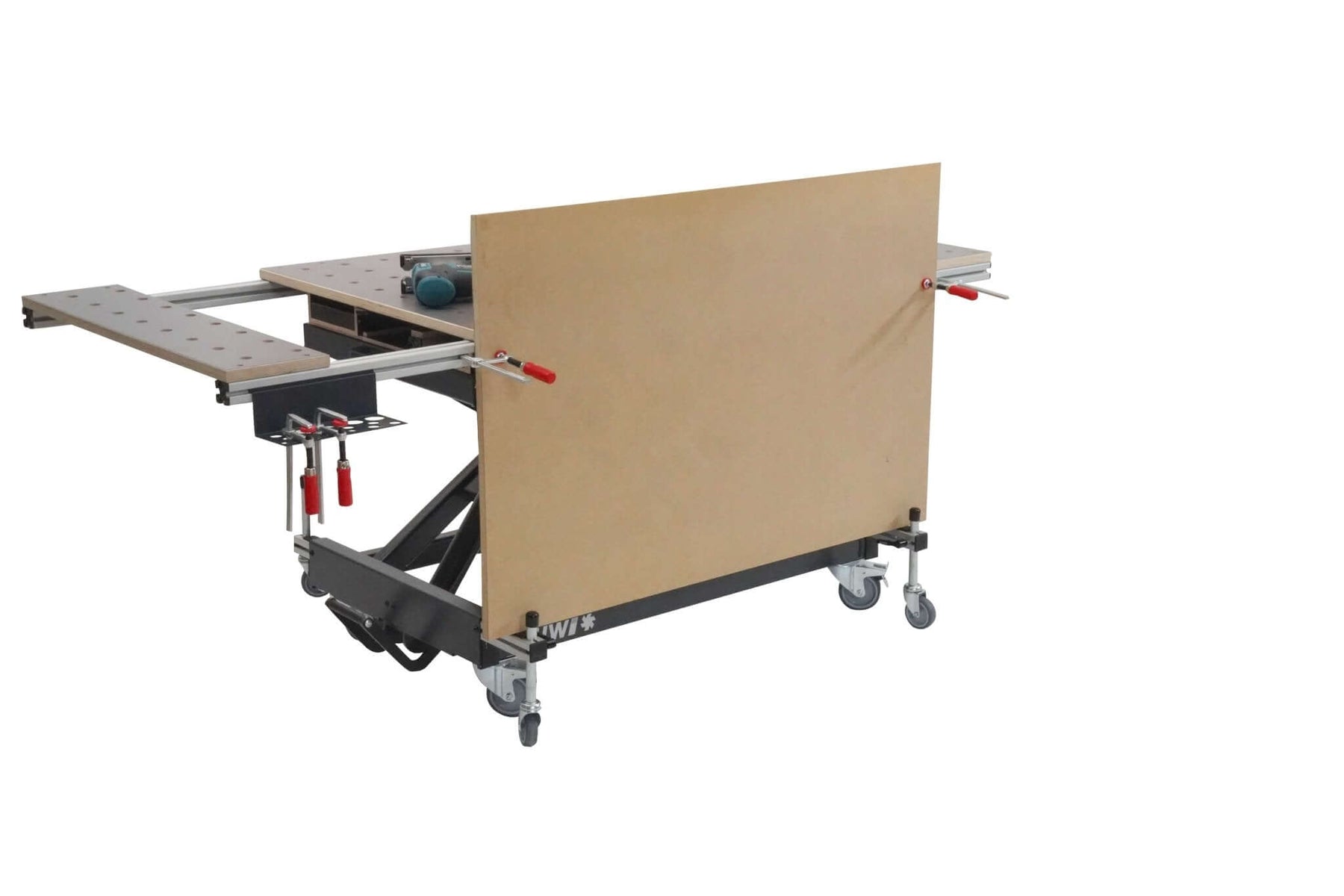

RUWI lifting table with support extension, large panel clamped vertically and supported by support rollers

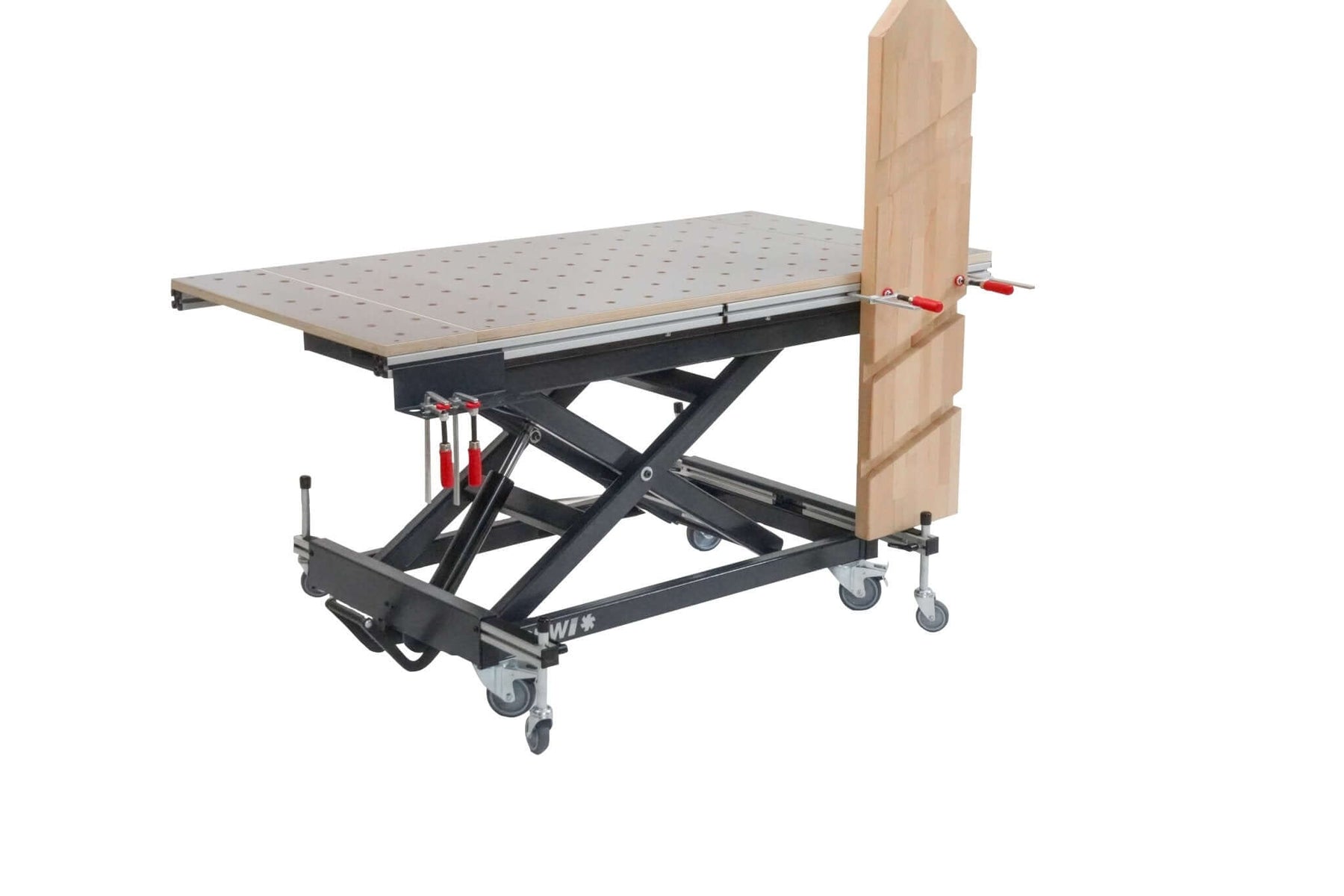

RUWI lifting table with support extension, overall view showing a panel mounted vertically along the edge of the table

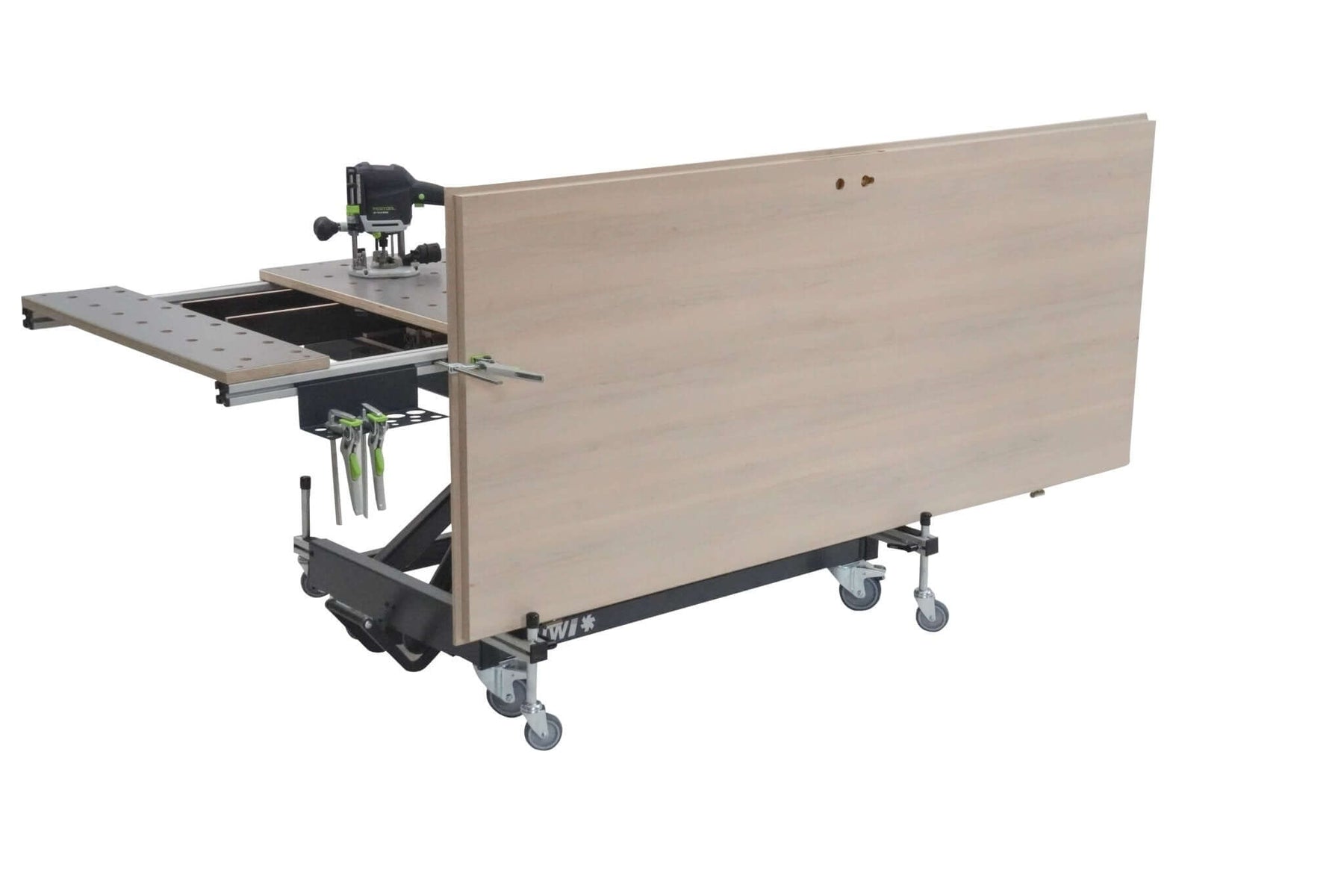

RUWI lifting table with support slide; large furniture panel secured to the guide rail using a router

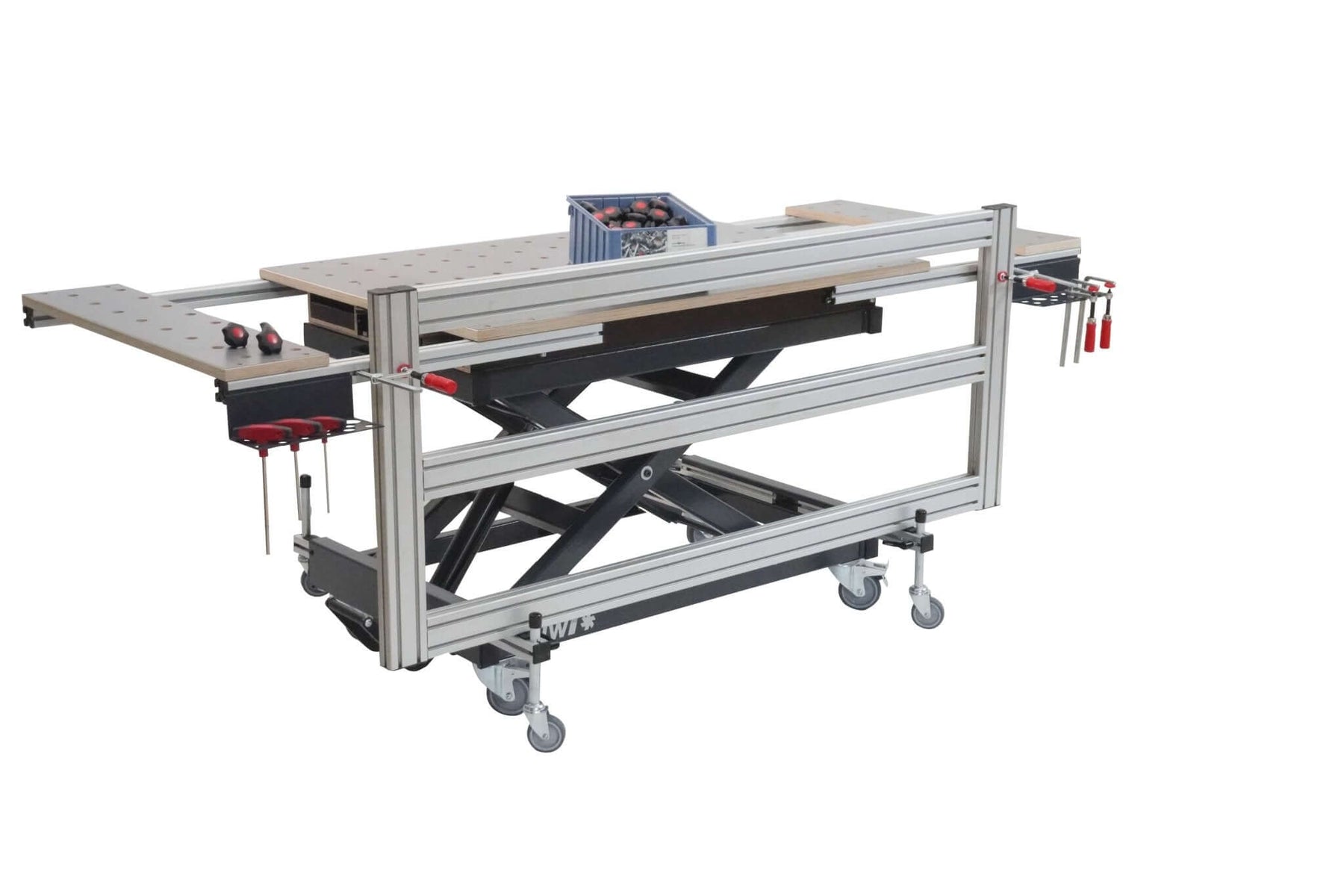

RUWI lifting table with a support slide in an aluminum frame, wooden board resting on the extended rail
RUWI lifting table with support slide installed, rendered image showing the unit in its open position
RUWI lifting table with support slide; side view with slide rails retracted
RUWI lifting table with support extension, rails that extend on both sides with support rollers
RUWI lifting table with support extension, rails extended as seen from a different angle
RUWI lifting table with support extension, large panel clamped vertically and supported by support rollers
RUWI lifting table with support extension, overall view showing a panel mounted vertically along the edge of the table
RUWI lifting table with support slide; large furniture panel secured to the guide rail using a router
RUWI lifting table with a support slide in an aluminum frame, wooden board resting on the extended rail

Support Slider for RUWI ,lifting table , 300

RUWI21075

€156,58
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €156.58 gross
Calculate using your tax rate →Is it right for your job? The configurator will check →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 1,060 × 155 × 80 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The support extension adds a retractable support to the RUWI lifting table 300 for long and large workpieces. When needed, simply pull out the two rails and lower the support rollers—a workpiece clamped to the side of the table and extending beyond the edge will then rest securely, rather than sagging or touching the floor. This protects it from pressure marks and dirt and provides the setup with additional stability.

The two pull-out rails are equipped with support rollers (Ø 75 mm) mounted on double-bearing ball swivel rings—each roller supports up to 75 kg. The guide rail is made of powder-coated sheet steel, while the pull-out is made of anodized aluminum with a rubber lining that protects the workpiece. When the support isn’t needed, you can slide the rails back in to save space.

Here's how to use it

  • Machining the sides of doors and panels: The workpiece, clamped vertically in the clamping profile, rests with its bottom edge on the rubber rollers—the edge stays clean, and it doesn’t touch the floor.
  • Guiding long workpieces during milling and sawing: the rollers on the swivel ring rotate in the direction of feed—the workpiece glides rather than scrapes.
  • Supporting heavy overhangs: Two rollers, each rated at 75 kg, can support even massive planks and frames—the weight no longer pulls on the clamp.
  • Extend only when needed: Pull out the rails, lower the casters, work—then slide it back in, and the table retains its dimensions.

Does this go with your lifting table?

The support slide is designed for theRUWI lifting tables models in the 300 series —Basic, Classic, and Premium—on the base frame 300. One important limitation: It does not fit the 300 XL and 400 XL Akku models—their base frames have a different design. You can secure workpieces on the sides over the clamping profiles using clamps such as the Bessey GTR 160/60.

Downloads

All the details

Material and slide
Guide: powder-coated sheet steel
Slides: anodized aluminum, rails with rubber pads

Rollers
Support rollers: Ø 75 mm, load capacity 75 kg per roller

Insert
Application: Support for large, laterally clamped workpieces

Compatibility
Compatible models: RUWI lifting table 300 (not compatible with 300 XL and 400 XL cordless models)

★★★★★
