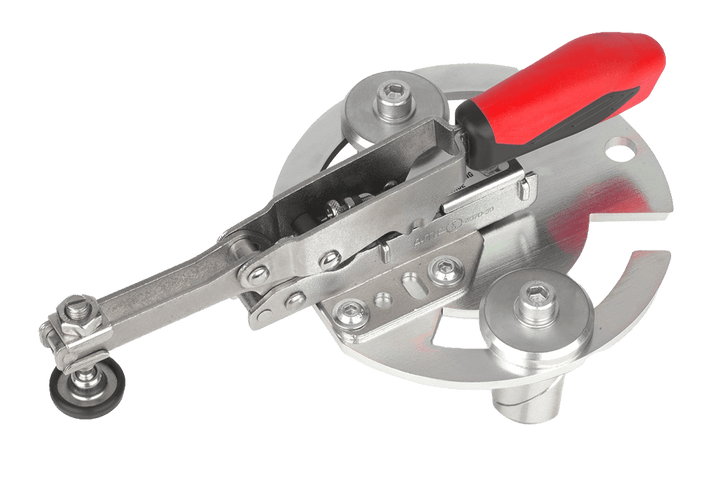

RUWI vertical toggle clamp with a round " adapter plate " and " clamping bolt " (Ø 20 mm), cutout at an angle from the front

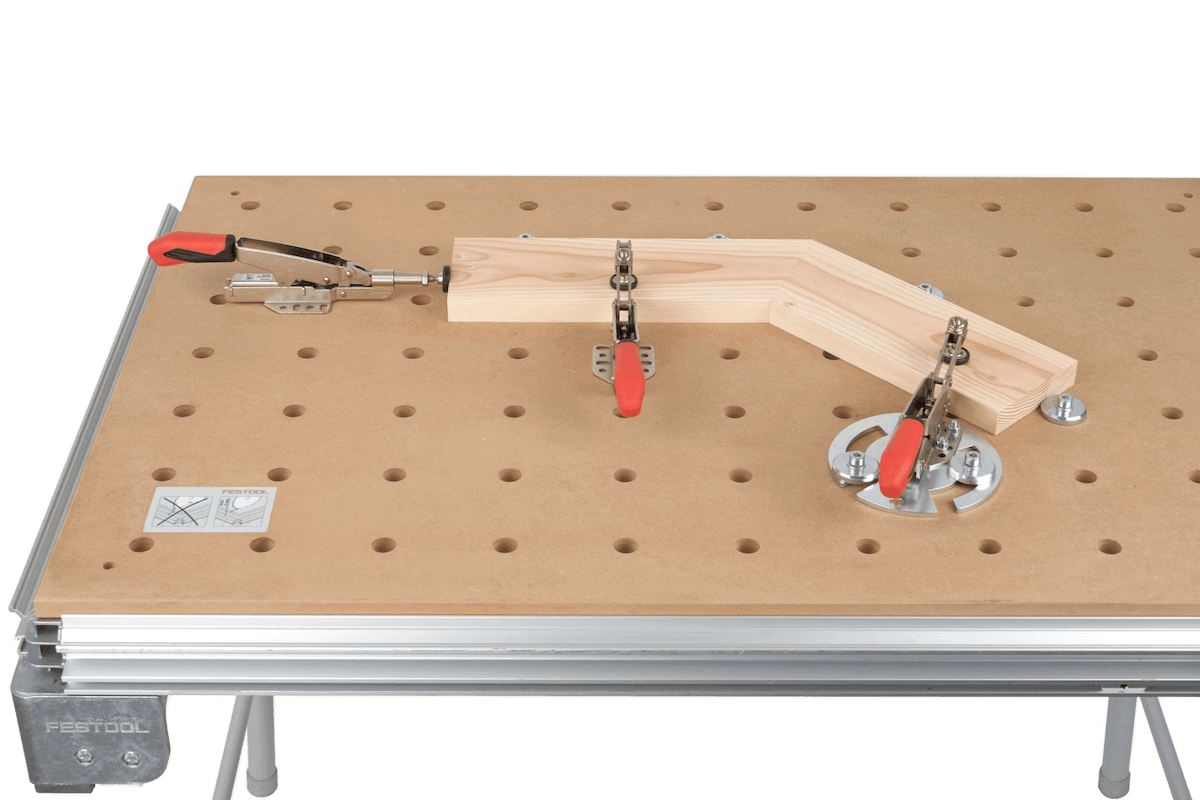

RUWI vertical toggle clamp Used with a round adapter plate and clamping bolt (Ø 20 mm), it holds a curved workpiece in place on the perforated grid plate
vertical toggle clamp with round adapter plate and clamping bolt , Ø 20 mm

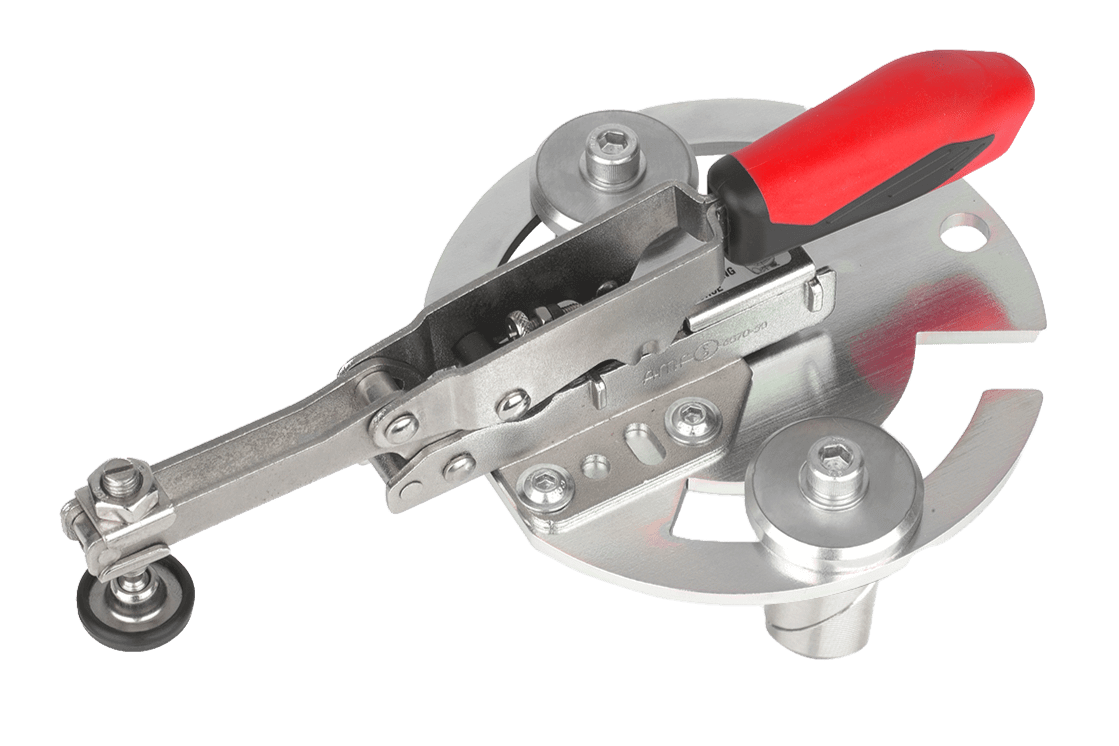

RUWI vertical toggle clamp with a round " adapter plate " and " clamping bolt " (Ø 20 mm), cutout at an angle from the front

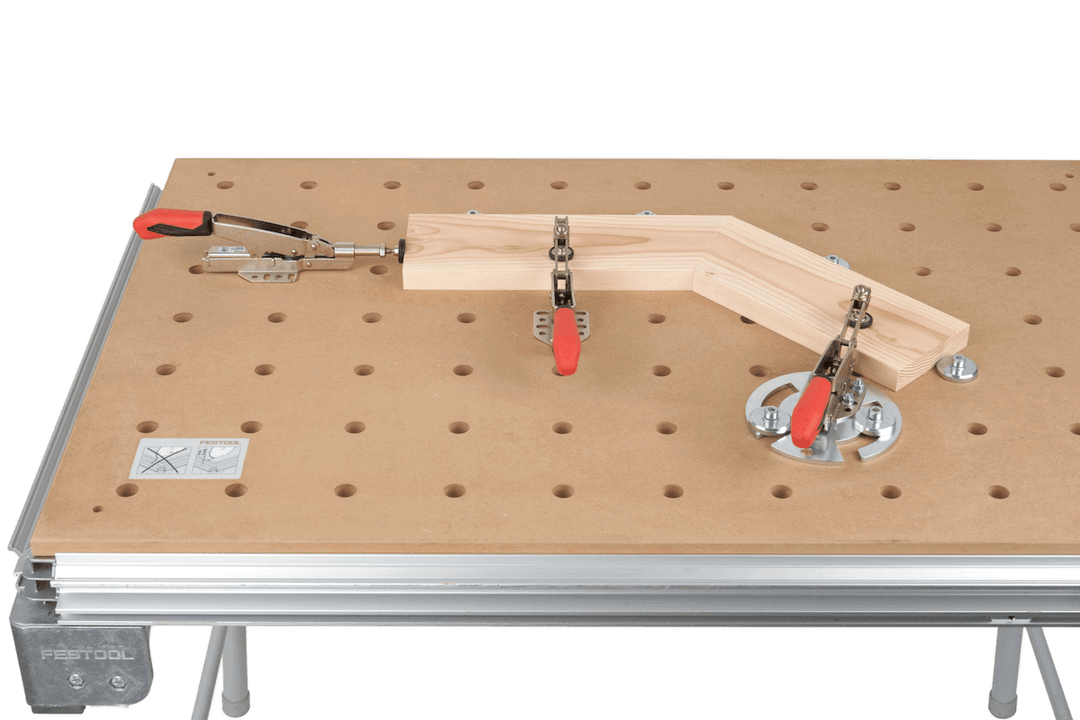

RUWI vertical toggle clamp Used with a round adapter plate and clamping bolt (Ø 20 mm), it holds a curved workpiece in place on the perforated grid plate
vertical toggle clamp with round adapter plate and clamping bolt , Ø 20 mm

vertical toggle clamp with round adapter plate and clamping bolt , Ø 20 mm

RUWI21154

€144,63
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €144.63 gross
Calculate using your tax rate →Which clamp holds your workpiece? Go to the finder →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

Which clamp holds your workpiece in place?

The Clamp Finder guides you from the workpiece to the right clamp.

Launch Finder →

The RUWI vertical toggle clamp with adapter plate secures your workpiece from above—the anti-rotation version for the 20-mmhole grid. The round adapter plate (Ø 140 mm) anchors to the grid using two stainless steelclamping bolt (Ø 20 mm, SW 6 Allen screw): Two anchor points hold the clamp in position, even when lateral forces act on the arm. Using the plate’s elongated hole, you can freely position the pressure point between the grid holes.

The stroke compensation can accommodate material thicknesses up to 40 mm, 35 mm of which are clamped automatically without readjustment. With a length of 244 mm, the clamp easily spans panels, frames, and individual parts; for particularly thick components, place the 50 × 50 adapter block underneath to increase the clamping height.

Here's how to use it

  • Hold the workpiece down while milling and drilling: the workpiece is securely held in place, and both hands remain on the machine and the guide—the two-point grip holds firm even if the workpiece pulls on your arm.
  • Set the pressure point freely: the long slot allows the clamp continuously to slide between two grid holes—the pressure is applied directly to the glue joint or drill hole, not next to it.
  • Batches without readjustment: the 35 mm automatic stroke compensation accommodate varying material thicknesses—open the lever, change the part, close the lever.
  • Clamping thick components: Placing an adapter block underneath increases the clamping height—beams and structures stay securely in place.

Does this go with your table?

The two clamping bolt fit into any 20-mmhole grid —including any RUWI lifting table , Festool MFT, Sauter Variobench, and homemade setups. The horizontal toggle clamp applies lateral pressure via adapter plate; if a single anchor point is sufficient, the vertical toggle clamp with a clamping bolt is the more compact solution. The positioning angle.

All the details

Dimensions and Function
Length: 244 mm
Weight: 1.2 kg
Height adjustment: up to 40 mm, automatic 35 mm
adapter plate : round, Ø 140 mm, with slotted hole

Clamping system
hole grid : Ø 20 mm
clamping bolt : stainless steel, Ø 20 mm, with Allen screw

★★★★★
